| Main Processor | Embedded Processor |
|---|
| 網絡協議 | IPv4, RTSP, RTP, TCP, UDP, P2P, SIP |
|---|
| OSDP Protocol | Yes |
|---|
| Interoperability | ONVIF; CGI |
|---|
| SDK and API | Support SDK Basic |
|---|
| Display Screen | 7-inch display screen |
|---|
| Screen Type | Capacitive screen |
|---|
| 解像度 | 600 (H) × 1024 (V) |
|---|
| Camera | 1/2.8" 2MP CMOS high definition WDR dual camera Card/Remote/Password/Face/QR code unlock and |
|---|
| WDR | 120 dB Unlock Mode unlock through their combinations Face unlock under temperature monitoring mode Auto white light Light Compensation |
|---|
| Auto IR light | Card Type IC card 1 indicator light. Red: Error; Green: Normal; Blue: |
|---|
| Status Indicator | Period List 128 Working |
|---|
| Voice Prompt | Yes Holiday Period 128 |
|---|
| Casing | Aluminium alloy/tempered glass/PC First-Card Unlock Yes www.dahuasecurity.com |
|---|
| Remote Verification | Yes Intrusion Yes |
|---|
| Peripheral Card Reader | 1 RS-485, 1 Wiegand Illegal Card Exceeding Yes Threshold |
|---|
| Multiple Authentication | Yes |
|---|
| Real-Time Surveillance | Yes |
|---|
| Power Adapter | Included |
|---|
| Web Configuration | Yes |
|---|
| 供電 | 12V 2A DC |
|---|
| Performance | Power Consumption ≤ 24W |
|---|
| Card Reading Distance | 3 cm 302.6 mm × 129.0 mm × 32.0 mm (11.91" × 5.08" Product Dimensions × 1.26") Face-camera distance: 0.3 m–2.0 m Face Recognition Distance |
|---|
| Human height: 0.9 m–2.4 m | Controller packaging: 380 mm × 235 mm × 124 mm (14.96" × 9.25" × 4.88") |
|---|
| Face Verification Accuracy | 99.5% Packaging Dimensions Protective case: 494 mm × 402 mm × 275 mm (19.45" × 15.83" × 10.83") |
|---|
| Face Recognition Time | 0.2 s |
|---|
| Temperature Monitoring Range | 30°C to 45°C Operating Temperature +10°C to +35°C (+50°F to +95°F) |
|---|
| Temperature Monitoring Error | ≤ 0.5°C |
|---|
| 工作濕度 | 0%RH–90%RH (non-condensing) Temperature Monitoring 0.3 m–1.8 m Distance |
|---|
| Operating Environment | Indoor 135 cm–185 cm (when temperature monitoring |
|---|
| distance is 0.5 m) | Gross Weight 2.2 kg (4.85 lb) Temperature Monitoring Height 120 cm–210 cm (when temperature monitoring |
|---|
| distance is 1.2 m) | Installation Wall mount |
|---|
| 容量 | Certifications CE/FCC |
|---|
| 用戶容量 | 100, 000 |
|---|
| Face Image Capacity | 100, 000 Ordering Information |
|---|
| 卡容量 | 100, 000 |
|---|
| 類型 | Model Description |
|---|
| Password Capacity | 100, 000 7-inch Face Recognition Access Face Recognition Access |
|---|
| DHI-ASI7213X-V1-T1 | Controller (indoor; QR code; |
|---|
| Record Capacity | 300, 000 records Controller temperature monitoring) Port |
|---|

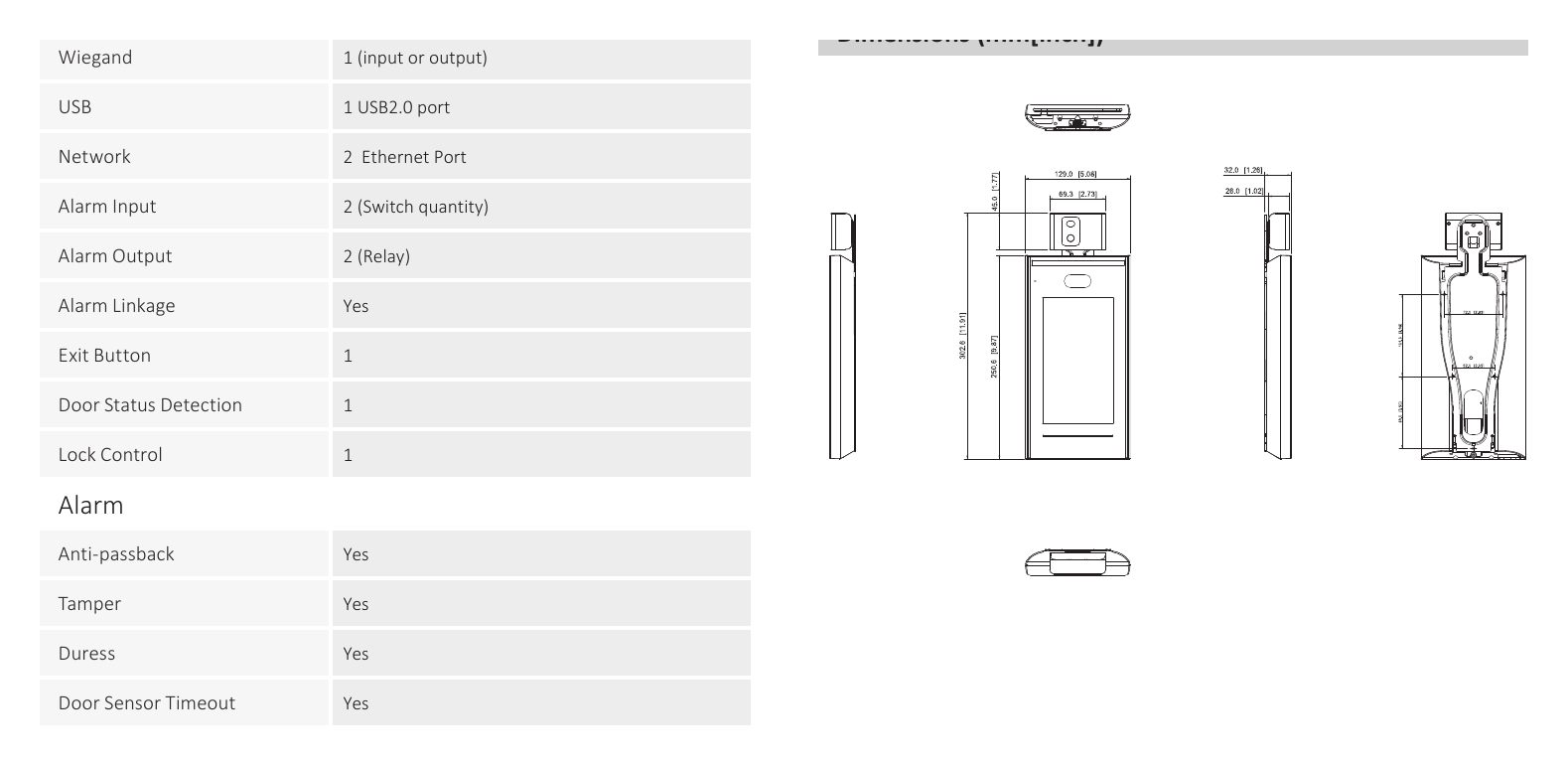

| RS-485 | 1 Dimensions (mm[inch]) |
|---|
| Wiegand | 1 (input or output) |
|---|
| USB | 1 USB2.0 port |
|---|
| Network | 2 Ethernet Port |
|---|
| 警報輸入 | 2 (Switch quantity) |
|---|
| 警報輸出 | 2 (Relay) |
|---|
| Alarm Linkage | Yes |
|---|
| 出門按鈕 | 1 |
|---|
| Door Status Detection | 1 |
|---|
| 鎖控 | 1 Alarm |
|---|
| Anti-passback | Yes |
|---|
| 防拆 | Yes |
|---|
| Duress | Yes |
|---|
| Door Sensor Timeout | Yes www.dahuasecurity.com Application |
|---|
| Rev 001.001 | © 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
