| System | HDCVI Camera Input 4/8/16 Channel |
|---|
| Main Processor | Embedded Processor IP Camera Input 4+2/8+4/16+8 Channel, each channel up to 5MP |
|---|
| 操作系統 | Embedded LINUX Audio In/Out 4/8/16 Channel input,1 Channel output, RCA |
|---|
| Display | Two-way Talk Reuse audio in(channel 1)/out, RCA |
|---|
| 接口 | 1 HDMI ,1 VGA Recording |
|---|
| 解像度 | 1920×1080, 1280×1024, 1280×720, 1024×768 Compression H.264+/H.264 4CH: 1/4/6 |
|---|
| Multi-screen Display | 8CH: 1/4/8/9/16 16CH: 1/4/8/9/16/25 Main stream: 1080P/720P/960H/D1/HD1/BCIF/CIF/ Camera title, Time, Video loss, Camera lock, Motion Record Rate QCIF (1~25/30fps) OSD |
|---|
| detection, Recording | Sub steram:D1/CIF/QCIF(1~25/30fps) |
|---|
| Video Detection and Alarm | Bit Rate 1Kbps ~ 6144Kbps Per Channel Recording, PTZ, Tour, Alarm Out, Video Push, Email, Manual, Schedule (Regular, Continuous), MD Trigger Events |
|---|
| FTP, Snapshot, Buzzer and Screen Tips | Record Mode (Video detection: Motion Detection, Video Loss, Motion Detection, MD Zones: 396 (22 × 18), Video Tampering), Alarm, Stop Video Detection Loss,Tampering and Diagnosis 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Record Interval Post-record: 10 ~ 300 sec |
|---|
| 警報輸入 | 4/8/16 |
|---|
| Relay Output | 3 4CH: 1 RJ-45 Port (100M) 8/16CH: 1 RJ-45 Port (1000M) Playback and Backup HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm 4CH: 1/4 Network Function Server, P2P,IP Search (Support Dahua IP camera, |
|---|
| Playback | 8CH: 1/4/9 DVR, NVS, etc.) 16CH: 1/4/9/16 |
|---|
| Max. User Access | 128 users Time /Date, Alarm, MD and Exact Search (accurate |
|---|
| Search Mode | Smart Phone iPhone, iPad, Android to second) Play, Pause, Stop, Rewind, Fast play, Slow Play, Next Interoperability ONVIF 2.42, CGI Conformant File, Previous File, Next Camera, Previous Camera, Playback Function Full Screen, Repeat, Shuffle, Backup Selection, |
|---|
| Digital Zoom | Electrical |
|---|
| 供電 | 4/8CH:DC12V/2A, 16CH:DC12V/3A |
|---|
| Backup Mode | USB Device/Network |
|---|
| 功耗 | <15W (Without HDD) Storage Environmental |
|---|
| Internal HDD | 1 SATA Port, up to 8TB capacity |
|---|
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH |
|---|
| eSATA | N/A |
|---|
| 儲存環境 | -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH |
|---|
| Auxiliary Interface | Construction 4CH:2 USB 2.0 |
|---|
| USB | Dimensions Mini 1U, 325mm×255mm×55mm (12.8" x 10" x 2.2") 8/16CH:1 USB 2.0 , 1 USB 3.0 |
|---|
| RS232 | N/A Net Weight 1.5kg (3.3 lb) (without HDD) |
|---|
| RS485 | 1 Port, for PTZ Control Gross Weight 2kg (4.4lb) |
|---|
| Third-party Support | Installation Desktop installation Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Certifications Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Third-party Support Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, FCC: Part 15 Subpart B ICES 003 Issue 6 and more CE: EN 55032: 2012+AC:2013 (Class B) |
|---|
| Certifications | EN 55024 : 2010 EN 61000-3-2 : 2014 EN 50130-4: 2011 EN 61000-3-3 : 2013 UL 60950-1 and CAN/CSA C22.2 No. 60950-1-07 www.dahuasecurity.com |
|---|
| Ordering Information | Rear Panel |
|---|
| 類型 | Part Number Description DHI-HCVR7104HE-S3 |
|---|
| DHI- | 4 Channel Tribrid 1080P Mini 1U Digital |
|---|
| HCVR7104HE-S3 | Video Recorder 4/8/16 |
|---|
| Channel | DHI- 8 Channel Tribrid 1080P Mini 1U Digital |
|---|
| HCVR | HCVR7108HE-S3 Video Recorder DHI-HCVR7108HE-S3 |
|---|

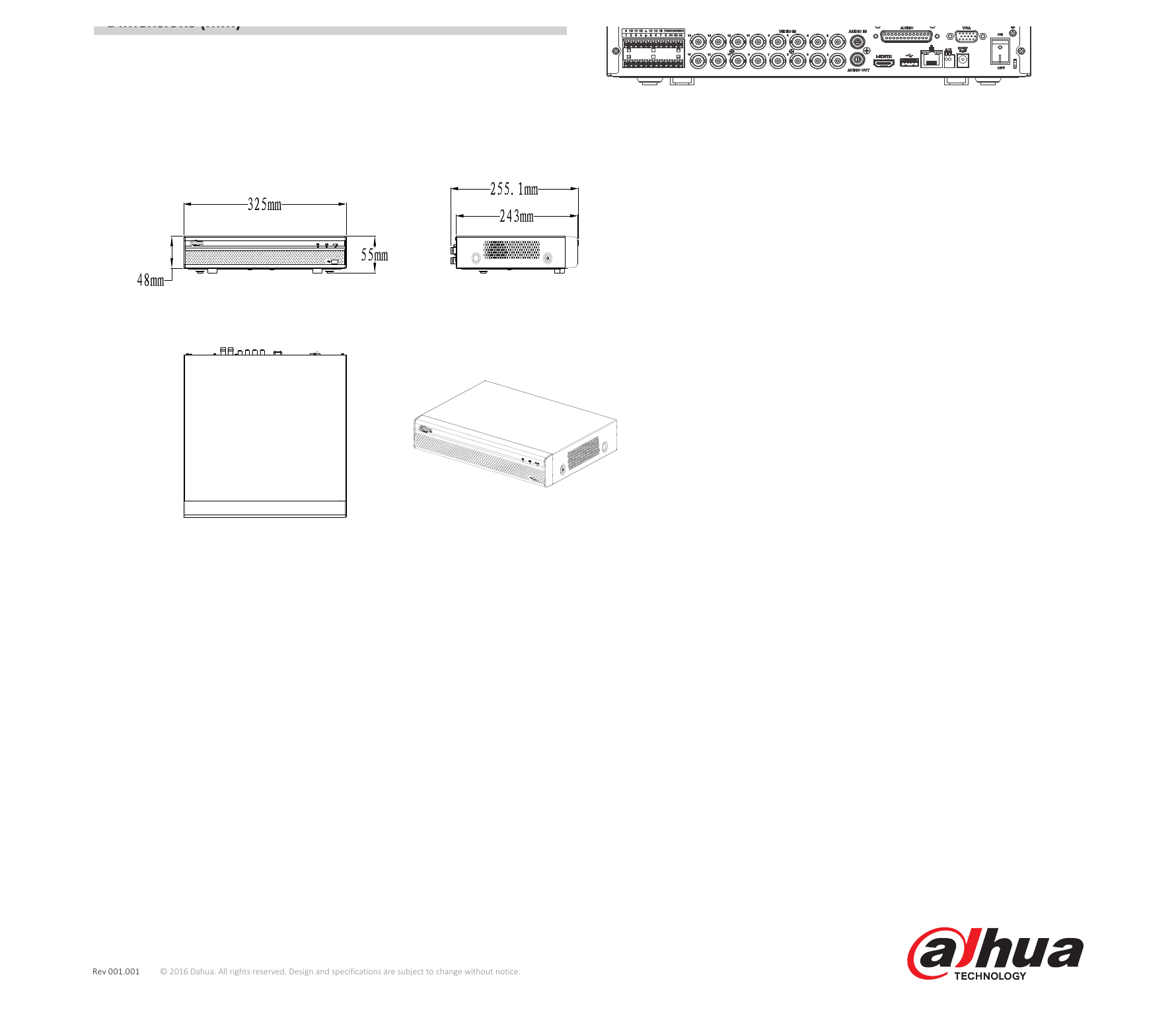

| HCVR7116HE-S3 | Video Recorder DHI-HCVR7116HE-S3 Dimensions (mm) |
|---|
| Rev 001.001 | © 2016 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
