| DHI-VTO2202F-P-S2 | · Supports daisy chain topology 2-wire Switch · Supports 10-level cascade through the 2-wire port |
|---|
| Main Processor | Embedded processor · Supports connecting to 20 devices |
|---|
| 操作系統 | Embedded Linux Operation System · Supports connecting through RJ45 port · Supports guide rail mount |
|---|
| Button Type | Mechanical |
|---|
| Interoperability | ONVIF; CGI SIP; P2P; IPv4; UPnP; SNMP; DNS; DDNS; RTSP; RTP; TCP; Network Protocol UDP Basic 1/2.5" 2MP CMOS Low Illumination HD Colorful Fisheye |
|---|
| Camera | IP65 |
|---|
| Field of View | Horizontal: 168.6°; vertical: 87.1; diagonal:176.7° |
|---|
| 焦距 | 1.9 mm Alarm Output 1 |
|---|
| WDR | 120 dB Power Output 1-ch 12 VDC 100mA |
|---|
| 出門按鈕 | 1 |
|---|
| Noise Reduction | 3D NR |
|---|
| Door Status Detection | 1 |
|---|
| 視頻壓縮 | H.265 |
|---|
| 鎖控 | 1 50Hz: Network Port One RJ45 10M/100M network port Main Stream (720P@25 fps), sub stream (1080P@25 fps) Video Resolution 60Hz: General Main Stream (720P@30 fps), sub stream (1080P@30 fps) |
|---|
| Appearance color | Silver |
|---|
| Port | Dahua 2-wire switch (max. power supply distance 50 m) |
|---|
| 供電 | DC 48V 1A |
|---|
| Electric Lock | 1 Standard PoE www.dahuasecurity.com |
|---|
| Power Adapter | Optional Port |
|---|
| 安裝 | Flush/surface mount RS-485 1 |
|---|
| Certifications | CE; FCC; UL Alarm Input 6 |
|---|
| Accessory | Flush mount Alarm Output 1 |
|---|

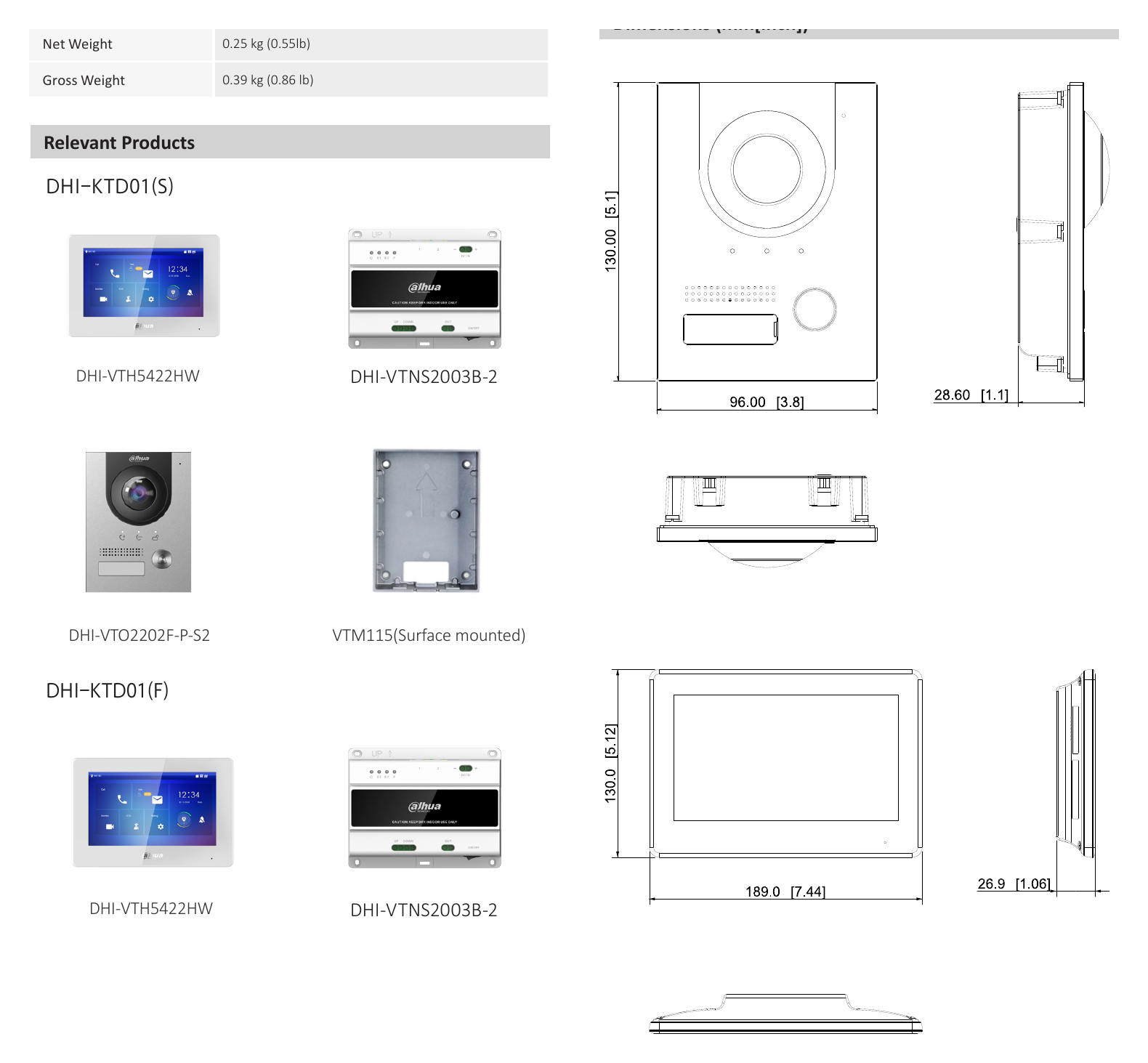

| Product Dimensions | 130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12") Power Output 1, 12V/100mA |
|---|
| 防護等級 | IK07; IP65 Door Bell Yes, reusing any alarm input port One 2-wire port; |
|---|
| 工作溫度 | –30°C to +60°C (–22°F to 140°F) |
|---|
| Network Port | One 10 Mbps/100 Mbps Ethernet port; Use one or the other |
|---|
| 工作濕度 | 10%–90% (RH, non-condensing) |
|---|
| Operating Altitude | 0 m–3000 m |
|---|
| Casing | PC + ABS |
|---|
| 功耗 | ≤ 12W |
|---|
| 淨重 | 0.35 kg (0.77 lb) Dahua 2-wire switch (max. power supply distance 50 m) Power Supply |
|---|
| 毛重 | 0.4 kg (0.88 lb) Standard PoE |
|---|
| DHI-VTH5422HW | Installation Surface mount |
|---|
| 網絡協議 | SIP; IPv4; RTSP; RTP; TCP; UDP |
|---|
| ROM | 128 MB |
|---|
| RAM | 128 MB |
|---|
| CPU | Dual-core 1.2 GHz |
|---|
| Screen Type | Capacitive DHI-VTNS2003B-2 |
|---|
| Display Screen | 7-inch TFT Basic |
|---|
| 解像度 | 1024 × 600 |
|---|
| Status Indicator Light | 4 |
|---|
| 音訊壓縮 | G.711a; G.711u; PCM |
|---|
| Communication Mode | 2-wire |
|---|
| 音訊輸入 | 1 |
|---|
| Cascade Ability | 10 |
|---|
| 音訊輸出 | Built-in speaker Port |
|---|
| Audio Mode | 2-way voice communication |
|---|
| port | Two 2-wire ports for cascade; |
|---|
| Audio Enhancement | Echo suppression |
|---|
| 音訊碼率 | 16 KHz, 16 Bit |
|---|
| Information Release | Casing PC + ABS insert an SD card to receive and view pictures) |
|---|
| Leave Videos | Yes (SD card inserted in VTH is needed) Appearance color White |
|---|
| Storage | Extensible 64 GB Micro SD card Power Supply DC 48V, 1A–3A www.dahuasecurity.com |
|---|
| VTM114 | VTM114 |
|---|
| Rev 001.001 | © 2021 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
