| Technical Specification | · Built-in power, low energy consumption, ultra-quiet · Modular structure design, multiple installation modes Model · Widely used in surveillance center, command center, 24h* 7 |
|---|
| Diagonal Size | 65"(16:9) DisplayPort |
|---|
| Panel Type | ADS General |
|---|
| 解像度 | 3840×2160 (UHD) Power Supply AC100V～AC240V, 50/60 Hz |
|---|
| Bezel Width | 2.3mm (T/L), 1.2mm (B/R) Power Consumption (Standby) <0.5W |
|---|
| Backlight | Direct LED Power Consumption (Typical) 130W |
|---|
| Brightness | 500 cd/m² Power Consumption (Max.) 215W |
|---|
| Energy Efficiency Class (EU) | G |
|---|
| Contrast Ratio | 1200:1 |
|---|
| 安裝方式 | Floor-standing, wall-mounted |
|---|
| Pixel Density | 68dpi |
|---|
| VESA | 600×400mm, M6 |
|---|
| Viewing Angle | H178°, V178° Infrared, RS232 dual mode, supporting remote |
|---|
| Response Time (G-to-G) | 8ms Control Mode control by computer |
|---|
| Color Depth | 8bit (16.7M) Gross Weight 44.2kg (97.4Ib) |
|---|
| Color Temperature | 10,000K Net Weight 40kg (88.2Ib) |
|---|
| Surface Treatment | Haze 25%, 3H Product Dimension (W×H×D) 1432.6mm×807.6mm×127.1mm (56.4"×31.8"×5.0") |
|---|
| MTBF | 50,000h Package Dimension (W×H×D) 1725mm×1048mm×295mm (67.9"×41.3"×11.6") |
|---|
| Signals | Temperature 0℃~+50℃ VGA(D-Sub)×1, DVI-D×1, HDMI×2, DP×1, RS232×1, Audio×1, Operating Environment |
|---|
| Input | 10%RH~80%RH (non- |
|---|
| OPS×1, IR×1 | Humidity condensing) |
|---|

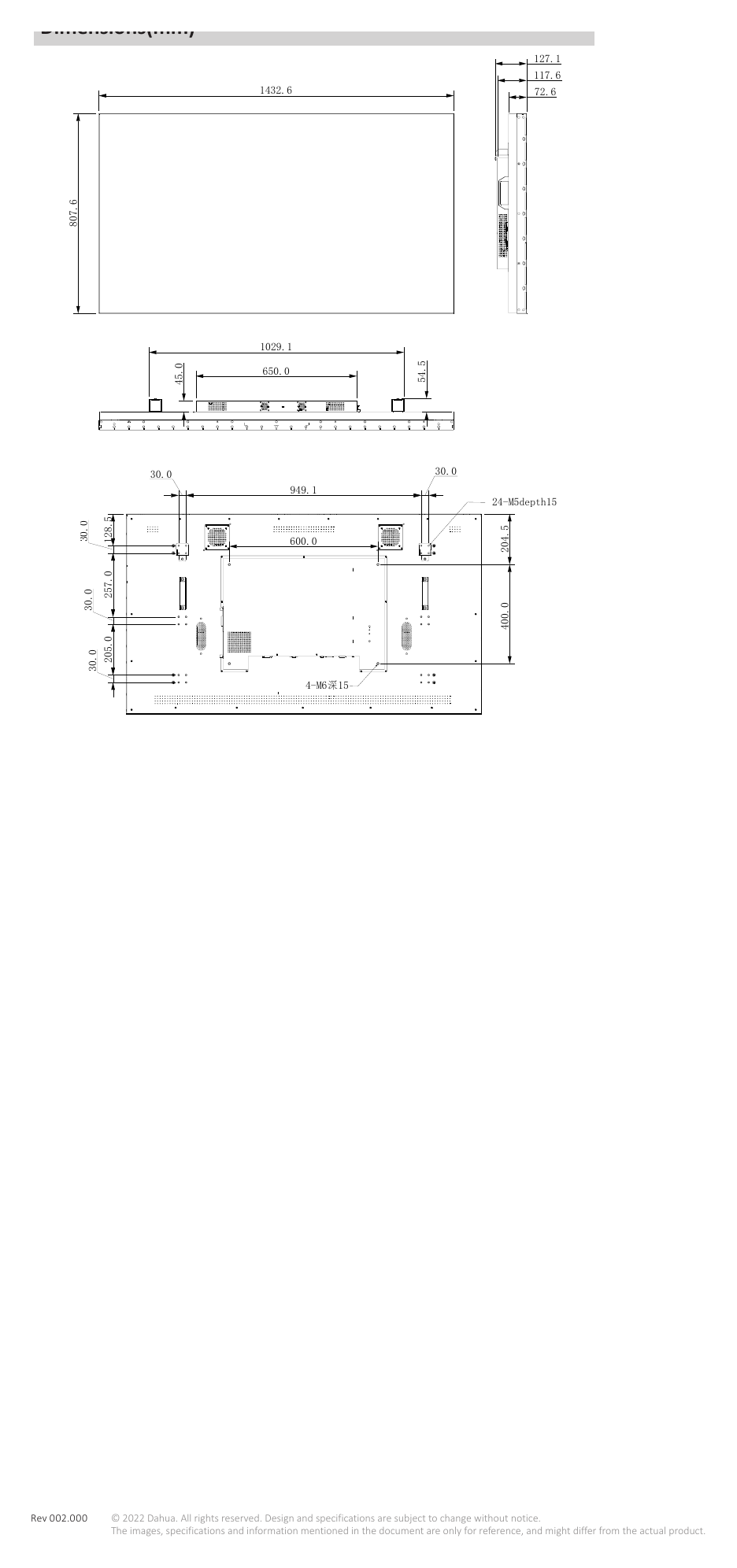

| Output | DP×1, RS232×1, Audio×1 www.dahuasecurity.com Dimensions(mm) 127.1 117.6 30.0 30.0 1432.6 72.6 949.1 24-M5depth15 128.5 30.0 204.5 600.0 257.0 30.0 807.6 400.0 205.0 30.0 4-M6深15 1029.1 54.5 45.0 650.0 127.1 117.6 30.0 30.0 72.6 949.1 24-M5depth15 128.5 30.0 204.5 600.0 257.0 30.0 400.0 205.0 30.0 4-M6深15 |
|---|
| Rev 002.000 | © 2022 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
