| System | Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
|---|
| Main Processor | Embedded Processor Motion Detection, MD Zones: 396 (22 × 18), Video Loss, |
|---|
| 操作系統 | Embedded LINUX Video Detection Tampering and Diagnosis |
|---|
| Video and Audio | Alarm input N/A |
|---|
| Relay Output | N/A |
|---|
| Analog Camera Input | 8 Channel, BNC 4K, 6MP, 4MP, 1080P@25/30fps, 720P@50/60fps, Playback and Backup HDCVI Camera 720P@25/30fps |
|---|
| Playback | 1/4/9 |
|---|
| AHD Camera | 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps |
|---|
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second) |
|---|
| TVI Camera | 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps |
|---|
| CVBS Camera | PAL/NTSC Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, |
|---|
| Playback Function | Previous File, Next Camera, Previous Camera, Full Screen, |
|---|
| PoC Camera Input | Supports HDCVI PoC Camera Repeat, Shuffle, Backup Selection, Digital Zoom |
|---|
| IP Camera Input | 8+4 Channel, each channel up to 8MP |
|---|
| Backup Mode | USB Device/Network |
|---|
| Audio In/Out | 1/1, RCA |
|---|
| Two-way Talk | Reuse audio in/Out, RCA Storage |
|---|
| Internal HDD | 1 SATA Port, up to 6TB capacity Recording |
|---|
| eSATA | N/A |
|---|
| Compression | H.264+/H.264 |
|---|
| 解像度 | 4K, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, 960H, D1, CIF, QCIF Auxiliary Interface Main stream: 4K(1~7fps); 6MP(1~10fps); 5MP(1~12fps); USB 2USB Ports (1 USB 2.0 , 1 USB 3.0) 4MP/3MP(1~15fps); 1080P/720P/960H/D1/CIF/QCIF |
|---|
| RS232 | N/A |
|---|
| Record Rate | (1~25/30fps) |
|---|
| Sub steram:960H(1~15fps); | RS485 1 Port, for PTZ Control D1/CIF/QCIF(1~25/30fps) |
|---|
| Bit Rate | 1Kbps ~ 8192Kbps Per Channel Electrical Manual, Schedule (Regular, Continuous), MD (Video Power Supply DC48V/1.5A |
|---|
| Record Mode | detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
|---|
| 功耗 | <10W (Without HDD) 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post- Record Interval |
|---|
| record: 10 ~ 300 sec | Construction |
|---|
| Display | Dimensions Mini 1U, 325mm×255mm×55mm (12.8" x 10" x 2.2") |
|---|
| 接口 | 1 HDMI, 1 VGA Net Weight 1.35kg (2.98lb) (without HDD) HDMI:3840×2160, 2560×1440, 1920×1080, 1280×1024, Gross Weight 2.37kg (5.23lb) |
|---|
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH Camera title, Time, Video loss, Camera lock, Motion OSD detection, Recording |
|---|
| 儲存環境 | -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH Third-party Support |
|---|
| Network Function | DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search Sony, Videotec, Vivotek, and more (Support Dahua IP camera, DVR, NVS, etc.) |
|---|
| 尺寸 | Mini 1U, 325mm×255mm×55mm (12.8" x 10" x 2.2") |
|---|
| Max. User Access | 128 users |
|---|
| Smart Phone | iPhone, iPad, Android Certifications FCC: Part 15 Subpart B |
|---|
| Interoperability | ONVIF 2.42, CGI Conformant CE: CE-LVD: EN 60950-1/IEC 60950-1 |
|---|
| Certifications | CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 UL: UL 60950-1 www.dahuasecurity.com |
|---|
| Ordering Information | Rear Panel |
|---|

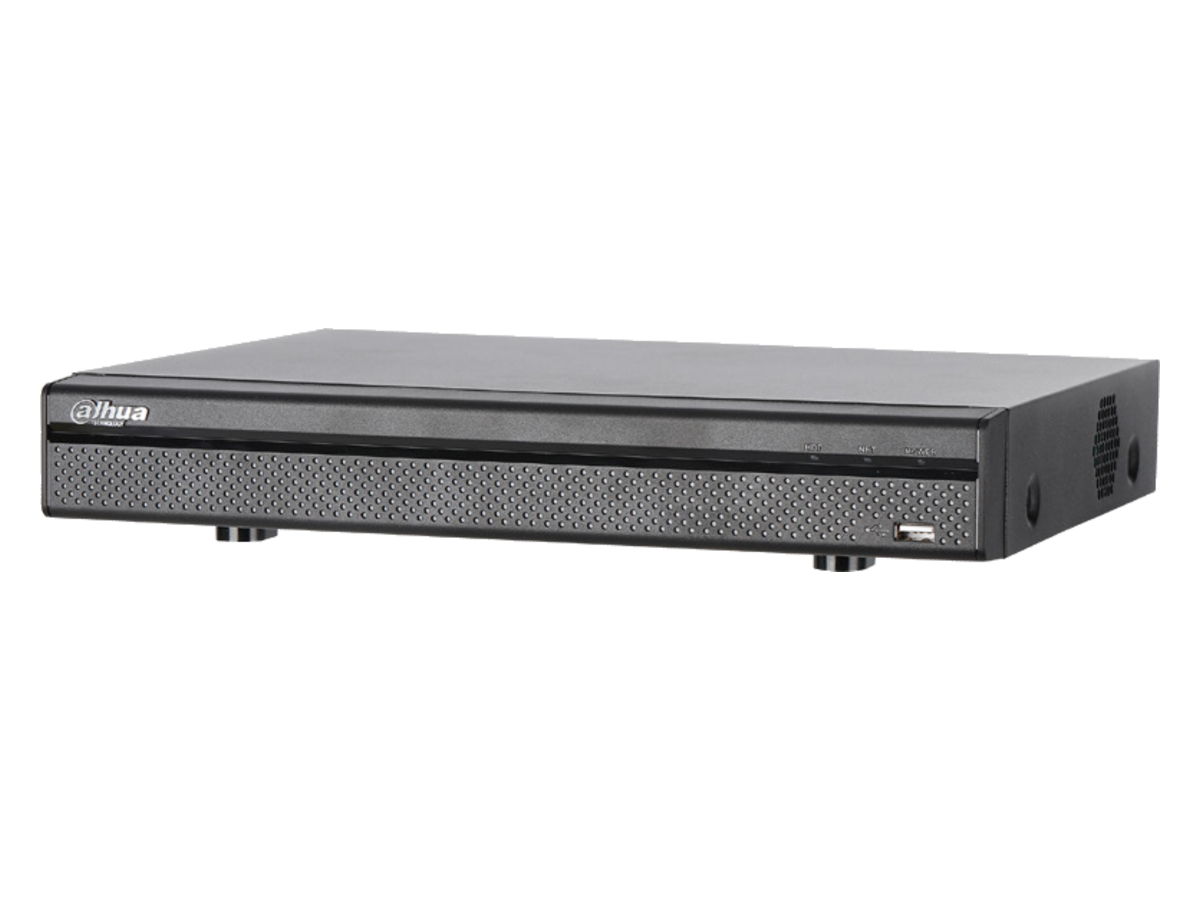

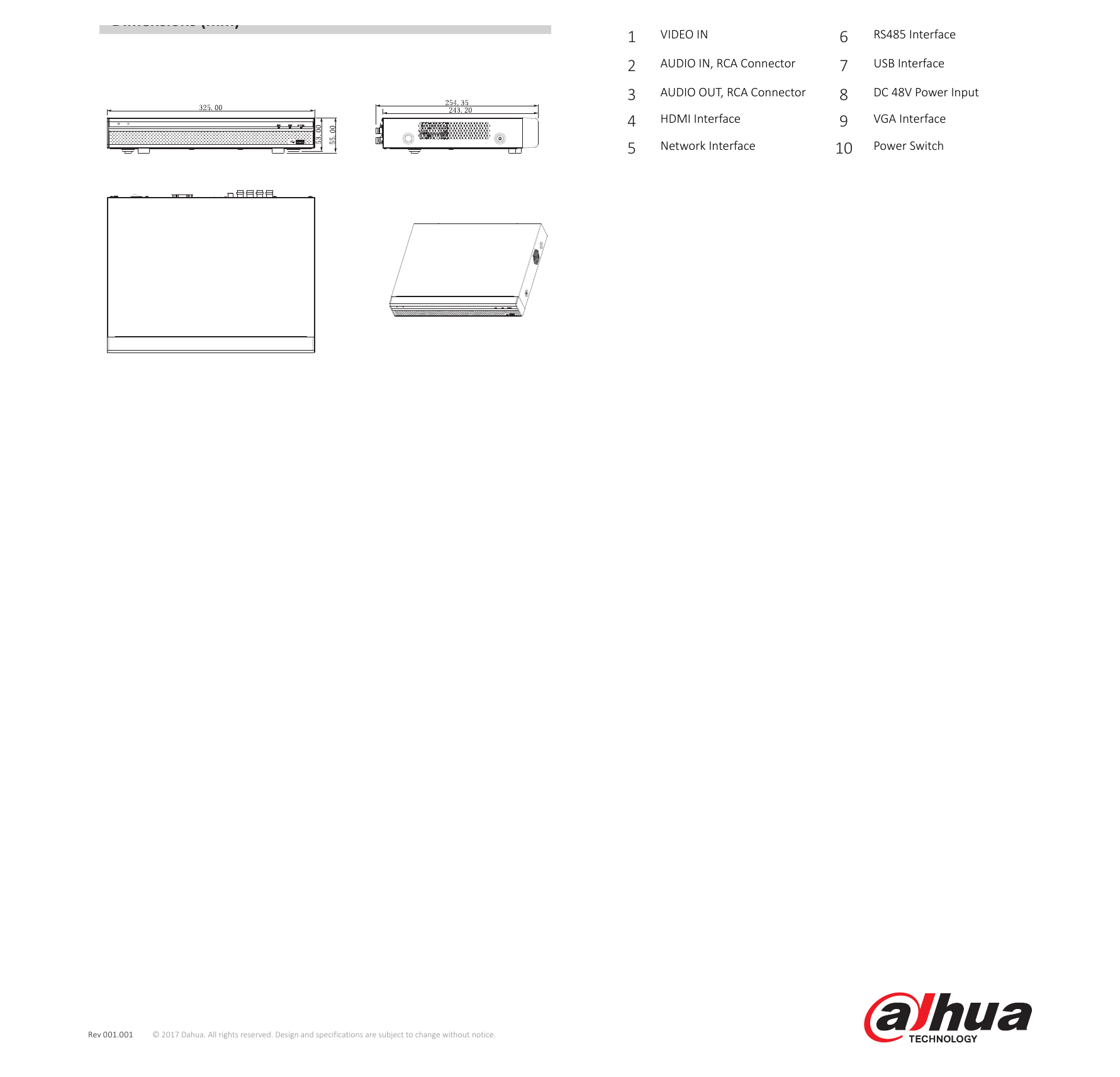

| 類型 | Part Number Description DHI-XVR5108H-4KL-8P 8 Channel Penta-brid 4K Mini 1U 1 2 9 10 8 Channel XVR DHI-XVR5108H-4KL-8P Digital Video Recorder 4 5 6 7 8 Dimensions (mm) 1 VIDEO IN 6 RS485 Interface 2 AUDIO IN, RCA Connector 7 USB Interface 3 AUDIO OUT, RCA Connector 8 DC 48V Power Input 4 HDMI Interface 9 VGA Interface 5 Network Interface 10 Power Switch |
|---|
| Rev 001.001 | © 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
