| Camera | Privacy Masking Off/On (8 area, rectangle) |
|---|
| 影像感測器 | 2MP CMOS Certifications |
|---|
| 最大解像度 | 1920 (H) × 1080 (V) CE (EN55032, EN55024, EN50130-4) |
|---|
| Certifications | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
|---|
| Pixel | 2MP UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| Scanning System | Progressive Port |
|---|
| PAL: 1/25 s–1/100,000 s | Video output choices of CVI/TVI/AHD/CVBS by one BNC |
|---|
| Electronic Shutter Speed | Video Output |
|---|
| NTSC: 1/30 s–1/100,000 s | port |
|---|
| S/N Ratio | > 65 dB Power |
|---|
| 最低照度 | 0.02 Lux/F1.7, 30 IRE, 0 Lux IR on Power Supply POC (only CVI)/12V±30% DC |
|---|
| Illumination Distance | 30 m (98.4 ft) Power Consumption Max5.2W (12 VDC, IR on); PoC (AT) |
|---|
| Illuminator On/Off Control | Auto; Environment –30 °C to +60 °C (–22 °F to 140 °F); ﹤ 95% |
|---|
| Illuminator Number | 2 (IR light) Operating Temperature (non-condensation) |
|---|
| Pan: 0°–355° | –30 °C to +60 °C (–22 °F to 140 °F); ﹤ 95% |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–75° Storage Temperature (non-condensation) Rotation: 0°–355° |
|---|
| Protection Grade | IP67; IK10 Structure |
|---|
| 鏡頭類型 | Motorized Vari-focal |
|---|
| Casing | Plastic dome cover+metal upper casing+metal pedestal |
|---|
| Auto Focus | N/A |
|---|
| Camera Dimensions | φ122.0 mm × 88.9 mm (φ4.80" × 3.50") |
|---|
| Mount Type | φ14 |
|---|
| 淨重 | 0.34 Kg (0.7 lb) |
|---|
| 焦距 | 2.7 mm–12 mm |
|---|
| 毛重 | 0.51Kg (1.1lb) |
|---|
| Max. Aperture | F1.7 Diagonal: 38°– 125° |
|---|
| Field of View | Horizontal: 33°–102° Vertical: 19°– 53° |
|---|
| 光圈類型 | Fixed iris |
|---|
| Close Focus Distance | 1.2 m (3.9 ft) 2.7 mm: D: 49.7 m (163.1 ft); O: 19.9 m (65.3 ft); R: 9.9 m (32.5 ft); I: 5 m (16.4 ft) DORI Distance 12 mm: D: 82.8 m (271.7 ft); O: 33.1 m (108.6 ft); R: 16.6 m (54.5 ft); I: 8.3 m (27.2 ft) CVI: 1080p@25/30 fps; AHD: 1080p@25/30 fps; Frame Rate 720p@25/30 fps; TVI: 1080p@25/30 fps; CVBS: 960H 1080p (1920 × 1080); 720p (1280 × 720); 960H (960 × Resolution 576/960 × 480) |
|---|
| Day/Night | Auto switch by ICR |
|---|
| BLC | BLC/DWDR/HLC |
|---|
| White Balance | Auto/Area WB |
|---|
| Gain Control | Auto; manual |
|---|
| Noise Reduction | 2D NR |
|---|
| Smart IR | Yes www.dahuasecurity.com Ordering Information |
|---|
| 類型 | Model Description |
|---|

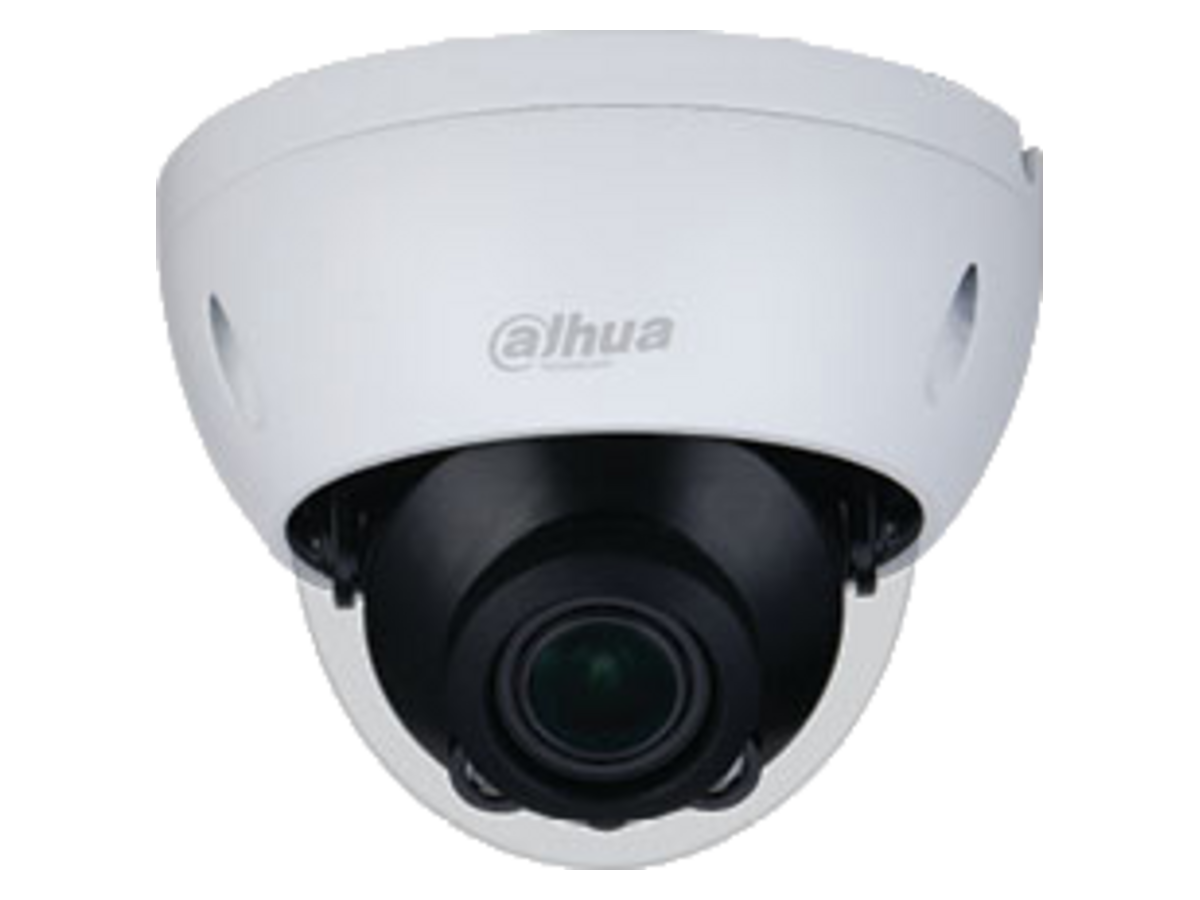

| DH-HAC-HDBW1200RP-Z- | 2MP HDCVI POC Motorized Vari-focal |
|---|
| POC | IR Dome Camera, PAL 2MP |
|---|
| Z-POC | IR Dome Camera, NTSC |
|---|
| PFA137 | Water-proof Junction Box |
|---|
| PFA152-E | Pole Mount Bracket |
|---|
| PFB203W | Wall Mount Bracket |
|---|
| Accessories | PFB200C In-ceiling Mount Bracket (Optional) Adapter Plate of Mini Dome & Eyeball PFA106 |
|---|
| PFM321D | 12V 1A Power Adapter |
|---|
| PFM904 | Integrated Mount Tester |
|---|
| Junction box | Pole Mount Bracket Wall Mount Bracket PFA106 |
|---|
| PFB200C | PFM321D Adapter Plate of Mini |
|---|
| In-ceiling Mount Bracket | 12V 1A Power Adapter Dome & Eyeball Camera PFM904 Integrated Mount Tester |
|---|
| Rev 002.000 | © 2022 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
