| Camera | Privacy Masking Off/On (8 area, rectangle) |
|---|
| 影像感測器 | 2MP CMOS Certifications |
|---|
| 最大解像度 | 1920 (H) × 1080 (V) CE (EN55032, EN55024, EN50130-4) |
|---|
| Certifications | FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
|---|
| Pixel | 2MP UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
| Scanning System | Progressive Port |
|---|
| PAL: 1/25 s–1/100000 s | Video output choices of CVI/TVI/AHD/CVBS by one BNC |
|---|
| Electronic Shutter Speed | Video Output |
|---|
| NTSC: 1/30 s–1/100000 s | port |
|---|
| S/N Ratio | > 65 dB Power |
|---|
| 最低照度 | 0.02Lux/F1.7, 30IRE, 0Lux IR on Power Supply POC (only CVI)/12V±30% DC |
|---|
| Illumination Distance | 30m (98.4 ft) Power Consumption Max5.2W (12V DC, IR on); PoC (AT) |
|---|
| Illuminator On/Off Control | Auto; Environment –30°C to +60°C (–22°F to 140°F);﹤ 95% |
|---|
| Illuminator Number | 2 (IR light) Operating Temperature (non-condensation) |
|---|
| Pan: 0°–355° | –30°C to +60°C (–22°F to 140°F);﹤ 95% |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–75° Storage Temperature (non-condensation) Rotation: 0°–355° |
|---|
| Protection Grade | IP67;IK10 Structure |
|---|
| 鏡頭類型 | Motorized Vari-focal |
|---|
| Casing | Plastic dome cover+mental upper casing+mental pedestal |
|---|
| Auto Focus | N/A |
|---|
| Camera Dimensions | φ122.0 mm × 88.9 mm ( φ4.80" × 3.50" ) |
|---|
| Mount Type | φ14 |
|---|
| 淨重 | 0.34 Kg (0.7 lb) |
|---|
| 焦距 | 2.7 mm-12 mm |
|---|
| 毛重 | 0.51Kg (1.1lb) |
|---|
| Max. Aperture | F1.7 Diagonal: 38°– 125° |
|---|
| Field of View | Horizontal: 33°–102° Vertical: 19°– 53° |
|---|
| 光圈類型 | Fixed iris |
|---|
| Close Focus Distance | 1.2 m (3.9 ft) 2.7mm: D: 49.7 m (163.1 ft); O: 19.9 m (65.3 ft); R: 9.9 m (32.5 ft); I: 5 m(16.4 ft) DORI Distance 12mm: D: 82.8 m (271.7 ft); O: 33.1 m (108.6 ft); R: 16.6 m (54.5 ft); I: 8.3 m(27.2 ft) CVI: 1080P@25/30fps; AHD: 1080P@25/30fps; Frame Rate 720P@25/30fps; TVI: 1080P@25/30fps; CVBS: 960H 1080P (1920×1080); 720P (1280×720); 960H (960× Resolution 576/960×480) |
|---|
| Day/Night | Auto switch by ICR |
|---|
| BLC | BLC/DWDR/HLC |
|---|
| White Balance | Auto/Area WB |
|---|
| Gain Control | Auto; manual |
|---|
| Noise Reduction | 2D NR |
|---|
| Smart IR | Yes www.dahuasecurity.com Ordering Information |
|---|
| 類型 | Model Description |
|---|

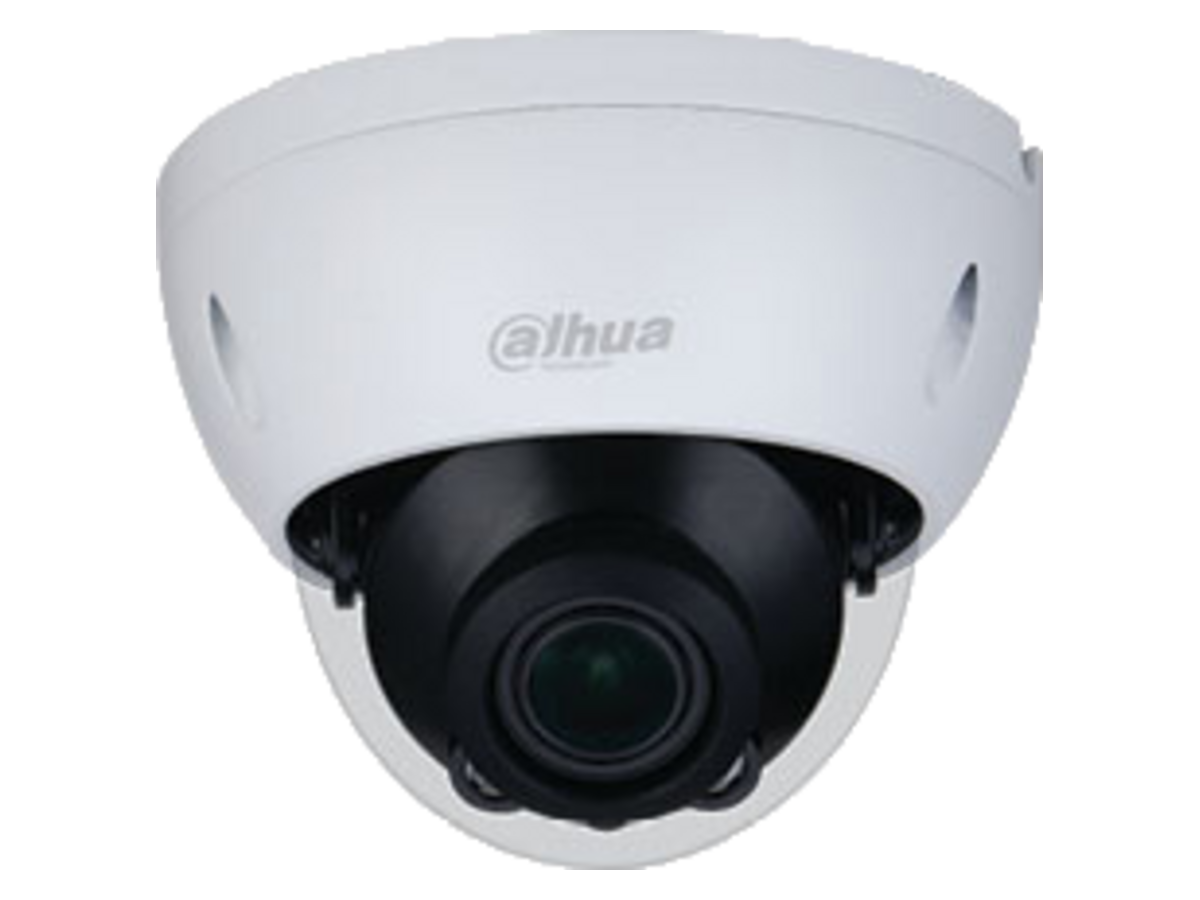

| DH-HAC-HDBW1200RP-Z- | 2MP HDCVI POC Motorized Vari-focal |
|---|
| POC | IR Dome Camera, PAL 2MP |
|---|
| Z-POC | IR Dome Camera, NTSC |
|---|
| PFA137 | Water-proof Junction Box |
|---|
| PFA152-E | Pole Mount Bracket |
|---|
| PFB203W | Wall Mount Bracket |
|---|
| Accessories | PFB200C In-ceiling Mount Bracket (Optional) Adapter Plate of Mini Dome & Eyeball PFA106 |
|---|
| PFM321D | 12V 1A Power Adapter |
|---|
| PFM904 | Integrated Mount Tester |
|---|
| Junction box | Pole Mount Bracket Wall Mount Bracket PFA106 |
|---|
| PFB200C | PFM321D Adapter Plate of Mini |
|---|
| In-ceiling Mount Bracket | 12V 1A Power Adapter Dome & Eyeball Camera PFM904 Integrated Mount Tester |
|---|
| Rev 001.001 | © 2021 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
