| Camera | Noise Reduction 3D NR |
|---|
| 影像感測器 | 2 MP CMOS Illumination Mode Smart IR |
|---|
| 最大解像度 | 1920 (H) × 1080 (V) Mirror Yes |
|---|
| Scanning System | Progressive Privacy Masking Off/On (8 areas, rectangle) Electronic Shutter Speed |
|---|
| PAL: 1/25 s–1/100000 s | Certification NTSC: 1/30 s–1/100000 s CE-LVD: EN 62368-1; 0.01 lux@F1.6 (Color, 30 IRE) CE-EMC: EN 55032; EN 55035; |
|---|
| 最低照度 | 0.001 lux@F1.6 (B/W, 30 IRE) Certifications FCC: 47 CFR FCC Part 15, Subpart B; 0 lux (Illuminator on) UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14 |
|---|
| S/N Ratio | >65 dB Port |
|---|
| Illumination Distance | 60 m (196.85 ft) Video output choices of CVI/TVI/AHD/CVBS by one BNC Video Output port |
|---|
| Illuminator On/Off Control | Auto |
|---|
| 音訊輸入 | One channel built-in Mic |
|---|
| Illuminator Number | 3 (IR light) Power Pan: 0°–355° |
|---|
| 角度調節 | Tilt: 0°–80° Power Supply 12 VDC ± 30% Rotation: 0°–355° |
|---|
| 功耗 | Max 4.1 W (12 VDC, IR on) |
|---|
| 鏡頭類型 | Motorized Vari-focal |
|---|
| 工作溫度 | –30 °C to +60 °C (–22 °F to +140 °F) |
|---|
| Auto Focus | No |
|---|
| 工作濕度 | <95% (RH), non-condensing |
|---|
| 鏡頭接口 | φ14 |
|---|
| 儲存溫度 | –30 °C to +60 °C (–22 °F to +140 °F) |
|---|
| 焦距 | 2.7 mm–12 mm |
|---|
| Storage Humidity | <95% (RH), non-condensing |
|---|
| Max. Aperture | F1.6 |
|---|
| 防護等級 | IK10; IP67 |
|---|
| Field of View | H: 28.3°–98.2°; V: 15.8°–51.9°; D: 32.1°–116.7° |
|---|
| Anti-corrosion Level | Basic Protection |
|---|
| Iris Control | Fixed Structure |
|---|
| Close Focus Distance | 0.8 m (2.62 ft) |
|---|
| Casing Material | Metal |
|---|
| 鏡頭 | Detect Observe Recognize Identify |
|---|
| Product Dimensions | φ126 mm × 100 mm (φ4.96" × 3.94") |
|---|
| DORI 偵測距離 | 47.4 m 18.9 m 9.5 m 4.7 m 2.7 mm Net Weight 0.63 kg (1.38 lb) |
|---|
| Distance | (155.51 ft) (62.01 ft) (31.17 ft) (15.42 ft) 155.6 m 62.2 m 31.1 m 15.6 m Gross Weight 0.81 kg (1.78 lb) 12 mm (510.50 ft) (204.07 ft) (102.03 ft) (51.18 ft) |
|---|
| 安裝 | Wall mount; ceiling mount; vertical pole mount CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; Video Frame Rate TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; CVBS: PAL: 960H; NTSC: 960H |
|---|
| 解像度 | 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
|---|
| Day/Night | Auto(ICR)/Color/B/W |
|---|
| BLC | BLC; HLC; DWDR |
|---|
| WDR | DWDR |
|---|
| White Balance | Auto; Area white balance www.dahuasecurity.com Ordering Information |
|---|
| 類型 | Model Description 2MP IR HDCVI Motorized Vari-Focal DH-HAC-HDBW1200RAP-Z-A Vandal-proof Dome Camera, PAL 2MP |
|---|
| PFA197R | Junction Box |
|---|
| PFB206W | Wall Mount Bracket |
|---|
| PFA109 | Mount Adapter |
|---|
| PFB220C | Ceiling Mount Bracket Accessories (Optional) |
|---|
| PFA156 | Pole Mount Bracket |
|---|
| PFM800-E | Passive HDCVI Balun |
|---|
| PFM321 | 12V 1A Power Adapter |
|---|

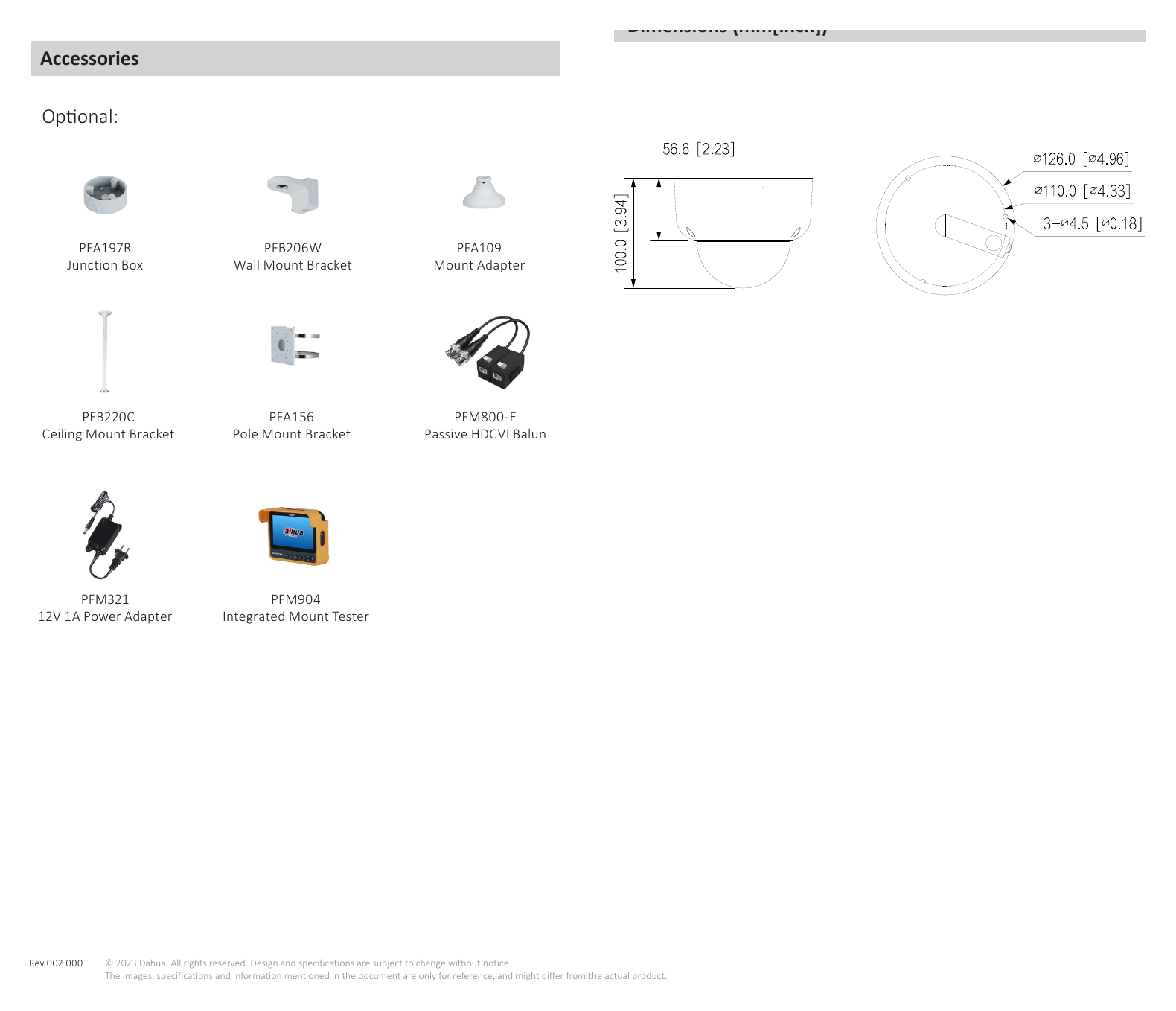

| PFM904 | Integrated Mount Tester Dimensions (mm[inch]) Accessories Optional: |
|---|
| Junction Box | Wall Mount Bracket Mount Adapter |
|---|
| Ceiling Mount Bracket | Pole Mount Bracket Passive HDCVI Balun |
|---|
| Rev 002.000 | © 2023 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
