| Camera | Noise Reduction 3D NR |
|---|
| 影像感測器 | 5 MP CMOS Illumination Mode Smart IR |
|---|
| 最大解像度 | 2880 (H) × 1620 (V) Defog Electronic defog |
|---|
| Scanning System | Progressive Digital Zoom 4× |
|---|
| PAL: 1/3 s–1/100000 s | Mirror Yes Electronic Shutter Speed NTSC: 1/4 s–1/100000 s 0.01 lux@F1.6 (Color, 30 IRE) |
|---|
| Privacy Masking | Off/On (8 areas, rectangle) |
|---|
| 最低照度 | 0.001 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) Certification |
|---|
| S/N Ratio | >65 dB CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035; Certifications FCC: 47 CFR FCC Part 15, Subpart B; |
|---|
| Illumination Distance | 40 m (131.23 ft) UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14 |
|---|
| Illuminator On/Off Control | Auto/Manual Port |
|---|
| Illuminator Number | 3 (IR light) Video output choices of CVI/TVI/AHD/CVBS by one BNC Video Output port (DIP Switch) Pan: 0°–355° |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–75° Audio Input One channel built-in MIC Rotation: 0°–355° |
|---|
| 鏡頭 | Power |
|---|
| 供電 | 12 VDC ± 30% |
|---|
| 鏡頭類型 | Fixed-focal |
|---|
| 功耗 | Max 4.4 W (12 VDC, IR on) |
|---|
| 鏡頭接口 | M12 |
|---|
| 焦距 | 2.8 mm;3.6 mm |
|---|
| 工作溫度 | –40 °C to +60 °C (–40 °F to +140 °F) |
|---|
| Max. Aperture | F1.6 2.8 mm: H: 111°; V: 58°; D: 132° Operating Humidity <95% (RH), non-condensing Field of View 3.6 mm: H: 92°; V: 48°; D: 109° |
|---|
| 儲存溫度 | –40 °C to +60 °C (–40 °F to +140 °F) |
|---|
| Iris Control | Fixed |
|---|
| Storage Humidity | <95% (RH), non-condensing 2.8 mm: 0.9 m (2.95 ft) Close Focus Distance 3.6 mm: 1.6 m (5.25 ft) Protection IK10; IP67 |
|---|
| DORI 偵測距離 | 63.6 m 25.4 m 12.7 m 6.4 m 2.8 mm Casing Material Metal |
|---|
| Distance | (208.66 ft) (83.33 ft) (41.66 ft) (21.00 ft) 80.0 m 32.0 m 16.0 m 8.0 m Product Dimensions Φ112.0 mm × 89.1 mm (Φ4.41" × 3.51") 3.6 mm (262.47 ft) (104.99 ft) (52.49 ft) (26.25 ft) |
|---|
| Video | Net Weight 0.47 kg (1.04 lb) |
|---|
| CVI: | Gross Weight 0.66 kg (1.46 lb) PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps |
|---|
| NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps | Installation Wall mount; ceiling mount; vertical pole mount AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps Video Frame Rate TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H NTSC: 960H 5M (2880 × 1620); 4M (2560 × 1440); Resolution 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
|---|
| Day/Night | Auto(ICR)/Color/B/W |
|---|
| BLC | BLC; HLC; WDR; HLC-Pro |
|---|
| WDR | 120 dB |
|---|
| White Balance | Auto;Area white balance www.dahuasecurity.com Ordering Information |
|---|
| 類型 | Model Description |
|---|
| DH-HAC-HDBW2501E- | 5MP Starlight HDCVI Fixed IR Dome |
|---|
| AP-A | Camera, PAL 5M Camera |
|---|
| AN-A | Cameraa, NTSC |
|---|
| PFA136 | Junction Box |
|---|
| PFB203W | Wall Mount Bracket Adapter Plate of Mini Dome & Eyeball PFA106 Ceiling Mount Bracket of Mini Dome & PFB220C Eyeball Camera Accessories (Optional) PFA152-E Pole Mount Bracket |
|---|
| PFA150 | Pole Mount Bracket |
|---|
| PFM800-4K | Passive HDCVI Balun |
|---|
| PFM321D | 12V 1A Power Adapter |
|---|

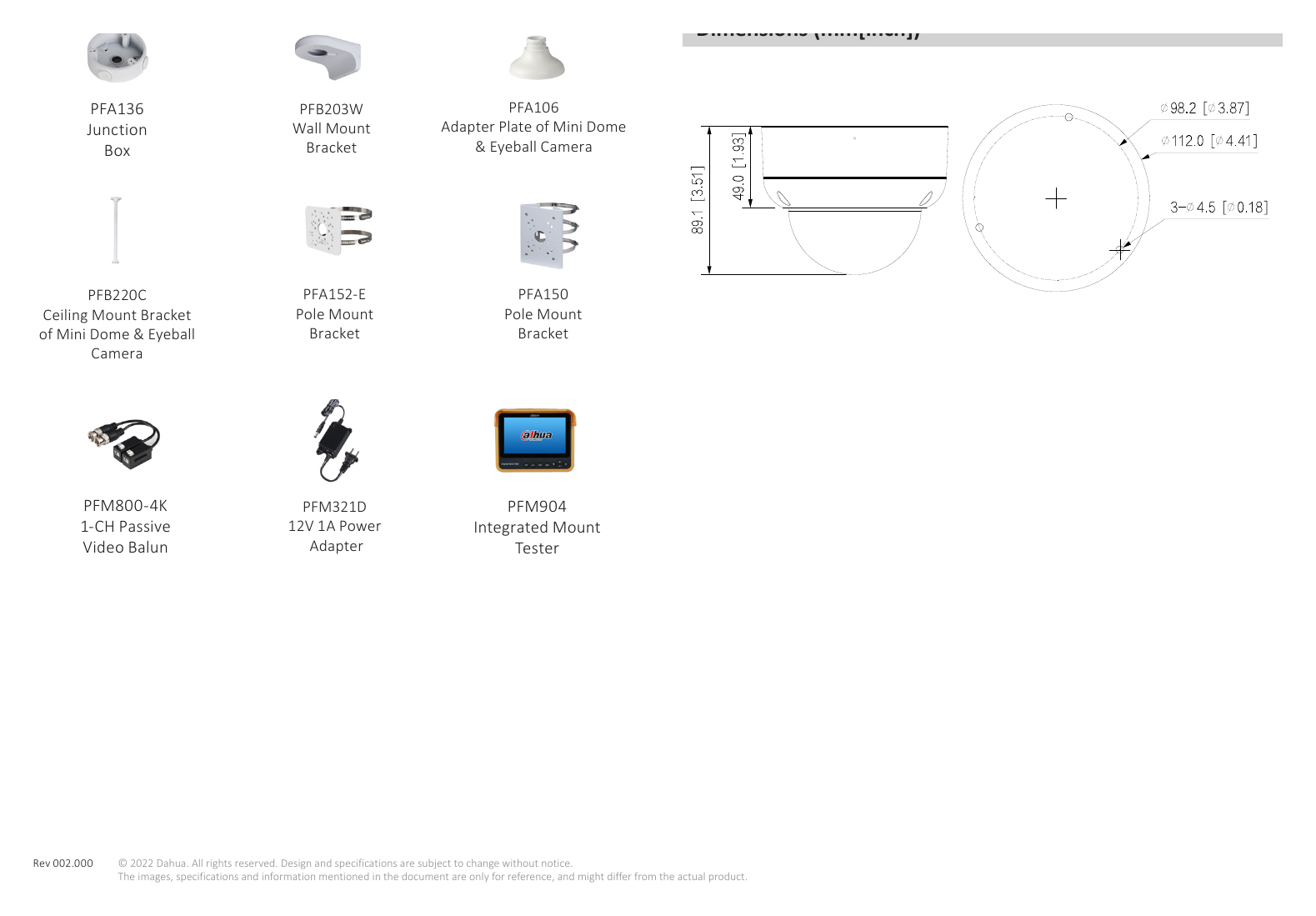

| PFM904 | Integrated Mount Tester Accessories Optional: Dimensions (mm[inch]) |
|---|
| Junction | Wall Mount Adapter Plate of Mini Dome |
|---|
| Box | Bracket & Eyeball Camera |
|---|
| PFB220C | PFA152-E PFA150 |
|---|
| Ceiling Mount Bracket | Pole Mount Pole Mount |
|---|
| of Mini Dome & Eyeball | Bracket Bracket |
|---|
| Video Balun | Adapter Tester |
|---|
| Rev 002.000 | © 2022 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
