| Camera | Noise Reduction 3D NR |
|---|
| 影像感測器 | 2 MP CMOS Illumination Mode Smart IR |
|---|
| 最大解像度 | 1920 (H) × 1080 (V) Mirror Yes |
|---|
| Scanning System | Progressive Privacy Masking Off/On (8 areas, rectangle) Electronic Shutter Speed |
|---|
| PAL: 1/25 s–1/100000 s | Certification NTSC: 1/30 s–1/100000 s CE-LVD: EN 62368-1; 0.01 lux@F1.6 (Color, 30 IRE) CE-EMC: EN 55032; EN 55035; |
|---|
| 最低照度 | 0.001 lux@F1.6 (B/W, 30 IRE) Certifications FCC: 47 CFR FCC Part 15, Subpart B; 0 lux (Illuminator on) UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14 |
|---|
| S/N Ratio | >65 dB Port |
|---|
| Illumination Distance | 60 m (196.85 ft) Video output choices of CVI/TVI/AHD/CVBS by one BNC Video Output port |
|---|
| Illuminator On/Off Control | Auto Power |
|---|
| Illuminator Number | 2 (IR light) |
|---|
| 供電 | 12 VDC ± 30% Pan: 0°–360° |
|---|
| 角度調節 | Tilt: 0°–78° Power Consumption Max 6.4 W (12 VDC, IR on) Rotation: 0°–360° |
|---|
| 工作溫度 | –30 °C to +60 °C (–22 °F to +140 °F) |
|---|
| 鏡頭類型 | Motorized Vari-focal |
|---|
| 工作濕度 | <95% (RH), non-condensing |
|---|
| Auto Focus | No |
|---|
| 儲存溫度 | –30 °C to +60 °C (–22 °F to +140 °F) |
|---|
| 鏡頭接口 | φ14 |
|---|
| Storage Humidity | <95% (RH), non-condensing |
|---|
| 焦距 | 2.7 mm–12 mm |
|---|
| 防護等級 | IP67 |
|---|
| Max. Aperture | F1.6 |
|---|
| Anti-corrosion Level | Basic Protection |
|---|
| Field of View | H: 28.3°–98.2°; V: 15.8°–51.9°; D: 32.1°–116.7° Structure |
|---|
| Iris Control | Fixed |
|---|
| Casing Material | Metal |
|---|
| Close Focus Distance | 0.8 m (2.62 ft) φ122 mm × 104.8 mm Product Dimensions (φ4.80" × 4.13") |
|---|
| 鏡頭 | Detect Observe Recognize Identify |
|---|
| 淨重 | 0.58 kg (1.28 lb) |
|---|
| DORI 偵測距離 | 47.4 m 18.9 m 9.5 m 4.7 m 2.7 mm |
|---|
| Distance | (155.51 ft) (62.01 ft) (31.17 ft) (15.42 ft) Gross Weight 0.74 kg (1.63 lb) 155.6 m 62.2 m 31.1 m 15.6 m 12 mm Installation Wall mount; ceiling mount; vertical pole mount (510.50 ft) (204.07 ft) (102.03 ft) (51.18 ft) CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; Video Frame Rate TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; CVBS: PAL: 960H; NTSC: 960H |
|---|
| 解像度 | 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
|---|
| Day/Night | Auto(ICR)/Color/B/W |
|---|
| BLC | BLC; HLC; DWDR |
|---|
| WDR | DWDR |
|---|
| White Balance | Auto; Area white balance www.dahuasecurity.com Ordering Information |
|---|

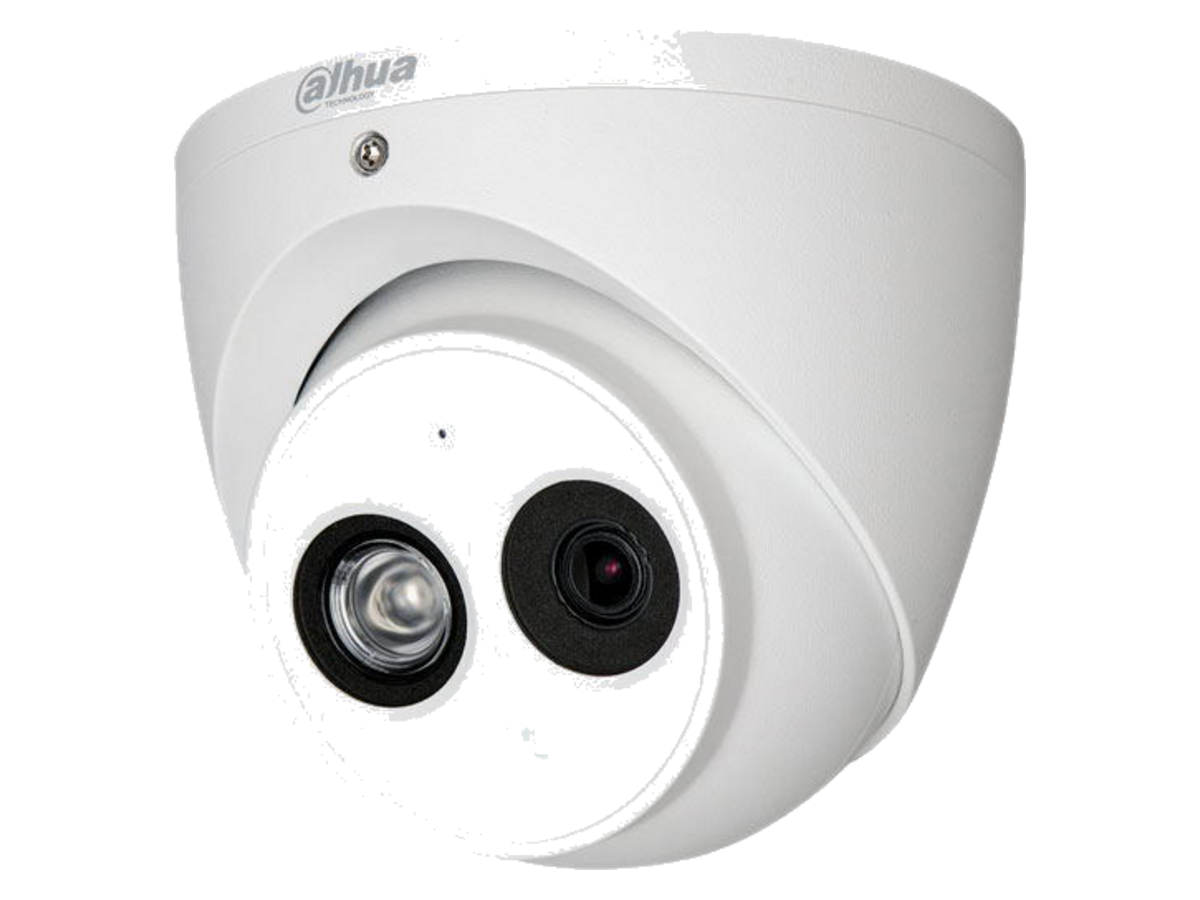

| 類型 | Model Description 2MP IR HDCVI Motorized Vari-Focal DH-HAC-HDW1200TP-Z Eyeball Camera, PAL 2MP |
|---|
| PFA137 | Junction Box |
|---|
| PFA130-E | Water-proof Junction Box |
|---|
| PFB205W-E | Wall Mount Bracket |
|---|
| PFA152-E | Pole Mount Bracket Accessories |
|---|
| PFA106 | Mount Adapter (Optional) |
|---|
| PFB220C | Ceiling Mount Bracket |
|---|
| PFM800-E | Passive HDCVI Balun |
|---|

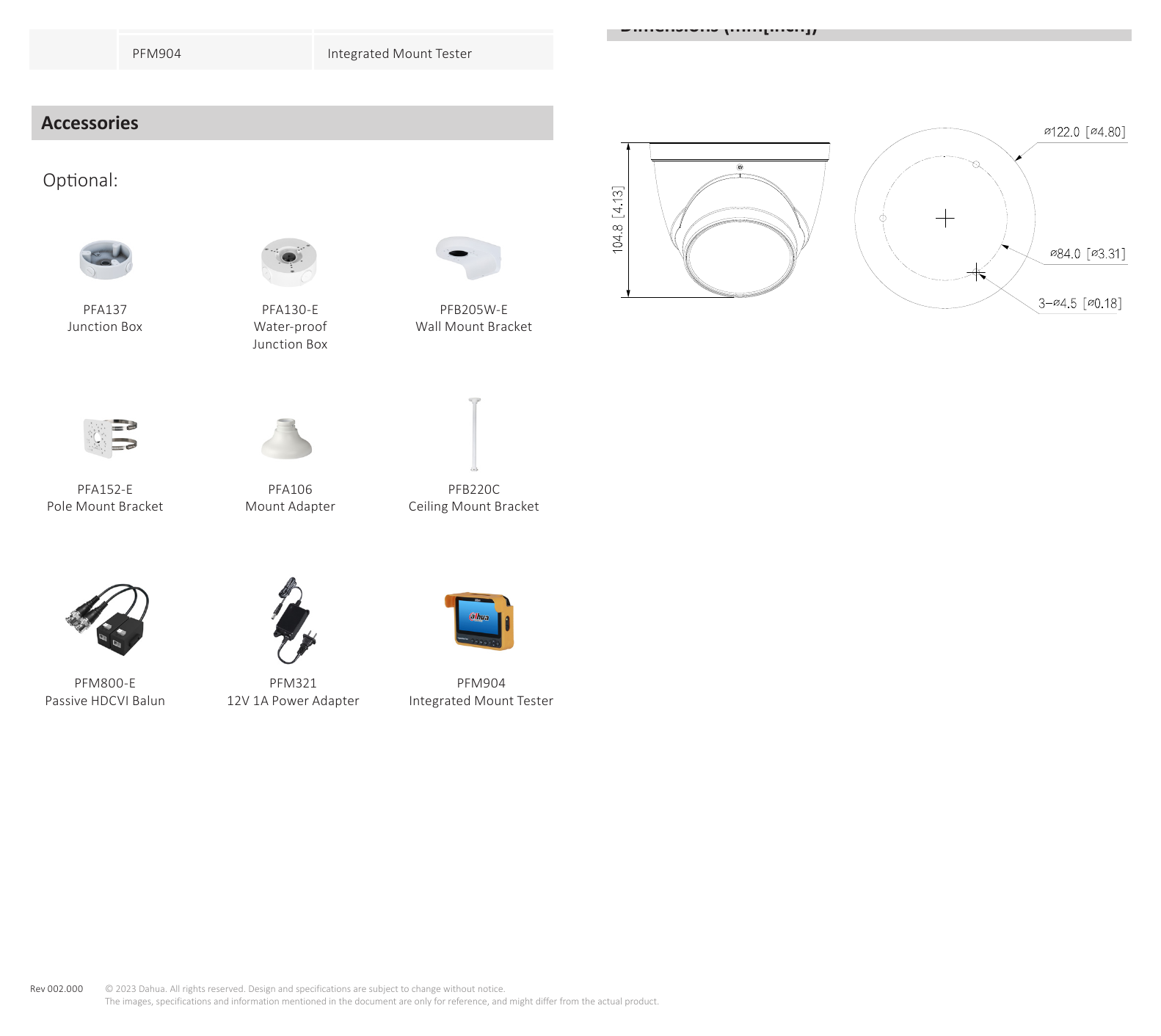

| PFM321 | 12V 1A Power Adapter Dimensions (mm[inch]) |
|---|
| PFM904 | Integrated Mount Tester Accessories Optional: |
|---|
| Junction Box | Water-proof Wall Mount Bracket Junction Box |
|---|
| Pole Mount Bracket | Mount Adapter Ceiling Mount Bracket |
|---|
| Passive HDCVI Balun | 12V 1A Power Adapter Integrated Mount Tester |
|---|
| Rev 002.000 | © 2023 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
