| Camera | WDR 130 dB |
|---|
| 影像感測器 | 2 MP CMOS White Balance Auto;Area white balance |
|---|
| 最大解像度 | 1920 (H) × 1080 (V) Gain Control Manual;Auto |
|---|
| Scanning System | Progressive Noise Reduction 3D NR |
|---|
| PAL: 1/25 s–1/100,000 s; | Illumination Mode Smart Light Electronic Shutter Speed NTSC: 1/30 s–1/100,000 s 0.001 lux@F1.0 (Color, 30 IRE) Mirror Yes |
|---|
| 最低照度 | 0 lux (Illuminator on) |
|---|
| Privacy Masking | Off/On (8 areas, rectangle) |
|---|
| S/N Ratio | >65 dB |
|---|
| Illumination Distance | 40 m (131.23 ft) CE-LVD: EN 62368-1; Certifications |
|---|
| Illuminator On/Off Control | Auto;Manual CE-EMC: EN 55032; EN 55035; |
|---|
| Illuminator Number | 2 (Warm light) Port Video output choices of CVI/TVI/AHD/CVBS by one BNC |
|---|
| Pan: 0°–360° | Video Output port |
|---|
| 角度調節 | Tilt: 0°–78° |
|---|
| Rotation: 0°–360° | Audio Input One channel built-in Mic |
|---|
| 鏡頭 | Power |
|---|
| 鏡頭類型 | Motorized vari-focal Power Supply 12 VDC ± 30% |
|---|
| Auto Focus | Yes Power Consumption Max 7.2 W (12 VDC,LED on) |
|---|
| 鏡頭接口 | φ14 Environment |
|---|
| 焦距 | 2.7 mm–13.5 mm Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F) |
|---|
| Max. Aperture | F1.0 Operating Humidity <95% (RH), non-condensing |
|---|
| Field of View | H: 103°–33°; V: 54°–18°; D: 124°–38° Storage Temperature –30 °C to +60 °C (–22 °F to +140 °F) |
|---|
| Iris Control | Fixed Storage Humidity <95% (RH), non-condensing |
|---|
| Close Focus Distance | 1.5 m (4.92 ft) Protection IP67 |
|---|
| DORI 偵測距離 | T (437.34 ft) (174.87 ft) (87.60 ft) (43.64 ft) |
|---|
| Distance | Product Dimensions φ122.0 mm × 104.8 mm (φ4.80" × 4.13") *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to |
|---|
| 淨重 | 0.57 kg (1.26 lb) distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/ Gross Weight 0.75 kg (1.65 lb) project design tool. |
|---|
| 安裝 | Wall mount; ceiling mount; vertical pole mount CVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps AHD: PAL: 1080p@25 fps NTSC: 1080p@30 fps Video Frame Rate TVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps CVBS: PAL: 960H NTSC: 960H |
|---|
| 解像度 | 1080p (1920 × 1080); 960H (960 × 576/960 × 480); |
|---|
| Day/Night | Color www.dahuasecurity.com Ordering Information |
|---|
| 類型 | Model Description |
|---|
| DH-HAC-HDW1239TP-Z- | 2MP Full-color HDCVI Motorized |
|---|
| A-LED | Vari-Focal Eyeball Camera HDCVI |
|---|
| CAMERA | DH-HAC-HDW1239TN-Z- 2MP Full-color HDCVI Motorized |
|---|
| DH-PFB220C | Ceiling Mount Bracket |
|---|
| DH-PFA106 | Mount Adapter |
|---|
| DH-PFB305W | Wall Mount Bracket |
|---|
| DH-PFA151 | Corner Mount Bracket |
|---|
| DH-PFA150 | Pole Mount Bracket |
|---|
| DH-PFB203W | Wall Mount Bracket Accessories |
|---|
| DH-PFA152-E | Pole Mount Bracket (Optional) |
|---|
| DH-PFA137 | Junction Box |
|---|
| DH-PFM800-E | 1 Channel Passive HDCVI Balun |
|---|

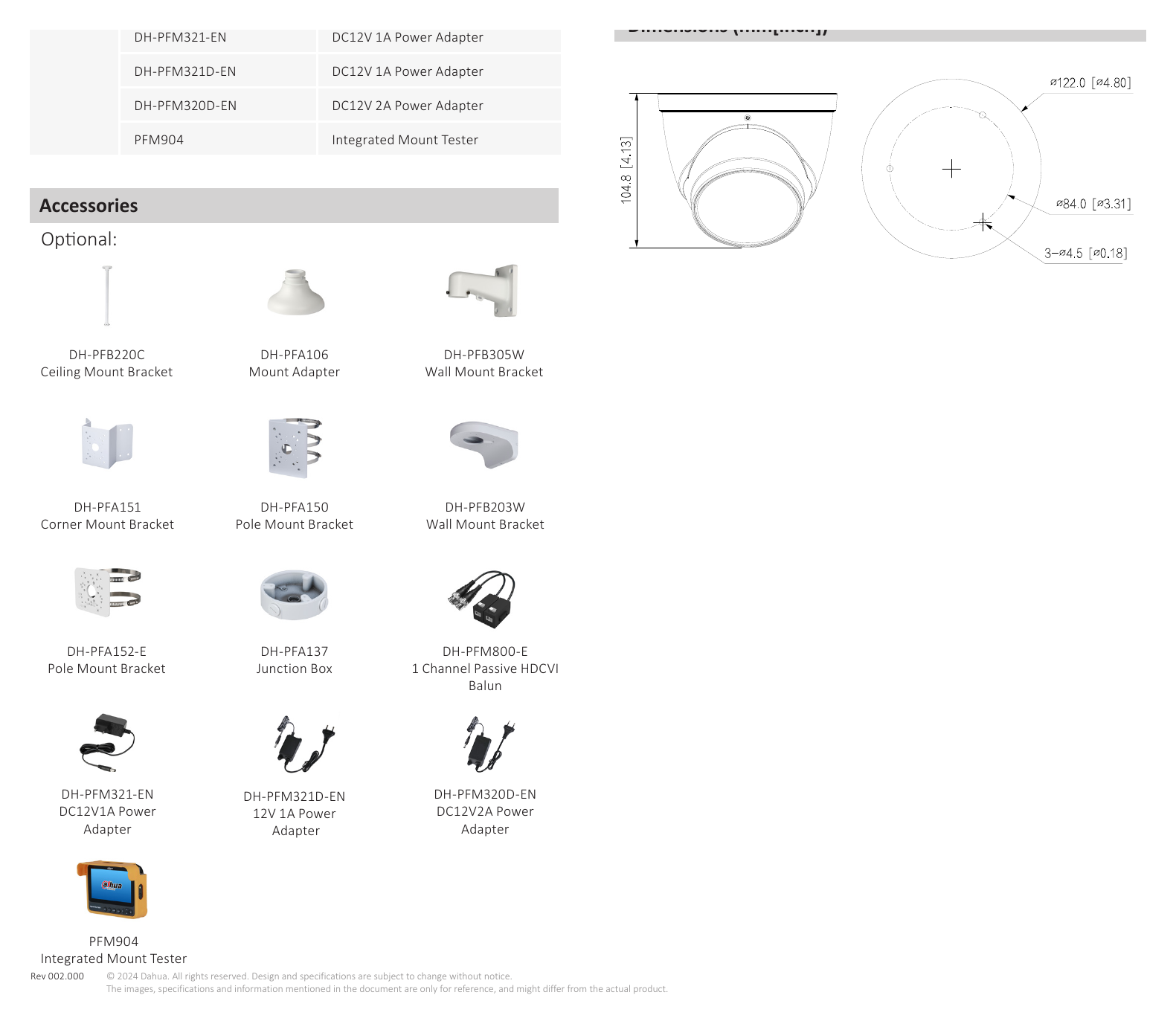

| DH-PFM321-EN | DC12V 1A Power Adapter Dimensions (mm[inch]) |
|---|
| DH-PFM321D-EN | DC12V 1A Power Adapter |
|---|
| DH-PFM320D-EN | DC12V 2A Power Adapter |
|---|
| PFM904 | Integrated Mount Tester Accessories Optional: |
|---|
| Ceiling Mount Bracket | Mount Adapter Wall Mount Bracket |
|---|
| Corner Mount Bracket | Pole Mount Bracket Wall Mount Bracket |
|---|
| Pole Mount Bracket | Junction Box 1 Channel Passive HDCVI Balun |
|---|
| DC12V1A Power | 12V 1A Power DC12V2A Power |
|---|
| Adapter | Adapter Adapter PFM904 Integrated Mount Tester |
|---|
| Rev 002.000 | © 2024 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
