| Camera | Gain Control Auto/Manual |
|---|
| 影像感測器 | 4K CMOS Noise Reduction 3D NR |
|---|
| 最大解像度 | 3840 (H) × 2160 (V) Illumination Mode Smart IR |
|---|
| Scanning System | Progressive Defog Electronic defog |
|---|
| PAL: 1/3 s–1/100000 s | Digital Zoom 4× Electronic Shutter Speed NTSC: 1/4 s–1/100000 s |
|---|
| Mirror | Yes 0.001 lux@F1.5 (Color, 30 IRE) |
|---|
| 最低照度 | 0.0001 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on) Privacy Masking Off/On (8 areas, rectangle) |
|---|
| S/N Ratio | >65 dB Certification CE-LVD: EN 62368-1; |
|---|
| Illumination Distance | 60 m (196.85 ft) CE-EMC: EN 55032; EN 55035; Certifications FCC: 47 CFR FCC Part 15, Subpart B; |
|---|
| Illuminator On/Off Control | Auto UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14 |
|---|
| Illuminator Number | 2 (IR light) Port |
|---|
| Pan: 0°–360° | Video output choices of CVI/TVI/AHD/CVBS by one BNC Video Output |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–78° port (DIP Switch) Rotation: 0°–360° |
|---|
| 音訊輸入 | One channel built-in MIC Power |
|---|
| 鏡頭類型 | Fixed-focal 12 VDC ± 30% (It is recommended to use a power Power Supply |
|---|
| Auto Focus | No adapter to supply the power for one camera) 2.8 mm: M16 Power Consumption Max 6.4 W (12 VDC, IR on) Lens Mount 3.6 mm: M12 |
|---|
| 焦距 | 2.8 mm;3.6 mm |
|---|
| 工作溫度 | –40 °C to +60 °C (–40 °F to +140 °F) |
|---|
| Max. Aperture | F1.5 |
|---|
| 工作濕度 | <95% (RH), non-condensing 2.8mm: H: 111°; V: 59°; D: 131° Field of View 3.6mm: H: 87°; V: 49°; D: 99° |
|---|
| 儲存溫度 | –40 °C to +60 °C (–40 °F to +140 °F) |
|---|
| Iris Control | Fixed |
|---|
| Storage Humidity | <95% (RH), non-condensing 2.8 mm: 1.8 m (5.91 ft) |
|---|
| Close Focus Distance | Protection IP67 3.6 mm: 2.2 m (7.22 ft) |
|---|
| 鏡頭 | Detect Observe Recognize Identify Structure 85.4 m 34.2 m 17.1 m 8.5 m Casing Material Metal 2.8 mm (280.18 ft) (112.20 ft) (56.10 ft) (27.89 ft) 98.0 m 39.2 m 19.6 m 9.8 m Product Dimensions Φ106.0 mm × 93.6 mm (Φ4.17" × 3.69") 3.6 mm |
|---|
| DORI 偵測距離 | (321.52 ft) (128.61 ft) (64.30 ft) (32.15 ft) |
|---|
| Distance | Net Weight 0.48 kg (1.06 lb) *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to Gross Weight 0.66 kg (1.46 lb) distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function Installation Wall mount; ceiling mount; vertical po |
|---|
| Video Frame Rate | AHD: PAL: 4K@15 fps; NTSC: 4K@15 fps TVI: PAL: 4K@15 fps; NTSC: 4K@15 fps CVBS: PAL: 960H; NTSC: 960H 4K (3840 × 2160); 5M (2880 × 1620); 4M (2560 × 1440); Resolution 960H (960 × 576/960 × 480) |
|---|
| Day/Night | Auto(ICR)/Color/B/W |
|---|
| BLC | BLC; HLC; WDR; HLC-Pro |
|---|
| WDR | 120 dB www.dahuasecurity.com Ordering Information |
|---|
| 類型 | Model Description 4K Starlight HDCVI Fixed-focal Eyeball |
|---|
| DH-HAC-HDW2802TP-A | Camera,PAL 2M Camera 4K Starlight HDCVI Fixed-focal Eyeball |
|---|
| DH-HAC-HDW2802TN-A | Camera,NTSC |
|---|
| PFA130-E | Water-proof Junction Box |
|---|
| PFB204W | Wall Mount Bracket Adapter Plate of Mini Dome & Eyeball |
|---|
| PFA106 | Camera |
|---|
| Accessories | PFB220C Ceiling Mount Bracket (Optional) |
|---|
| PFA152-E | Pole Mount Bracket |
|---|
| PFM800-4K | 1-CH Passive Video Balun |
|---|
| PFM321D | 12V 1A Power Adapter |
|---|

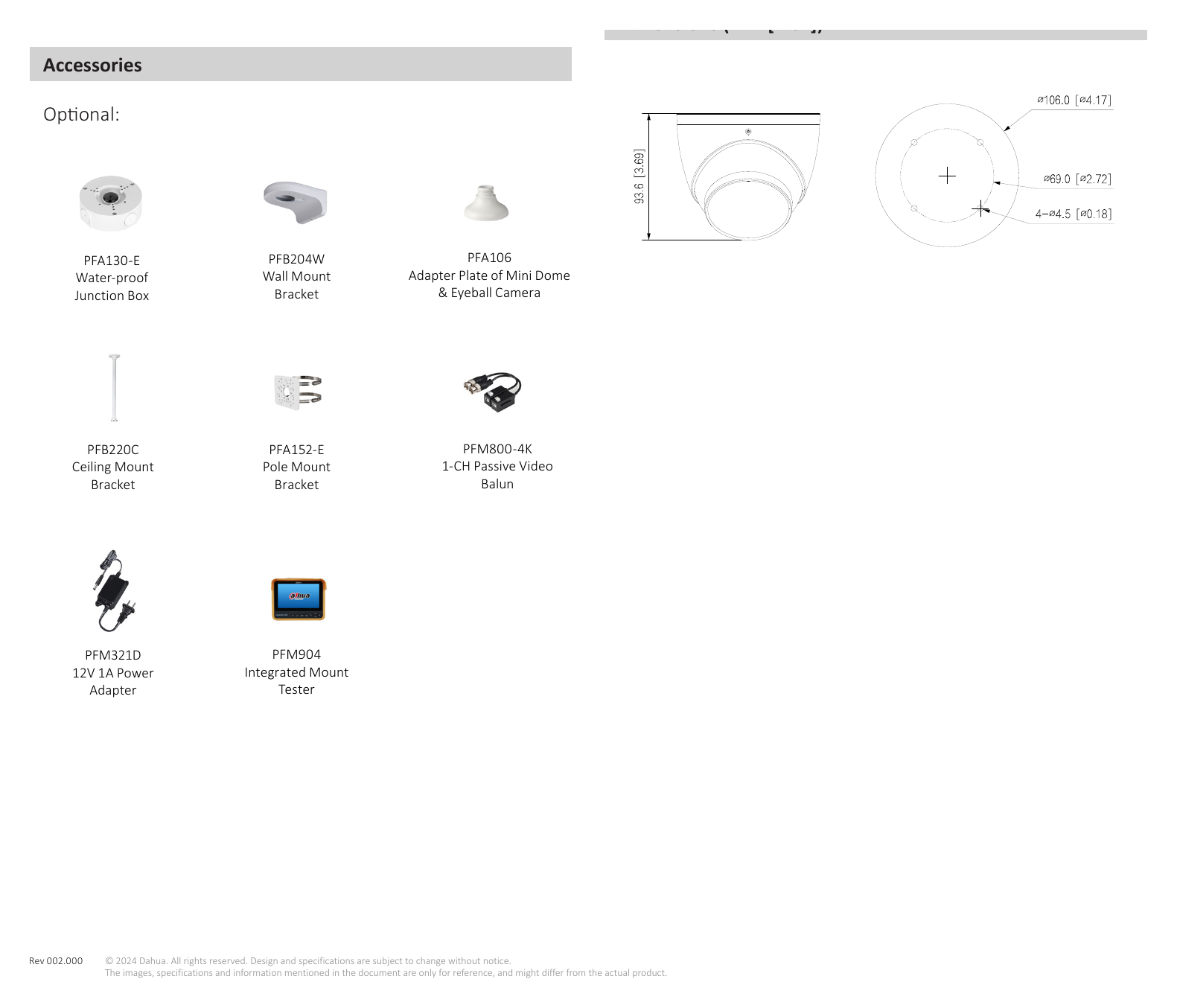

| PFM904 | Integrated Mount Tester Dimensions (mm [inch]) Accessories Optional: |
|---|
| Water-proof | Wall Mount Adapter Plate of Mini Dome |
|---|
| Junction Box | Bracket & Eyeball Camera |
|---|
| PFB220C | PFA152-E PFM800-4K |
|---|
| Ceiling Mount | Pole Mount 1-CH Passive Video |
|---|
| Bracket | Bracket Balun |
|---|
| Adapter | Tester |
|---|
| Rev 002.000 | © 2024 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
