| Camera | Defog Electronic defog |
|---|
| 影像感測器 | 4K CMOS Digital Zoom 4× |
|---|
| 最大解像度 | 3840 (H) × 2160 (V) Mirror Yes |
|---|
| Scanning System | Progressive Privacy Masking Off/On (8 areas, rectangle) Electronic Shutter Speed |
|---|
| PAL: 1/3 s–1/100000 s | Certification NTSC: 1/4 s–1/100000 s CE-LVD: EN 62368-1; 0.001 lux@F1.5 (Color, 30 IRE) CE-EMC: EN 55032; EN 55035; |
|---|
| 最低照度 | 0.0001 lux@F1.5 (B/W, 30 IRE) Certifications FCC: 47 CFR FCC Part 15, Subpart B; 0 lux (Illuminator on) UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14 |
|---|
| S/N Ratio | >65 dB Port |
|---|
| Illumination Distance | 60 m (196.85 ft) Video output choices of CVI/TVI/AHD/CVBS by one BNC Video Output port (DIP Switch) |
|---|
| Illuminator On/Off Control | Auto |
|---|
| 音訊輸入 | One channel built-in MIC |
|---|
| Illuminator Number | 2 (IR light) Power Pan: 0°–360° 12 VDC ± 30% (It is recommended to use a power |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–78° Power Supply |
|---|
| Rotation: 0°–360° | adapter to supply the power for one camera) |
|---|
| 鏡頭 | Power Consumption Max 6.4 W (12 VDC, IR on) |
|---|
| 鏡頭類型 | Fixed-focal Environment |
|---|
| Auto Focus | No Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F) 2.8 mm: M16 Operating Humidity <95% (RH), non-condensing Lens Mount 3.6 mm: M12 |
|---|
| 儲存溫度 | –40 °C to +60 °C (–40 °F to +140 °F) |
|---|
| 焦距 | 2.8 mm;3.6 mm |
|---|
| Storage Humidity | <95% (RH), non-condensing |
|---|
| Max. Aperture | F1.5 |
|---|
| 防護等級 | IP67 2.8mm: H: 111°; V: 59°; D: 131° Field of View 3.6mm: H: 87°; V: 49°; D: 99° Structure |
|---|
| Iris Control | Fixed |
|---|
| Casing Material | Metal dome + metal enclosure + plastic mounting plate 2.8 mm: 1.8 m (5.91 ft) Close Focus Distance 3.6 mm: 2.2 m (7.22 ft) Product Dimensions Φ121.9 mm × 99.1 mm (Φ4.80" × 3.90") |
|---|
| DORI 偵測距離 | 85.4 m 34.2 m 17.1 m 8.5 m Gross Weight 0.60 kg (1.32 lb) 2.8 mm |
|---|
| Distance | (280.18 ft) (112.20 ft) (56.10 ft) (27.89 ft) 98.0 m 39.2 m 19.6 m 9.8 m Installation Wall mount; ceiling mount; vertical pole mount 3.6 mm (321.52 ft) (128.61 ft) (64.30 ft) (32.15 ft) CVI: PAL: 4K@15 fps; 5M@25 fps; 4M@25 fps; NTSC: 4K@15 fps; 5M@25 fps; 4M@30 fps |
|---|
| Video Frame Rate | AHD: PAL: 4K@15 fps; NTSC: 4K@15 fps TVI: PAL: 4K@15 fps; NTSC: 4K@15 fps CVBS: PAL: 960H; NTSC: 960H 4K (3840 × 2160); 5M (2880 × 1620); 4M (2560 × 1440); Resolution 960H (960 × 576/960 × 480) |
|---|
| Day/Night | Auto(ICR)/Color/B/W |
|---|
| BLC | BLC; HLC; WDR; HLC-Pro |
|---|
| WDR | 120 dB |
|---|
| White Balance | Auto;Area white balance |
|---|
| Gain Control | Auto/Manual |
|---|
| Noise Reduction | 3D NR www.dahuasecurity.com Ordering Information |
|---|
| 類型 | Model Description |
|---|
| DH-HAC- | 4K Starlight HDCVI Fixed-focal Eyeball |
|---|
| HDW2802TMQP-A | Camera,PAL 2M Camera |
|---|
| HDW2802TMQN-A | Camera,NTSC |
|---|
| PFA130-E | Water-proof Junction Box |
|---|
| PFB205W-E | Wall Mount Bracket |
|---|
| PFA109 | Mount Adapter |
|---|
| PFB220C | Ceiling Mount Bracket Accessories (Optional) Pole Mount Bracket PFA152-E |
|---|
| PFM800-4K | 1-CH Passive Video Balun |
|---|
| PFM321D | 12V 1A Power Adapter |
|---|

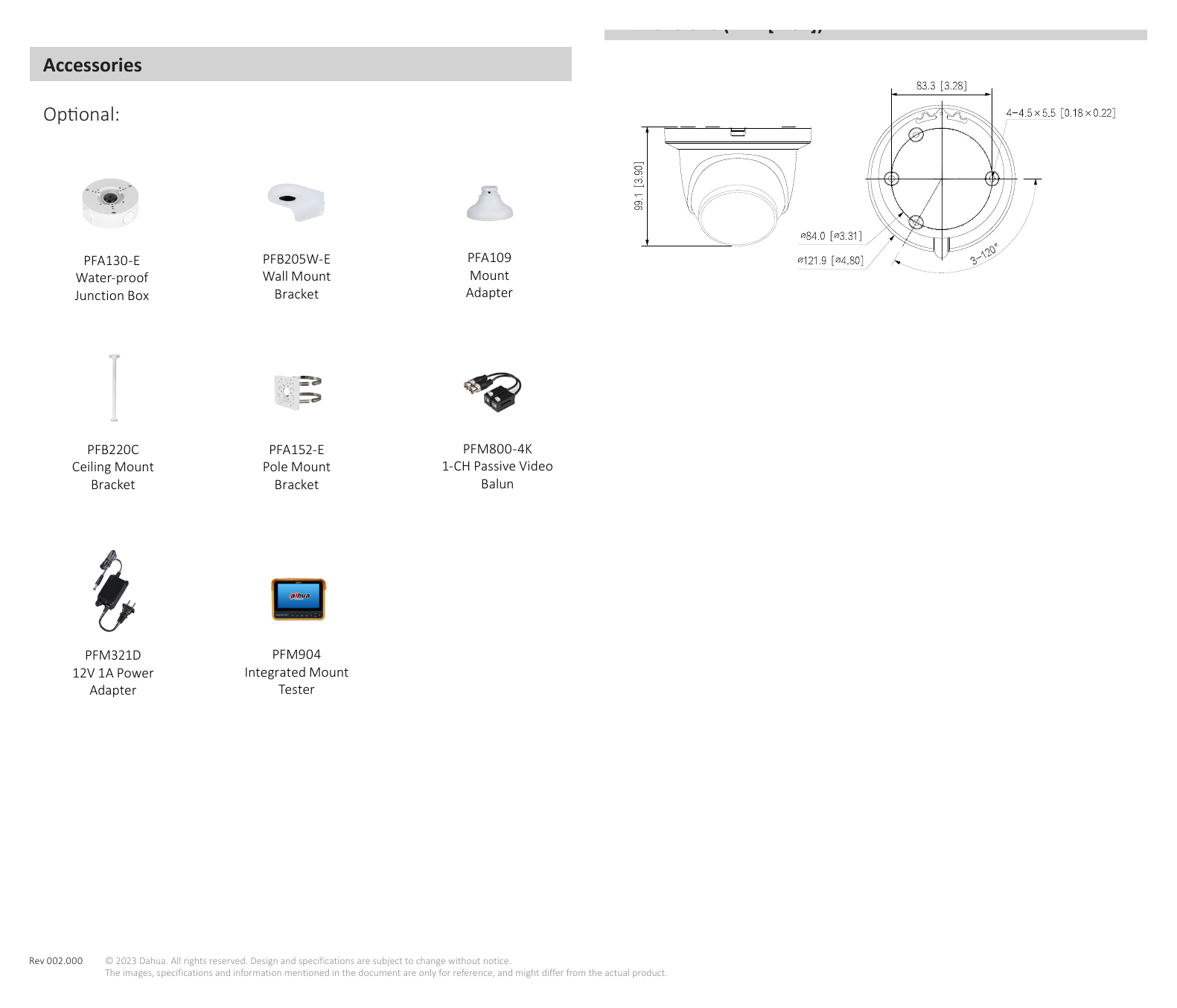

| PFM904 | Integrated Mount Tester Dimensions (mm [inch]) Accessories Optional: |
|---|
| Water-proof | Wall Mount Mount |
|---|
| Junction Box | Bracket Adapter |
|---|
| Ceiling Mount | Pole Mount 1-CH Passive Video |
|---|
| Bracket | Bracket Balun |
|---|
| Adapter | Tester |
|---|
| Rev 002.000 | © 2023 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
