| Camera | Mirror Yes |
|---|
| 影像感測器 | 4K CMOS Privacy Masking Off/On (8 areas, rectangle) |
|---|
| 最大解像度 | 3840 (H) × 2160 (V) Certification |
|---|
| Scanning System | Progressive CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035; Certifications |
|---|
| PAL: 1/3 s–1/100000 s | FCC: 47 CFR FCC Part 15, Subpart B; |
|---|
| Electronic Shutter Speed | UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14 NTSC: 1/4 s–1/100000 s 0.001 lux@F1.5 (Color, 30 IRE) Port |
|---|
| 最低照度 | 0.0001 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on) Video output choices of CVI/TVI/AHD/CVBS by one BNC Video Output port (DIP Switch) |
|---|
| S/N Ratio | >65 dB |
|---|
| 音訊輸入 | One channel built-in MIC |
|---|
| Illumination Distance | 60 m (196.85 ft) Power |
|---|
| Illuminator On/Off Control | Auto |
|---|
| 供電 | 12 VDC ± 10%; 24 VAC ± 25% |
|---|
| Illuminator Number | 2 (IR light) |
|---|
| 功耗 | Max 10.0 W (12 VDC, IR on) Pan: 0°–360° |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–78° |
|---|
| Rotation: 0°–360° | Environment |
|---|
| 鏡頭 | Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F) |
|---|
| 鏡頭類型 | Motorized Vari-focal Operating Humidity <95% (RH), non-condensing |
|---|
| Auto Focus | Yes Storage Temperature –30 °C to +60 °C (–22 °F to +140 °F) |
|---|
| 鏡頭接口 | φ14 Storage Humidity <95% (RH), non-condensing |
|---|
| 焦距 | 2.7 mm–13.5 mm Protection IP67 |
|---|
| Max. Aperture | F1.5 Structure |
|---|
| Field of View | H: 113°–47°; V: 60°–26°; D: 133°–53° Casing Material Metal dome + metal enclosure + plastic mounting plate |
|---|
| Iris Control | Fixed Product Dimensions φ135 mm × 109 mm (φ5.31" × 4.28") |
|---|
| Close Focus Distance | 1.2 m (3.94 ft) Net Weight 0.56 kg (1.20 lb) |
|---|
| DORI 偵測距離 | 83.4 m 33.4 m 16.7 m 8.3 m Installation Wall mount; ceiling mount; vertical pole mount 2.7 mm |
|---|
| Distance | (273.62 ft) (109.58 ft) (54.79 ft) (27.23 ft) 189.6 m 75.8 m 37.9 m 19.0 m 13.5 mm (622.05 ft) (248.69 ft) (124.34 ft) (62.34 ft) |
|---|
| Video | Ordering Information |
|---|
| CVI: PAL: 4K@15 fps; 5M@25 fps; 4M@25 fps | Type Part Number Description NTSC: 4K@15 fps; 5M@25 fps; 4M@30 fps |
|---|
| Video Frame Rate | AHD: PAL: 4K@15 fps; NTSC: 4K@15 fps DH-HAC-HDW2802T- 4K Starlight HDCVI Motorized Vari-focal |
|---|
| TVI: PAL: 4K@15 fps; NTSC: 4K@15 fps | MQP-Z-A-DP IR Quick-to-install Eyeball Camera, PAL |
|---|
| CVBS: PAL: 960H; NTSC: 960H | 4K Camera |
|---|
| DH-HAC-HDW2802T- | 4K Starlight HDCVI Motorized Vari-focal 4K (3840 × 2160); 5M (2880 × 1620); 4M (2560 × 1440); |
|---|
| 解像度 | MQN-Z-A-DP IR Quick-to-install Eyeball Camera, NTSC 960H (960 × 576/960 × 480) |
|---|
| PFA13F | Junction Box |
|---|
| Day/Night | Auto(ICR)/Color/B/W |
|---|
| PFB211W | Wall Mount Bracket |
|---|
| BLC | BLC; HLC; WDR; HLC-Pro |
|---|
| PFA152-E | Pole Mount Bracket |
|---|
| WDR | 120 dB |
|---|
| PFA10C | Mount Adapter |
|---|
| White Balance | Auto;Area white balance Accessories (Optional) |
|---|
| PFB220C | Ceiling Mount Bracket |
|---|
| Gain Control | Auto/Manual |
|---|
| PFM800-4K | 1-CH Passive Video Balun |
|---|
| Noise Reduction | 3D NR |
|---|
| PFM321D | 12V 1A Power Adapter |
|---|
| Illumination Mode | Smart IR |
|---|
| PFM904 | Integrated Mount Tester |
|---|
| 除霧 | Electronic defog www.dahuasecurity.com Accessories Optional: |
|---|
| Junction | Wall Mount Pole Mount |
|---|

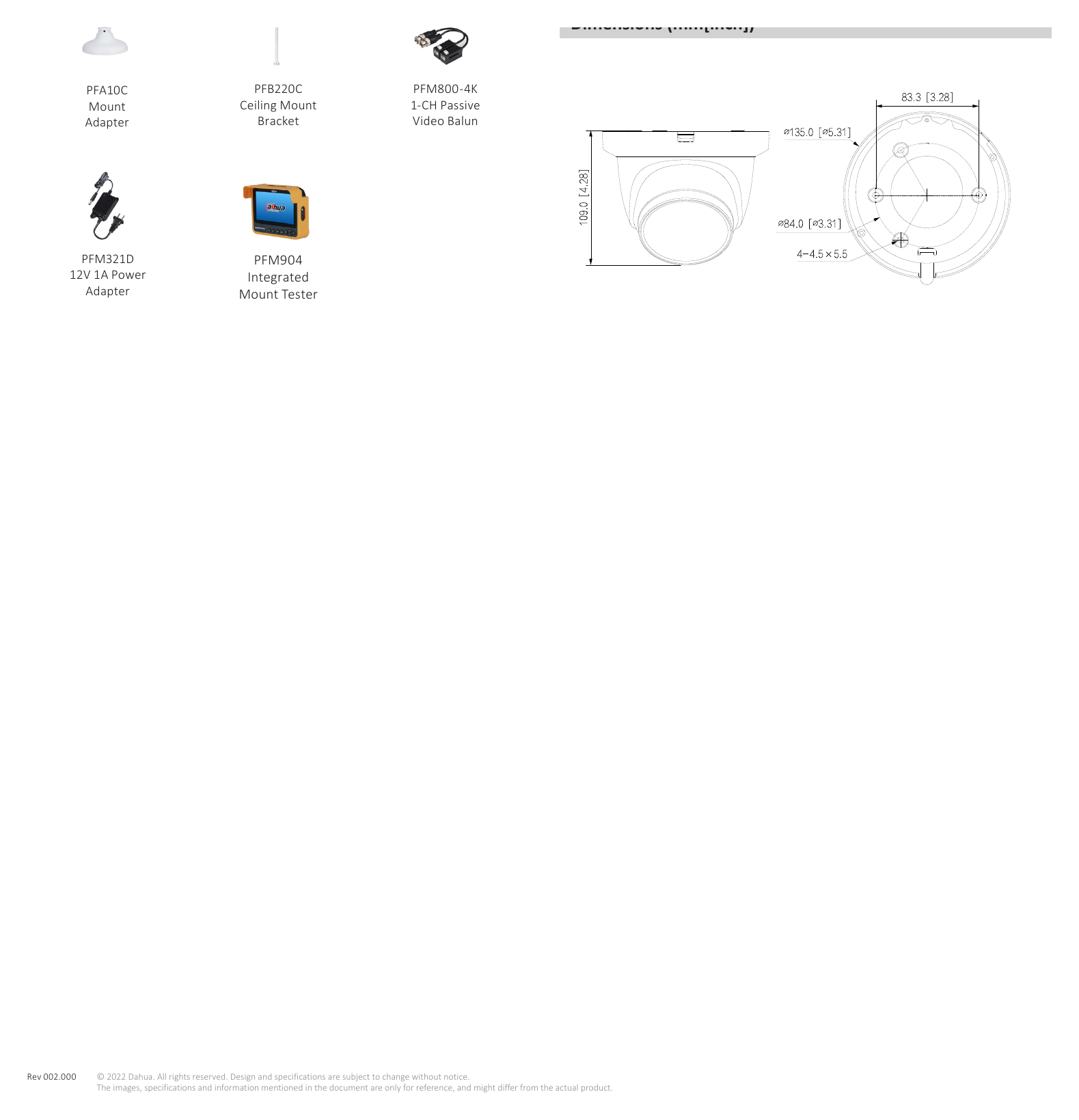

| Box | Bracket Bracket Dimensions (mm[inch]) |
|---|
| Mount | Ceiling Mount 1-CH Passive |
|---|
| Adapter | Bracket Video Balun |
|---|
| Rev 002.000 | © 2022 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
