| Camera | White Balance Auto; Area white balance |
|---|
| 影像感測器 | 2 MP CMOS Gain Control Auto |
|---|
| 最大解像度 | 1920 (H) × 1080 (V) Noise Reduction 3D NR |
|---|
| Scanning System | Progressive Illumination Mode Smart IR |
|---|
| PAL: 1/25 s–1/100000 s | Mirror Yes Electronic Shutter Speed NTSC: 1/30 s–1/100000 s |
|---|
| Privacy Masking | Off/On (8 areas, rectangle) 0.01 lux@F2.0 (Color, 30 IRE) |
|---|
| 最低照度 | 0.001 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) Certification CE-LVD: EN 62368-1; |
|---|
| S/N Ratio | >65 dB Certifications CE-EMC: EN 55032; EN 55035; FCC: 47 CFR FCC Part 15, Subpart B |
|---|
| Illumination Distance | 40 m (131.23 ft) Port |
|---|
| Illuminator On/Off Control | Auto Video output choices of CVI/TVI/AHD/CVBS by one Video Output |
|---|
| Illuminator Number | 2 (IR light) BNC port |
|---|
| Pan: 0°–360° | Power |
|---|
| 角度調節 | Tilt: 0°–90° |
|---|
| Rotation: 0°–360° | Power Supply 12 VDC ± 30% |
|---|
| 鏡頭 | Power Consumption Max 2.8 W (12 VDC, IR on) |
|---|
| 鏡頭類型 | Fixed-focal Environment |
|---|
| 鏡頭接口 | M12 Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F) |
|---|
| 焦距 | 2.8 mm; 3.6 mm; 6 mm Operating Humidity <95% (RH), non-condensing |
|---|
| Max. Aperture | F2.0 Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F) 2.8 mm: H: 102°; V: 60°; D: 129° Storage Humidity <95% (RH), non-condensing |
|---|
| Field of View | 3.6 mm: H: 83°; V: 48°; D: 104° 6 mm: H: 47°; V: 27°; D: 54° Protection IP67 |
|---|
| Iris Control | Fixed Structure 2.8 mm: 0.5 m (1.64 ft) Casing Material Plastic |
|---|
| Close Focus Distance | 3.6 mm: 0.7 m (2.30 ft) 6 mm: 2.3 m (7.55 ft) Product Dimensions 198.9 mm × 80.2 mm × 76.2 mm (7.83" × 3.16" × 3.00") |
|---|
| DORI 偵測距離 | 41.4 m 16.5 m 8.3 m 4.1 m Gross Weight 0.41 kg (0.90 lb) 2.8 mm |
|---|
| Distance | (135.83 ft) (42.13 ft) ( 27.23 ft) (13.45 ft) 50.9 m 20.3 m 10.2 m 5.1 m Installation Wall mount; ceiling mount; vertical pole mount 3.6 mm (166.99 ft) (66.60 ft) (33.46 ft) (16.73 ft) 95.1 m 38.0 m 19.0 m 9.5 m 6 mm (312.01 ft) (124.67 ft) (62.34 ft) (31.17 ft) CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; Video Frame Rate TVI: PAL: 1080p@25 fps; NTSC: 10 |
|---|
| 解像度 | 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
|---|
| Day/Night | Auto(ICR)/Color/B/W |
|---|
| BLC | BLC; HLC; DWDR www.dahuasecurity.com Ordering Information |
|---|
| 類型 | Model Description 2MP IR HDCVI Fixed-focal Bullet Camera, |
|---|
| DH-HAC-HFW1200TLP | PAL 2MP Camera 2MP IR HDCVI Fixed-focal Bullet Camera, |
|---|
| DH-HAC-HFW1200TLN | NTSC |
|---|
| PFA134 | Junction Box |
|---|
| PFA152-E | Pole Mount Bracket |
|---|

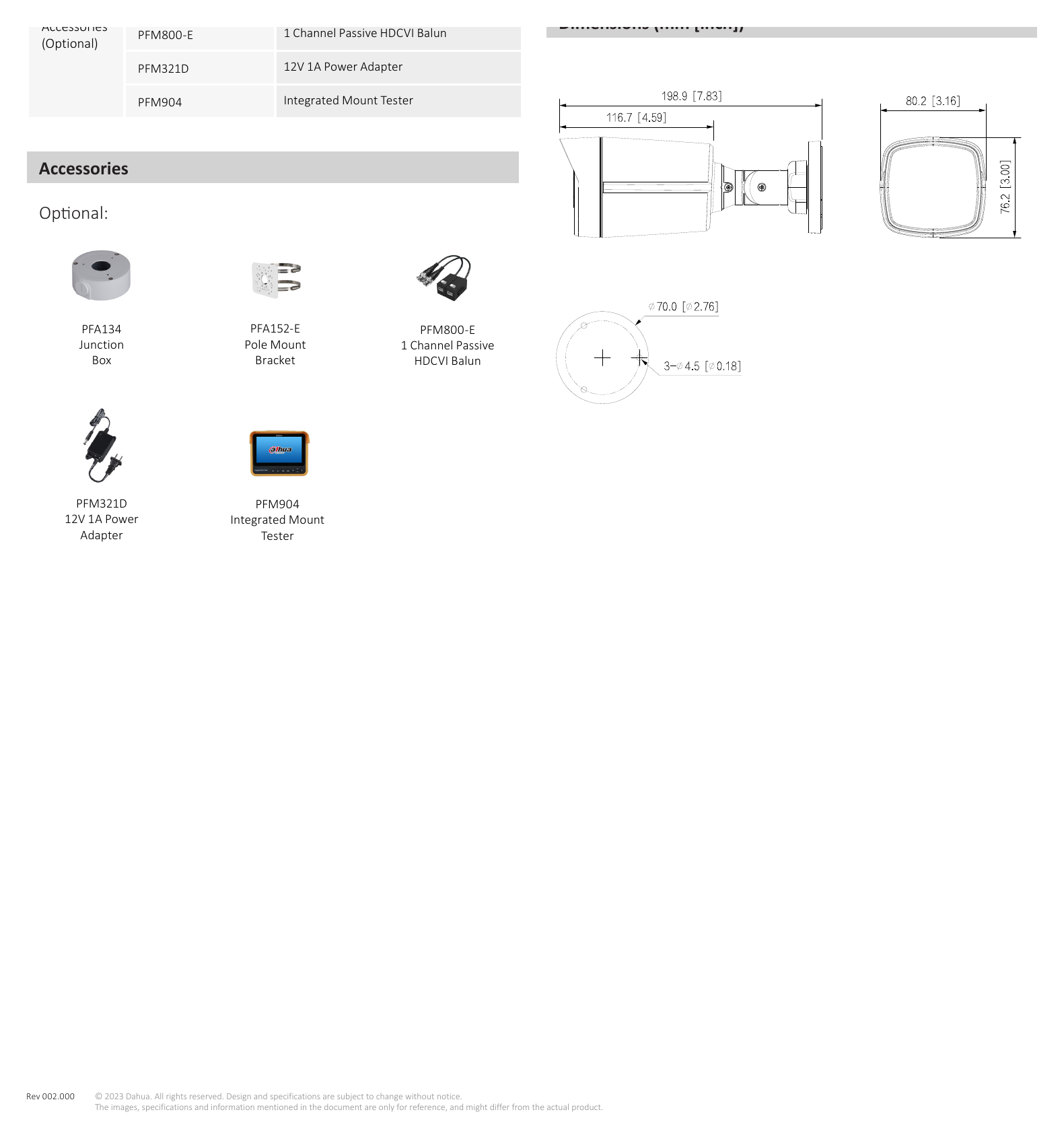

| Accessories | 1 Channel Passive HDCVI Balun Dimensions (mm [inch]) PFM800-E (Optional) |
|---|
| PFM321D | 12V 1A Power Adapter |
|---|
| PFM904 | Integrated Mount Tester Accessories Optional: |
|---|
| Junction | Pole Mount 1 Channel Passive |
|---|
| Box | Bracket HDCVI Balun |
|---|
| Adapter | Tester |
|---|
| Rev 002.000 | © 2023 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
