| Camera | Gain Control Manual;Auto |
|---|
| 影像感測器 | 5 MP CMOS Noise Reduction 3D NR |
|---|
| 最大解像度 | 2880 (H) × 1620 (V) Illumination Mode Smart IR&WL; WL Mode; IR Mode |
|---|
| Scanning System | Progressive Defog Electronic defog |
|---|
| PAL: 1/3 s–1/100,000 s; | Digital Zoom 4× NTSC: 1/4 s–1/100,000 s |
|---|
| Mirror | Yes 0.001 lux@F1.0 (Color, 30 IRE); |
|---|
| 最低照度 | 0.0001 lux@F1.0 (B/W, 30 IRE); Privacy Masking Off/On (8 areas, rectangle) 0 lux (Illuminator on) |
|---|
| S/N Ratio | >65 dB CE-LVD: EN 62368-1; Certifications |
|---|
| IR: 40 m (131.23 ft); | CE-EMC: EN 55032; EN 55035; Warm Light: 40 m (131.23 ft) Port |
|---|
| Illuminator On/Off Control | Auto;Manual Video output choices of CVI/TVI/AHD/CVBS by one BNC Video Output |
|---|
| Illuminator Number | 2 (Warm light);2 (IR light) port |
|---|
| Pan: 0°–360°; | Audio Input One channel built-in Mic |
|---|
| 角度調節 | Tilt: 0°–90°; |
|---|
| Rotation: 0°–360° | Power |
|---|
| 供電 | PoC (only CVI)/12 VDC ± 30% |
|---|
| 功耗 | Max 5.1W (12 VDC, WLED on) PoC (AF) |
|---|
| 鏡頭類型 | Fixed-focal |
|---|
| 鏡頭接口 | M12 Environment |
|---|
| 工作溫度 | –40 °C to +60 °C (–40 °F to +140 °F) |
|---|
| 焦距 | 2.8 mm; 3.6 mm |
|---|
| 工作濕度 | <95% (RH), non-condensing |
|---|
| Max. Aperture | F1.2 2.8 mm: H: 111°; V: 58.5°; D: 136.3° |
|---|
| 儲存溫度 | –40 °C to +60 °C (–40 °F to +140 °F) 3.6 mm: H: 91.1°; V: 48.7°; D: 107.9° |
|---|
| Storage Humidity | <95% (RH), non-condensing |
|---|
| Iris Control | Fixed |
|---|
| 防護等級 | IP67 2.8 mm: 1.4 m (4.59 ft) |
|---|
| Close Focus Distance | Anti-corrosion Level Basic Protection 3.6 mm: 2.0 m (6.56 ft) |
|---|
| 鏡頭 | Detect Observe Recognize Identify Structure |
|---|
| Casing Material | Metal 64.0 m 25.6 m 12.8 m 6.4 m |
|---|
| DORI 偵測距離 | 2.8 mm ( 209.97 ft) ( 83.99 ft) ( 41.99 ft) ( 21.00 ft) Product Dimensions 240.7 mm × 90.7 mm × 90.7 mm (9.48" × 3.57" × 3.57") 78.0 m 31.2 m 15.6 m 7.8 m 3.6 mm Net Weight 0.7 kg (1.54 lb) ( 255.91 ft) ( 102.36 ft) ( 51.18 ft) ( 25.59 ft) |
|---|
| 毛重 | 0.89 kg (1.96 lb) |
|---|
| 安裝 | Wall mount; ceiling mount; vertical pole mount CVI: PAL: 5M@25 fps; 4M@25 fps NTSC: 5M@25 fps; 4M@30 fps AHD: |
|---|
| PAL: 4M@25 fps | Ordering Information NTSC: 4M@30 fps |
|---|
| Video Frame Rate | Type Model Description TVI: |
|---|
| NTSC: 4M@30 fps | DH-HAC-HFW1509TMP-IL- |
|---|
| HDCVI CAMERA | HDCVI Fixed-focal Bullet |
|---|
| CVBS: | A-POC PAL: 960H NTSC: 960H 5M (2880 × 1620); 4M (2560 × 1440); 960H (960 × 576/960 × 480) |
|---|
| Day/Night | Auto(ICR)/Color/B/W |
|---|
| BLC | BLC; HLC; WDR; HLC-Pro |
|---|
| WDR | 120 dB www.dahuasecurity.com |
|---|
| 類型 | Model Description |
|---|
| DH-PFA130-E | Water-proof Junction Box |
|---|
| G3416GW | G3/4" Water Joint |
|---|
| DH-PFA151 | Corner mount bracket |
|---|
| DH-PFA152-E | Pole Mount Bracket |
|---|
| DH-PFA135 | Junction box |
|---|
| Accessories (Optional) | 1 Channel Passive HDCVI DH-PFM800-4K Balun |
|---|
| DH-PFM321-EN | DC12V1A power adapter |
|---|
| DH-PFM321D-EN | DC12V 1A power adapter |
|---|
| DH-PFM320D-EN | DC12V2A power adapter |
|---|

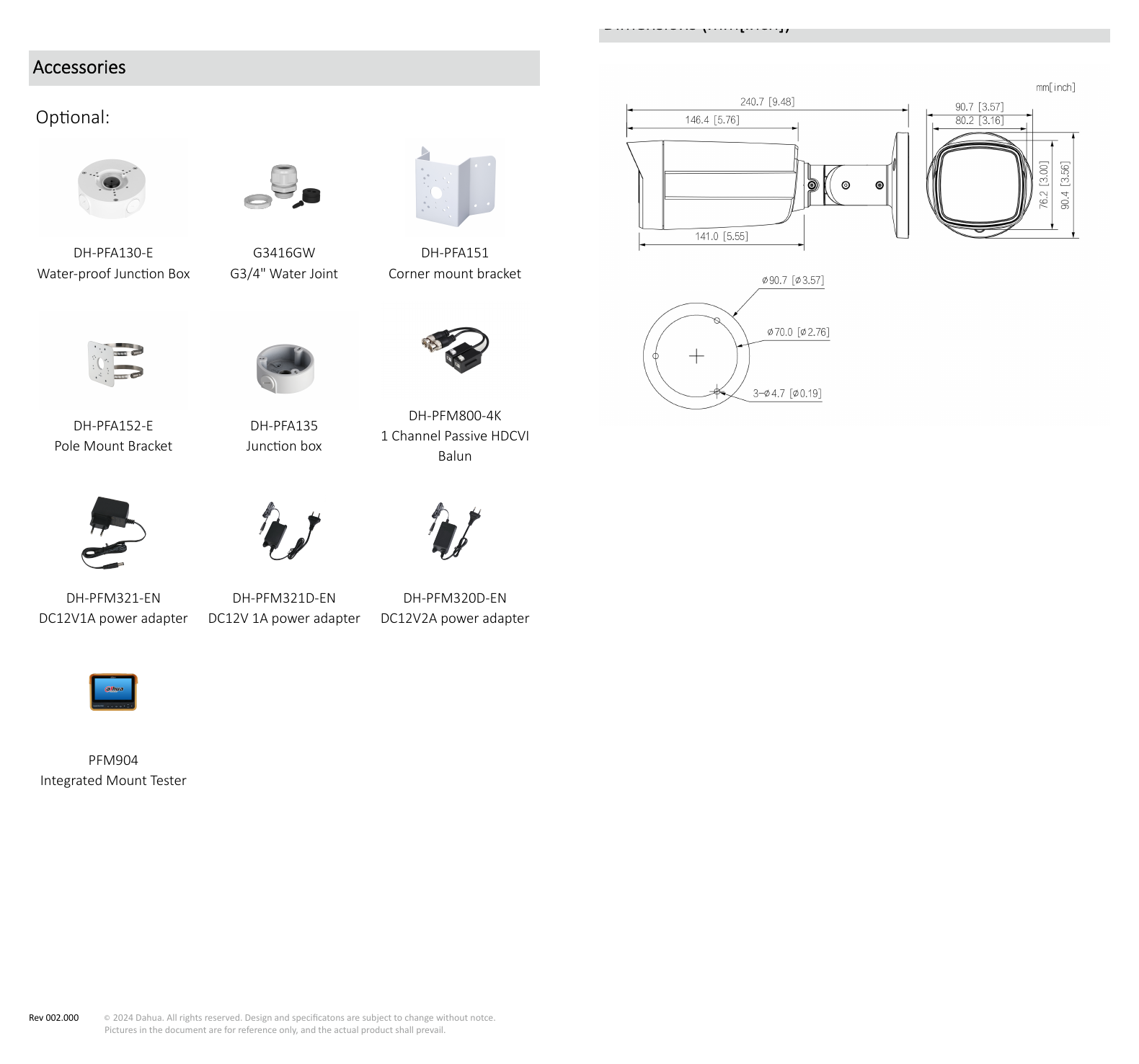

| PFM904 | Integrated Mount Tester Dimensions (mm[inch]) Optional: |
|---|
| Water-proof Junction Box | G3/4" Water Joint Corner mount bracket DH-PFM800-4K |
|---|
| Pole Mount Bracket | Junction box Balun |
|---|
| DC12V1A power adapter | DC12V 1A power adapter DC12V2A power adapter PFM904 Integrated Mount Tester |
|---|
| Rev 002.000 | © 2024 Dahua. All rights reserved. Design and specificatons are subject to change without notce. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
