DAHUA HAC-HFW2241TU-Z-A CCTV攝影機安裝・保養

Name: DAHUA HAC-HFW2241TU-Z-A DH-HAC-HFW2241TU-Z-A
Brand: Dahua
SKU: HAC-HFW2241TU-Z-A

產品簡介

Dahua HAC-HFW2241TU-Z-A 為DH-HAC-HFW2241TU-Z-A，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 HAC-HFW2241TU-Z-A 香港價格連安裝報價。

Camera：Noise Reduction 3D NR
影像感測器：2MP CMOS Smart IR Yes
最大解像度：1920 (H) × 1080 (V) Mirror Yes
Pixel：2MP Privacy Masking Off/On (8 area, rectangle)
Scanning System：Progressive Certifications

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

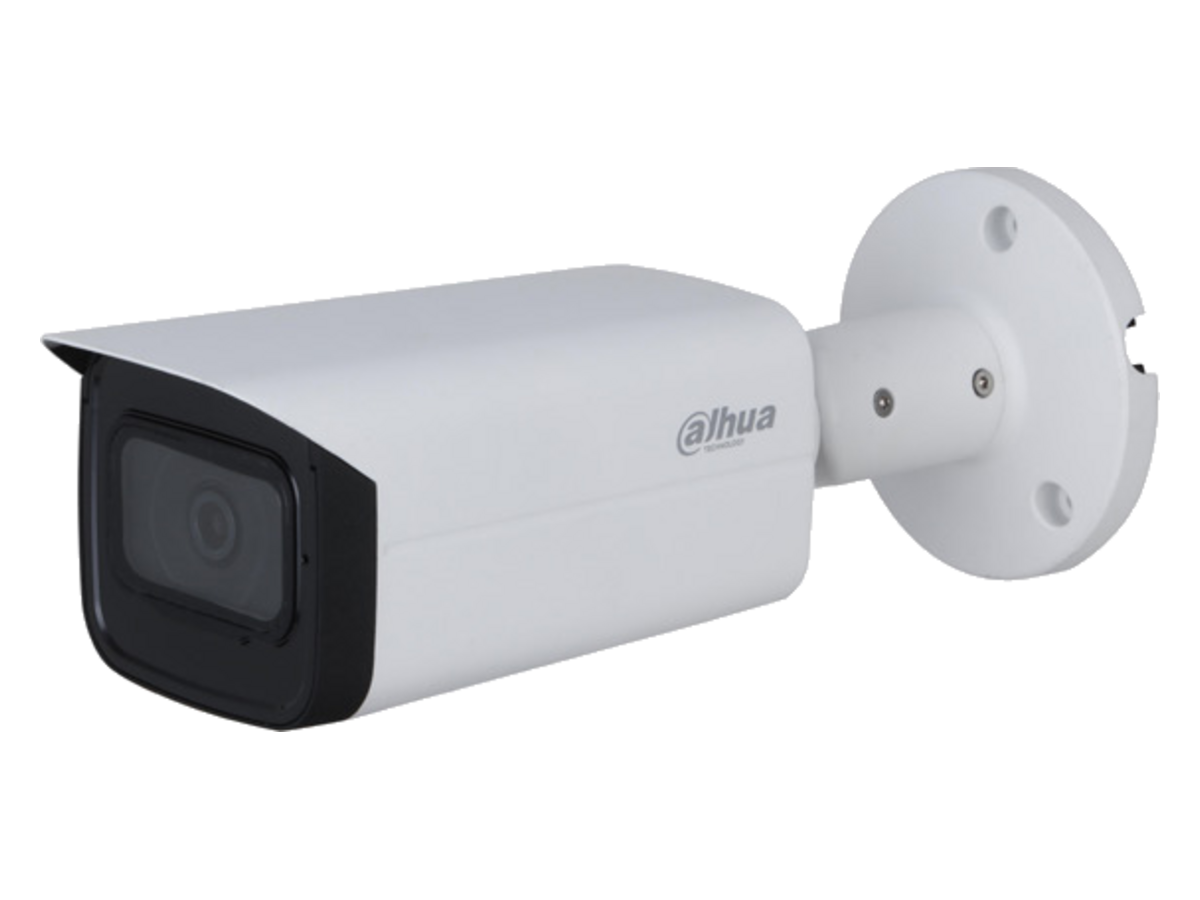

HAC-HFW2241TU-Z-A Dahua DH-HAC-HFW2241TU-Z-A 產品圖片

詳細規格

Camera	Noise Reduction 3D NR
影像感測器	2MP CMOS Smart IR Yes
最大解像度	1920 (H) × 1080 (V) Mirror Yes
Pixel	2MP Privacy Masking Off/On (8 area, rectangle)
Scanning System	Progressive Certifications
PAL: 1/25 s–1/100,000 s	CE (EN55032, EN55024, EN50130-4)
Electronic Shutter Speed	NTSC: 1/30 s–1/100,000 s Certifications FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
S/N Ratio	>65 dB Port
最低照度	0.001 lux/F1.5, 30 IRE, 0 lux IR on Video output choices of CVI/TVI/AHD/CVBS by one BNC Video Output
Illumination Distance	80 m (262.5 ft) port (DIP Switch)
Illuminator On/Off Control	Auto Audio Input One channel built-in mic
Illuminator Number	4 (IR light) Power
Pan: 0°–360°	Power Supply 12V ±30% DC
Pan/Tilt/Rotation Range	Tilt: 0°–90°
Rotation: 0°–360°	Power Consumption Max 9.4 W (12 VDC, IR on)
鏡頭	Environment
鏡頭類型	Motorized Vari-focal –30 °C to +60 °C (-22 °F to 140 °F); 95% (non- Operating Temperature condensation)
Auto Focus	Yes –30 °C to +60 °C (-22 °F to 140 °F); ﹤95% (non- Storage Temperature condensation)
Mount Type	φ14
Protection Grade	IP67
焦距	2.7 mm–13.5 mm Structure
Max. Aperture	F1.5
Casing	Metal throughout the whole casing Diagonal: 131°–35°
Field of View	Horizontal: 108°–30° Camera Dimensions 244.1 mm × 90.4 mm × 90.4 mm (9.61" × 3.56" × 3.56") Vertical: 56°–17°
淨重	0.79 kg (1.7 lb)
光圈類型	Fixed
毛重	1.07 kg (2.4 lb)
Close Focus Distance	0.8 m (2.6 ft ) 2.7 mm: D: 44.1 m (144.7 ft); O: 17.6 m (57.7 ft); R: 8.8 m (28.9 ft); I: 4.4 m (14.4 ft) DORI Distance 13.5 mm: D: 144.8 m (475.1 ft); O: 57.9 m (190 ft); R: 28.9 m (94.8 ft); I: 14.8 m (48.6 ft) CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; Frame Rate TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; CVBS: PAL: 960 × 576H; NTSC: 960 × 480H;
解像度	1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Day/Night	Auto switch by ICR
BLC	BLC/WDR/HLC
WDR	130 dB
White Balance	Auto/Area WB www.dahuasecurity.com
Ordering Information	Dimensions (mm[inch])
類型	Model Description 2MP Starlight HDCVI IR Bullet DH-HAC-HFW2241TUP-Z-A Camera, PAL 2MP
PFA130-E	Water-proof Junction Box
PFA152-E	Pole Mount Bracket Accessories
PFM800-E	Passive HDCVI Balun (Optional)
PFM321D	DC12V1A Power Adapter
PFM904	Integrated Mount Tester Accessories Optional:
Water-proof Junction Box	Pole Mount Bracket Passive HDCVI Balun
DC12V1A Power Adapter	Integrated Mount Tester
Rev 002.000	© 2022 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com
