| Camera | Mirror Yes |
|---|
| 影像感測器 | 4K CMOS Privacy Masking Off/On (8 areas, rectangle) |
|---|
| 最大解像度 | 3840 (H) × 2160 (V) Certification |
|---|
| Scanning System | Progressive CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035; Certifications |
|---|
| PAL: 1/3 s–1/100000 s | FCC: 47 CFR FCC Part 15, Subpart B; |
|---|
| Electronic Shutter Speed | UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14 NTSC: 1/4 s–1/100000 s 0.001 lux@F1.5 (Color, 30 IRE) Port |
|---|
| 最低照度 | 0.0001 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on) Video output choices of CVI/TVI/AHD/CVBS by one BNC Video Output port (DIP Switch) |
|---|
| S/N Ratio | >65 dB |
|---|
| 音訊輸入 | One channel built-in MIC |
|---|
| Illumination Distance | 80 m (262.47 ft) Power |
|---|
| Illuminator On/Off Control | Auto |
|---|
| 供電 | 12 VDC ± 10%;24 VAC ± 25% |
|---|
| Illuminator Number | 4 (IR light) |
|---|
| 功耗 | Max 13.9 W (12 VDC, IR on) Pan: 0°–360° |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–90° |
|---|
| Rotation: 0°–360° | Environment |
|---|
| 鏡頭 | Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F) |
|---|
| 鏡頭類型 | Motorized Vari-focal Operating Humidity <95% (RH), non-condensing |
|---|
| Auto Focus | Yes Storage Temperature –30 °C to +60 °C (–22 °F to +140 °F) |
|---|
| 鏡頭接口 | φ14 Storage Humidity <95% (RH), non-condensing |
|---|
| 焦距 | 2.7 mm–13.5 mm Protection IP67 |
|---|
| Max. Aperture | F1.5 Structure |
|---|
| Field of View | H: 113°–47°; V: 60°–26°; D: 133°–53° Casing Material Metal |
|---|
| Iris Control | Fixed Product Dimensions 244.1 mm × 90.4 mm × 90.4 mm (9.61" × 3.56" × 3.56") |
|---|
| Close Focus Distance | 1.2 m (3.94 ft) Net Weight 0.82 kg (1.81 lb) |
|---|
| DORI 偵測距離 | 83.4 m 33.4 m 16.7 m 8.3 m Installation Wall mount; ceiling mount; vertical pole mount 2.7 mm |
|---|
| Distance | (273.62 ft) (109.58 ft) (54.79 ft) (27.23 ft) 189.6 m 75.8 m 37.9 m 19.0 m 13.5 mm (622.05 ft) (248.69 ft) (124.34 ft) (62.34 ft) |
|---|
| Video | Ordering Information |
|---|
| CVI: PAL: 4K@15 fps; 5M@25 fps; 4M@25 fps | Type Part Number Description NTSC: 4K@15 fps; 5M@25 fps; 4M@30 fps |
|---|
| Video Frame Rate | AHD: PAL: 4K@15 fps; NTSC: 4K@15 fps DH-HAC-HFW2802TUP- 4K Starlight HDCVI Motorized Vari-focal |
|---|
| TVI: PAL: 4K@15 fps; NTSC: 4K@15 fps | Z-A-DP IR Bullet Camera, PAL |
|---|
| CVBS: PAL: 960H; NTSC: 960H | 4K Camera |
|---|
| DH-HAC-HFW2802TUN- | 4K Starlight HDCVI Motorized Vari-focal 4K (3840 × 2160); 5M (2880 × 1620); 4M (2560 × 1440); |
|---|
| 解像度 | Z-A-DP IR Bullet Camera, NTSC 960H (960 × 576/960 × 480) |
|---|
| PFA135 | Junction Box |
|---|
| Day/Night | Auto(ICR)/Color/B/W |
|---|
| PFA130-E | Water-proof Junction Box |
|---|
| BLC | BLC; HLC; WDR; HLC-Pro |
|---|
| PFA152-E | Pole Mount Bracket |
|---|
| WDR | 120 dB Accessories (Optional) |
|---|
| PFM800-4K | 1-CH Passive Video Balun |
|---|
| White Balance | Auto; Area white balance |
|---|
| PFM320D | 12V 2A Power Adapter |
|---|
| Gain Control | Auto/Manual |
|---|
| PFM904 | Integrated Mount Tester |
|---|
| Noise Reduction | 3D NR |
|---|
| Illumination Mode | Smart IR |
|---|
| 除霧 | Electronic defog www.dahuasecurity.com Accessories Optional: |
|---|
| Junction | Water-proof Pole Mount |
|---|

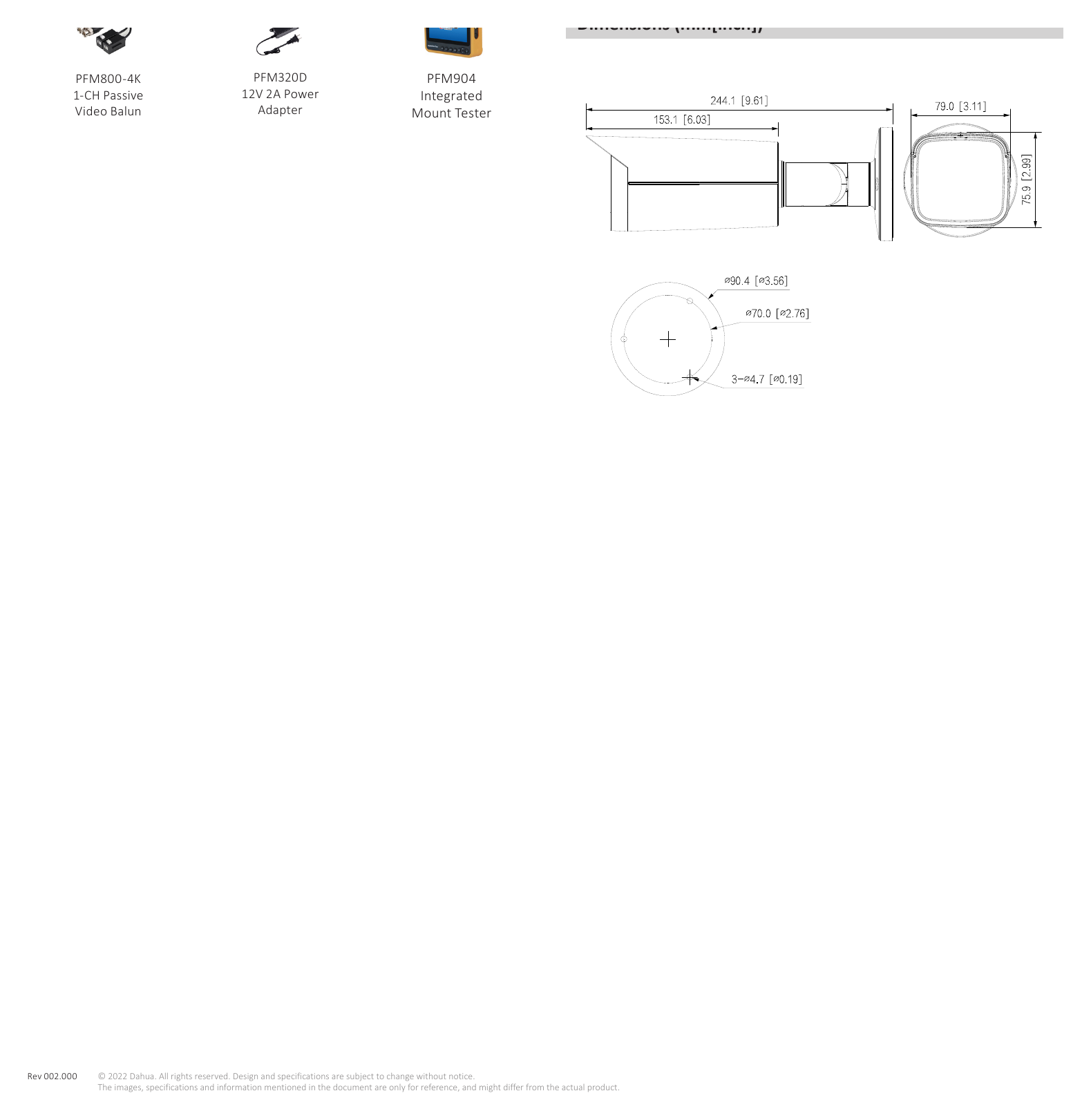

| Box | Junction Box Bracket Dimensions (mm[inch]) |
|---|
| Video Balun | Adapter Mount Tester |
|---|
| Rev 002.000 | © 2022 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
