| Camera | White Balance Auto; Area white balance |
|---|
| Pixel | 5MP Gain Control Auto; manual |
|---|
| 影像感測器 | 5MP CMOS Noise Reduction 3D NR |
|---|
| 最大解像度 | 2880 (H) × 1620 (V) Illumination Mode Smart IR&WL; WL Mode; IR Mode |
|---|
| Scanning System | Progressive Defog Electronic defog |
|---|
| PAL: 1/3 s–1/100000 s | Digital Zoom 4× Electronic Shutter Speed NTSC: 1/4 s–1/100000 s 0.001 lux@F1.0 (Color, 30 IRE) Mirror Yes |
|---|
| 最低照度 | 0.0001 lux@F1.0 (B/W, 30 IRE) 0 lux (Illuminator on) Privacy Masking Off/On (8 areas, rectangle) |
|---|
| S/N Ratio | >65 dB Active Deterrence IR: 40 m (131.23 ft) |
|---|
| Illumination Distance | Audio 1: Alarm Warm light: 40 m (131.23 ft) Audio 2: No parking here Audio 3: Private land no entry. |
|---|
| Illuminator On/Off Control | Auto; manual |
|---|
| Sound Warning | Audio 4: Warning zone keep off Audio 5: Welcome 2 (IR light) Volume: high/medium/low; |
|---|
| Illuminator Number | duration: 5 s–60 s; 110 dB 2 (Warm light) Pan: 0°–360° |
|---|
| Red/Blue Light Warning | Flash: 5 s–60 s; frequency: high/medium/low |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–90° |
|---|
| Rotation: 0°–360° | Certification |
|---|
| 鏡頭 | CE (EN55032:2015, EN61000-3-2:2014, EN61000- 3-3:2013, EN55024:2010+A1:2015, EN55035:2017, |
|---|
| 鏡頭類型 | Fixed-focal Certifications EN50130-4:2011+A1:2014, EN62368-1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
|---|
| 鏡頭接口 | M12 UL (UL62368-1+CAN/CSA C22.2 No.62368-1-14) |
|---|
| 焦距 | 2.8 mm; 3.6 mm Port |
|---|
| Max. Aperture | F1.0 Video output choices of CVI/TVI/AHD/CVBS by one BNC Video Output port 2.8 mm: H: 111°; V: 57°; D: 131° |
|---|
| Field of View | Audio Input One channel built-in MIC 3.6 mm: H: 89°; V: 47°; D: 104° |
|---|
| Iris Control | Fixed Alarm Output 1 channel Close Focus Distance 2.8 mm: 1.5 m (4.92 ft) Power 3.6 mm: 2.2 m (7.22 ft) 12 VDC ± 30% (It is recommended to use a power adapter |
|---|
| DORI 偵測距離 | 66.0 m 26.4 m 13.2 m 6.6 m Power Consumption Max 10.5W (12 VDC, LED on) 2.8 mm |
|---|
| Distance | (216.54 ft) (86.61 ft) (43.31 ft) (21.65 ft) 3.6 mm 78.0 m 31.2 m 15.6 m 7.8 m Environment (255.91 ft) (102.36 ft) (51.18 ft) (25.59 ft) |
|---|
| Video | Operating Temperature –40 °C to +60 °C (–40 °F to 140 °F) CVI: |
|---|
| PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps | Operating Humidity <95% (RH), non-condensing NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps; |
|---|
| AHD: | Storage Temperature –40 °C to +60 °C (–40 °F to 140 °F) PAL: 4M@25 fps; |
|---|
| NTSC: 4M@30 fps; | Protection IP67 Video Frame Rate TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps; Structure CVBS: |
|---|
| Casing Material | Metal front cover + plastic rear barrel + metal bracket PAL: 960H; NTSC: 960H |
|---|

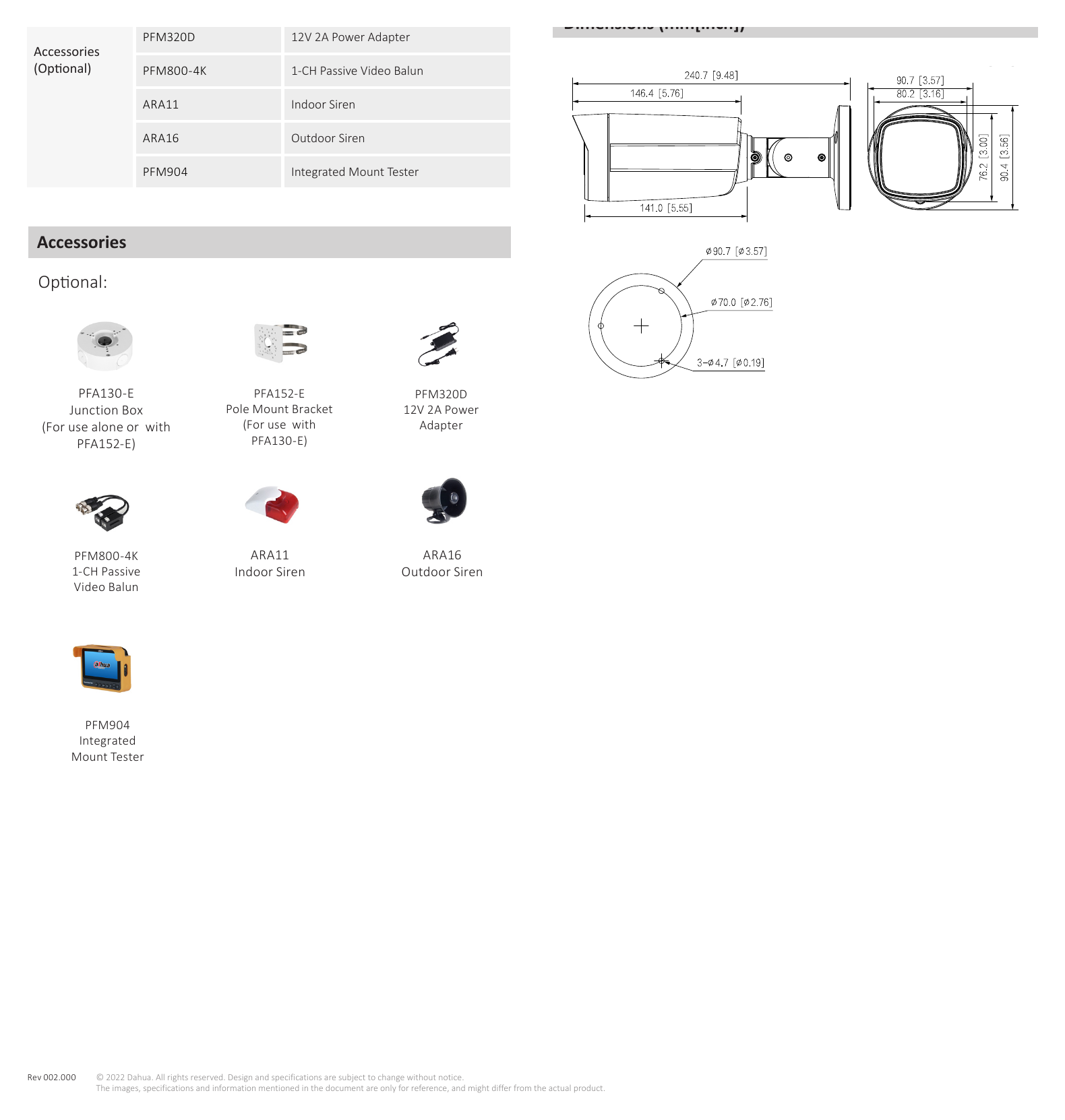

| Product Dimensions | 240.7 mm × Φ90.7 mm (9.48" × Φ3.57") 5M (2880 × 1620); 4M (2560 × 1440); Packaging Dimensions 299 mm × 119 mm × 111 mm (11.77" × 4.69" × 4.37") Resolution 1080p (1920 × 1080); 960H (960 × 576/960 × 480) Net Weight 0.48 kg (1.06 lb) |
|---|
| Day/Night | Auto (ICR)/Color/B/W Gross Weight 0.74 kg (1.63 lb) |
|---|
| BLC | BLC; HLC; WDR; HLC-Pro Installation Wall mount; ceiling mount; vertical pole mount www.dahuasecurity.com Ordering Information |
|---|
| 類型 | Part Number Description |
|---|
| DH-HAC-ME1509THP- | 5MP Smart Dual Illuminators Active |
|---|
| A-PV | Deterrence HDCVI Bullet Camera, PAL 5MP Camera |
|---|
| DH-HAC-ME1509THN- | 5MP Smart Dual Illuminators Active |
|---|
| PFM320D | 12V 2A Power Adapter Accessories (Optional) PFM800-4K 1-CH Passive Video Balun |
|---|
| ARA11 | Indoor Siren |
|---|
| ARA16 | Outdoor Siren |
|---|
| PFM904 | Integrated Mount Tester Accessories Optional: |
|---|
| PFA130-E | PFA152-E PFM320D |
|---|
| Junction Box | Pole Mount Bracket 12V 2A Power (For use alone or with (For use with Adapter |
|---|
| PFA152-E) | PFA130-E) |
|---|
| PFM800-4K | ARA11 ARA16 1-CH Passive Indoor Siren Outdoor Siren Video Balun PFM904 Integrated Mount Tester |
|---|
| Rev 002.000 | © 2022 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
