| Camera | WDR DWDR |
|---|
| 影像感測器 | 5 MP CMOS White Balance Auto;Area white balance |
|---|
| 最大解像度 | 2880 (H) × 1620 (V) Gain Control Auto;Manual |
|---|
| Scanning System | Progressive Noise Reduction 2D NR |
|---|
| PAL: 1/25 s–1/100,000 s; | Illumination Mode Smart IR Electronic Shutter Speed NTSC: 1/30 s–1/100,000 s 0.02 lux@F2.0 (Color, 30 IRE) Mirror Yes |
|---|
| 最低照度 | 0.002 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) Privacy Masking Off/On (8 areas, rectangle) |
|---|
| S/N Ratio | >65 dB Certification |
|---|
| Illumination Distance | 30 m (98.43 ft) CE-LVD: EN 62368-1; Certifications CE-EMC: EN 55032; EN 55035 |
|---|
| Illuminator On/Off Control | Auto;Manual Port |
|---|
| Illuminator Number | 3 (IR light) Video output choices of CVI/TVI/AHD/CVBS by one BNC Video Output port Pan: 0°–360° |
|---|
| 角度調節 | Tilt: 0°–78° Rotation: 0°–360° Power |
|---|
| 供電 | 12 VDC ± 30% |
|---|
| 功耗 | Max 3.7 W (12 VDC, IR on) |
|---|
| 鏡頭類型 | Fixed-focal |
|---|
| 鏡頭接口 | M12 |
|---|
| 工作溫度 | –40 °C to +60 °C (–40 °F to +140 °F) |
|---|
| 焦距 | 2.8 mm; 3.6 mm |
|---|
| 工作濕度 | <95% (RH), non-condensing |
|---|
| Max. Aperture | F2.0 |
|---|
| 儲存溫度 | –40 °C to +60 °C (–40 °F to +140 °F) 2.8 mm: H: 106°; V: 56°; D: 125° |
|---|
| Field of View | 3.6 mm: H: 92°; V: 48°; D: 109° |
|---|
| Storage Humidity | <95% (RH), non-condensing 6 mm: H: 54°; V: 29°; D: 62° |
|---|
| 防護等級 | IP67 |
|---|
| Iris Control | Fixed 2.8 mm: 1.0 m (3.28 ft) Anti-corrosion Level Basic Protection |
|---|
| Close Focus Distance | 3.6 mm: 1.3 m (4.27 ft) 6 mm: 2.8 m (9.19 ft) Structure |
|---|
| 鏡頭 | Detect Observe Recognize Identify Casing Material Metal 66.0 m 26.4 m 13.2 m 6.6 m Product Dimensions Φ94.0 mm × 77.9 mm (Φ3.70" × 3.07") 2.8 mm |
|---|
| DORI 偵測距離 | (216.54 ft) (86.61 ft) (43.31 ft) (21.65 ft) |
|---|
| Distance | Net Weight 0.30 kg (0.66 lb) 76.0 m 30.4 m 15.2 m 7.6 m 3.6 mm (249.34 ft) (99.74 ft) (49.87 ft) (24.93 ft) |
|---|
| 毛重 | 0.36 kg (0.79 lb) 126.0 m 50.4 m 25.2 m 12.6 m 6 mm (413.39 ft) (165.35 ft) (82.68 ft) (41.34 ft) Installation Wall mount; ceiling mount; vertical pole mount CVI: PAL: 5M@25 fps; 5M@12.5 fps; 4M@25 fps; 1080P@25 fps NTSC: 5M@25 fps; 5M@10 fps; 4M@30 fps; 1080P@30 fps AHD: PAL: 4M@25 fps; Video Frame Rate NTSC: 4M@30 fps TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H 5M (2880 × 16 |
|---|
| Day/Night | Auto(ICR)/Color/B/W www.dahuasecurity.com Ordering Information |
|---|
| 類型 | Model Description 5MP IR HDCVI Fixed-focal Eyeball DH-HAC-T2A51P-U Camera, PAL 5MP |
|---|
| PFA13A-E | Junction Box |
|---|
| PFB205W-E | Wall Mount Bracket |
|---|
| PFA152-E | Pole Mount Bracket Adapter Plate of Mini Dome & Eyeball PFA106 |
|---|
| Accessories | Camera (Optional) |
|---|
| PFB220C | Ceiling Mount Bracket |
|---|
| PFM321D | 12V 1A Power Adapter |
|---|
| PFM800-4K | 1-CH Passive Video Balun |
|---|

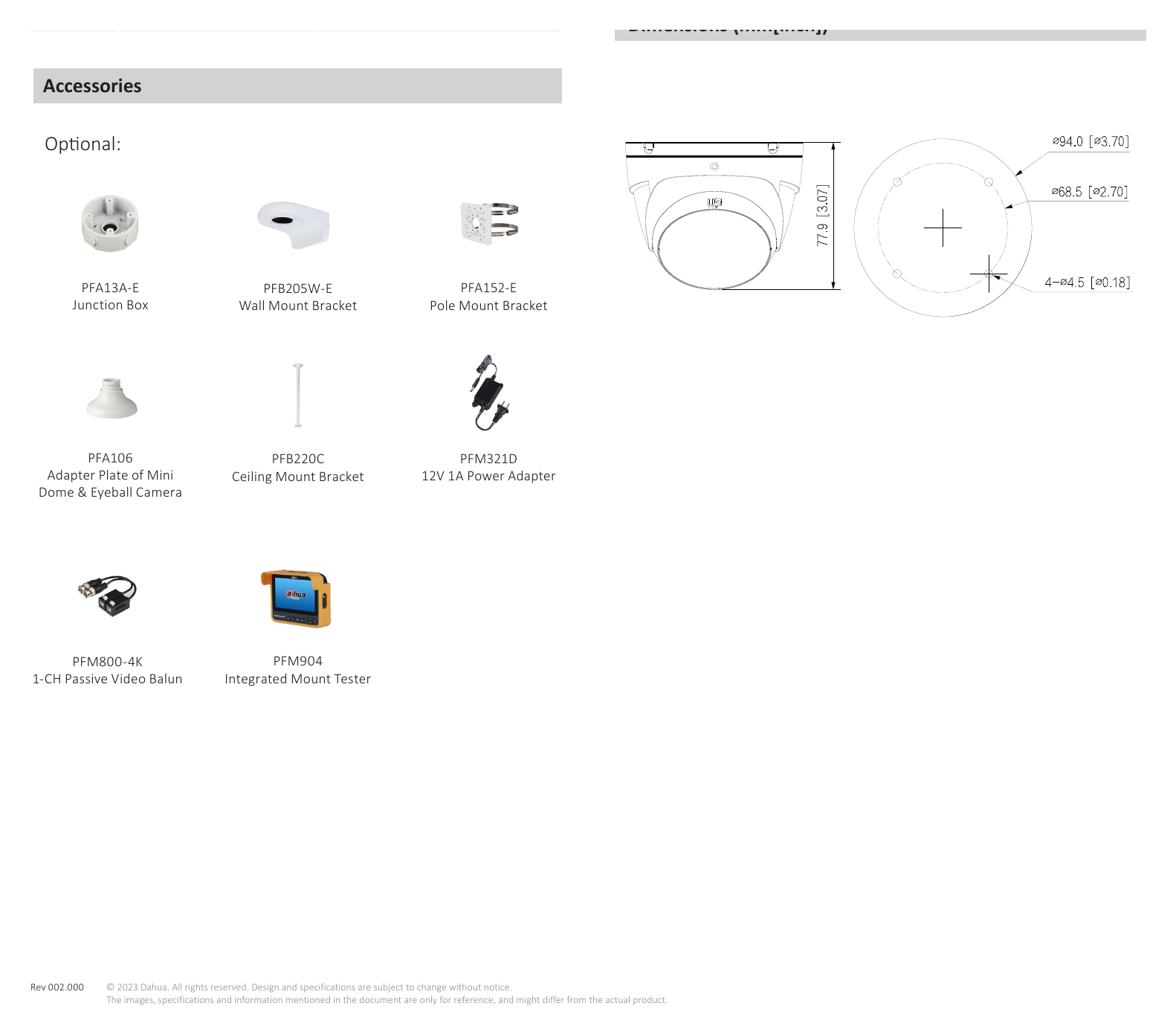

| PFM904 | Integrated Mount Tester Dimensions (mm[inch]) Accessories Optional: |
|---|
| Junction Box | Wall Mount Bracket Pole Mount Bracket |
|---|
| PFA106 | PFB220C PFM321D |
|---|
| Adapter Plate of Mini | Ceiling Mount Bracket 12V 1A Power Adapter Dome & Eyeball Camera |
|---|
| Rev 002.000 | © 2023 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
