| Camera | H.265; H.264; H.264H; H.264B; MJPEG (only supported Video Compression by the sub stream) |
|---|
| 影像感測器 | 1/2.7”5Megapixel progressive CMOS |
|---|
| Smart Codec | Smart H.265+/ Smart H.264+ |
|---|
| 最大解像度 | 2592 (H) × 1944 (V) Main stream (2592 × 1944 @1–25/30 fps) |
|---|
| Video Frame Rate | sub stream (704 × 576 @1–25 fps/704 × 480 @1–30 fps) |
|---|
| ROM | 128 MB third stream (1280 × 720 @1–25/30 fps) |
|---|
| RAM | 512 MB Stream Capability 3 streams |
|---|
| Scanning System | Progressive 5M (2592 × 1944); 3M (2048 × 1536); UXGA (1600 × 1200); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 Resolution |
|---|
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
|---|
| 最低照度 | 0.006 Lux@F2.0 (Color, 30IRE) |
|---|
| 碼率控制 | CBR/VBR |
|---|
| S/N Ratio | > 56 dB H.264: 3 kbps–8192 kbps Video Bit Rate H.265: 3 kbps–8192 kbps Pan: 0°–355° |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–55° Day/Night Color/B/W Rotation: 0°–360° |
|---|
| BLC | Yes |
|---|
| HLC | Yes |
|---|
| 鏡頭類型 | Fixed-focal |
|---|
| WDR | 120 dB |
|---|
| Mount Type | M12 Scene Self-adaptation |
|---|
| 焦距 | 1.4 mm Yes (SSA) |
|---|
| Max. Aperture | F2.0 Auto/natural/street lamp/outdoor/manual/regional White Balance custom Horizontal: 180° |
|---|
| Field of View | Vertical: 180° Gain Control Auto/Manual Diagonal: 180° |
|---|
| Noise Reduction | 3D DNR |
|---|
| 光圈類型 | Fixed |
|---|
| Motion Detection | OFF/ON (4 areas) |
|---|
| Close Focus Distance | 0.2 m (0.7 ft) |
|---|
| 感興趣區域 ROI | Yes (4 areas) |
|---|
| Detect | Observe Recognize Identify 28 m 11.2 m 5.6 m 2.8 m Privacy Masking 4 areas (91.9 ft) (36.7 ft) (18.4 ft) (9.2 ft) *DORI (Detect, Observe, Recognize, Identify) is a |
|---|
| DORI Distance | standard system (EN-62676-4) for defining the ability Built-in MIC Yes of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this Audio Compression PCM; G.711a; G.711Mu; G726 table do not reflect intelligent function distances. For intelligent function distances, refer to installation and Alarm commissioning manual/project design tool. No SD card; SD |
|---|
| 智能事件 | life warning (supported by Dahua card); network disconnection; IP conflict; illegal access; motion |
|---|
| Heat Map | Yes detection; video tampering; tripwire; intrusion; scene Alarm Event changing; audio detection; voltage detection; external |
|---|
| Professional, intelligent | alarm; people counting in area; stay alarm; people counting; people No. exception detection; safety |
|---|
| IVS (Perimeter Protection) | Tripwire; intrusion exception Support people counting in area, and displaying and Network |
|---|
| People Counting | outputting yearly/monthly/daily reports (matching devices are needed); support people counting in 4 areas Network RJ-45 (10/100 Base-T) Work together with Smart NVR to perform refine |
|---|
| SDK and API | Yes |
|---|
| Intelligent Search | intelligent search, event extraction and merging to event |
|---|
| videos. | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; |
|---|
| Protocol | SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; |
|---|
| Fisheye | Multicast; ICMP; IGMP; NFS; PPPoE; SNMP |
|---|
| 安裝 | Ceiling mount; wall mount; ground mount Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; |
|---|
| Decoding Mode | Back-dewarp Cyber Security IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted Back-dewarp (software decoding): fisheye view; 360° execution; trusted upgrade panoramic view + PTZ; dual-channel 180° panoramic ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; view; fisheye + 2PTZ; fisheye + 3PTZ; fisheye + 4PTZ; Interoperability Genete |
|---|
| Display Mode | 360° panoramic view + 6PTZ; fisheye + 8PTZ; 180° panoramic view; 180° panoramic view + 3PTZ; 180° User/Host 20 (Total bandwidth: 64 M) panoramic view + 4PTZ; 180° panoramic view + 8PTZ; VR mode (panorama; semi-circle; cylinder; asteroid) www.dahuasecurity.com |
|---|
| Storage | FTP; SFTP; Micro SD card (support max. 256 G); NAS Accessories IE: IE8, IE9 and IE11 |
|---|
| Browser | Chrome Optional Firefox |
|---|
| Management Software | Smart PSS; DSS; DMSS |
|---|
| Mobile Phone | IOS; Android |
|---|
| PFA136 | PFB203W PFB220C |
|---|
| Junction Box | Wall Mount Celling Mount CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
|---|
| Certification | FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 EN45545-2 |
|---|
| E-MARK: ECE Regulation 10.05 | PFM321D |
|---|
| PFA106 | PFA152-E 12V DC/1A Power |
|---|
| Mount Adapter | Pole Mount |
|---|
| Port | Adapter |
|---|
| 音訊輸入 | 1 channel (RCA port) |
|---|
| 音訊輸出 | 1 channel (RCA port) |
|---|
| 警報輸入 | 1 channel in: 5mA 3V–5V DC |
|---|
| LR1002-1ET/1EC | PFM900-E |
|---|
| 警報輸出 | 1 channel out: 300mA 12V DC Single-port Long Reach Integrated Mount |
|---|
| Ethernet over Coax Extender | Tester Power |
|---|
| 供電 | 12V DC/PoE Basic power consumption: 3.7W (12V DC); 4.7W (PoE) |
|---|
| 功耗 | Max. power consumption (H.265 + intelligent function + WDR): 5.1W (12V DC); 6W (PoE) |
|---|
| Operating Conditions | –30°C to +55°C (–22°F to +131°F)/Less than 95% RH |
|---|
| Strorage Conditions | –40°C to +60°C (–40°F to +140°F) |
|---|
| Protection Grade | IP67; IK10 Structure |
|---|
| Casing | Metal |
|---|
| 尺寸 | 62.0 mm × Φ110.0 mm (2.44" × Φ4.3") |
|---|
| 淨重 | 387 g (0.9 lb) |
|---|
| 毛重 | 502 g (1.1 lb) |
|---|

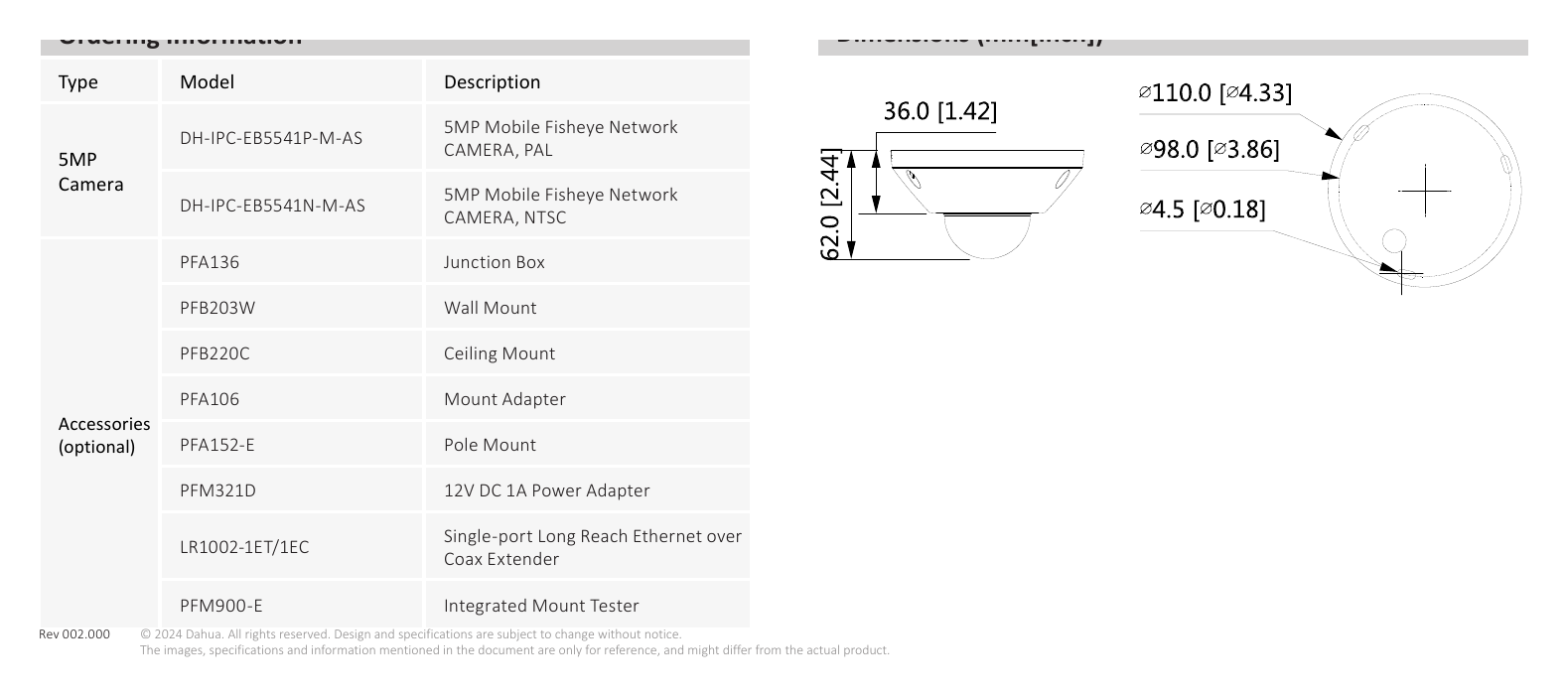

| Ordering Information | Dimensions (mm[inch]) |
|---|
| 類型 | Model Description 5MP Mobile Fisheye Network DH-IPC-EB5541P-M-AS CAMERA, PAL 5MP |
|---|
| PFB203W | Wall Mount |
|---|
| PFB220C | Ceiling Mount |
|---|
| PFM321D | 12V DC 1A Power Adapter Single-port Long Reach Ethernet over LR1002-1ET/1EC Coax Extender |
|---|
| PFM900-E | Integrated Mount Tester |
|---|
| Rev 002.000 | © 2024 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
