| Camera | third stream: 1280 × 960@(1–25/30 fps) Fisheye mode: |
|---|
| 影像感測器 | 1/1.7" CMOS 1O (3280 × 2480) 1P (4096 × 1024) |
|---|
| 最大解像度 | 3280 (H) × 2480 (V) 2P (2432 × 2432) Video Frame Rate 1R (1216 × 1216) 2R (2432 × 2432) |
|---|
| ROM | 2 GB 4R (2432 × 2432) 1O + 3R (2432 × 2432) |
|---|
| RAM | 4 GB *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected |
|---|
| Scanning System | Progressive to the total encoding capacity. |
|---|
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
|---|
| Stream Capability | 3 streams 0.01 Lux@F2.0 (Color, 30 IRE) 3280 × 2480; 2880 × 2160; (3M) 2048 × 1536; 1.3M |
|---|
| 最低照度 | 0.001 Lux@F2.0 (B/W, 30 IRE) Resolution (1280 × 960); D1 (704 × 576/704 × 480); CIF (352 × 0 Lux (Illuminator on) 288/352 × 240) |
|---|
| S/N Ratio | > 56 dB Bit Rate Control CBR/VBR |
|---|
| Illumination Distance | 17 m (55.77 ft) (IR) H264: 8 kbps–16384 kbps Video Bit Rate H265: 3 kbps–13891 kbps |
|---|
| Illuminator On/Off Control | Auto/Manual |
|---|
| Day/Night | Auto(ICR)/Color/B/W |
|---|
| Illuminator Number | 3 (IR LED) |
|---|
| BLC | Yes |
|---|
| HLC | Yes |
|---|
| 鏡頭類型 | Fixed-focal |
|---|
| WDR | DWDR |
|---|
| 鏡頭接口 | M12 Auto; natural; street lamp; outdoor; manual; regional White Balance custom |
|---|
| 焦距 | 1.85mm |
|---|
| Gain Control | Auto |
|---|
| Max. Aperture | F2.0 |
|---|
| Noise Reduction | 3D NR Horizontal: 185°; |
|---|
| Vertical: 180° | Motion Detection OFF/ON (4 areas, rectangular) |
|---|
| Iris Control | Fixed |
|---|
| 感興趣區域 ROI | Yes (4 areas) |
|---|
| Close Focus Distance | 0.4 m (1.31 ft) |
|---|
| 除霧 | Yes |
|---|
| Detect | Observe Recognize Identify |
|---|
| Privacy Masking | 4 areas 40.0 m 16.0 m 8.0 m 4.0 m (131.23 ft) (52.49 ft) (26.2 ft) (13.12 ft) Audio |
|---|
| 智能事件 | Built-in MIC Yes |
|---|
| Heat Map | Yes Audio Compression PCM; G.711A; G.711Mu; G.726; G.723 |
|---|
| Professional, intelligent | Alarm |
|---|
| IVS (Perimeter Protection) | Intrusion; tripwire No SD card; SD card full; SD card durability warning; SD card error; network disconnection; IP conflict; illegal Supports 4 rules to count the number of people entering, access; motion detection; video tampering; tripwire; Alarm Event exiting, and staying separately. It will trigger alarm linkage intrusion; scene changing; audio detection; voltage when the number of people who |
|---|
| People Counting | time. Network Supports 4 rules to count the number of people in area and will trigger alarm linkage when the average Network Port RJ-45 (10/100/1000 Base-T) strand time or people number in the area exceeds the threshold. It can display and export reports based on |
|---|
| SDK and API | Yes year, month, day, week, day or custom time. Work together with Smart NVR to perform refine Video encryption; firmware encryption; configuration |
|---|
| Smart Search | intelligent search, event extraction and merging to event encryption; Digest; WSSE; account lockout; security logs; |
|---|
| videos | Cyber Security IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted |
|---|
| Video | execution; trusted upgrade H.265; H.264; H.264H; MJPEG (Only supported by the IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; |
|---|
| sub stream) | Network Protocol SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
|---|
| Smart Codec | Smart H.265+; Smart H.264+ www.dahuasecurity.com Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Ordering Information Genetec; P2P (Only supported by general version) |
|---|
| 類型 | Model Description |
|---|

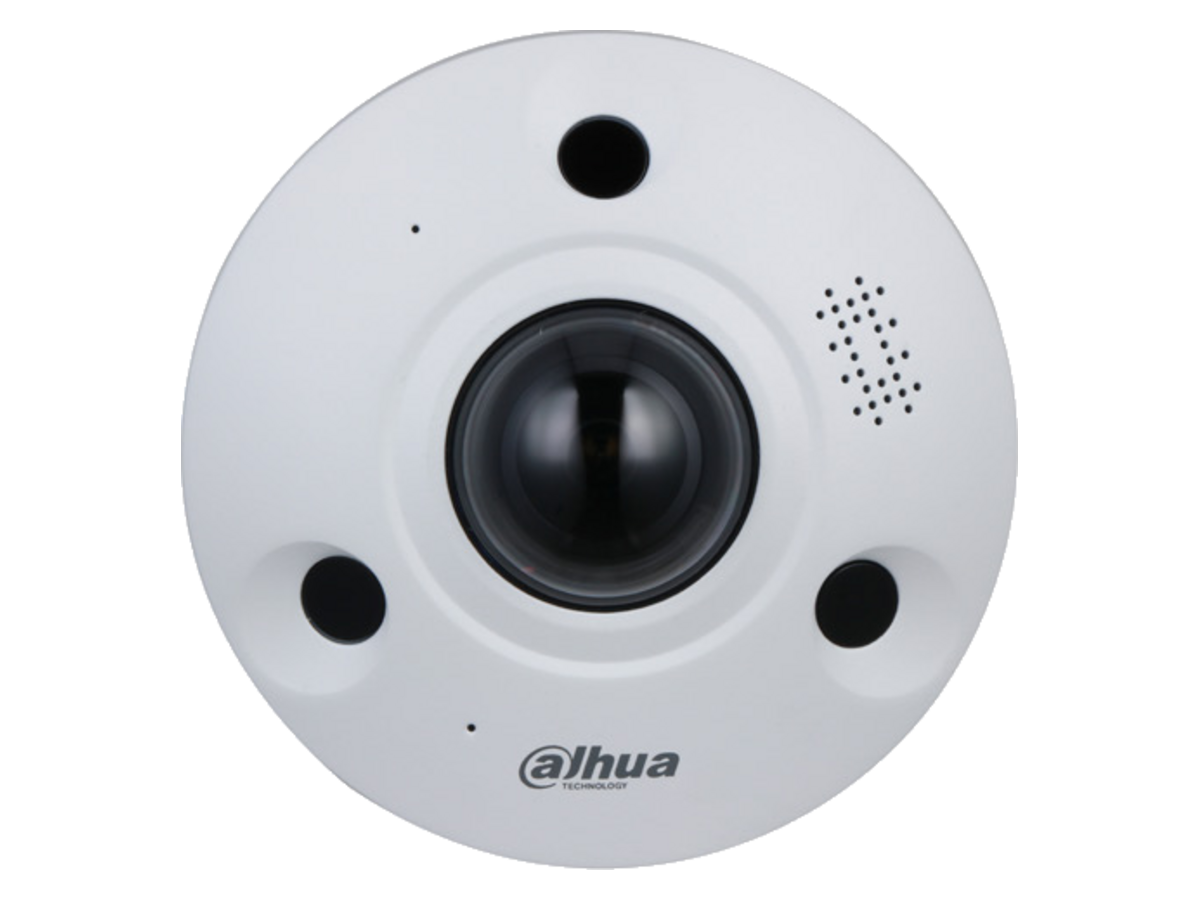

| 用戶管理 | 20 8 MP IR Fisheye WizMind Network |
|---|
| Storage | FTP; SFTP; Micro SD card (support max. 256 G); NAS DH-IPC-EBW8842-ASF 8MP |
|---|
| Chrome: 48.0.2564.116 | Camera Browser Firefox: 48.0.2 |
|---|
| Edge: 42.17134.1.0 | PFB300C Ceiling-mount Bracket |
|---|
| Management Software | Smart PSS; DSS; DMSS PFA100 Adapting Plate Accessories (Optional) |
|---|
| Certification | PFB302S Wall-mount Bracket |
|---|
| CE-LVD: EN62368-1 | PFA132-E Junction Box CE-EMC: Electromagnetic Compatibility Directive |
|---|
| Certifications | 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 Accessories Port |
|---|
| 音訊輸入 | 1 channel (RCA port) |
|---|
| 音訊輸出 | 1 channel (RCA port) |
|---|
| 警報輸入 | 2 channel in: 5mA 3V–5 VDC |
|---|
| 警報輸出 | 2 channels out: 1,000mA 30 VDC/500mA 50 VDC PFB300C PFA100 PFB302S |
|---|
| Ceiling-mount Bracket | Adapting Plate Wall-mount Bracket Power |
|---|
| 供電 | 12 VDC/POE+ (802.3at) Basic: 6.5 W (12 VDC); 6.1 W (PoE) |
|---|
| 功耗 | Max. (ICR + IR intensity): 13 W (12 VDC); 13.9 W (PoE) Heating: 3 W (12 VDC); 3 W (PoE) PFA132-E |
|---|
| Environment | Junction Box |
|---|
| 工作溫度 | –40 °C to +60 °C (–40 °F to +140 °F) |
|---|
| 工作濕度 | ≤95% |
|---|
| 儲存溫度 | –30 °C to +70 °C (–22 °F to +158 °F) |
|---|
| 防護等級 | IP67; IK10 Structure |
|---|
| Casing | Metal |
|---|
| Product Dimensions | 59.8 mm × Φ149.8 mm (2.35" × Φ5.90") |
|---|
| 淨重 | 0.79 kg (1.74 lb) |
|---|
| 毛重 | 1.21 kg (2.67 lb) Dimensions (mm[inch]) |
|---|
| Rev 001.001 | © 2021 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
