dahua IPC-HDBW3541R-ZS 為DH-IPC-HDBW3541R-ZS，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 IPC-HDBW3541R-ZS 香港價格連安裝報價。
| Camera | H.264: 3 Kbps–8192 Kbps Video Bit Rate H.265: 3 Kbps–8192 Kbps |
|---|---|
| 影像感測器 | 1/2.7”5Megapixel progressive CMOS |
| Day/Night | Auto(ICR)/Color/B/W |
| 最大解像度 | 2592 (H) ×1944 (V) |
| BLC | Yes |
| ROM | 128 MB |
| HLC | Yes |
| RAM | 512 MB |
| WDR | 120 dB |
| Scanning System | Progressive Auto/natural/street lamp/outdoor/manual/regional White Balance custom |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Gain Control | Auto/Manual 0.005 Lux@F1.5 (Color, 30IRE) |
| 最低照度 | 0.0005 Lux@F1.5 (B/W, 30IRE) |
| Noise Reduction | 3D DNR 0 Lux (Illuminator on) |
| S/N Ratio | > 56 dB Motion Detection OFF/ON (4 areas, rectangular) |
| Illumination Distance | 40 m (131.23 ft) Region of Interest(RoI) Yes (4 areas) |
| Illuminator On/Off Control | Auto/Manual Smart Illumination Yes 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 |
| Illuminator Number | 2 (IR LED) Image Rotation resolution and lower.) |
| Pan/Tilt/Rotation Range | Pan: 0°–355°; Tilt: 0°–75°;Rotation: 0°–355° Mirror Yes |
| 鏡頭 | Privacy Masking 4 areas |
| 鏡頭類型 | Motorized vari-focal Alarm |
| Mount Type | φ14 No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; |
| 焦距 | 2.7 mm–13.5 mm Alarm Event IP conflict; illegal access; voltage detection; security exception; motion detection;scene changing; intensity |
| Max. Aperture | F1.5 change; tripwire; intrusion; SMD |
| Horizontal: 99°–26° | Network |
| Field of View | Vertical: 72° –20° |
| Diagonal: 133° –33° | Network RJ-45 (10/100 Base-T) |
| 光圈類型 | Fixed SDK and API Yes IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; |
| Close Focus Distance | 0.8 m (2.6 ft) |
| Protocol | SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP |
| DORI Distance | W Cyber Security IP/MAC filtering; generation and importing of X.509 (210.0 ft) (84.0 ft) (42.0 ft) (21.0 ft) certification; syslog; HTTPS; 802.1x; trusted boot; trusted 222.0 m 88.8 m 44.4 m 22.2 m execution; trusted upgrade (728.3 ft) (291.3 ft) (145.7 ft) (72.8 ft) ONVIF(Profile S/Profile G/Profile T);CGI;P2P;Milestone; Interoperability Genetec Scene Self-adaptation |
| 周界防護 | Tripwire; intrusion (Recognition of human and vehicle) Yes (SSA) Work together with Smart NVR to perform refine |
| Intelligent Search | intelligent search, event extraction and merging to event User/Host 20 (Total bandwidth: 64 M) videos |
| Storage | FTP; SFTP; Micro SD Card (support max. 256 G); NAS IE: IE8, IE9, IE11 H.265; H.264; H.264H; H.264B; MJPEG(only supported Browser Chrome |
| 視頻壓縮 | Firefox by sub stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ Management Software Smart PSS, DSS, DMSS |
| Main stream (2592 × 1944@1–20 fps) | Mobile Phone IOS; Android (2688 × 1520@1–25/30 fps) sub stream (704 × 576@1–25 fps/704 × 480@1–30 fps) Certification third stream (1280 × 720@1–25/30 fps) CE-LVD: EN62368-1 |
| Stream Capability | 3 streams CE-EMC: Electromagnetic Compatibility Directive |
| Certifications | 2014/30/EU 5M (2592 × 1944); 4M (2688 × 1520); 3M (2304 × 1296); FCC: 47 CFR FCC Part 15, Subpart B 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Power www.dahuasecurity.com |
| 供電 | 12V DC/PoE (802.3af) Accessories |
| 功耗 | <8.5W Optional: |
| Operating Conditions | -30°C to +60°C (-22°F to +140°F)/less than 95% |
| 儲存環境 | -40°C to +60°C (-40°F to +140°F) PFA137 PFB203W PFA152-E |
| Junction Box | Wall Mount Pole Mount |
| Protection Grade | IP67; IK10 Structure |
| Casing | Metal |
| PFA200W | PFA106 PFB220C |
| 尺寸 | Φ122 mm × 88.9 mm (Φ4.8" × 3.5") Rain Shade Mount Adapter Celling Mount |
| 淨重 | 492 g (1.1 lb) |
| 毛重 | 663 g (1.5 lb) |
| PFB200C | PFM321D LR1002-1ET/1EC |
| In-Celling Mount | DC12V1A Power Single-port long |
| Ordering Information | Adapter reach ethernet over coax extender |
| 類型 | Part Number Description 5MP IR Vari-focal Dome WizSense DH-IPC-HDBW3541RP-ZS Network Camera,PAL 5MP |
| Network Camera,NTSC | Integrated Mount TLC SD card tester |
| PFA137 | Junction Box |
| PFB203W | Wall Mount |
| PFA152-E | Pole Mount Junction Mount Wall Mount Wall Mount Pole Mount |
| PFA106 | Mount Adapter |
| Accessories | PFB220C Celling Mount (optional) |
| Ceiling Mount | In-Ceiling Mount |
| PFM321D | DC12V1A Power Adapter PFA106+PFB220C PFB200C Single-port Long Reach Ethernet LR1002-1ET/1EC over Coax Extender |
| PFM900-E | Integrated Mount Tester |
| PFM114 | TLC SD Card Dimensions (mm[inch]) |
| Rev 001.001 | © 2021 Dahua . All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

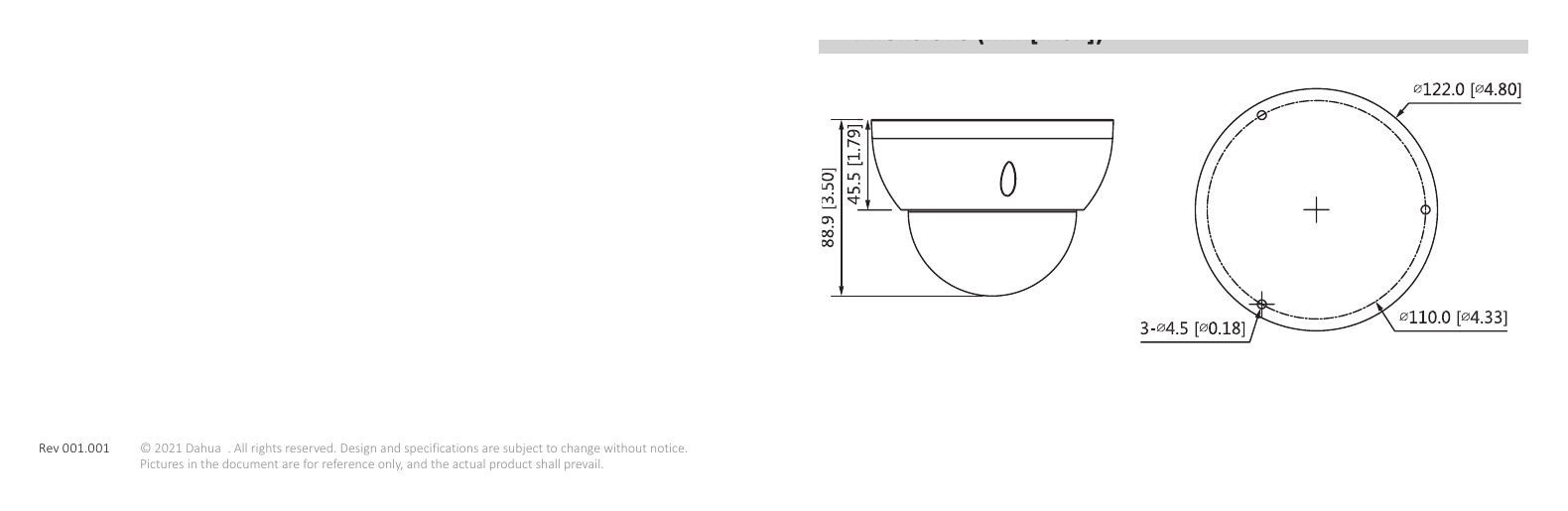

Φ122 mm × 88.9 mm (Φ4.8" × 3.5") Rain Shade Mount Adapter Celling Mount｜Unit: mm
IPC-HDBW3541R-ZS dahua DH-IPC-HDBW3541R-ZS亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，IPC-HDBW3541R-ZS 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 gDMSS/DMSS App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：鏡頭類型方面，IPC-HDBW3541R-ZS 係 Motorized vari-focal Alarm，IPC-HDBW3541R-ZAS 係 Motorized vari-focal；供電方面，IPC-HDBW3541R-ZS 係 12V DC/PoE (802.3af) Accessories，IPC-HDBW3541R-ZAS 係 12V DC/PoE (802.3af)；功耗方面，IPC-HDBW3541R-ZS 係 <8.5W Optional:，IPC-HDBW3541R-ZAS 係 <8.5W。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 IPC-HDBW3541R-ZAS 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 IPC-HDBW3541R-ZS 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
