| Camera | monthly/daily reports. Support the counting of number in area, and 4 rules People Counting |
|---|
| 影像感測器 | 1/1.8” CMOS configuration. Count number of people or stay time and link alarm. Support queue management, and 4 rules configuration. |
|---|
| 最大解像度 | 2688 (H) × 1520 (V) Count number of people or stay time and link alarm. |
|---|
| ROM | 128 MB Work together with Smart NVR to perform refine |
|---|
| Intelligent Search | intelligent search, event extraction and merging to event |
|---|
| RAM | 1 GB videos. |
|---|
| Scanning System | Progressive |
|---|
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s H.265; H.264; H.264H; H.264B; MJPEG (only supported Video Compression 0.003 Lux@F1.8 (Color, 30IRE) by the sub stream) |
|---|
| 最低照度 | 0.0003 Lux@F1.8 (B/W, 30IRE) 0 Lux (Illuminator on) Smart Codec Smart H.265+/H.264+ |
|---|
| S/N Ratio | ＞56 dB Main stream: 2688 × 1520 (1 fps–25/30 fps) /1920 × 1080 (1 fps–50/60 fps) |
|---|
| Illumination Distance | 40 m (131.2 ft) (IR LED) Sub stream: D1 (1 fps–50/60 fps) |
|---|
| Video Frame Rate | Third stream: 1080p (1 fps–25/30 fps) |
|---|
| Illuminator On/Off Control | Auto/Manual *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
|---|
| Illuminator Number | 3 (IR LED) |
|---|
| Pan: 0°–355° | Stream Capability 3 streams |
|---|
| Pan/Tilt/Rotation Range | Tilt: 0°–80° |
|---|
| Rotation: 0°–355° | 2688 × 1520; 2560 × 1440; 2304 × 1296; 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 Resolution × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 |
|---|
| 鏡頭 | × 240) |
|---|
| 鏡頭類型 | Motorized vari-focal |
|---|
| 碼率控制 | CBR/VBR |
|---|
| Mount Type | φ14 H.264: 32 kbps–8192 kbps Video Bit Rate H.265: 32 kbps–8192 kbps |
|---|
| 焦距 | 2.7 mm–12 mm |
|---|
| Day/Night | Auto (ICR)/Color/B/W |
|---|
| Max. Aperture | F1.8 |
|---|
| BLC | Yes Horizontal: 107°–44° |
|---|
| Field of View | Vertical: 69°–29° HLC Yes Diagonal: 134°–53° |
|---|
| WDR | 140 dB |
|---|
| 光圈類型 | Auto Scene Self-adaptation Yes |
|---|
| Close Focus Distance | W/T: 1.2 m (3.9 ft) (SSA) |
|---|
| DORI 偵測距離 | W (131.2 ft) (75.5 ft) (36.1 ft) (18.7 ft) |
|---|
| Distance | Gain Control Auto/Manual 130.7 m 52.0 m 26.0 m 13.0 m |
|---|
| T | Noise Reduction 3D NR (428.8 ft) (170.6 ft) (85.3 ft) (42.7 ft) |
|---|
| 智能事件 | Motion Detection OFF/ON (4 areas) |
|---|
| IVS | Abandoned object; missing object Region of Interest (RoI) Yes (4 areas) Electronic Image |
|---|
| Heat Map | Yes Yes Stabilization (EIS) |
|---|
| Professional, intelligent | Smart Illumination Yes Tripwire; intrusion; fast moving (the three functions |
|---|
| 除霧 | Yes support the classification and accurate detection of vehicle and human); loitering detection; people |
|---|
| gathering; parking detection | Image Rotation 0°/90°/180°/270° Face detection; track; optimization; snapshot; report high Mirror Yes quality picture; face enhancement; face exposure; face attribute extract, 6 attributes and 8 expressions: Gender, Privacy Masking 8 areas age, glasses, expressions (anger, calm, happiness, |
|---|
| Face Detection | sadness, disgust, surprise, confusion and fear), mask, Audio beard; face matting setting: face, single inch photo; three snapshot methods: real-time snapshot, optimization Audio Compression PCM; G.711a; G.711Mu; G.726; G.723 snapshot, quality priority; face angle filter; optimization time setting www.dahuasecurity.com |
|---|
| 警報 | Structure No SD card; SD card full; SD card error; network Casing Metal disconnection; IP conflict; illegal access; motion detection; video tampering; defocus detection; scene |
|---|
| 尺寸 | 129.1 mm × Φ157.9mm (5.1"× Φ6.2") changing; intrusion; tripwire; abandoned object; |
|---|
| Alarm Event | missing object; fast moving; parking detection; loitering detection; people gathering; input abnormal detection; Net Weight 1500.0 g (3.3 lb) intensity change detection; people counting; face detection; people counting in area; stay alarm; people Gross Weight 1600.0 g (3.5 lb) No. exception detection; queue management Ordering Information |
|---|
| Network | RJ-45 (10/100 Base-T) |
|---|
| 類型 | Model Description |
|---|
| SDK and API | Yes 4MP Vari-focal Dome WizMind DH-IPC-HDBW5442HP-ZE Video encryption; firmware encryption; configuration Network Camera , PAL encryption; Digest; WSSE; account lockout; security logs; |
|---|
| Cyber Security | IP/MAC filtering; generation and importing of X.509 4MP Vari-focal Dome WizMind DH-IPC-HDBW5442HN-ZE certification; syslog; HTTPS; 802.1x; trusted boot; trusted Network Camera , NTSC 4MP |
|---|
| execution; trusted upgrade | Camera 4MP Vari-focal Dome WizMind IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; IPC-HDBW5442HP-ZE Network Camera , PAL |
|---|
| Protocol | RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP 4MP Vari-focal Dome WizMind IPC-HDBW5442HN-ZE Network Camera , NTSC ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; |
|---|
| Genetec; P2P | PFA773 Wall Mount |
|---|
| 用戶管理 | 20 (Total bandwidth: 80 M) PFB211W Pole Mount |
|---|
| Storage | FTP; SFTP; Micro SD card (support max. 256 G); NAS PFA152-E Pole Mount |
|---|
| IE: IE8 and later | PFA101 Ceiling Mount Accessories |
|---|
| Browser | Chrome (Optional) |
|---|
| Firefox | PFB300C Ceiling Mount |
|---|
| Management Software | Smart PSS; DSS; DMSS PFM900-E Integrated Mount Tester |
|---|
| Mobile Phone | IOS; Android PFM321D 12V 1A Power Adapter |
|---|
| Certification | TF-P100 MicroSD Memory Card CE-LVD: EN62368-1,EN60950-22 (optional) CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU Accessories FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07, UL 50E NEMA Type 4X (optional) Optional |
|---|
| 音訊輸入 | 1 channel (terminal) |
|---|
| 音訊輸出 | 1 channel (terminal) |
|---|
| PFA773 | PFB211W PFA152-E |
|---|
| 警報輸入 | 3 channels in: 5mA 3V–5V DC Wall Mount Pole Mount Pole Mount |
|---|
| 警報輸出 | 2 channels out: 300mA 12V DC |
|---|
| 供電 | 12V DC (±25%)/24V AC (±30%)/PoE (802.3af)/ePoE Basic power consumption: 3.6W (12V DC); 3.1W (24V PFA101 PFB300C PFM900-E |
|---|
| AC); 4.4W (PoE) | Ceiling Mount Ceiling Mount Integrated Mount Tester |
|---|
| 功耗 | Max. power consumption (H.265 + max. stream + intelligent function + IR LED + focus): 11.7W (12V DC); 11.3W (24V AC); 11.9W (PoE) |
|---|
| Operating Conditions | –30°C to +60°C (–22°F to +140°F)/Less than 95% RH |
|---|
| PFM321D | TF-P100 |
|---|
| Strorage Conditions | –40°C to +60°C (–40°F to +140°F) 12V 1A Power Adapter MicroSD Memory Card |
|---|

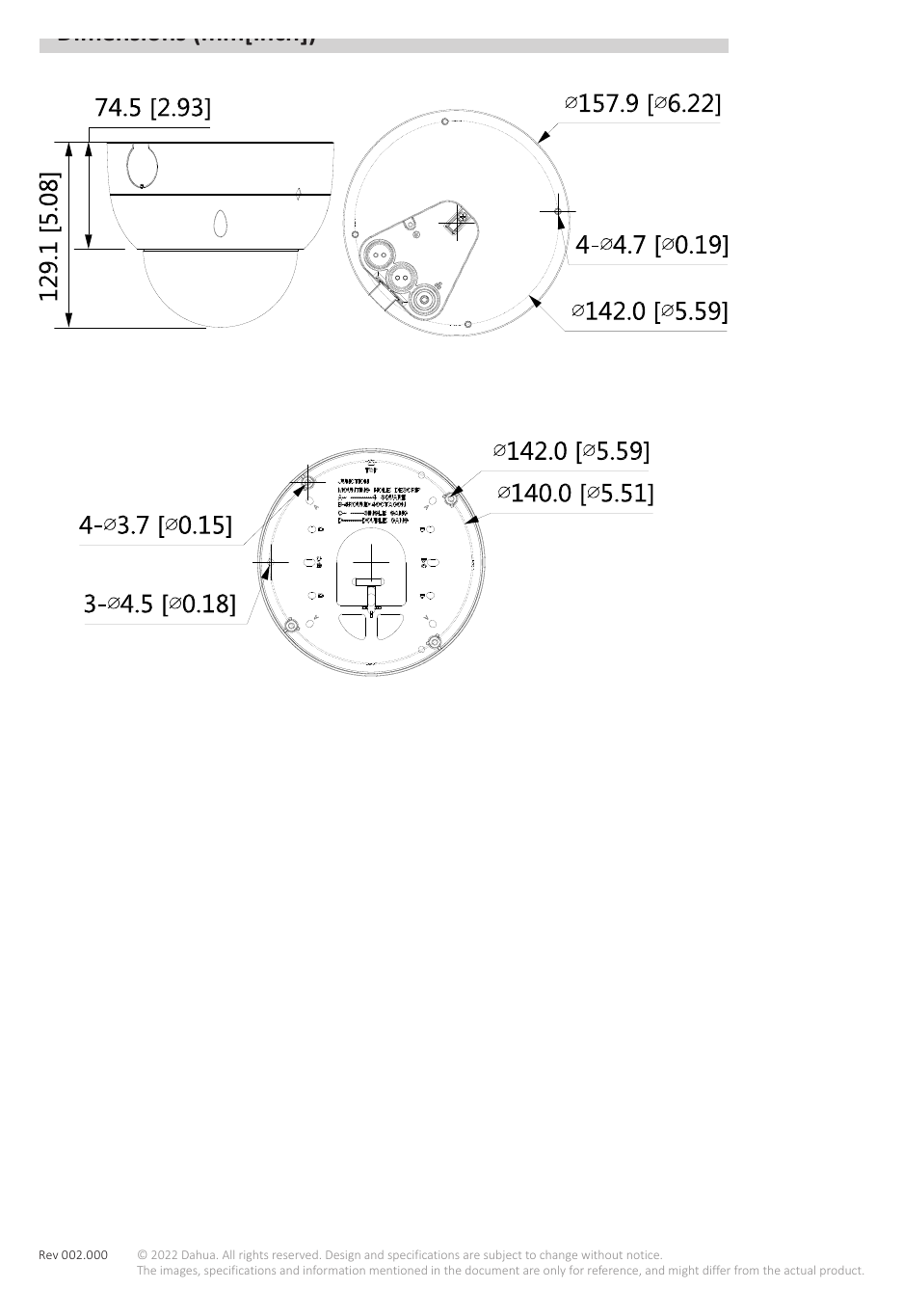

| Protection Grade | IP67, IK10, Anti-Corrosion Protection: NEMA 4X (optional) www.dahuasecurity.com Dimensions (mm[inch]) |
|---|
| Rev 002.000 | © 2022 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
