dahua IPC-HDW1439DT-LED-SAW-S0 為DH-IPC-HDW1439DT-LED-SAW，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 IPC-HDW1439DT-LED-SAW-S0 香港價格連安裝報價。
| Camera | Video Bit Rate H.264: 32 kbps–4096 kbps; H.265: 12 kbps–4096 kbps |
|---|---|
| 影像感測器 | 1/3" CMOS |
| Day/Night | Color/B/W |
| 最大解像度 | 2560 (H) × 1440 (V) |
| BLC | Yes |
| ROM | 16 MB |
| HLC | Yes |
| RAM | 128 MB |
| WDR | DWDR |
| Scanning System | Progressive Auto; natural; street lamp; outdoor; manual; regional White Balance custom |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Gain Control | Auto 0.005 lux@F1.6 (Color, 30 IRE) |
| 最低照度 | 0.0005 lux@F1.6(B/W, 30 IRE) Noise Reduction 3D NR 0 lux (Illuminator on) |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| S/N Ratio | >56 dB |
| 感興趣區域 ROI | Yes (4 areas) |
| Illumination Distance | Up to 30 m (98.53 ft) (Warm light) |
| Smart Illumination | Yes |
| Illuminator On/Off Control | Auto |
| Image Rotation | 0°/180° |
| Illuminator Number | 2 (Warm light) |
| Mirror | Yes Pan: 0°–360° |
| 角度調節 | Tilt: 0°–78° Privacy Masking 4 areas Rotation: 0°–360° |
| 鏡頭 | Audio |
| Built-in MIC | Yes |
| 鏡頭類型 | Fixed-focal |
| 音訊壓縮 | G.711a; G.711Mu; PCM; G.726 |
| 鏡頭接口 | M12 |
| 焦距 | 2.8 mm;3.6 mm Alarm No SD card; SD card full; SD card error; network |
| Max. Aperture | F1.6 disconnection; IP conflict; illegal access; motion Alarm Event detection; video tampering; abnormal audio input; 2.8 mm: H: 98°; V: 55°; D: 115° |
| Field of View | intensity change; SMD (human) 3.6 mm: H: 78°; V: 41°; D: 94° |
| Iris Control | Fixed Network 2.8 mm: 1 m (3.28 ft) Network Port RJ-45 (10/100 Base-T) Close Focus Distance 3.6 mm: 1.7 m (5.58 ft) |
| WiFi | IEEE 802.11b/g/n 2.4–2.4835 GHz, 2.4 G |
| SDK and API | Yes |
| DORI 偵測距離 | 61.2 m 24.5 m 12.2 m 6.1 m 2.8 mm |
| Distance | (200.78 ft) (80.38 ft) (40.03 ft) (20.01 ft) IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; Network Protocol NTP; Multicast; RTMP; P2P 85.4 m 34.2 m 17.1 m 8.5 m 3.6 mm (280.18 ft) (112.20 ft) (56.10 ft) (27.89 ft) |
| Interoperability | ONVIF (Profile S/Profile G); CGI |
| Intelligence | User/Host 20 (Total bandwidth: 64 M) Support the classification and accurate detection of |
| Human Detection | Storage Micro SD card (support max. 256 GB) human |
| Video | Browser IE; Chrome; Firefox |
| 視頻壓縮 | H.264B; H.264; H.264H; H.265 Management Software Smart PSS; DSS; DMSS |
| Smart Codec | Smart H.265+; Smart H.264+ Mobile Client iOS;Android |
| Main stream: 2560 × 1440@(1–25/30 fps); | Configuration encryption; trusted execution; Digest; |
| sub stream: 640 × 480@(1–25/30 fps); | security logs; HTTPS; trusted upgrade; WSSE; trusted Cyber Security |
| Video Frame Rate | *The values above are the max. frame rates of each boot; account lockout; generation and importing of X.509 stream; for multiple streams, the values will be subjected certification; video encryption to the total encoding capacity. |
| Stream Capability | 2 streams CE-LVD: EN62368-1; 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × CE-EMC: Electromagnetic Compatibility Directive |
| 解像度 | Certifications 1080); 1.3M (1280 × 960); 720p (1280 × 720) 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU www.dahuasecurity.com |
| 供電 | Accessories |
| 工作溫度 | –40 °C to +60 °C (–40 °F to +140 °F) 12V DC/1A Power Adapter |
| 工作濕度 | ≤95% Optional: |
| 儲存溫度 | –30 °C to +60 °C (-22°F to +140°F) |
| Storage Humidity | ≤95% |
| 防護等級 | IP67 |
| PFA13G | PFB205W-E PFA152-E |
| Structure | Junction Box Wall Mount Pole Mount |
| Bracket | Bracket Inner core: Metal + Plastic Casing Material Cover: Plastic |
| Product Dimensions | Φ109.9 mm × 102.2 mm (Φ4.33" × 4.02") |
| 淨重 | 323 g (0.71 lb) |
| 毛重 | 560 g (1.23 lb) |
| PFA109 | PFB220C PFM900-E |
| Mount Adapter | Ceiling Mount Integrated |
| 類型 | Model Description |
| DH-IPC-HDW1439DT-LED- | 4MP Entry Full-color Fixed-focal 4MP Camera |
| SAW | Wi-Fi Eyeball Network Camera TF-P100 |
| ADS-12AM-12 12012EPG | 12V DC/1A Power Adapter MicroSD Memory Card |
| PFB205W-E | Wall Mount Bracket |
| PFA152-E | Pole Mount Bracket Accessories |
| PFB220C | Ceiling Mount Bracket |
| PFM900-E | Integrated Mount Tester |
| TF-P100 | MicroSD Memory Card mm [inch] Dimensions (mm[inch]) 83.3 [3.28] 4-4.5×5.5[0.18×0.22] ∅84.0 [∅3.31] 102.2 [4.02] ∅109.9 [∅4.33] |
| Rev 002.000 | © 2023 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

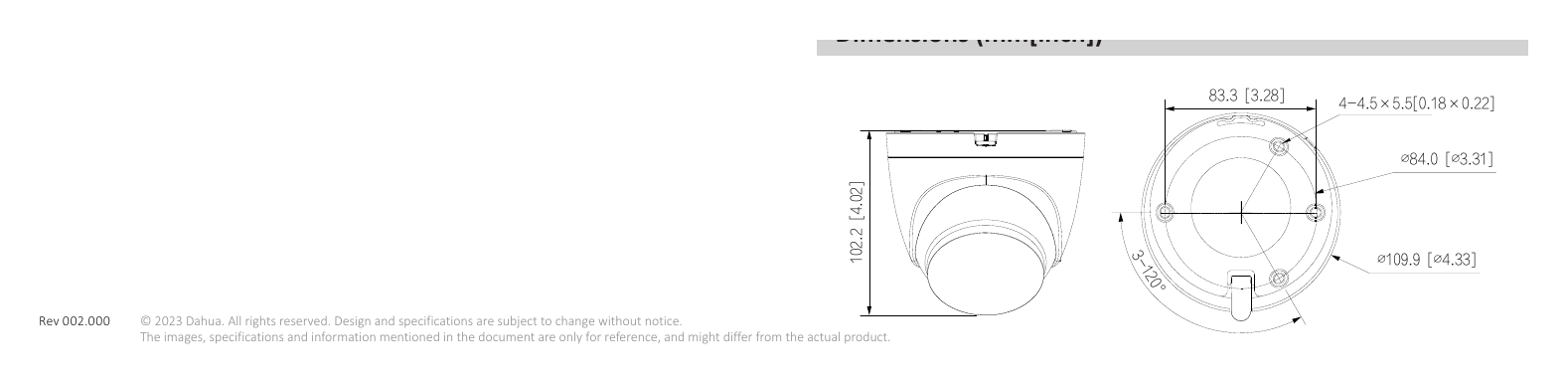

詳見圖示｜Unit: mm
IPC-HDW1439DT-LED-SAW-S0 dahua DH-IPC-HDW1439DT-LED-SAW亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，IPC-HDW1439DT-LED-SAW-S0 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 gDMSS/DMSS App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：影像感測器方面，IPC-HDW1439DT-LED-SAW-S0 係 1/3" CMOS，IPC-HDBW3541R-ZAS 係 1/2.7”5Megapixel progressive CMOS；Day/Night方面，IPC-HDW1439DT-LED-SAW-S0 係 Color/B/W，IPC-HDBW3541R-ZAS 係 Auto(ICR)/Color/B/W；最大解像度方面，IPC-HDW1439DT-LED-SAW-S0 係 2560 (H) × 1440 (V)，IPC-HDBW3541R-ZAS 係 2592 (H) ×1944 (V)。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 IPC-HDBW3541R-ZAS 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 IPC-HDW1439DT-LED-SAW-S0 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
HKEZIT 於全港各區提供 IPC-HDW1439DT-LED-SAW-S0 dahua DH-IPC-HDW1439DT-LED-SAW供貨連專業安裝服務（裝CAM、裝CCTV、裝監控），熱門地區包括：沙田CCTV 閉路電視安裝、油麻地CCTV 閉路電視安裝、深水埗CCTV 閉路電視安裝、灣仔CCTV 閉路電視安裝、筲箕灣CCTV 閉路電視安裝、紅磡CCTV 閉路電視安裝、荃灣CCTV 閉路電視安裝、葵涌CCTV 閉路電視安裝。港島、九龍、新界全港 32 區均有上門安裝，歡迎聯絡我們查詢 IPC-HDW1439DT-LED-SAW-S0 香港價格連安裝報價。
IPC-HDW1439DT-LED-SAW-S0 dahua DH-IPC-HDW1439DT-LED-SAW適合多種場景使用，以下為部分常見安裝場景，歡迎查詢是否適合您的現場環境。
村屋、圍村、丁屋裝CCTV閉路電視，前後園全景監控、車路出入記錄、紅外夜視防盜、村口通道覆蓋。免費上門度尺、按規模報價，尖沙咀、旺角項目即約勘察。上門度尺不收費、即日出報價，
WhatsApp 查詢 →茶餐廳、快餐店、大排檔裝CCTV閉路電視，廚房後廚衛生監控、收銀防盜、食客糾紛記錄、全店無死角覆蓋。專業團隊上門評估，沙田、旺角場地歡迎洽談報價。免費上門評估、快速出方案報價，香港、新界一帶即日上門。
WhatsApp 查詢 →珠寶店、金行、鐘錶店裝CCTV閉路電視，櫃檯高清特寫、保險箱區域監控、出入口防盜、24小時遠程查看。一站式勘測安裝，將軍澳、中環各區即日約見報價。持牌團隊免費勘察、明碼報價，
WhatsApp 查詢 →便利店、士多、小賣部裝CCTV閉路電視，貨架死角監控、收銀防盜、夜間無人值守遠程查看、迷你店舖全覆蓋。免費評估方案、即時報價，新界、九龍一帶歡迎查詢。免費上門度尺、報價一目了然，
WhatsApp 查詢 →電器店、手機店、電腦店裝CCTV閉路電視，貴價展品監控、櫃檯收銀防盜、客戶糾紛記錄、全店無死角。免費上門勘察、明碼實價報價，九龍、荃灣一帶即日約期。即約免費勘察、透明報價無隱藏，香港、新界一帶即日上門。
WhatsApp 查詢 →生產線、車間、廠房裝CCTV閉路電視，生產流程監控、員工操作記錄、原料成品防盜、安全事故追溯。全港覆蓋上門安裝，元朗、觀塘各區歡迎致電查詢。免費上門睇位、專業報價跟進，
WhatsApp 查詢 →查看更多CCTV 監控適用場景，請參閱 CCTV 監控安裝工程。
如需整套CCTV 監控方案，請參閱 CCTV 監控安裝工程。
