dahua IPC-HDW3541TM-AS 為DH-IPC-HDW3541TM-AS，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 IPC-HDW3541TM-AS 香港價格連安裝報價。
| Camera | (352 × 288/352 × 240) |
|---|---|
| 影像感測器 | 1/2.7”5Megapixel progressive CMOS |
| 碼率控制 | CBR/VBR |
| 最大解像度 | 2592 (H) ×1944 (V) H.264: 3 Kbps–8192 Kbps Video Bit Rate H.265: 3 Kbps–8192 Kbps |
| ROM | 128 MB |
| Day/Night | Auto(ICR)/Color/B/W |
| RAM | 512 MB |
| BLC | Yes |
| Scanning System | Progressive |
| HLC | Yes |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| WDR | 120 dB 0.005 Lux@F1.6 (Color, 30IRE) |
| 最低照度 | 0.0005 Lux@F1.6 (B/W, 30IRE) Auto/natural/street lamp/outdoor/manual/regional White Balance 0 Lux (Illuminator on) custom |
| S/N Ratio | > 56 dB Gain Control Auto/Manual |
| Illumination Distance | 50 m (164.0 ft) Noise Reduction 3D DNR |
| Illuminator On/Off Control | Auto/Manual Motion Detection OFF/ON (4 areas, rectangular) |
| Illuminator Number | 2 (IR LED) Region of Interest(RoI) Yes (4 areas) |
| Pan/Tilt/Rotation Range | Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360° Smart Illumination Yes |
| 鏡頭 | Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower.) |
| 鏡頭類型 | Fixed-focal |
| Mirror | Yes |
| Mount Type | M12 |
| Privacy Masking | 4 areas |
| 焦距 | 2.8 mm; 3.6 mm; 6 mm |
| Max. Aperture | F1.6 |
| Built-in MIC | Yes 2.8 mm: Horizontal:98°; vertical: 72°; diagonal: 130° |
| Field of View | 3.6 mm: Horizontal:80°; vertical: 59° ; diagonal: 106° 6 mm: Horizontal:50°; vertical: 36°; diagonal: 64° |
| 音訊壓縮 | G.711a; G.711Mu; G726 |
| 光圈類型 | Fixed Alarm 2.8 mm: 0.9 m (3.0 ft) No SD card; SD card full; SD card error; less service time |
| Close Focus Distance | 3.6 mm: 1.6 m (5.3 ft) of SD card (smart card supports); network disconnection; Alarm Event 6 mm: 3.2 m (10.5 ft) IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene |
| DORI Distance | Network RJ-45 (10/100 Base-T) 80.0 m 32.0 m 16.0 m 8.0 m 3.6mm (262.5 ft) (105.0 ft) (52.5 ft) (26.3 ft) |
| SDK and API | Yes 120.0 m 48.0 m 24.0 m 12.0 m 6mm IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; (393.7 ft) (157.5 ft) (78.7 ft) (39.4 ft) |
| Protocol | SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; |
| Professional, Intelligent | Multicast; ICMP; IGMP; NFS; PPPoE; SNMP Video encryption; firmware encryption; configuration |
| 周界防護 | Tripwire; intrusion (Recognition of human and vehicle) encryption; Digest; WSSE; account lockout; security logs; Work together with Smart NVR to perform refine Cyber Security IP/MAC filtering; generation and importing of X.509 |
| Intelligent Search | intelligent search, event extraction and merging to event certification; syslog; HTTPS; 802.1x; trusted boot; trusted |
| videos | execution; trusted upgrade ONVIF(Profile S/Profile G/Profile T); CGI; P2P; Milestone; |
| Video | Interoperability Genetec H.265; H.264; H.264H; H.264B; MJPEG(only supported Scene Self-adaptation |
| 視頻壓縮 | Yes |
| by sub stream) | (SSA) |
| Smart Codec | Smart H.265+/ Smart H.264+ User/Host 20 (Total bandwidth: 64M) Main stream (2592 × 1944@1–20 fps) |
| Storage | FTP; SFTP; Micro SD Card (support max. 256 G); NAS (2688 × 1520@1–25/30 fps) sub stream (704 × 576@1–25 fps/704 × 480@1–30 fps) |
| third stream (1280 × 720@1–25/30 fps) | IE: IE8, IE9, IE11 |
| Browser | Chrome |
| Stream Capability | 3 streams Firefox www.dahuasecurity.com |
| Management Software | Smart PSS, DSS, DMSS Accessories |
| Mobile Phone | IOS; Android Optional: CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive |
| Certifications | 2014/30/EU PFA130-E PFB203W PFA152-E |
| FCC: 47 CFR FCC Part 15, Subpart B | Junction Box Wall Mount Pole Mount UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 Power |
| 供電 | 12V DC/PoE (802.3af) |
| 功耗 | <8.1W PFM321D LR1002-1ET/1EC PFM900-E |
| DC12V1A Power | Single-port long Integrated Mount |
| Environment | Adapter reach ethernet over tester coax extender |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F)/less than 95% |
| 儲存環境 | -40°C to +60°C (-40°F to +140°F) |
| Protection Grade | IP67 PFM114 |
| Structure | TLC SD card Inner core: Metal |
| Casing | Cover: Metal Decoration ring: Plastic |
| 尺寸 | 99.1 mm × Φ121.9 mm (3.9" × Φ4.8") |
| 淨重 | 480 g (1.05 lb) |
| 毛重 | 660 g (1.45 lb) Ordering Information |
| 類型 | Part Number Description 5MP IR Fixed focal Eyeball WizSense DH-IPC-HDW3541TMP-AS Network Camera,PAL 5MP DH-IPC-HDW3541TMN-AS 5MP IR Fixed focal Eyeball WizSense Dimensions (mm[inch]) Network Camera,NTSC |
| PFA130-E | Junction Box |
| PFB203W | Wall mount |
| PFA152-E | Pole mount |
| Accessories | PFM321D DC12V1A Power adapter (optional) Single-port long reach ethernet over LR1002-1ET/1EC coax extender |
| PFM900-E | Integrated mount tester |
| PFM114 | TLC SD card |
| Rev 001.001 | © 2021 Dahua . All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

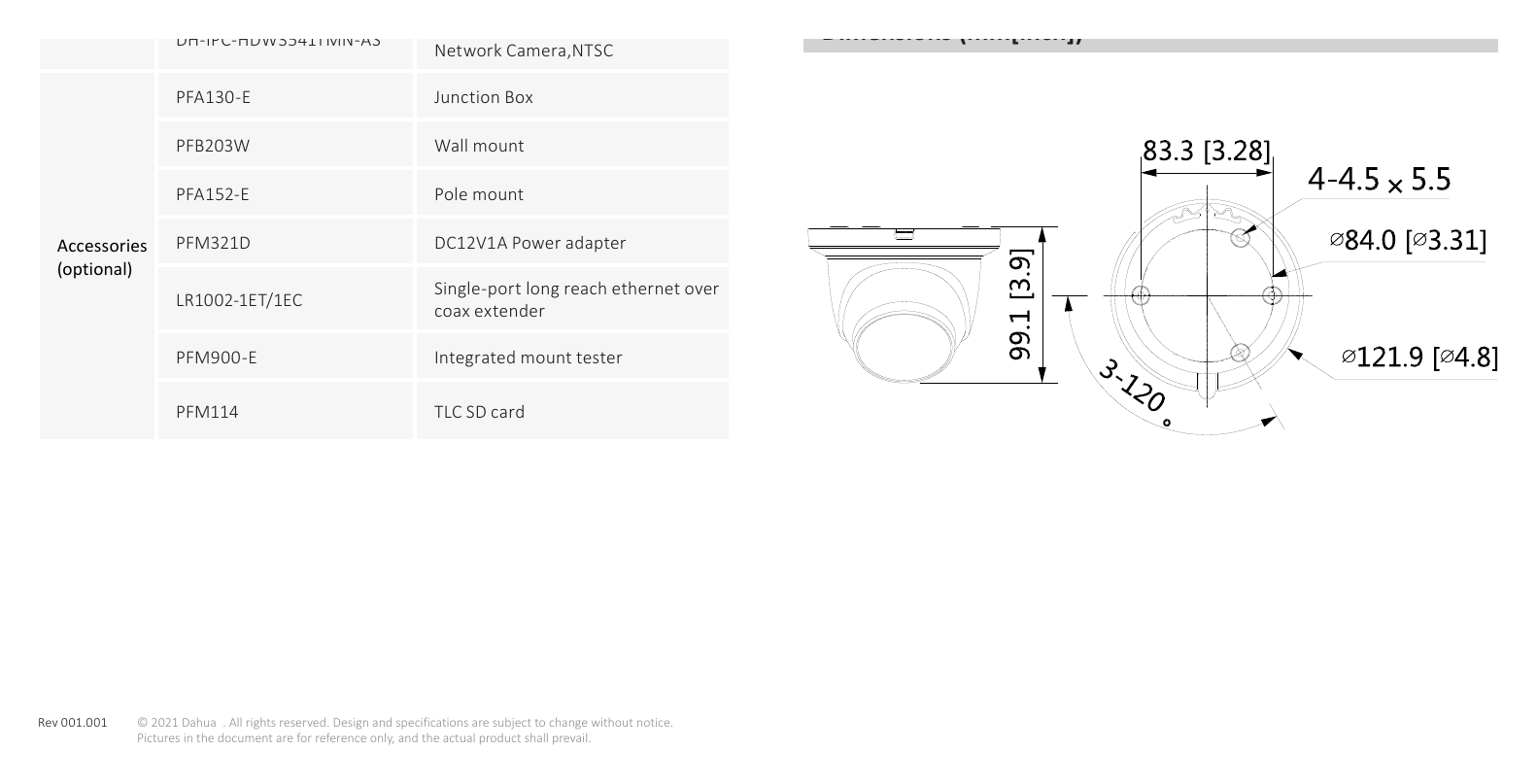

99.1 mm × Φ121.9 mm (3.9" × Φ4.8")｜Unit: mm
IPC-HDW3541TM-AS dahua DH-IPC-HDW3541TM-AS亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，IPC-HDW3541TM-AS 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 gDMSS/DMSS App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：WDR方面，IPC-HDW3541TM-AS 係 120 dB 0.005 Lux@F1.6 (Color, 30IRE)，IPC-HDBW3541R-ZAS 係 120 dB；鏡頭類型方面，IPC-HDW3541TM-AS 係 Fixed-focal，IPC-HDBW3541R-ZAS 係 Motorized vari-focal；Mount Type方面，IPC-HDW3541TM-AS 係 M12，IPC-HDBW3541R-ZAS 係 φ14。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 IPC-HDBW3541R-ZAS 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 IPC-HDW3541TM-AS 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
