DAHUA IPC-HDW3549TM-AS-LED CCTV攝影機安裝・保養

Name: DAHUA IPC-HDW3549TM-AS-LED DH-IPC-HDW3549TM-AS-LED
Brand: dahua
SKU: IPC-HDW3549TM-AS-LED

產品簡介

dahua IPC-HDW3549TM-AS-LED 為DH-IPC-HDW3549TM-AS-LED，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 IPC-HDW3549TM-AS-LED 香港價格連安裝報價。

Camera：(352 × 288/352 × 240)
影像感測器：1/2.7”5Megapixel progressive CMOS
碼率控制：CBR/VBR
最大解像度：2592 (H) × 1944 (V) H.264: 3 kbps–8192 kbps Video Bit Rate H
ROM：128 MB

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

IPC-HDW3549TM-AS-LED dahua DH-IPC-HDW3549TM-AS-LED 產品圖片

詳細規格

Camera	(352 × 288/352 × 240)
影像感測器	1/2.7”5Megapixel progressive CMOS
碼率控制	CBR/VBR
最大解像度	2592 (H) × 1944 (V) H.264: 3 kbps–8192 kbps Video Bit Rate H.265: 3 kbps–8192 kbps
ROM	128 MB
Day/Night	Color/B/W
RAM	512 MB
BLC	Yes
Scanning System	Progressive
HLC	Yes
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
WDR	120 dB
最低照度	0.003 Lux@F1.0 Scene Self-adaptation Yes (SSA)
S/N Ratio	> 56 dB Auto/natural/street lamp/outdoor/manual/regional White Balance
Illumination Distance	30 m (98.4 ft) (Warm light) custom
Illuminator On/Off Control	Auto/Manual Gain Control Auto/Manual
Illuminator Number	2 (Warm light) Noise Reduction 3D DNR
Pan: 0°–360°	Motion Detection OFF/ON (4 areas, rectangular)
Pan/Tilt/Rotation Range	Tilt: 0°–78°
Rotation: 0°–360°	Region of Interest (RoI) Yes (4 areas)
鏡頭	Smart Illumination Yes
鏡頭類型	Fixed-focal 0°/90°/180°/270° (Support 90°/270° with 1080p Image Rotation resolution and lower.)
Mount Type	M12
Mirror	Yes
焦距	2.8 mm; 3.6 mm
Privacy Masking	4 areas
Max. Aperture	F1.0 2.8 mm: Horizontal 98° × Vertical 71° × Diagonal 129° 3.6 mm: Horizontal 77° × Vertical 56° × Diagonal 101° Built-in MIC Yes
光圈類型	Fixed Audio Compression G.711a; G.711Mu; G726 2.8 mm: 1.2 m (3.9 ft) 3.6 mm: 2.4 m (7.9 ft) Alarm No SD card; SD card full; SD card error; network
DORI Distance	2.8 mm changing; audio detection; voltage detection; SMD (183.7 ft) (73.5 ft) (36.7 ft) (18.4 ft) 80.0 m 32.0 m 16.0 m 8.0 m Network 3.6 mm (262.5 ft) (105.0 ft) (52.5 ft) (26.3 ft)
Network	RJ-45 (10/100 Base-T)
SDK and API	Yes Tripwire; intrusion (support the classification and
accurate detection of vehicle and human)	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP;
Protocol	SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Work together with Smart NVR to perform refine Multicast; ICMP; IGMP; NFS; PPPoE; SNMP
Intelligent Search	intelligent search, event extraction and merging to event Video encryption; firmware encryption; configuration
videos.	encryption; Digest; WSSE; account lockout; security logs;
Cyber Security	IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted
Video	execution; trusted upgrade H.265; H.264; H.264H; H.264B; MJPEG (only supported
視頻壓縮	ONVIF(Profile S/Profile G/Profile T);CGI;P2P;Milestone;
by the sub stream)	Interoperability Genetec
Smart Codec	Smart H.265+/ Smart H.264+
用戶管理	20 (Total bandwidth: 64 M)
Main stream: 2592 × 1944 @1–20 fps	Storage FTP; SFTP; Micro SD card (support max. 256 G); NAS 2688 × 1520 @1–25/30 fps
Video Frame Rate	IE: IE8, IE9, IE11 Sub stream: 704 × 576 @1–25 fps/704 × 480 @1–30 fps
Third stream: 1280 × 720@1–25/30 fps	Browser Chrome Firefox
Stream Capability	3 streams Management Software Smart PSS; DSS; DMSS www.dahuasecurity.com
Mobile Phone	IOS; Android Accessories
Certification	Optional: CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive
Junction Box	Wall Mount Pole Mount Power
供電	12V DC/PoE
功耗	< 8.4W
PFM321D	LR1002-1ET/1EC PFM900-E
Environment	DC12V1A Power Single-port Long Integrated Mount
Adapter	Reach Ethernet over Tester
Operating Conditions	-40°C to +60°C (-40°F to +140°F)/ less than 95% Coax Extender
Strorage Conditions	-40°C to +60°C (-40°F to +140°F)
防護等級	IP67 Structure PFM114
Inner core: Metal	TLC SD Card
Casing	Cover: Metal Decoration ring: Plastic
尺寸	99.1 mm × Φ121.9 mm (3.9" × Φ4.8") Pole Mount Wall Mount
淨重	480 g (1.1 lb) PFA130-E PFB203W PFB152-E+PFA203W
毛重	660 g (1.5 lb) Ordering Information
類型	Part Number Description 5MP Full-color Fixed-focal Warm LED DH-IPC-HDW3549TMP-AS- Eyeball WizSense Network Camera, PAL 5MP
PFA130-E	Junction Box
PFB203W	Wall Mount
PFA152-E	Pole Mount
Accessories	PFM321D 12V DC 1A Power Adapter (optional) Single-port Long Reach Ethernet over LR1002-1ET/1EC Coax Extender
PFM900-E	Integrated Mount Tester
PFM114	TLC SD Card
Rev 001.001	© 2021 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com

* 規格以原廠最新 Datasheet 為準。

下載完整PDF規格書 →

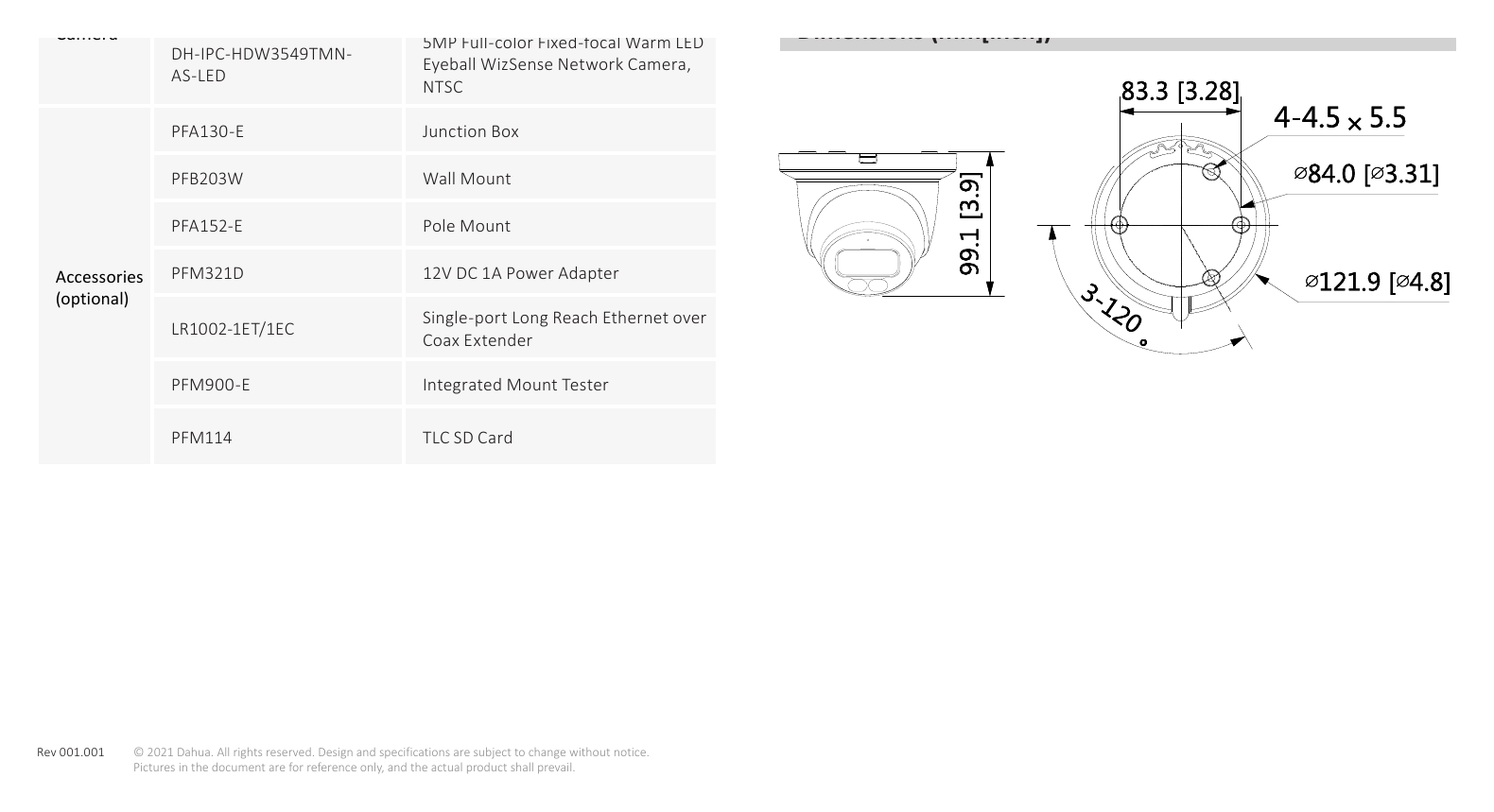

外形尺寸

99.1 mm × Φ121.9 mm (3.9" × Φ4.8") Pole Mount Wall Mount｜Unit: mm

CCTV 監控安裝工程服務

HKEZIT 專營裝CAM、裝CCTV、裝監控工程，IPC-HDW3549TM-AS-LED 由我們供貨、安裝、調試到使用教學一站式完成。無論裝CAM、裝CCTV或裝監控，均由自家工程團隊上門施工，品質有保證。

裝CAM 裝CCTV 裝監控

CCTV 監控適合邊類專業客戶

IPC-HDW3549TM-AS-LED dahua DH-IPC-HDW3549TM-AS-LED亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。

獸醫診所

手術室同住院動物籠舍監控，主人可遠端查看住院寵物，醒晚更觀察狀態。

WhatsApp 查詢 →

保險經紀行

客戶會面室簽單過程存證，減少銷售爭議，配合保監局合規要求。

WhatsApp 查詢 →

兒科診所

候診區同診症室監控兼顧家長安心同私隱，貴重醫療儀器防盜。

WhatsApp 查詢 →

測量師行／則師樓

現場勘察資料同客戶物業圖則屬機密，辦公室網絡同門禁保安係基本要求。

WhatsApp 查詢 →

婦產科診所

診症室及超聲波室私隱要求極高，出入口記錄配合門禁分級管理。

WhatsApp 查詢 →

建築工程顧問公司

圖則模型檔案室保密，配合工地現場監控延伸管理，項目資料防外洩。

WhatsApp 查詢 →

常見問題

IPC-HDW3549TM-AS-LED 香港哪裡有代理？

HKEZIT 提供原廠行貨連保養，IPC-HDW3549TM-AS-LED 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。

此型號如何供電及駁線？

支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。

錄影可以儲存多久、如何遠程監看？

儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 gDMSS/DMSS App 可隨時遠程實時監看及回放，無需固定 IP。

IPC-HDW3549TM-AS-LED 定 IPC-HDBW3541R-ZAS 邊個好？

兩者主要規格分別：Day/Night方面，IPC-HDW3549TM-AS-LED 係 Color/B/W，IPC-HDBW3541R-ZAS 係 Auto(ICR)/Color/B/W；Electronic Shutter Speed方面，IPC-HDW3549TM-AS-LED 係 Auto/Manual 1/3 s–1/100,000 s，IPC-HDBW3541R-ZAS 係 Auto/Manual 1/3 s–1/100000 s；Illuminator On/Off Control方面，IPC-HDW3549TM-AS-LED 係 Auto/Manual Gain Control Auto/Manual，IPC-HDBW3541R-ZAS 係 Auto/Manual Smart Illumination Yes。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 IPC-HDBW3541R-ZAS 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
