| Camera | Main stream: 2688 × 1520@(1–25/30 fps) Sub stream: D1@(1–25/30 fps) |
|---|
| 影像感測器 | 1/1.8" CMOS Third stream: 1080p@(1–25/30 fps) |
|---|
| Video Frame Rate | Fourth stream: 720p@(1–25/30 fps) |
|---|
| 最大解像度 | 2688 (H) × 1520 (V) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
|---|
| ROM | 4 GB |
|---|
| Stream Capability | 4 streams |
|---|
| RAM | 1 GB 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × |
|---|
| Scanning System | Progressive 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M Resolution (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × |
|---|
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s 480); VGA (640 × 480); CIF (352 × 288/352 × 240) With 10mm–40mm lens: |
|---|
| 最低照度 | 0.0006 lux@F1.2 (Color, 30 IRE) Bit Rate Control CBR/VBR 0.0003 lux@F1.2 (B/W, 30 IRE) H.264: 32 kbps–16384 kbps Video Bit Rate |
|---|
| S/N Ratio | >56 dB H.265: 12 kbps–11008 kbps |
|---|
| 鏡頭 | Day/Night Auto(ICR)/Color/B/W |
|---|
| 鏡頭接口 | C/CS BLC Yes |
|---|
| Intelligence | HLC Yes Intrusion, tripwire, fast moving (the three functions WDR 140 dB support the classification and accurate detection |
|---|
| IVS (Perimeter Protection) | Scene Self-adaptation of vehicle and human); loitering detection, people Yes |
|---|
| gathering, and parking detection | (SSA) Auto; natural; street lamp; outdoor; manual; regional |
|---|
| Smart Object Detection | Smart abandoned object; smart missing object White Balance custom |
|---|
| SMD 3.0 | Less false alarm, longer detection distance Gain Control Auto |
|---|
| AI SSA | Yes Noise Reduction 3D NR Face detection; track; snapshot; snapshot optimization; Motion Detection OFF/ON (4 areas, rectangular) optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 Region of Interest (RoI) Yes (4 areas) |
|---|
| Face Detection | attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time Image Stabilization Electronic Image Stabilization (EIS) snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting |
|---|
| 除霧 | Yes Tripwire people counting, generating and exporting 0°/90°/180°/270° (Support 90°/270° with 4M (2688 × Image Rotation report (day/week/month/year); people counting in area 1520) resolution and lower) |
|---|
| People Counting | and queue management, generating and exporting report (day/week/month); 4 rules can be set for tripwire, Mirror Yes people counting in area and queue management. |
|---|
| Privacy Masking | 8 areas |
|---|
| Heat Map | Yes Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; Built-in MIC Yes optimal face snapshot upload. Motor vehicle attributes: vehicle type, vehicle color, Audio Compression G.711a; G.711Mu; PCM; G.726; G.723 vehicle logo and other attributes : seatbelt, smoking, |
|---|
| calling. | Alarm Non-motor vehicle attributes: type, color, number of |
|---|
| people, top type and color, hat. | No SD card; SD card full; SD card error; network Human body attributes: gender, top/bottom type and disconnection; IP conflict; illegal access; motion |
|---|
| color, bag, hat and umbrella. | detection; video tampering; tripwire; intrusion; fast Face attributes: gender, age, expressions, glasses, face moving; abandoned object; missing object; loitering |
|---|
| mask and beard. | detection; people gathering; parking detection; scene Alarm Event changing; audio detection; voltage detection; external Work together with Smart NVR to perform refine alarm; face detection; video metadata; SMD; people |
|---|
| Smart Search | intelligent search, event extraction and merging to event counting in area; stay detection; people counting; people |
|---|
| videos | number error detection; queue people number alarm; queue time alarm; security exception; defocus detection |
|---|
| Smart Sound Detection | Yes |
|---|
| Network Port | RJ-45 (10/100 Enhancement Base-T) H.265; H.264; H.264H; H.264B; MJPEG (Only supported |
|---|
| by the sub stream) | SDK and API Yes |
|---|
| Smart Codec | Smart H.265+; Smart H.264+ www.dahuasecurity.com IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; |
|---|
| 網絡協議 | SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Ordering Information Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P Type Model Description |
|---|
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI |
|---|

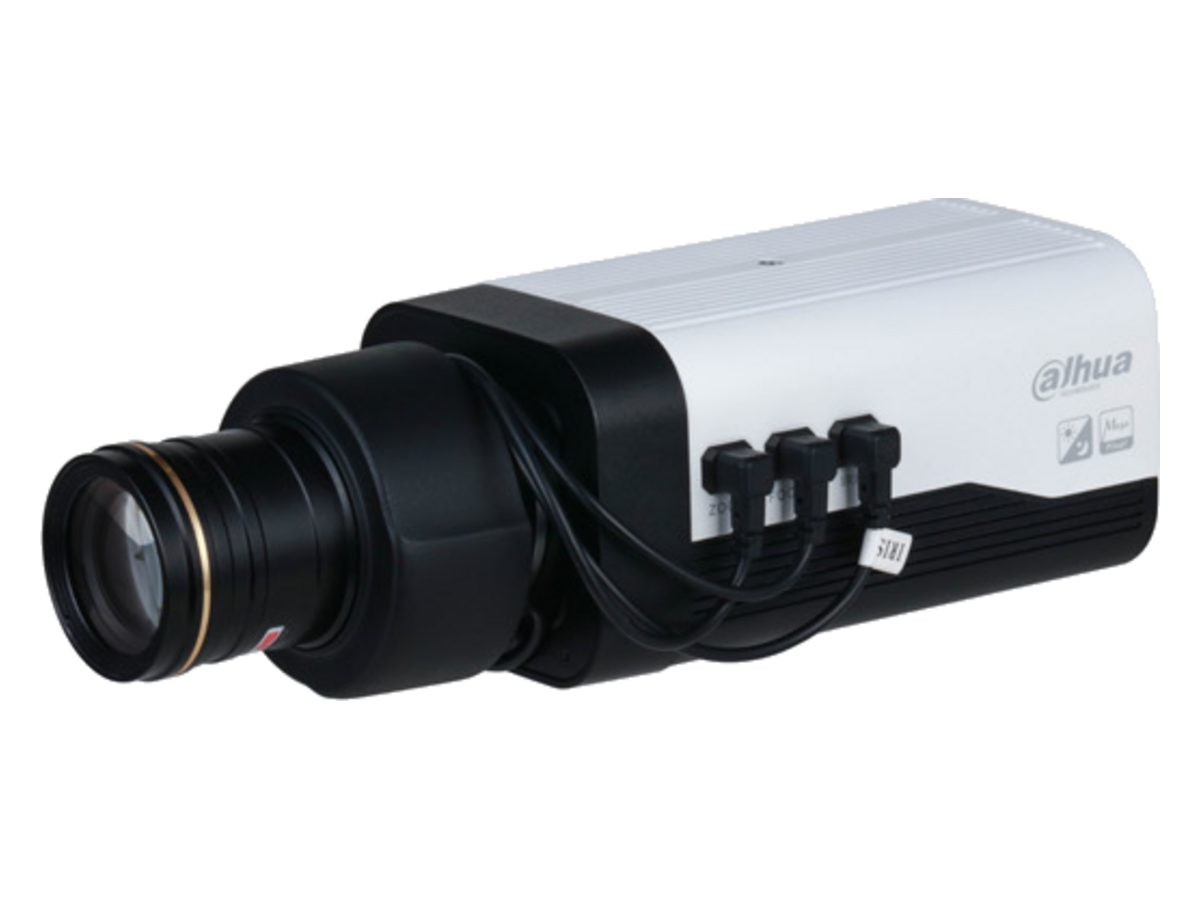

| DH-IPC-HF5442F-ZE | 4MP Box WizMind Network Camera 4MP |
|---|
| 用戶管理 | 20 (Total bandwidth: 80 M) |
|---|
| IPC-HF5442F-ZE | 4MP Box WizMind Network Camera |
|---|
| Storage | FTP; SFTP; Micro SD card (support max. 512 GB); NAS |
|---|
| IE: IE 9 and later; | PFB121W Wall Mount Bracket |
|---|
| Browser | Chrome: Chrome 102 and later |
|---|
| Firefox: Firefox 88 and later | PFB110W Ceiling Mount Bracket |
|---|
| Management Software | SmartPSS Lite; DSS; DMSS 10-40mm Motorized Vari-Focal DH-PFL1040-A12PE |
|---|
| Mobile Client | iOS; Android Accessories (Optional) PFH610V Series Housings Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video |
|---|
| PFM321D | 12 VDC 1 A Power Adapter |
|---|
| Cyber Security | encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot;Firmware encryption;Generation |
|---|
| and importing of X.509 certification | PFM900-E Integrated Mount Tester |
|---|
| Certification | TF-P100 MicroSD Memory Card CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive |
|---|
| Certifications | 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; Accessories UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 Optional: |
|---|
| RS-485 | 1 (baud rate range:1200 bps–115200 bps) |
|---|
| 音訊輸入 | 2 channels (3.5mm JACK port) |
|---|
| 音訊輸出 | 1 channel (3.5mm JACK port) PFB121W PFB110W DH-PFL1040-A12PE |
|---|
| Wall Mount | Ceiling Mount 10-40mm Motorized |
|---|
| 警報輸入 | 2 channels in: wet contact, 5mA 3V–5V DC Bracket Bracket Vari-Focal Lens 2 channels out: dry contact, 1,000mA 30V DC/500mA 50V AC |
|---|
| Analog Output | 1 channel (CVBS output: BNC) |
|---|
| 供電 | 12 VDC/24 VAC/PoE (802.3af)/ePoE PFH610V Series PFM321D PFM900-E |
|---|
| Housings | 12 VDC 1 A Power Integrated Basic: 5.2 W (12 VDC); 5.3 W (24 VAC); 5.6 W (PoE) Adapter Mount Tester |
|---|
| 功耗 | Max. (H.265+ WDR+ Intelligence on): 9.2 W (12 VDC); 10.7 W (24 VAC); 11.0 W (PoE) |
|---|
| 工作溫度 | –30 °C to +60 °C (–22 °F to +140 °F) |
|---|
| 工作濕度 | ≤95% TF-P100 |
|---|
| 儲存溫度 | –40 °C to +60 °C (–40 °F to +140 °F) MicroSD Memory Card |
|---|
| Storage Humidity | 10%–95% (RH), non-condensing |
|---|
| Casing Material | Metal 161.6 mm × 86.8 mm × 74.0 mm (6.36" × 3.42" × 2.91") (L × W × H) |
|---|
| 淨重 | 0.76 kg (1.68 lb) |
|---|

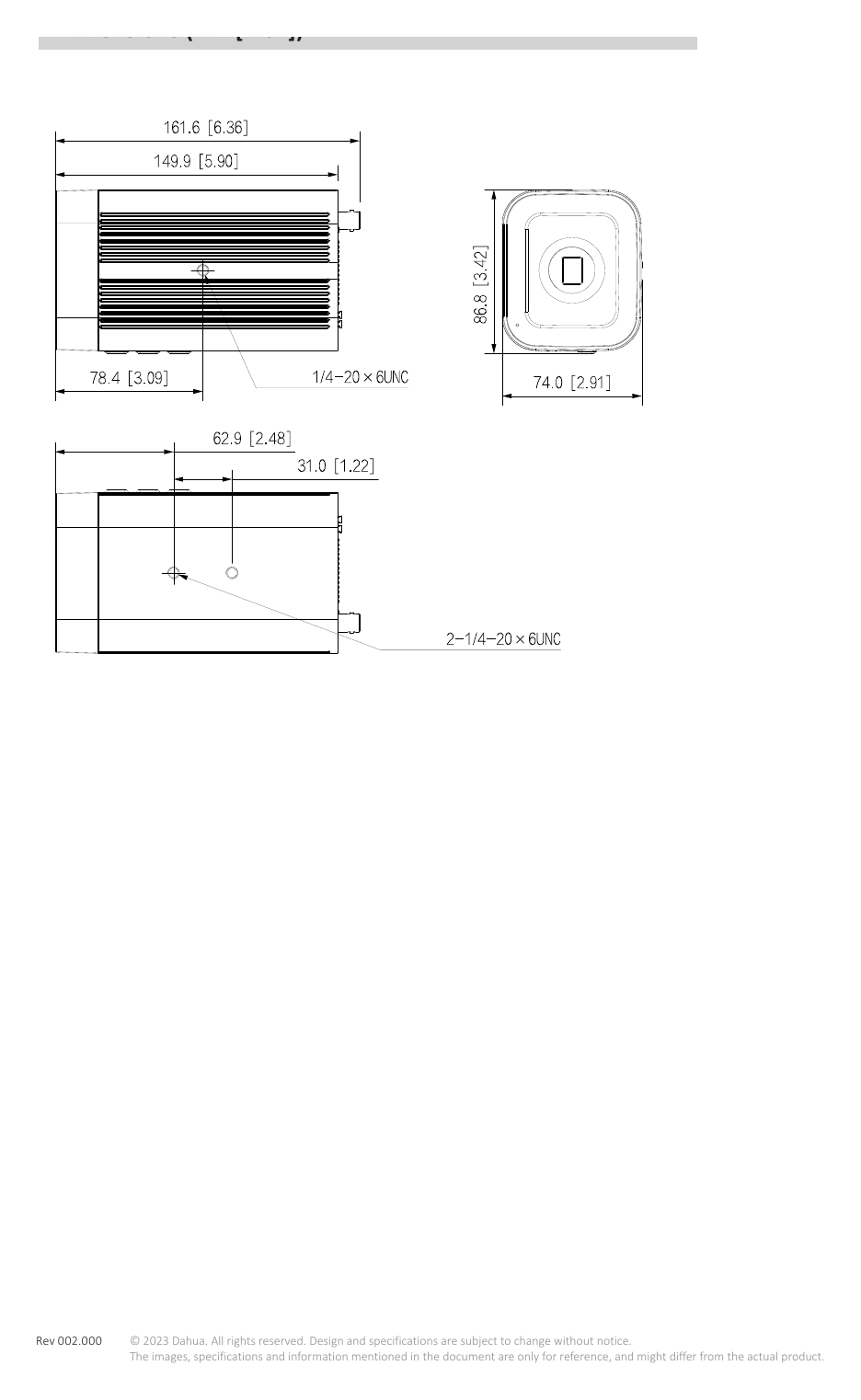

| 毛重 | 0.98 kg (2.16 lb) www.dahuasecurity.com Dimensions (mm[inch]) |
|---|
| Rev 002.000 | © 2023 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
