| Camera | A< >B), and exporting the report. Support tripwire number counting, people counting in |
|---|
| 影像感測器 | 1/1.8” 8Megapixel progressive CMOS area, and displaying and outputting yearly/monthly/ daily reports.Support queue management, and |
|---|
| 最大解像度 | 3840 (H) × 2160 (V) People Counting displaying and outputting monthly/daily reports. Support 4 tripwire rules configuration, people |
|---|
| ROM | 4 GB counting in 4 areas, and 4 queue management functions |
|---|
| RAM | 2 GB Work together with Smart NVR to perform refine |
|---|
| Intelligent Search | intelligent search, event extraction and merging to |
|---|
| Scanning System | Progressive event videos. |
|---|
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s 0.005 Lux@F1.5 (Color, 30IRE) |
|---|
| 最低照度 | 0.0005 Lux@F1.5 (B/W, 30IRE) H.265, H.264, H.264H, H.264B, MJPEG(only supported Video Compression by sub stream) |
|---|
| S/N Ratio | > 56 dB |
|---|
| Smart Codec | Smart H.265+/ Smart H.264+ |
|---|
| 鏡頭 | Main Stream: 3840 × 2160 (1–25/30 fps) Sub stream: 704 × 576 (1–25fps);704 × 480 (1–30fps) |
|---|
| Mount Type | C/CS Video Frame Rate Third stream: 1920 × 1080 (1–25/30 fps) Fourth stream: 1920 × 1080 (1–25/30 fps) |
|---|
| 智能事件 | Fifth stream: 704 × 576 (1–25fps);704 × 480 (1–30fps) |
|---|
| IVS | Abandoned object, moving object Stream Capability 5 streams |
|---|
| Professional, intelligent | 8M (3840 × 2160), 6M (3072 × 2048/3072 × 1728), 5M (2592 × 1944), 4M (2688 × 1520), 3M(2048 × Tripwire, intrusion, fast moving (the three functions Resolution 1536/2304 × 1296), 1080p (1920 ×1 080), 1.3M (1280 support the classification and accurate detection × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), |
|---|
| IVS (Perimeter Protection) | VGA (640 × 480), CIF (352 × 288/352 × 240) of vehicle and human); parking detection, loitering detection, and people gathering. |
|---|
| 碼率控制 | CBR/VBR Face detection, track, priority, snapshot,Upload H.264: 32 kbps–16384 kbps |
|---|
| Optimized snapshot picture; face | Video Bit Rate H.265: 12 kbps–16384 kbps enhancement, face exposure, face attribute extract, 6 attributes and 8 expressions: Gender, age, glasses, Day/Night Auto (ICR)/Color/B/W expressions (anger, sadness, disgust, fear, surprise, calm, happiness and confusion), Mouth mask, beard; BLC Yes Face Detection Face matting setting: face, single inch photo Three |
|---|
| snapshot; | HLC Yes methods: real-time snapshot, priority snapshot, quality priority; |
|---|
| WDR | 120 dB Face angle filter Priority time setting; Support Duration Optimal,Non-living Filtering; |
|---|
| Scene Self-adaptation (SSA) | Yes There are two models: General mode and counting |
|---|
| mode. | Auto/natural/street lamp/outdoor/manual/regional White Balance General mode: Face detection; track; snapshot; custom snapshot optimization; face enhancement; face exposure; face attribute extraction including 6 |
|---|
| Gain Control | Auto/Manual attributes (gender, age, glasses, expressions, mask and beard) and 8 expressions (anger, calm, happiness, Noise Reduction 3D NR Face Recognition sadness, disgust, surprise, confusion and fear); supports up to 5 face databases with 50,000 face Motion Detection OFF/ON (4 areas, rectangular) pictures in total; supports non-living filtering Counting mode: Offers advanced customer counter, |
|---|
| 除霧 | Yes Basic power consumption: 6.5W (12V DC); 5.7W(24V AC); 5.5W (PoE) Power Consumption 0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 Max. power consumption (ICR + WDR + Power Output |
|---|
| Image Rotation | + ABF): 14.4W (12V DC); 14W(24V AC); 13.6W (PoE) resolution and lower) |
|---|
| Mirror | Yes Environment |
|---|
| Privacy Masking | 8 areas Operating Conditions –30°C to +60°C (–22°F to +140°F)/Less than 95% RH |
|---|
| Audio | Storage conditions –30°C to +60°C (–22°F to +140°F) |
|---|
| Built-in MIC | Yes Structure |
|---|
| 音訊壓縮 | G.711a; G.711Mu; G726; G.723 Casing Metal 86 mm × 74 mm × 150 mm (3.39" × 2.91" × 5.91") |
|---|
| 警報 | Dimensions (L × W × H) No SD card; SD card full; SD card error; network Net Weight 800 g (1.76 lb) disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast |
|---|
| 毛重 | 900 g (1.98 lb) moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; defocus detection; external alarm; face detection; people counting in area; stay alarm; people counting; people counting exception Ordering Information detection; safety exception; queue management; face & body detection; face & body detection (match |
|---|
| DH-IPC-HF7842FP | 8MP BOX WizMind Network Camera,PAL attributes alarm); face recognition |
|---|
| IPC-HF7842FP | 8MP BOX WizMind Network Camera,PAL |
|---|
| Network | 8MP Camera |
|---|
| DH-IPC-HF7842FN | 8MP BOX WizMind Network Camera,NTSC |
|---|
| IPC-HF7842FN | 8MP BOX WizMind Network Camera,NTSC |
|---|
| SDK and API | Yes |
|---|
| DH-PFB110W | Wall /Ceiling/Plane mount Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security |
|---|
| Cyber Security | logs; IP/MAC filtering; generation and importing of DH-PFB121W Wall Mount X.509 certification; syslog; HTTPS; 802.1x; trusted |
|---|
| boot; trusted execution; trusted upgrade | Accessories (optional) DH-PLZ21C0-D 10.5-42 mm IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; |
|---|
| Protocol | RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; DH-PLZ20C0-D 3.7-16 mm QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP; Bonjour |
|---|
| DH-PFH610V Series | Housings ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P;RTMP |
|---|
| 用戶管理 | 20 (Total bandwidth: 160M) |
|---|
| Storage | FTP; Micro SD card (256 G); NAS; SFTP IE: IE9 and later |
|---|
| Browser | Chrome: Chrome 42 and later Firefox: Firefox 48.0.2 and later |
|---|
| Management Software | Smart PSS; DSS; DMSS |
|---|
| Mobile Phone | IOS, Android CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive |
|---|
| Certifications | 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
|---|
| RS-485 | 1 (baud rate range: 1200 bps-115200 bps) |
|---|
| 音訊輸入 | 2 channels (3.5mm JACK port) |
|---|
| 音訊輸出 | 1 channel (3.5mm JACK port) |
|---|
| 警報輸入 | 2 channel In: 5mA 5V DC |
|---|
| 警報輸出 | 2 channel Out: 1000mA 30V DC/500mA 50V AC |
|---|
| 供電 | 12V DC/24V AC/PoE+ (802.3at); ePoE www.dahuasecurity.com Accessories Optional: |
|---|
| DH-PLZ20C0-D | DH-PFH610V 3.7-16 mm Series |
|---|
| Wall Mount/Ceiling/Plane mount | Wall Mount |
|---|

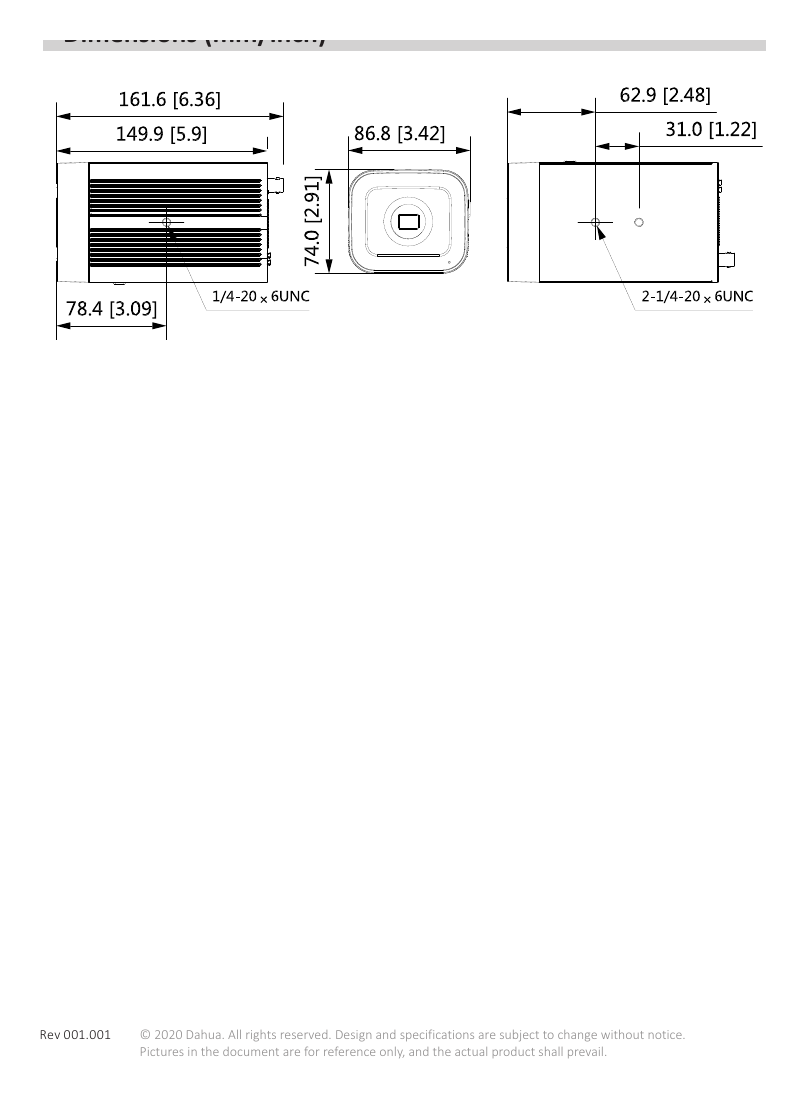

| PFB110W | PFB121W Dimensions (mm/inch) |
|---|
| Rev 001.001 | © 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
