| Camera | AI Coding AI H.265 AI H.264 |
|---|
| 影像感測器 | 1/2.7" CMOS Main stream: 2880 × 1620 @ (1–20) fps / 2960 × 1668 @ (1–20) fps / |
|---|
| 最大解像度 | 2960 (H) × 1668 (V) 2688 × 1520@(1–25/30 fps) Sub stream 1: 704 × 576 @ (1–25 fps)/ |
|---|
| ROM | 128 MB Video Frame Rate 704 × 480 @ (1–30 fps) Sub stream 2: 1920 × 1080 @ (1–25/30 fps) |
|---|
| RAM | 512 MB *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected |
|---|
| Scanning System | Progressive to the total encoding capacity |
|---|
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s Stream Capability 3 streams 0.005 lux@F1.5 (Color, 30 IRE) 5M (2880 × 1620/2960 × 1668); 4M (2688 × 1520); 3.6M |
|---|
| 最低照度 | 0.0005 lux@F1.5 (B/W, 30 IRE) (2560 × 1440); 3M (2048×1536); 3M (2304×1296); 1080p 0 lux (Illuminator on) Resolution (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720); D1 (704 × 576/704×480); CIF (352 × 288/352 × 240); VGA |
|---|
| S/N Ratio | >56 dB (640 × 480) |
|---|
| 碼率控制 | CBR/VBR |
|---|
| Illumination Distance | Up to 60 m (196.85 ft) H.264: 3 kbps–8192 kbps |
|---|
| Illuminator On/Off Control | Auto/Manual Video Bit Rate H.265: 3 kbps–8192 kbps |
|---|
| Illuminator Number | 4 (IR LED) Day/Night Auto (ICR)/Color/B/W |
|---|
| Pan/Tilt/Rotation Range | Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360° BLC Yes |
|---|
| HLC | Yes |
|---|
| WDR | 120 dB |
|---|
| 鏡頭類型 | Motorized vari-focal Scene Self-adaptation |
|---|
| 鏡頭接口 | φ14 Yes (SSA) |
|---|
| 焦距 | 2.7 mm–13.5 mm Auto; natural; street lamp; outdoor; manual; regional White Balance custom |
|---|
| Max. Aperture | F1.5 |
|---|
| Gain Control | Auto Horizontal: 99°–28° |
|---|
| Noise Reduction | 3D NR |
|---|
| Field of View | Vertical: 71°–21° Diagonal: 134°–35° |
|---|
| Motion Detection | OFF/ON (4 areas, rectangular) |
|---|
| Iris Control | Fixed Image Stabilization Electronic Image Stabilization (EIS) |
|---|
| Close Focus Distance | 0.8 m (2.62 ft) Region of Interest (RoI) Yes (4 areas) |
|---|
| 鏡頭 | Detect Observe Recognize Identify Defog Yes 64.0 m 25.6 m 12.8 m 6.4 m AFSA Yes (209.97 ft) (83.98 ft) (41.99 ft) (21.00 ft) 0°/90°/180°/270° (support 90°/270° with 2688 × 1520 210.0 m 84.0 m 42.0 m 21.0 m Image Rotation |
|---|
| T | resolution and lower) |
|---|
| DORI 偵測距離 | (688.98 ft) (275.59 ft) (137.80 ft) (68.90 ft) |
|---|
| Distance | Mirror Yes *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to |
|---|
| Privacy Masking | 4 areas distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/ |
|---|
| project design tool. | Built-in MIC Yes |
|---|
| Intelligence | Audio Compression G.711a; G.711Mu; PCM; G.726; G.723 Tripwire, intrusion (support the classification and |
|---|
| accurate detection of vehicle and human) | Alarm -ZAS: |
|---|
| AI SSA | Yes No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network With AI NVR, quickly pick up the human/vehicle targets |
|---|
| Quick Pick | disconnection; IP conflict; illegal access; motion that users are interested in from SMD events detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; defocus Work together with Smart NVR to perform refine detection; external alarm; SMD; safety exception |
|---|
| Smart Search | intelligent search, event extraction and merging to event Alarm Event -ZS: videos No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network |
|---|
| Video | disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene H.265; H.264; H.264H; H.264B; MJPEG (only supported |
|---|
| 視頻壓縮 | changing; audio detection; voltage detection; defocus by the sub stream) detection; SMD; safety exception www.dahuasecurity.com |
|---|
| Network | Ordering Information |
|---|
| Network Port | RJ-45 (10/100 Base-T) Type Model Description |
|---|
| SDK and API | Yes 5MP IR Vari-focal Bullet WizSense DH-IPC-HFW3541TP-ZAS-S2 Network Camera IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; 5MP Camera |
|---|
| 網絡協議 | SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; DH-IPC-HFW3541TP-ZS-S2 5MP IR Vari-focal Bullet WizSense Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P Network Camera Video encryption; Firmware encryption; Configuration PFA130-E Junction Box encryption; Digest; WSSE; Account lockout; Security logs; |
|---|
| Cyber Security | IP/MAC filtering; Generation and importing of X.509 |
|---|
| PFA135 | Junction Box certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
|---|
| PFA152-E | Pole Mount Accessories |
|---|
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI (Optional) |
|---|
| PFM321D | 12 VDC 1 A Power Adapter |
|---|
| 用戶管理 | 20 (Total bandwidth: 64 M) |
|---|
| PFM900-E | Integrated Mount Tester |
|---|
| Storage | FTP; SFTP; Micro SD card (support max. 256 G); NAS |
|---|
| TF-P100 | TLC SD Card IE: IE11 |
|---|
| Browser | Chrome Firefox |
|---|
| Management Software | SmartPSS Lite; DSS; DMSS Accessories |
|---|
| Mobile Client | iOS; Android Optional: CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive |
|---|
| Certifications | 2014/30/EU; |
|---|
| FCC: 47 CFR FCC Part 15, Subpart B; | PFA130-E PFA135 PFA152-E UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 Junction Junction Pole |
|---|
| Box | Box Mount |
|---|
| 音訊輸入 | 1 channel (RCA port) (Only - ZAS supports) |
|---|
| 音訊輸出 | 1 channel (RCA port) (Only - ZAS supports) 1 channel in: wet contact, 5 mA 3 V–5 VDC (Only - ZAS |
|---|
| supports) | PFM321D PFM900-E TF-P100 12 VDC 1 A Integrated TLC SD 1 channel out: wet contact, 300 mA 12 VDC (Only - ZAS Power Adapter Mount Tester Card supports) |
|---|
| 供電 | 12 VDC/PoE (802.3af) Basic: 2.8 W (12 VDC); 3.4 W (PoE)Max. (WDR + IR intensity + Intelligence): 7.4W (12 VDC); 8.5 W (PoE) |
|---|
| 工作溫度 | –30 °C to +60 °C (–22 °F to 140 °F) /Less than 95% (RH) |
|---|
| 儲存溫度 | –40°C to +60°C (–40°F to 140°F) |
|---|
| 防護等級 | IP67 |
|---|
| Casing | Metal 244.1 mm × 79.0 mm × 75.9 mm (9.61" × 3.11" × 2.99") (L × W × H) |
|---|
| 淨重 | 820 g (1.81 lb) |
|---|

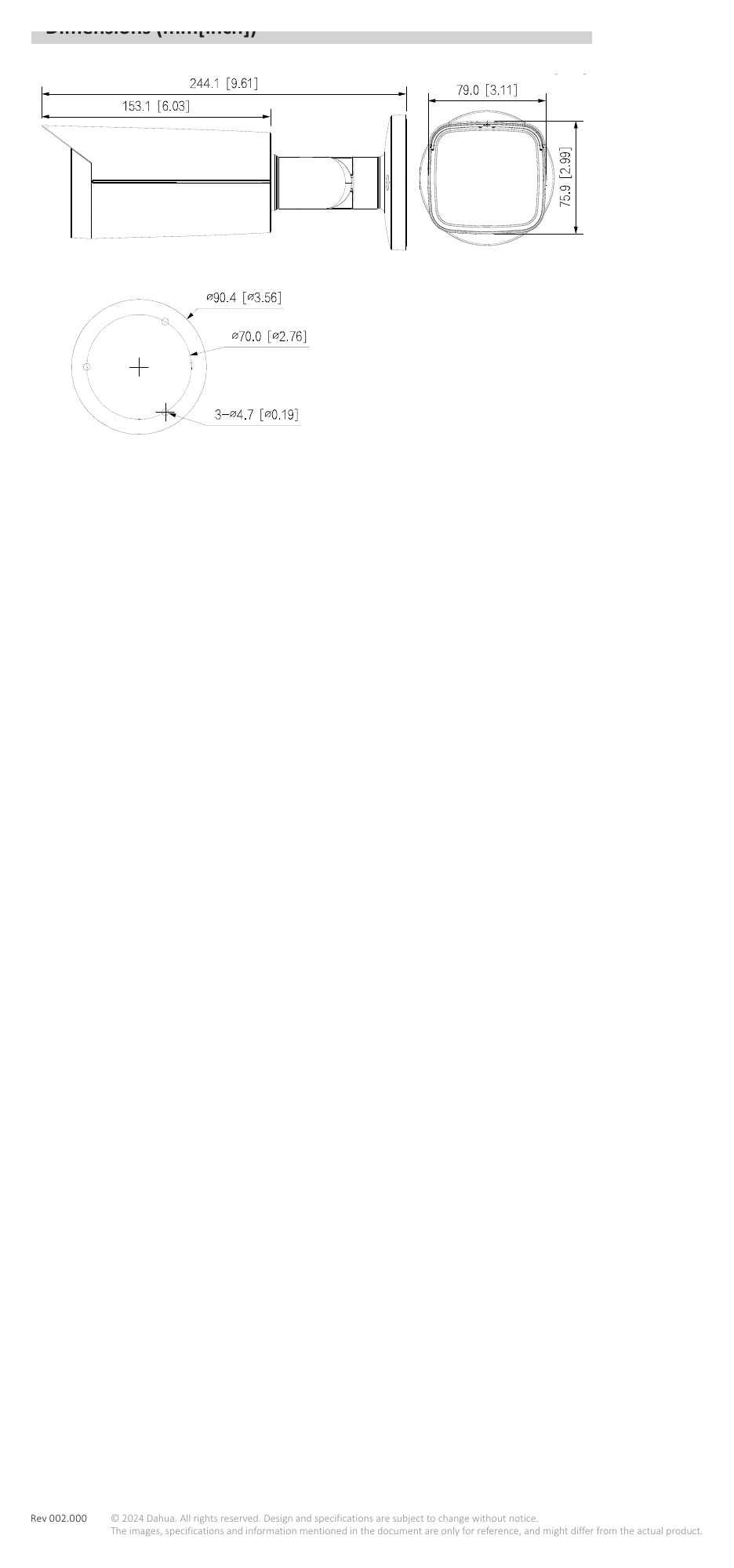

| 毛重 | 1090 g (2.40 lb) www.dahuasecurity.com Dimensions (mm[inch]) |
|---|
| Rev 002.000 | © 2024 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
