| Camera | Smart Codec Smart H.265+; Smart H.264+ |
|---|
| 影像感測器 | 1/1.8" CMOS AI H.265 (Compression rate≥25%) AI Coding AI H.264 (Compression rate≥25%) |
|---|
| 最大解像度 | 3840 (H) × 2160 (V) Main stream: 3840 × 2160@(1–25/30 fps) |
|---|
| ROM | 4 GB sub stream: D1@(1–25/30 fps) third stream: 1080p@(1–25/30 fps) Video Frame Rate |
|---|
| RAM | 1 GB *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
|---|
| Scanning System | Progressive |
|---|
| Stream Capability | 3 streams |
|---|
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s 0.005 lux@F1.8 (Color, 30 IRE) 3840 × 2160; 3072 × 2048; 3072 ×1728; 2592 × 1944; |
|---|
| 最低照度 | 0.0005 lux@F1.8 (B/W, 30 IRE) 2688 × 1520; 2560 × 1440; 2048 × 1536; 2304 × 1296; 0 lux (Illuminator on) Resolution 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF |
|---|
| S/N Ratio | >56 dB (352 × 288/352 × 240) |
|---|
| Illumination Distance | 60 m (196.85 ft) (IR LED) Bit Rate Control CBR/VBR |
|---|
| Illuminator On/Off Control | Auto; Zoomprio; Manual H.264: 3 kbps–8192 kbps Video Bit Rate H.265: 3 kbps–8192 kbps |
|---|
| Illuminator Number | 4 (IR LED); 4 (Warm light) |
|---|
| Day/Night | Auto(ICR)/Color/B/W |
|---|
| 鏡頭 | BLC Yes |
|---|
| 鏡頭類型 | Motorized vari-focal HLC Yes |
|---|
| 鏡頭接口 | φ14 WDR 120 dB |
|---|
| 焦距 | 2.7 mm–12 mm Scene Self-adaptation Yes (SSA) |
|---|
| Max. Aperture | F1.8 Auto; natural; street lamp; outdoor; manual; regional White Balance |
|---|
| H: 113°–47° | custom |
|---|
| Field of View | V: 60°–26° D: 133°–53° |
|---|
| Gain Control | Auto |
|---|
| Iris Control | Auto Noise Reduction 3D NR |
|---|
| Close Focus Distance | 1.2 m (3.94 ft) Motion Detection OFF/ON (4 areas, rectangular) |
|---|
| DORI 偵測距離 | 82.4 m 33.4 m 16.7 m 8.3 m Image Stabilization Electronic Image Stabilization (EIS) |
|---|
| Distance | (273.62 ft) (109.58 ft) (54.79 ft) (27.23 ft) |
|---|
| Smart Illumination | Yes 189.6 m 75.8 m 37.9 m 19.0 m (622.05 ft) (248.69 ft) (124.34 ft) (62.34 ft) Defog Yes |
|---|
| Intelligence | 0°/90°/180°/270° (Support 90°/270° with 4M resolution Image Rotation and lower) Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection Mirror Yes IVS (Perimeter Protection) of vehicle and human); loitering detection, people |
|---|
| gathering, and parking detection | Privacy Masking 4 areas |
|---|
| Heat Map | Yes |
|---|
| Smart Object Detection | Smart abandoned object; smart missing object |
|---|
| Built-in MIC | Yes Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face Built-in Speaker Yes exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and Audio Compression PCM; G.711a; G.711Mu; G.726; G.723 |
|---|
| Face Detection | 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. www.dahuasecurity.com |
|---|
| 警報 | Protection IP67 No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion Structure detection; video tampering; tripwire; intrusion; fast |
|---|
| Alarm Event | moving; abandoned object; missing object; loitering |
|---|
| Casing Material | Metal + plastic detection; people gathering; scene changing; audio 281.3 mm × 171.8 mm × 191.7 mm (11.07" × 6.76" × detection; voltage detection; external alarm; face Product Dimensions 7.55") (L × W × H) detection; security exception |
|---|
| Network | Net Weight 2074 g (4.57 lb) |
|---|
| Network Port | RJ-45 (10/100 Base-T) Gross Weight 2290 g (5.05 lb) SA:N1/N3/N7/N8/N20/N28/N38/N40/N41/N75/N76/ |
|---|
| N77/N78 | Ordering Information NSA:N1/N3/N7/N8/N20/N28/N38/N40/N41/N77/N78 |
|---|
| Frequency | 4G Type Model Description FDD-LTE: B1/B3 /B7 /B20 |
|---|

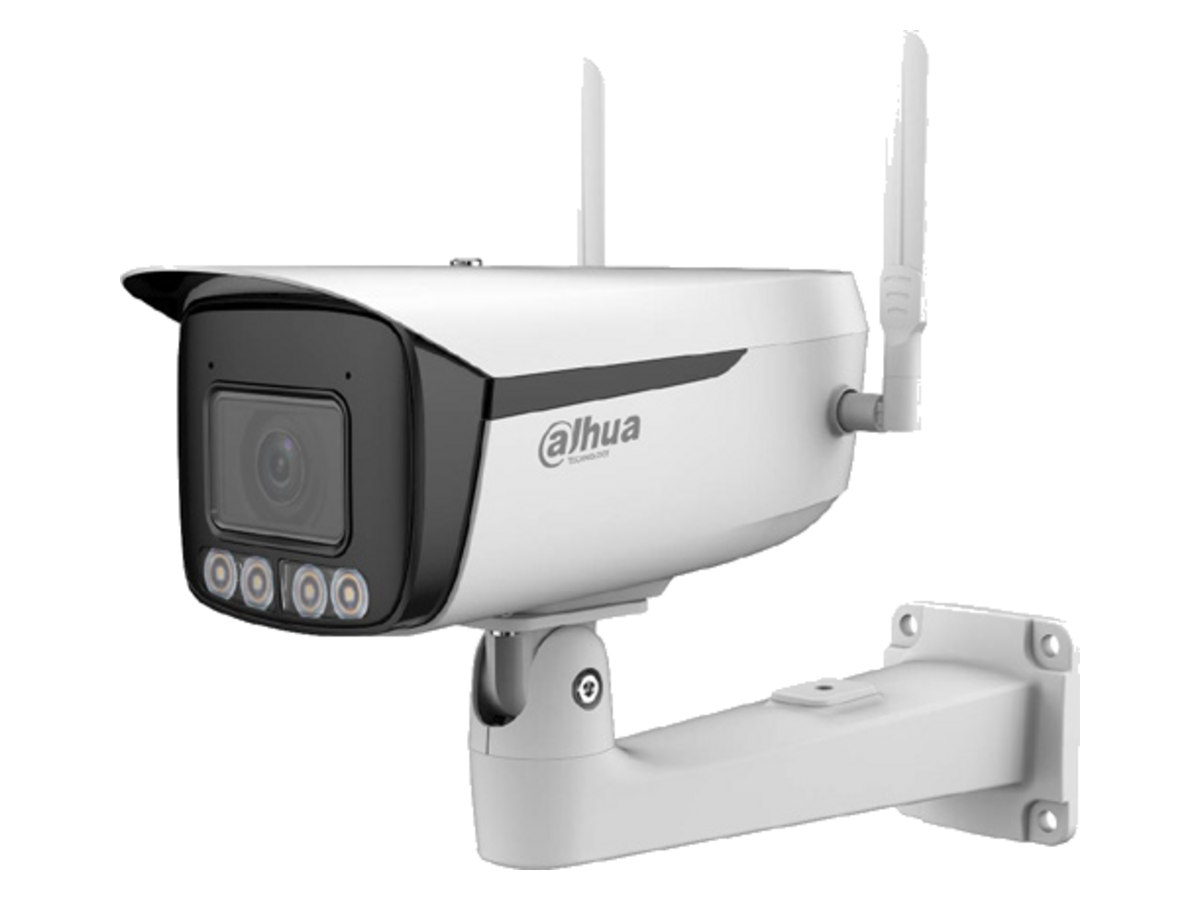

| TDD-LTE: B41 | DH-IPC-HFW5842DK1P-Z-5G- Dahua 8MP 5G Vari-focal Bullet 3G FM16-2712 WizMind Network Camera |
|---|
| WCDMA:B1 /B8 | 8MP Camera |
|---|
| IPC-HFW5842DK1P-Z-5G- | 8MP 5G Vari-focal Bullet WizMind |
|---|
| SDK and API | Yes FM16-2712 Network Camera IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; PFB605W Wall Mount Bracket |
|---|
| 網絡協議 | SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; |
|---|
| Multicast; ICMP; IGMP; NFS; PPPoE; SNMP | PFB603C Ceiling Mount Bracket |
|---|
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P PFA150 Pole Mount Bracket (Horizontal) |
|---|
| 用戶管理 | 20 (Total bandwidth: 80 M) Accessories PFM320D 12 VDC 2 A Power Adapter |
|---|
| Storage | FTP; SFTP; Micro SD card (support max. 512 GB); NAS PFM900-E Integrated Mount Tester IE: IE9 and later |
|---|
| TF-P100 | MicroSD Memory Card Chrome Firefox |
|---|
| Safari: Safari 12 and later | PFA162 Housing Bracket |
|---|
| Management Software | Smart PSS; DSS; DMSS |
|---|
| Mobile Client | iOS; Android Accessories CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive Included: 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 CE RED |
|---|
| Port | PFB605W Wall Mount |
|---|
| RS-485 | 1 (baud rate range:1200 bps–115200 bps) Bracket |
|---|
| 音訊輸入 | 1 channel (RCA port) Optional: |
|---|
| 音訊輸出 | 1 channel (RCA port) |
|---|
| 警報輸入 | 3 channels in: 5mA 3V–5V DC |
|---|
| 警報輸出 | 2 channels out: 300mA 12V DC |
|---|
| 供電 | PFB603C PFA150 PFM320D |
|---|
| Ceiling Mount | Pole Mount Bracket 12 VDC 2 A Power |
|---|
| PFM900-E | TF-P100 PFA162 |
|---|
| 工作溫度 | –30 °C to +60 °C (–22 °F to +140 °F) |
|---|
| Integrated | MicroSD Housing Bracket |
|---|
| Mount Tester | Memory Card |
|---|
| 工作濕度 | ≤95% |
|---|

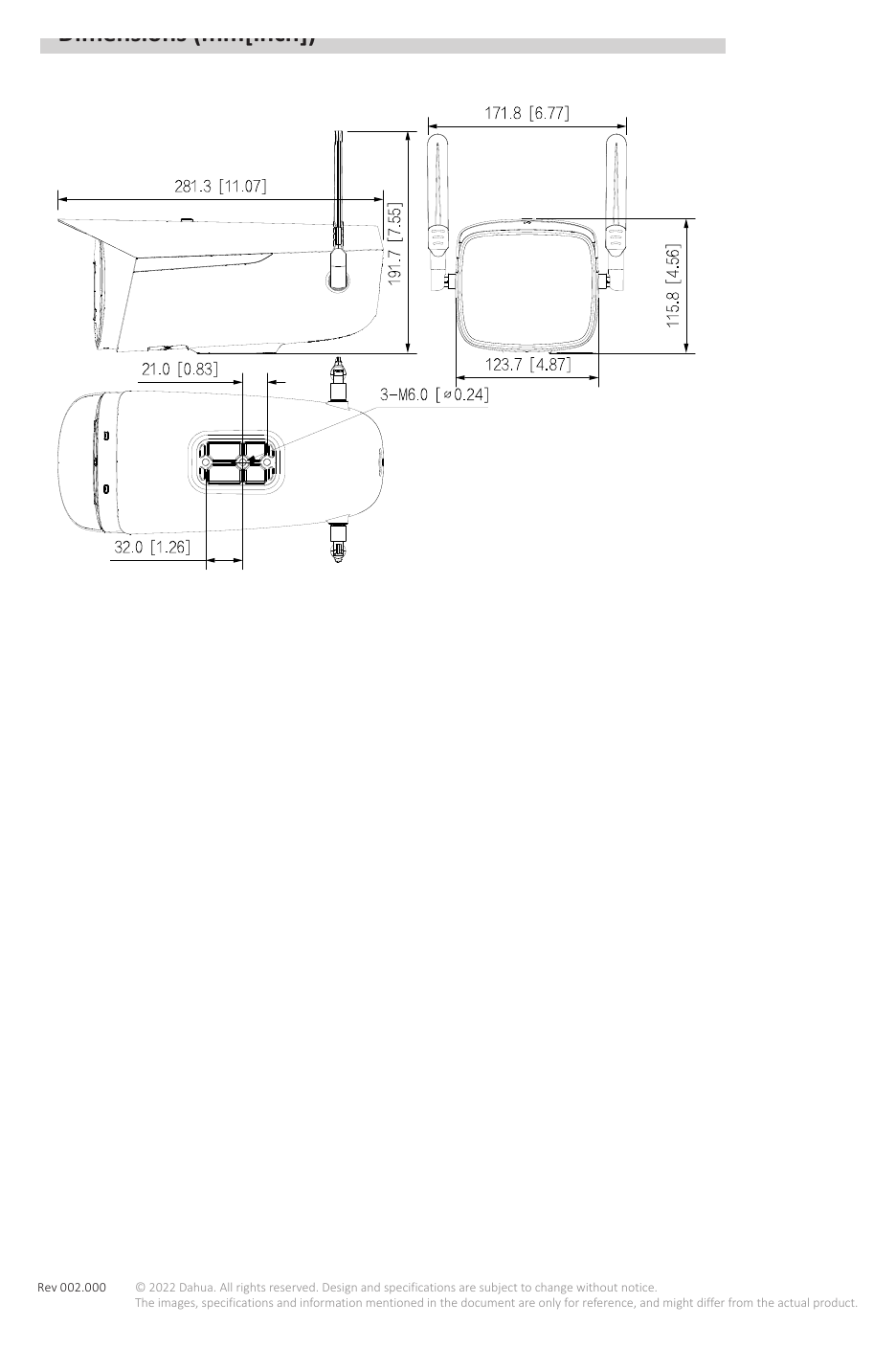

| 儲存溫度 | –40 °C to +60 °C (–40 °F to +140 °F) www.dahuasecurity.com Dimensions (mm[inch]) |
|---|
| Rev 002.000 | © 2022 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
