| Camera | monthly/daily reports. Support the counting of number in area, and 4 rules People Counting |
|---|
| 影像感測器 | 1/1.8” CMOS configuration. Count number of people or stay time and link alarm. |
|---|
| 最大解像度 | 3840 (H) × 2160 (V) Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm. |
|---|
| ROM | 128 MB Work together with Smart NVR to perform refine |
|---|
| RAM | 1 GB Intelligent Search intelligent search, event extraction and merging to event videos. |
|---|
| Scanning System | Progressive |
|---|
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s H.265; H.264; H.264H; H.264B; MJPEG (Only supported Video Compression 0.004 lux@F1.4 (Color, 30 IRE) by the sub stream) |
|---|
| 最低照度 | 0.0004 lux@F1.4 (B/W, 30 IRE) 0 lux (Illuminator on) Smart Codec Smart H.265+/H.264+ |
|---|
| S/N Ratio | > 56 dB AI Coding AI H.265; AI H.264 |
|---|
| Illumination Distance | 60 m (196.9 ft) Main stream: 3840× 2160 (1 fps–25/30 fps) Sub stream: D1 (1 fps–25/30 fps) |
|---|
| Illuminator On/Off Control | Auto; Manual Video Frame Rate Third stream: 1080p (1 fps–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding |
|---|
| Illuminator Number | 4 (IR) capacity. |
|---|
| 鏡頭 | Stream Capability 3 streams |
|---|
| 鏡頭類型 | Motorized vari-focal 3840 x 2160; 2592 x 1944; 2688 × 1520; 2560 × 1440; 2304 × 1296; 1080p (1920 × 1080); 1.3M (1280 × 960); |
|---|
| 鏡頭接口 | φ14 Resolution 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
|---|
| 焦距 | 2.7 mm–12.0 mm |
|---|
| 碼率控制 | CBR/VBR |
|---|
| Max. Aperture | F1.4 H.264: 32 kbps–8192 kbps |
|---|
| Horizontal: 110.4°–45° | Video Bit Rate H.265: 32 kbps–8192 kbps |
|---|
| Field of View | Vertical: 57.8°–25.2° Diagonal: 133.8°–51.8° |
|---|
| Day/Night | Auto (ICR)/Color/B/W |
|---|
| Iris Control | Auto |
|---|
| BLC | Yes |
|---|
| Close Focus Distance | W/T:1.0 m (3.3 ft) |
|---|
| HLC | Yes |
|---|
| WDR | 120 dB |
|---|
| DORI 偵測距離 | 86 m 34.4 m 17.2 m 8.6 m |
|---|
| W | Auto; natural; street lamp; outdoor; manual; regional |
|---|
| Distance | (282.2 ft) (112.9 ft) (56.4 ft) (28.2 ft) White Balance custom 196 m 78.4 m 39.2 m 19.6 m (643.0 ft) (257.2 ft) (128.6 ft) (64.3 ft) Gain Control Auto; manual |
|---|
| 智能事件 | Noise Reduction 3D NR |
|---|
| IVS | Abandoned object; missing object |
|---|
| Motion Detection | OFF/ON (4 areas, rectangular) |
|---|
| Heat Map | Yes |
|---|
| 感興趣區域 ROI | Yes (4 areas) |
|---|
| Professional, intelligent | Image Stabilization Electronic Image Stabilization (EIS) Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection Defog Yes of vehicle and human); loitering detection; people |
|---|
| gathering; parking detection | 0°/90°/180°/270°(Support 90°/270° with 4M Image Rotation resolution and lower) Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face Mirror Yes exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and Privacy Masking 8 areas |
|---|
| Face Detection | 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. |
|---|
| 音訊壓縮 | PCM; G.711a; G.711Mu; G.726; G.723 www.dahuasecurity.com |
|---|
| 警報 | Structure No SD card; SD card full; SD card error; network Casing Metal, plastic disconnection; IP conflict; illegal access; motion detection; video tampering; defocus detection; scene Product Dimensions 273.2 mm × 95.0 mm × 95.0 mm (10.76” × 3.74” × 3.74”) changing; intrusion; tripwire; abandoned object; |
|---|
| Alarm Event | missing object; fast moving; parking detection; loitering Net Weight 1.11 kg (2.44 lb) detection; people gathering; input abnormal detection; intensity change detection; people counting; face |
|---|
| 毛重 | 1.51 kg (3.33 lb) detection; people counting in area; stay alarm; people No. exception detection; queue management |
|---|
| Network | Ordering Information |
|---|
| Network Port | RJ-45 (10/100 Base-T) |
|---|
| 類型 | Model Description |
|---|

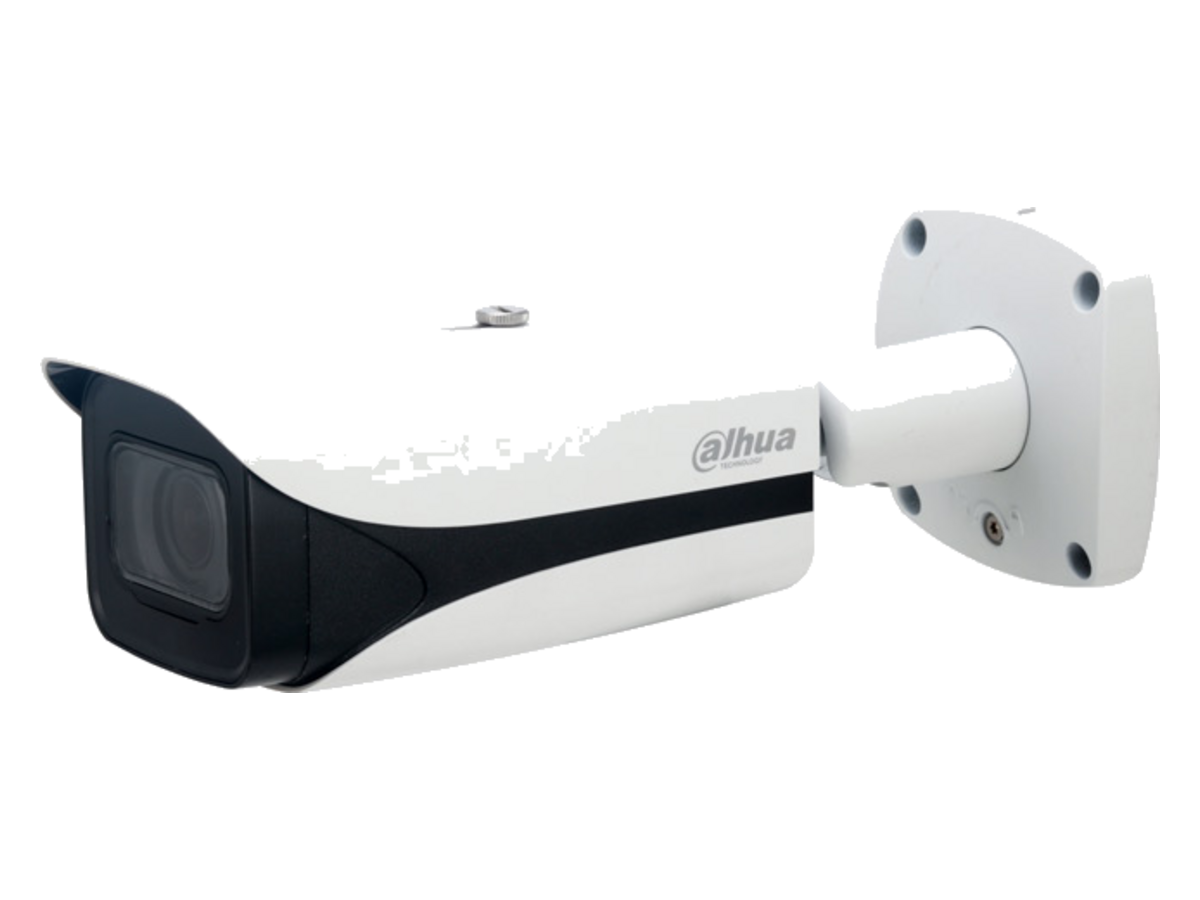

| SDK and API | Yes DH-IPC-HFW5842EP-ZE- 8 MP IR Vari-focal Bullet WizMind 2712-S2 Network Camera, PAL 8MP Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and |
|---|
| Cyber Security | IPC-HFW5842EP-ZE-2712-S2 importing of X.509 certification; HTTPS; trusted boot; Network Camera, PAL trusted execution; trusted upgrade |
|---|
| PFA152-E | Pole mount Bracket IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; PFA121 Junction Box UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP Accessories |
|---|
| PFM321D | 12 VDC1A Power Adapter (Optional) |
|---|
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P PFM900-E Integrated Mount Tester |
|---|
| 用戶管理 | 20 (Total bandwidth: 80 M) TF-P100/256G MicroSD Memory Card |
|---|
| Storage | FTP; SFTP; Micro SD card (Support max. 256 G); NAS IE: IE8 and later |
|---|
| Browser | Chrome Accessories Firefox |
|---|
| Management Software | Smart PSS; DSS; DMSS Optional: |
|---|
| Mobile Client | iOS; Android CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive |
|---|
| Certifications | 2014/30/EU |
|---|
| FCC: 47 CFR FCC Part 15, Subpart B | PFA152-E PFA121 PFM321D UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 Pole Mount Bracket Junction Box 12 VDC 1 A Power Adapter |
|---|
| 音訊輸入 | 1 channel (RCA port) |
|---|
| 音訊輸出 | 1 channel (RCA port) |
|---|
| 警報輸入 | 2 channels in: 5 mA 3V–5 VDC |
|---|
| PFM900-E | TF-P100/256G |
|---|
| 警報輸出 | 1 channels out: 300 mA 12 VDC |
|---|
| Integrated Mount Tester | MicroSD Memory Card |
|---|
| 供電 | 12 VDC (±30%)/PoE (802.3af)/ePoE Basic power consumption: 6.4W (12V DC); 6.9W (PoE) Max. power consumption (H.265 + max. stream + intelligent function + IR LED + focus): 7.1W (12V DC); 7.9W (PoE) |
|---|
| 工作溫度 | –30 °C to +60 °C (–22 °F to +140 °F)/Less than 95% RH |
|---|
| 儲存溫度 | –40 °C to +60 °C (–40 °F to +140 °F) |
|---|

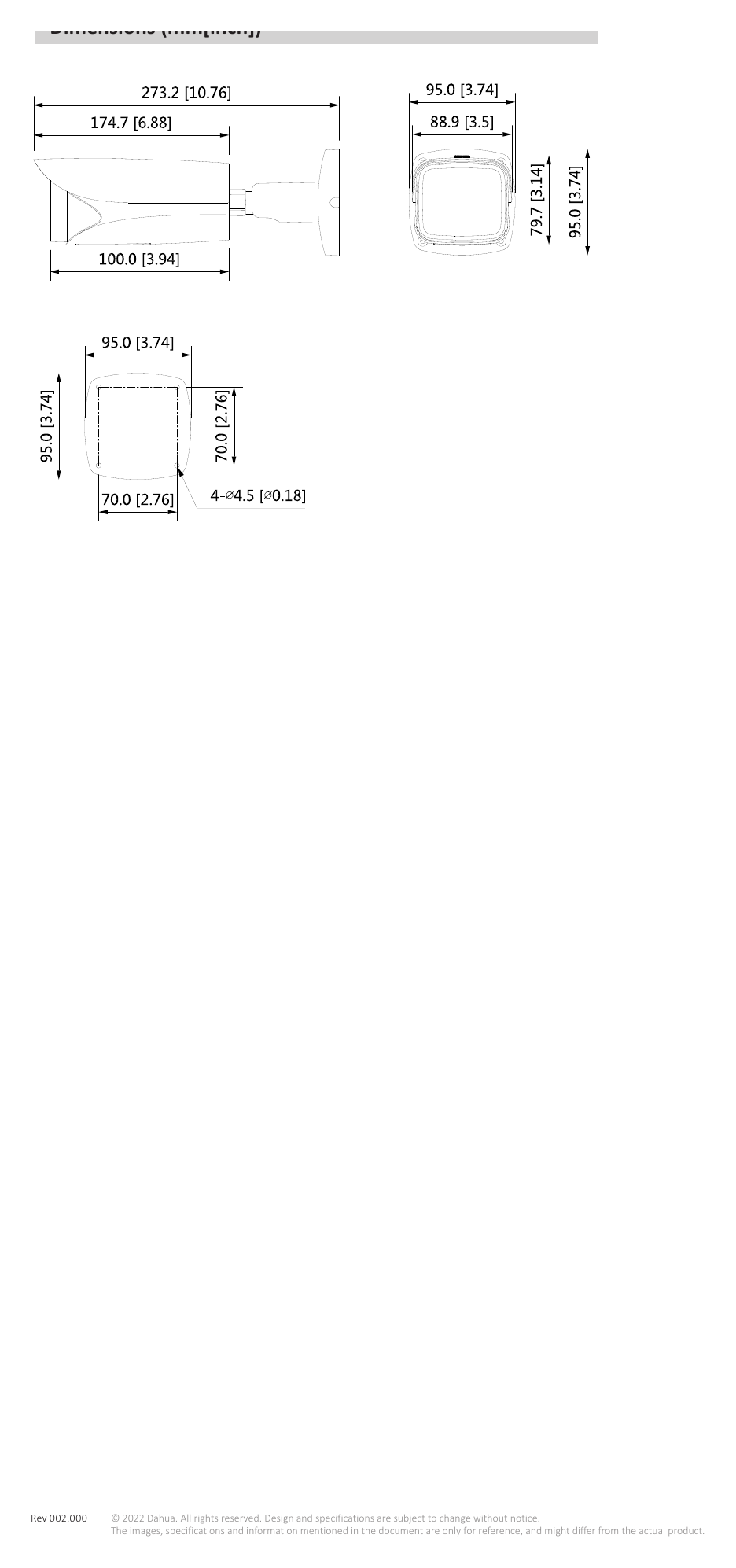

| 防護等級 | IP67, IK10 www.dahuasecurity.com Dimensions (mm[inch]) |
|---|
| Rev 002.000 | © 2022 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
