DAHUA IPC-PFW81642-A180 CCTV攝影機安裝・保養

Name: DAHUA IPC-PFW81642-A180 DH-IPC-PFW81642-A180
Brand: Dahua
SKU: IPC-PFW81642-A180

產品簡介

Dahua IPC-PFW81642-A180 為DH-IPC-PFW81642-A180，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 IPC-PFW81642-A180 香港價格連安裝報價。

Camera：Video Bit Rate H.265: 38 kbps–12544 kbps
影像感測器：1/1.8" CMOS Day/Night Auto(ICR)/Color/B/W
最大解像度：5520 (H) × 2700 (V) BLC Yes
ROM：8 GB
HLC：Yes

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

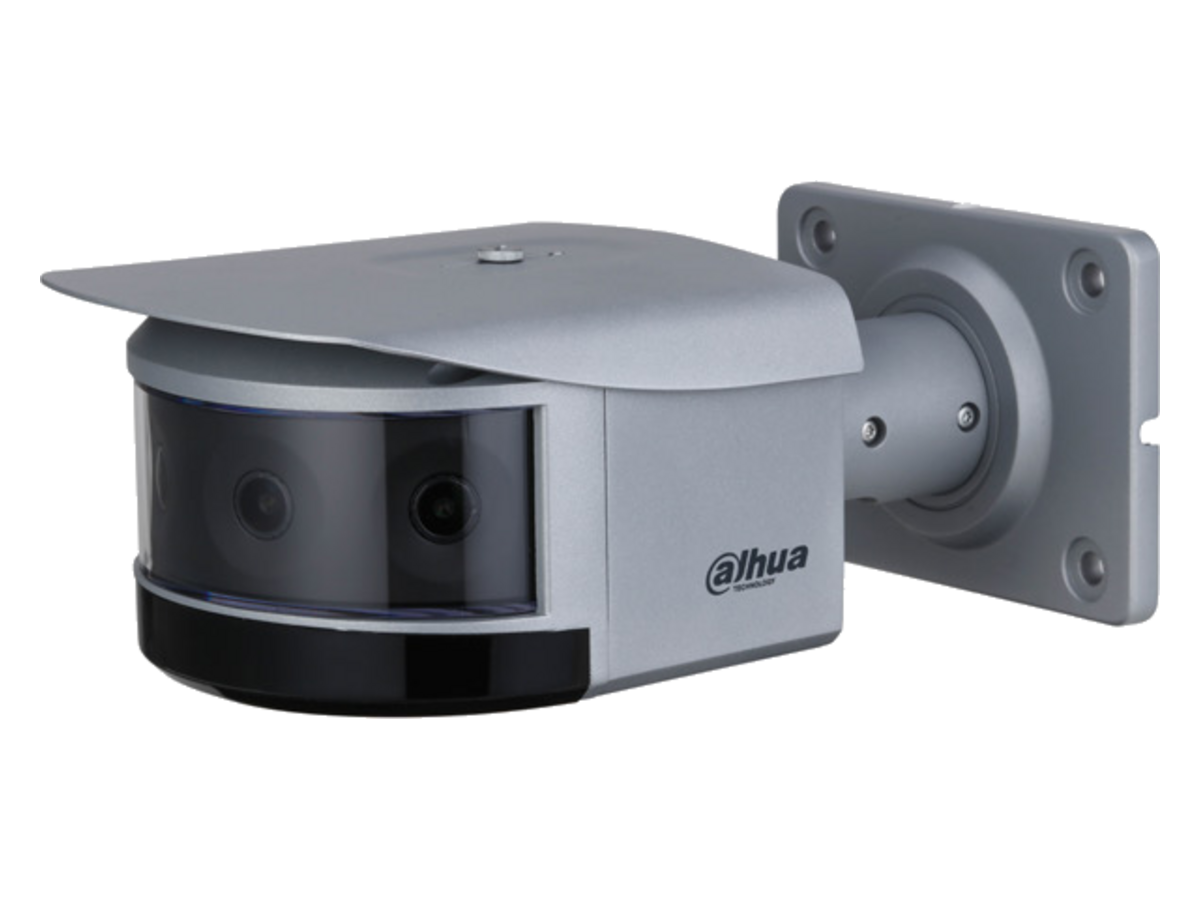

IPC-PFW81642-A180 Dahua DH-IPC-PFW81642-A180 產品圖片

詳細規格

Camera	Video Bit Rate H.265: 38 kbps–12544 kbps
影像感測器	1/1.8" CMOS Day/Night Auto(ICR)/Color/B/W
最大解像度	5520 (H) × 2700 (V) BLC Yes
ROM	8 GB
HLC	Yes
RAM	4 GB
WDR	DWDR
Scanning System	Progressive Auto; natural; street lamp; outdoor; manual; regional White Balance custom
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Gain Control	Auto; Manual 0.001 lux@F1.6 (Color, 30 IRE)
最低照度	0.0001 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) Noise Reduction 3D NR
S/N Ratio	>56 dB Region of Interest (RoI) Yes (4 areas)
Illumination Distance	30 m (98.43 ft) (IR LED) Defog Yes
Illuminator On/Off Control	Auto; Manual Privacy Masking 8 areas
Illuminator Number	8 (IR LED) Audio Tilt: 0°–90°
Pan/Tilt/Rotation Range	Rotation: 0°–360°
音訊壓縮	G.711a; G.711Mu; G.726: G.723; PCM
鏡頭	Alarm
鏡頭類型	Fixed-focal No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; scene changing; audio
鏡頭接口	M16 Alarm Event detection; voltage detection; external alarm; security exception; crowd distribution map; tripwire; intrusion;
焦距	2.8 mm traffic congestion; parking upper limit
Max. Aperture	F1.6
Field of View	H: 180°; V: 100°
Network Port	RJ-45 (10/100/1000 Base-T)
Iris Control	Fixed
SDK and API	Yes
Close Focus Distance	1.3 m (4.27 ft) IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP;
網絡協議	SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP;
Detect	Observe Recognize Identify Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP 58.9 m 23.6 m 11.8 m 5.9 m (193.24 ft) (77.43 ft) (38.71 ft) (19.37 ft) Interoperability ONVIF (Profile S/Profile G/Profile T); CGI
Intelligence	User/Host 20
EPTZ	Yes Storage FTP; SFTP; Micro SD card (support max. 256 GB); NAS
IVS (Perimeter Protection)	Tripwire; Intrusion With plug-in: IE: IE 9 and later Vehicle density; parking upper limit; vehicle congestion Chrome: Chrome 86 and later
警報	Firefox: Firefox 86 and later Browser Without plug-in: Crowd map, global people counting; people counting in Edge
area	Chrome: Chrome 86 and later Firefox: Firefox 86 and later H.265; H.264; H.264H; H.264B; MJPEG (Only supported Management Software Smart PSS; DSS; DMSS by the sub stream) Configuration encryption;trusted execution; Digest;
Smart Codec	Smart H.265+; Smart H.264+ security logs; WSSE; account lockout; syslog; video
Cyber Security	encryption; 802.1x; IP/MAC filtering; HTTPS; trusted
Main Stream: 5520 × 2700@(1-25/30 fps)	upgrade; trusted boot; firmware encryption; generation
Sub Stream: 1280 × 620@(1-25/30 fps)	and importing of X.509 certification Third Stream: 1920 × 940@(1-25/30 fps)
Video Frame Rate	Certification *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected CE-LVD: EN62368-1; to the total encoding capacity. CE-EMC: Electromagnetic Compatibility Directive
Certifications	2014/30/EU;
Stream Capability	3 streams FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 5520 × 2700; 4600 × 2252; 3840 × 1880; 2880 × 1408; 1280 × 620; 1024 × 496; 1920 × 940; 1366 × 668 www.dahuasecurity.com
Port	Accessories
RS-485	1 (baud rate range:1200 bps–115200 bps) Optional:
音訊輸入	1 channel (RCA port)
音訊輸出	1 channel (RCA port)
Analog Output	1 channel (CVBS output:BNC)
警報輸入	2 channels in: 5 mA 3–5 VDC
PFA120-SG	PFA150-SG PFM320D
Junction Box	Pole Mount 12 VDC 2 A
警報輸出	2 channels out: 1,000 mA 30 VDC/500 mA 50 VAC
Bracket	Power Adapter Power
供電	12 VDC/24 VAC/PoE+ (802.3at) Basic: 8.2 W (12 VDC); 9.7 W (24 VAC); 9.7 W (PoE)
功耗	Max. (WDR + IR intensity + intelligence on+ max. stream): 21.5 W (12 VDC); 24.2 W (24 VAC); 24.2 W (PoE)
PFM900-E	TF-P100
Environment	Integrated MicroSD
Mount Tester	Memory Card
工作溫度	–40 °C to +60 °C (–40 °F to +140 °F)
儲存溫度	–40°C to +60°C (–40°F to +140°F)
工作濕度	≤95%
防護等級	IP67; IK10 Structure
Casing Material	Metal + plastic 298.3 mm × 172.5 mm × 120.5 mm (11.74" × 6.79" × Product Dimensions 4.74") (L × W × H)

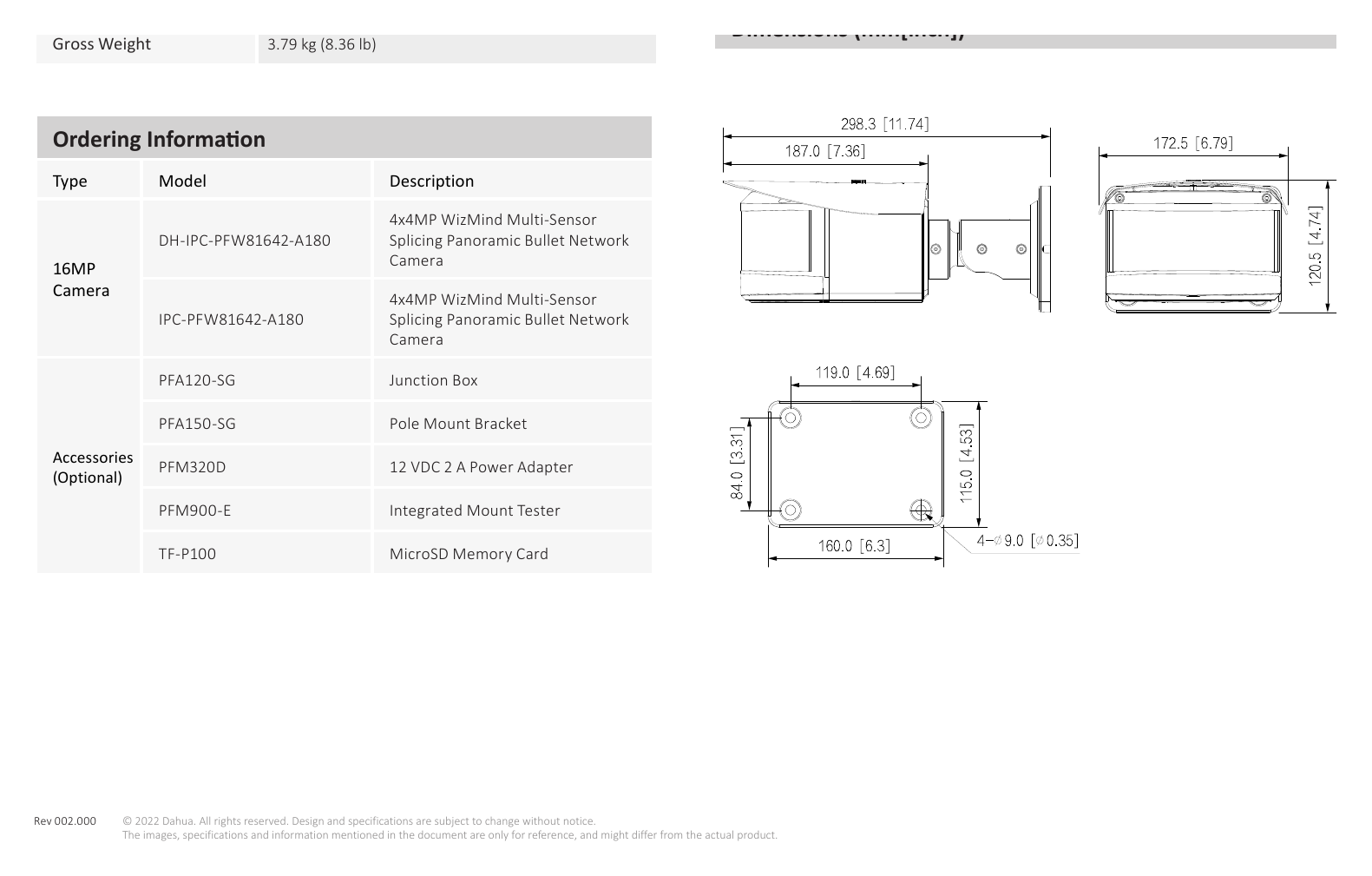

淨重	3.05 kg (6.72 lb) Dimensions (mm[inch])
毛重	3.79 kg (8.36 lb) Ordering Information
類型	Model Description 4x4MP WizMind Multi-Sensor
DH-IPC-PFW81642-A180	Splicing Panoramic Bullet Network 16MP
IPC-PFW81642-A180	Splicing Panoramic Bullet Network
PFA150-SG	Pole Mount Bracket Accessories
PFM320D	12 VDC 2 A Power Adapter (Optional)
TF-P100	MicroSD Memory Card
Rev 002.000	© 2022 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com
