| Camera | Video Frame Rate *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected |
|---|
| 影像感測器 | 1/3" CMOS to the total encoding capacity. |
|---|
| 最大解像度 | 2560 (H) × 1440 (V) Stream Capability 3 streams |
|---|
| ROM | 128 MB 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 1M (1280 × 720); D1 (704 × Resolution |
|---|
| RAM | 512 MB 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
|---|
| Scanning System | Progressive |
|---|
| 碼率控制 | CBR/VBR |
|---|
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s H264: 32 kbps–8192 kbps; Video Bit Rate H265: 32 kbps–8192 kbps 0.005 lux@F1.6 (Color,30 IRE) |
|---|
| 最低照度 | 0.0005 lux@F1.6 (B/W,30 IRE) Day/Night Auto(ICR)/Color/B/W 0 lux (Illuminator on) |
|---|
| BLC | Yes |
|---|
| S/N Ratio | >56 dB |
|---|
| HLC | Yes 10 m (32.81 ft) (IR); Illumination Distance 30 m (98.43 ft) (Floodlight) |
|---|
| WDR | DWDR |
|---|
| Illuminator On/Off Control | Auto; Manual Auto; natural; street lamp; outdoor; manual; regional White Balance 1 (IR LED); 2 (Floodlight, color can be switched between custom Illuminator Number warm and cool) |
|---|
| Gain Control | Auto |
|---|
| Floodlight Brightness | 1500-2400 lm |
|---|
| Noise Reduction | 3D NR |
|---|
| Floodlight Color | 3000K±200K (warm); |
|---|
| Temperature | 6000K±300K (cool) Motion Detection OFF/ON (4 areas, rectangular) |
|---|
| Motion Activation | Region of Interest (RoI) Yes (4 areas) Manual Floodlight Modes |
|---|
| Schedule | Smart Illumination Yes PIR Activation |
|---|
| Image Rotation | 0°/180° Camera: |
|---|
| Pan: –85° to +85° | Mirror Yes Tilt: –90° to +45° |
|---|
| Pan/Tilt/Rotation Range | Rotation: 0° to +360° |
|---|
| Privacy Masking | Yes Floodlight: Tilt: –90° to +90° |
|---|
| Rotation: –145° to +145° | Audio 10 m (the height of the device is 3 m, placed at an angle Built-in MIC Yes PIR Sensor Distance of 30° from the horizontal) |
|---|
| Built-in Speaker | Yes |
|---|
| PIR Detection Range | 270° |
|---|
| 音訊壓縮 | G.711a; G.711Mu; G.726; PCM Alarm |
|---|
| 鏡頭類型 | Fixed-focal No SD card; SD card full; SD card error; network |
|---|
| 鏡頭接口 | M12 disconnection; IP conflict; illegal access; security |
|---|
| Alarm Event | exception; motion detection; video tampering; sence |
|---|
| 焦距 | 2.8 mm changing; SMD (human, animal and vehicle); audio detection; intensity change |
|---|
| Max. Aperture | F1.6 |
|---|
| Field of View | H: 98°; V: 55°; D: 115° |
|---|
| WiFi | IEEE802.11a/b/g/n/ac 2.4–2.4835GHz & 5.18–5.85GHz |
|---|
| Iris Control | Fixed |
|---|
| SDK and API | Yes |
|---|
| Close Focus Distance | 1.0 m (3.28 ft) Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and |
|---|
| Detect | Observe Recognize Identify Cyber Security importing of X.509 certification; HTTPS; trusted boot; |
|---|
| DORI Distance | trusted execution; trusted upgrade 61.2 m 24.5 m 12.2 m 6.1 m (200.79 ft) (80.38 ft) (40.03 ft) (20.01 ft) IPV4; IPV6; ARP&Ping; TCP; UDP; HTTP; RTSP; HTTPS; |
|---|
| Video | Network Protocol DDNS; Email; SNMP; Multicast; Auto Registration; Wireless Qos; Wi-Fi setting; hotspot scanning; 802.1x; |
|---|
| 視頻壓縮 | H.264B; H.264; H.264H; H.265; MJPEG UPnP status; Bonjour; UPnP; device discovery |
|---|
| Smart Codec | Smart H.265+; Smart H.264+ Interoperability ONVIF; CGI; P2P; RTMP www.dahuasecurity.com |
|---|
| 用戶管理 | 6 (Total bandwidth: 36 M) Accessories |
|---|
| Storage | Micro SD card (support max. 256 GB); FTP; SFTP; NAS IE; Optional: |
|---|
| Browser | Chrome; Firefox |
|---|
| Management Software | DMSS |
|---|
| Mobile Client | iOS; Android TF-P100 |
|---|
| Certification | MicroSD Memory Card CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; Certifications CE-RED: Radio Equipment Directive 2014/53/EU; FCC: 47 CFR FCC Part 15, Subpart B; FCC ID: FCC PART 15C Power |
|---|
| 供電 | 100–240 VAC Basic: 5.2 W (100–240 VAC ) Power Consumption Max. (Illuminator+IPC): 48.3 W (100–240 VAC ) |
|---|
| 工作溫度 | –20 °C to +50 °C (–4 °F to +122 °F) |
|---|
| 工作濕度 | ≤ 95% |
|---|
| 儲存溫度 | –20 °C to +50 °C (–4 °F to +122 °F) |
|---|

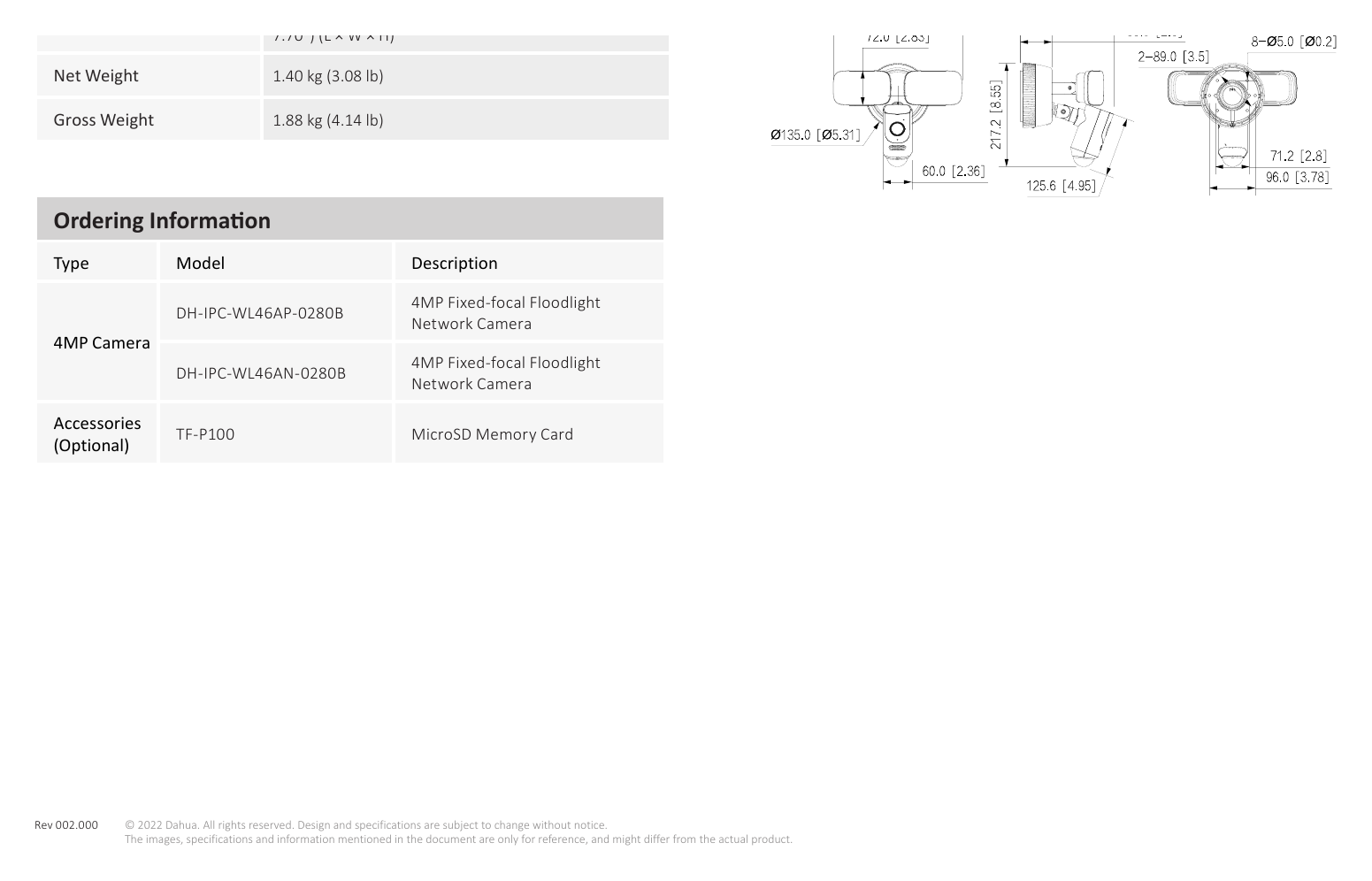

| 防護等級 | IP65 Dimensions (mm[inch]) Structure |
|---|
| Casing | Metal + Plastic 270.7 mm × 217.2 mm × 195.6 mm (10.66" × 8.55" × Product Dimensions 7.70") (L × W × H) |
|---|
| 淨重 | 1.40 kg (3.08 lb) |
|---|
| 毛重 | 1.88 kg (4.14 lb) Ordering Information |
|---|

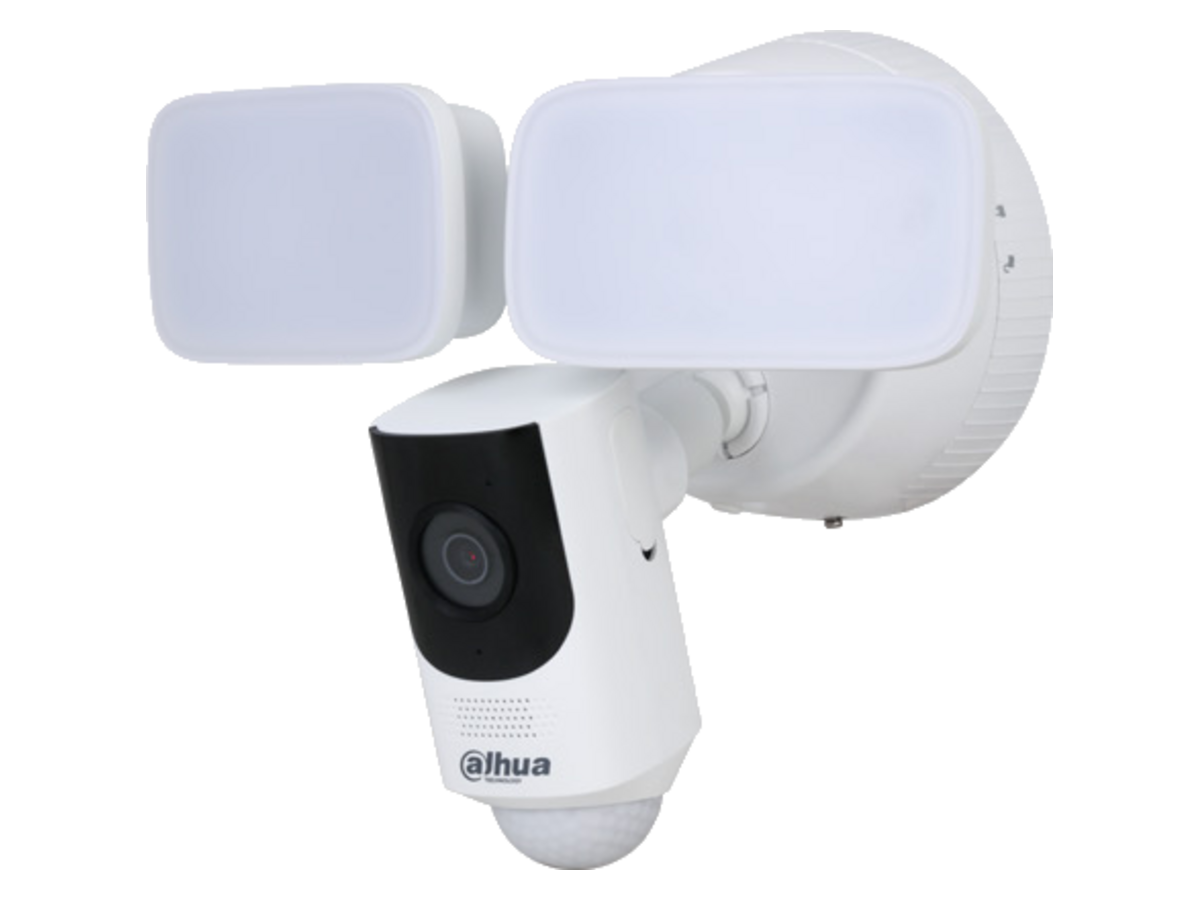

| 類型 | Model Description 4MP Fixed-focal Floodlight DH-IPC-WL46AP-0280B Network Camera 4MP Camera 4MP Fixed-focal Floodlight DH-IPC-WL46AN-0280B Network Camera Accessories |
|---|
| TF-P100 | MicroSD Memory Card (Optional) |
|---|
| Rev 002.000 | © 2022 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
