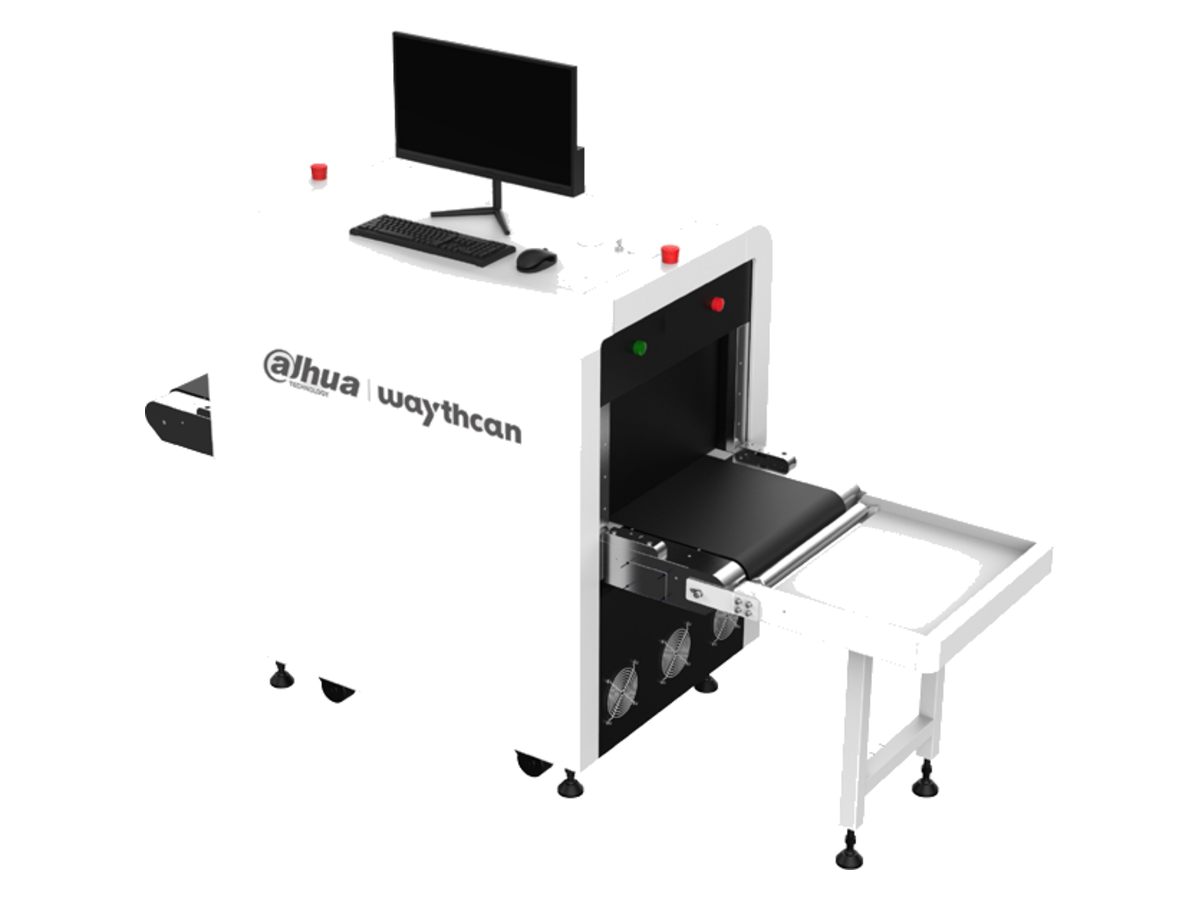

Dahua ISC-M5030AC 為DHI-ISC-M5030AC，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 ISC-M5030AC 香港價格連安裝報價。
| Functions | Scene |
|---|---|
| X-ray Package Image Generation | The machine is used for security screening of handbag, briefcase, www.dahuasecurity.com |
| Technical Specification | Basic |
| System | Graphics Output 1-channel HDMI video output: Up to 1920 (H) × 1080 (V) @60 Hz |
| CPU | Intel quad-core processor |
| Monitor | 1 × 21.5" monitor |
| RAM | 4 GB |
| 音訊輸出 | 1-channel MIC Out (3.5 mm) |
| 操作系統 | Embedded Linux OS Supports up to 6 T SATA disks and configures 1T disk by Built-in Disks default |
| User Interface | Local GUI (full functions); Web interface |
| Ethernet Ports | 1 RJ-45 10 M/100 M/1000 M self-adaptive Ethernet ports Basic |
| Tunnel size | 500 mm × 300 mm HTTP, HTTPS, TCP/IP, UDP, RTSP, IPv4, NTP, DHCP, DNS, Internet Protocols IP Filter |
| X-ray Tube Anode Voltage | 80 kV |
| X-ray Tube Cooling | Sealed oil bath with forced air / 100% Interoperability SDK and more |
| Wire Resolution | Typical: 40AWG, Standard: 38AWG * Ports |
| Penetration(steel) | Typical: 9 mm; Standard: 7 mm * RS 232 Port 1-channel RS-232 port 1-channel port for monitor power supply |
| Detector Channels | 384 Channels Power port 12V1A power output |
| Leakage Dose-rate | ≤ 0.9 μSv/h(μGy/h) 2-channel USB3.0 for controlling the operation keyboard USB Port and mouse |
| Noise Level | ≤ 65 dB |
| Display Port | 2-channel HDMI outputs (same source) |
| Conveyor Speed | 0.2 m/s |
| Alarm Port | 2-channel alarm output; 2-channel alarm input |
| Maximum Belt Load | 80 kg (176.37 lb) |
| Emergency Stop Button | 2 (on the machine body) |
| Conveyor Hight | 670 mm to 760 mm adjustable |
| Power Button | 1 (on the machine top) |
| Current Leakage | ≤ 0.25 mA |
| Key Switch | 1 (on the machine top) |
| Film Safety | ISO 1600 (33 DIN) On the machine: Power indicator: Turns solid green when the machine is |
| Intelligent Analysis | working and flashes during updates and when an error occurs |
| Preview | Real-time display of X-ray package image |
| Indicator light | X-ray indicators: the red light is always on when X-ray is Stores as much as 1 million images with information. turned on, but not when X-ray is turned off |
| Image Storage | Key switch indicator: The green light is always on when Original images can both be viewed. the key is turned to on, but not on when the key is Search, play back, and export baggage images according turned to off Baggage Search to time, and more Regular |
| Report Search | Generate and export reports according to time 220–240 VAC, 50/60 Hz; 100–130 VAC, 50/60 Hz |
| Backup | USB/Network Power Supply (optional) Typical Power |
| Performance | 220 W Consumption Automatically detects system failures and prompts error |
| Self-inspection | Maximum Power |
| codes | 500 W Consumption Enhancement functions include color/black and Detects the temperature of main board and HDD and white, local enhancement, super enhancement, edge Intelligent Temperature automatically adjusts fan speed to make it work stably |
| Image Processing | enhancement, image scanning, inverse, Penetration Control and quietly enhancement, light, dark, high density alert, AI overlay, |
| vertical flip, pseudo color and more | Operating Temperature 0 °C to +45 °C (32 °F to +113 °F) |
| Image playback | Supports playback of 10 images Operating Humidity 0%–95% (RH), non-condensing Zoom in X-ray images up to 64x. Drag the focus position Storage Temperature –20 °C to +70 °C (–4 °F to +158 °F) Image Zooming using a mouse or direction- keys Supports diagnosis of key components such as the Storage Humidity 0%–95% (RH), non-condensing Device Diagnosis detector, motor, IR sensor |
| 尺寸 | 1665 mm × 766 mm × 1237 mm Key function configuration; image display configuration (vertical flip and max zoom times), scan mode |
| Detection Configuration | configuration (double direction, forward scan), baggage Package Size 1805 mm × 1026 mm × 1425 mm counter configuration and person-package linkage configuration www.dahuasecurity.com |
| 淨重 | 300 kg (661.39 lb) Dimensions (mm[inch]) |
| 毛重 | 400 kg (881.85 lb) |
| 安裝方式 | Floor installation Ordering Information |
| 類型 | Model Description Intelligent Security Screening Machine |
| Intelligent Security | 21.5 inch LCD Monitor DHI-ISC-M5030AC Screening Machine Out roller table Simple Special Keyboard, Mouse |
| Optional | DHI-ISC-MXXXX-IR Double direction scan Installation |
| Rev 001.001 | © 2023 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
* 規格以原廠最新 Datasheet 為準。

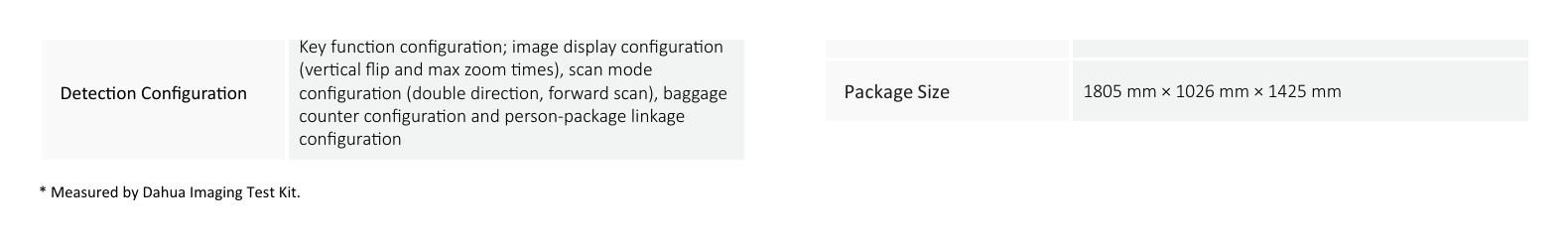

1665 mm × 766 mm × 1237 mm Key function configuration; image display configuration (vertical flip and max zoom times), s
