| System | Ethernet RJ-45 Port (10/100/1000Mbps) |
|---|
| Main Processor | Embedded microprocessor Wireless Network Built-in 3G/4G/Wi-Fi module(optional) |
|---|
| 操作系統 | Embedded LINUX GPS Built-in high accurate GPS module(optional) |
|---|
| Audio and Video | Network Function TCP/IP, UDP, DHCP, FTP, Email, Alarm Server 8 Channel (Don’t support audio in when connecting Max. User Access 128 users Input analog cameras) |
|---|
| Smart Phone | iPhone, iPad, Android |
|---|
| Two-way Talk | 1 Channel Input, 1 Channel Output, RCA |
|---|
| USB | 3 Ports (1 rear), 2 USB 3.0 |
|---|
| 接口 | 1VGA, 2TV (1 aviation connector) 1920×1080, 1280×1024, 1280×720, 1024×768, |
|---|
| RS232 | 2 Ports, for PC Communication and Keyboard Resolution 800×600 |
|---|
| RS485 | 2 Ports, for PTZ Control |
|---|
| Display Split | 1/4/8/9 |
|---|
| CAN | Support |
|---|
| Privacy Masking | 4 rectangular zones (each camera) |
|---|
| Heater | Optional Camera title, Time, Video loss, Camera lock, Motion OSD |
|---|
| detection, Recording | Electrical |
|---|
| Recording | Power Supply DC 6V~36V |
|---|
| Video/Audio Compression | H.264/G.711 Power Consumption <12W (Without HDD) Environmental |
|---|
| 解像度 | 8 ch@1080P realtime recording |
|---|
| Operating Conditions | -30°C (with heater)~ +60°C (+14°F ~ +131°F) |
|---|
| Bit Rate | 48~8192Kb/s |
|---|
| 儲存環境 | -30°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH Manual, Schedule(Regular(Continuous), MD, Alarm), Record Mode |
|---|
| Stop | Construction 1~120 min (default: 60 min), Pre-record: 1~30 sec, Dimensions 180mm×190mm×50mm (7.0" x 8.7" x 2.0") Record Interval Post-record: 10~300 sec |
|---|
| Video Detection and Alarm | Net Weight 2.2kg (4.6 lb) (without HDD) Trigger Events Recording, PTZ, Tour, Alarm, Email, FTP, Buzzer & Certifications Screen tips Motion Detection, MD Zones: 396(22×18), Video |
|---|
| CE | FCC Video Detection Loss & Camera Blank |
|---|

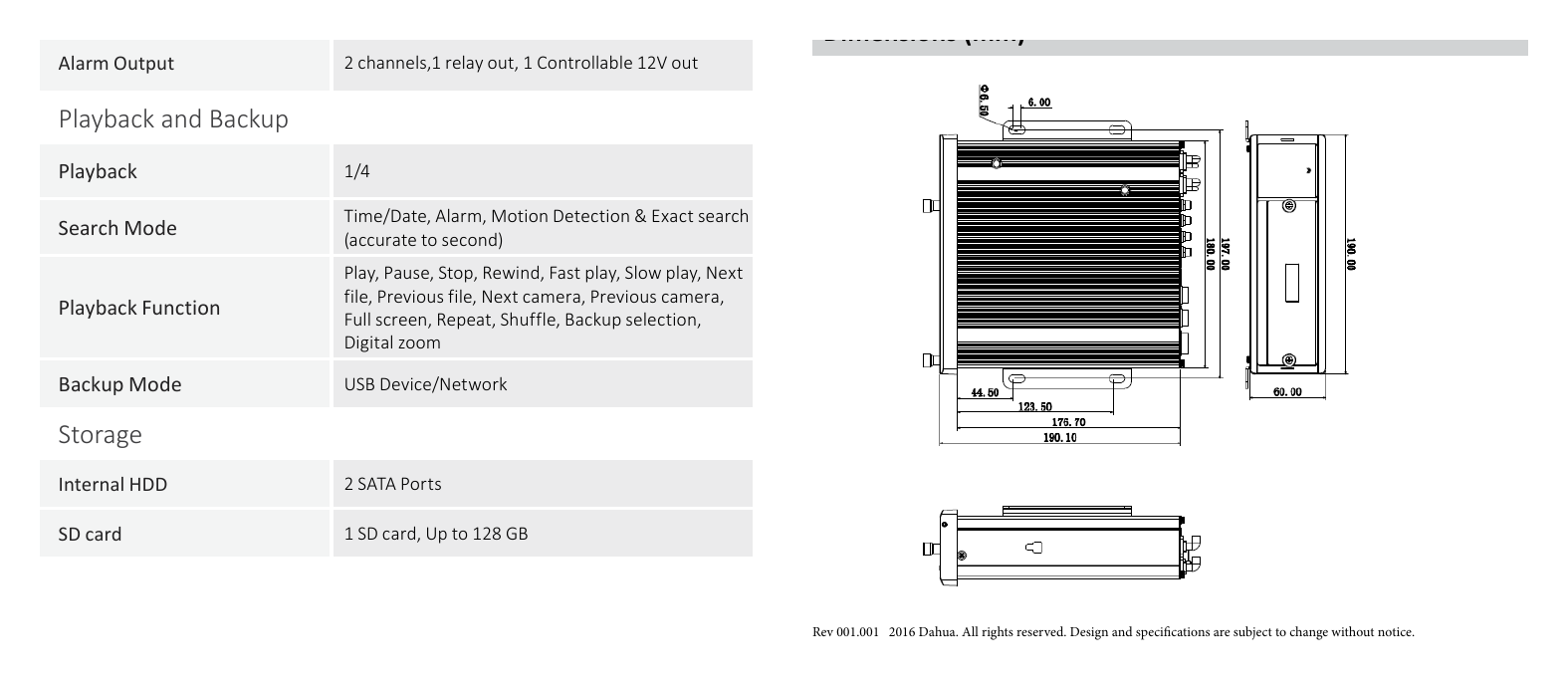

| EN50155 | ISO16750 9 channels, Alarm 1-Alarm 7 is the local alarm input. Alarm input Alarm 8/9 is pulse input. Dimensions (mm) |
|---|
| 警報輸出 | 2 channels,1 relay out, 1 Controllable 12V out Playback and Backup |
|---|
| Playback | 1/4 Time/Date, Alarm, Motion Detection & Exact search |
|---|
| Search Mode | (accurate to second) Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, |
|---|
| Playback Function | Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
|---|
| Backup Mode | USB Device/Network Storage |
|---|
| Internal HDD | 2 SATA Ports |
|---|
| SD card | 1 SD card, Up to 128 GB Rev 001.001 2016 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
