| Hardware | Switch power supply voltage 53V. CAT5E/CAT6. Max. DC resistance < 10 Ω/100 m Port 1-8:8 × RJ45 10/100M(PoE) |
|---|
| Ethernet Port | Cable(m) Load Capacity(W) Bandwidth(Mbps) Port 9:1 × RJ45 10/100/1000M(Uplink) |
|---|
| PoE Budget | Port 1≤ 60W(Hi-PoE), Port2-8 ≤30W, total≤96W IEEE802.3bt 90 W |
|---|
| Power Consumption (static) | 2.7W 100 71.3 100 |
|---|
| Standards Compliance | IEEE802.3, IEEE802.3u, IEEE802.3x 150 62 10 |
|---|
| PoE 標準 | IEEE802.3af, IEEE802.3at, Hi-PoE 200 51 10 |
|---|
| PoE Pin Assignment | PoE/Hi-PoE:1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) 250 40 10 |
|---|
| Long Distance | 250 m, 10 Mbps Hi-PoE 60 W |
|---|
| PoE Management | Support 100 53 100 |
|---|
| 交換容量 | 3.6 GB 150 50 10 |
|---|
| 包轉發率 | 2.678 Mpps 200 47 10 |
|---|
| Packet Buffer Memory | 1 Mbit 250 37 10 |
|---|
| MAC Table Size | 2K IEEE802.3at 30 W |
|---|
| Flow Control | Enable by default 100 25.5 100 |
|---|
| 工作濕度 | 5%–95% 150 25.5 10 |
|---|
| 供電 | External power adpater: 53V DV 200 25.5 10 |
|---|
| Common mode: 4kV | 250 25.5 10 Thunderproof Differential mode: 2kV Note: Data from this table was collected by Dahua test lab and is for reference only . |
|---|
| Air discharge: 8kV | The actual transmission distance may vary due to power consumption of connected ESD |
|---|
| Contact discharge: 6kV | devices or the cable type and status. |
|---|
| Mounting | Support desktop and wall mounting |
|---|
| Anti-theft Lock Hole | Support |
|---|

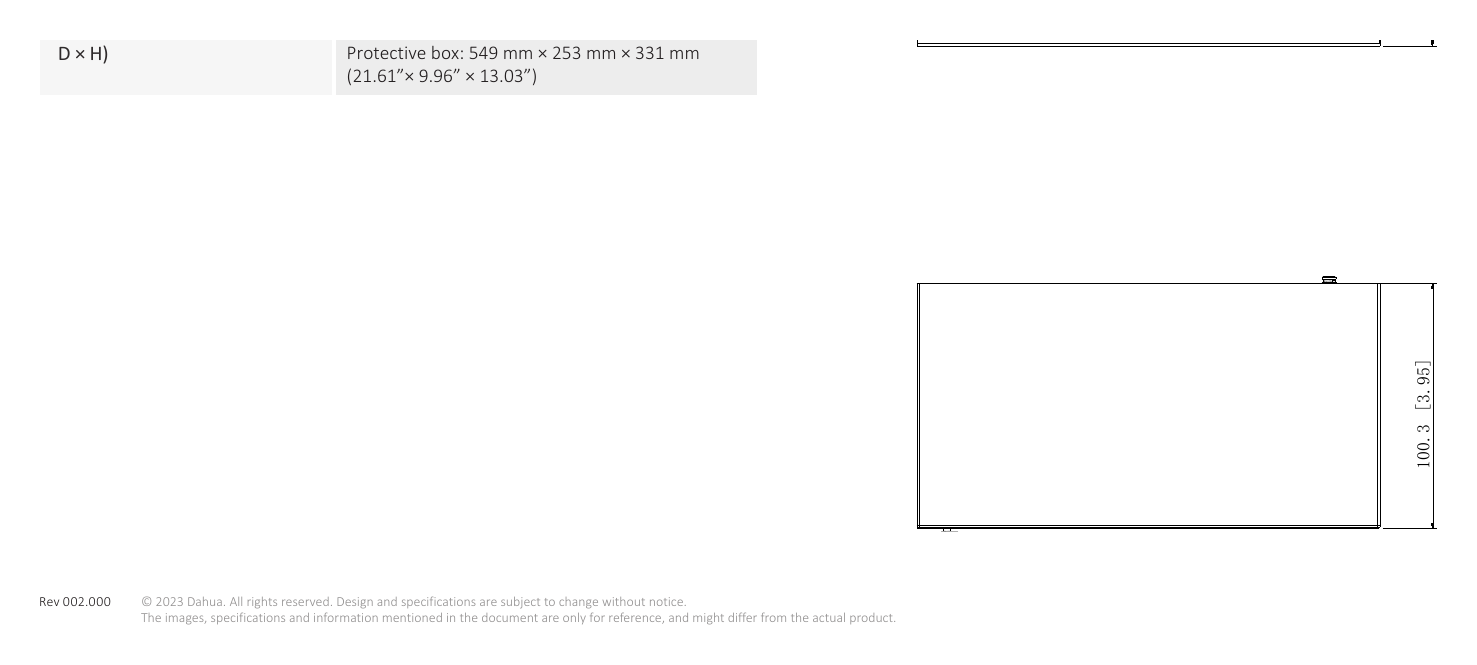

| 工作溫度 | -10°C to 55°C (14°F to 131°F) Dimensions (mm[inch]) Net weight: 0.47 kg (1.04 lb) Box weight (with accessory): 1.28 kg (2.82 lb) Weight 30.0 [1.18] Protective box weight (with accessory): 10.98 kg (24.21 lb) 190.0 [7.48] |
|---|
| Dimensions (W × D × H) | 190 mm × 100 mm × 30 mm (7.48” × 3.94” × 0.9”) Packing box: 267 mm × 239 mm × 77 mm (10.51” × |
|---|
| Packaging Dimensions (W × | 9.41” × 3.03”) |
|---|
| D × H) | Protective box: 549 mm × 253 mm × 331 mm (21.61”× 9.96” × 13.03”) 100.3 [3.95] |
|---|
