DAHUA PFS3211-8GT-120-S0 CCTV攝影機安裝・保養

Name: DAHUA PFS3211-8GT-120-S0 DH-PFS3211-8GT-120
Brand: dahua
SKU: PFS3211-8GT-120-S0

產品簡介

dahua PFS3211-8GT-120-S0 為DH-PFS3211-8GT-120，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 PFS3211-8GT-120-S0 香港價格連安裝報價。

Hardware Feature：Switch power supply voltage 53V. CAT5E/CAT6. Max. DC resista
Ethernet Port：Port 9-10: 2 × SFP 1000 Mbps (uplink) Cable(m) Load Capacity
PoE Power Consumption：Port 1-2≤ 90W, Port 3-8 ≤30W, Total≤120W 100 71.3 1000 Idlin
Full load: 120 W：150 62 10 IEEE802.3/IEEE802.3u/IEEE802.3X/IEEE 802.3az/IEEE
標準：200 51 10 802.3ab

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

PFS3211-8GT-120-S0 dahua DH-PFS3211-8GT-120 產品圖片

詳細規格

Hardware Feature	Switch power supply voltage 53V. CAT5E/CAT6. Max. DC resistance < 10 Ω/100 m Port 1-8: 8 × RJ-45 10/100/1000 Mbps (PoE)
Ethernet Port	Port 9-10: 2 × SFP 1000 Mbps (uplink) Cable(m) Load Capacity(W) Bandwidth(Mbps) Port 11: 1 × RJ-45 10/100/1000 Mbps (uplink) IEEE802.3bt 90 W
PoE Power Consumption	Port 1-2≤ 90W, Port 3-8 ≤30W, Total≤120W 100 71.3 1000 Idling: 5 W Power Consumption
Full load: 120 W	150 62 10 IEEE802.3/IEEE802.3u/IEEE802.3X/IEEE 802.3az/IEEE
標準	200 51 10 802.3ab
PoE	250 40 10
PoE Protocol	IEEE 802.3af/ IEEE 802.3at/ Hi-PoE/IEEE 802.3bt Hi-PoE 60 W
Power Supply Pin	1,2,4,5 (V+),3,6,7,8 (V-) 100 53 1000
Long Distance	250 m long distance PoE transmission 150 50 10
PoE Power Management	Yes 200 47 10
PoE Watchdog	Yes 250 37 10
Performance	IEEE802.3at 30 W
交換容量	33 Gbps 100 25.5 1000
包轉發率	16.37 Mpps 150 25.5 10
Packet Buffer Memory	1.75 Mbit 200 25.5 10
Flow Control	Enable by default 250 25.5 10
工作溫度	–30 °C to +65 °C (-22°F to +149°F) Note: Data from this table was collected by Dahua test lab and is for reference only . The actual transmission distance may vary due to power consumption of connected devices or the cable type and status.
Application Humidity	5%~95% (RH)
Power Input	48 V - 57 V DC Installation Common mode 4 kV
Lighting Protection	步骤2 Differential mode 2 kV，步骤1 Air discharge 8 kV ESD Protection Contact discharge 6 kV
Wall-mount Installation	Yes
Anti-theft Lock Hole	Yes
重量	0.67 kg (1.48 lb)

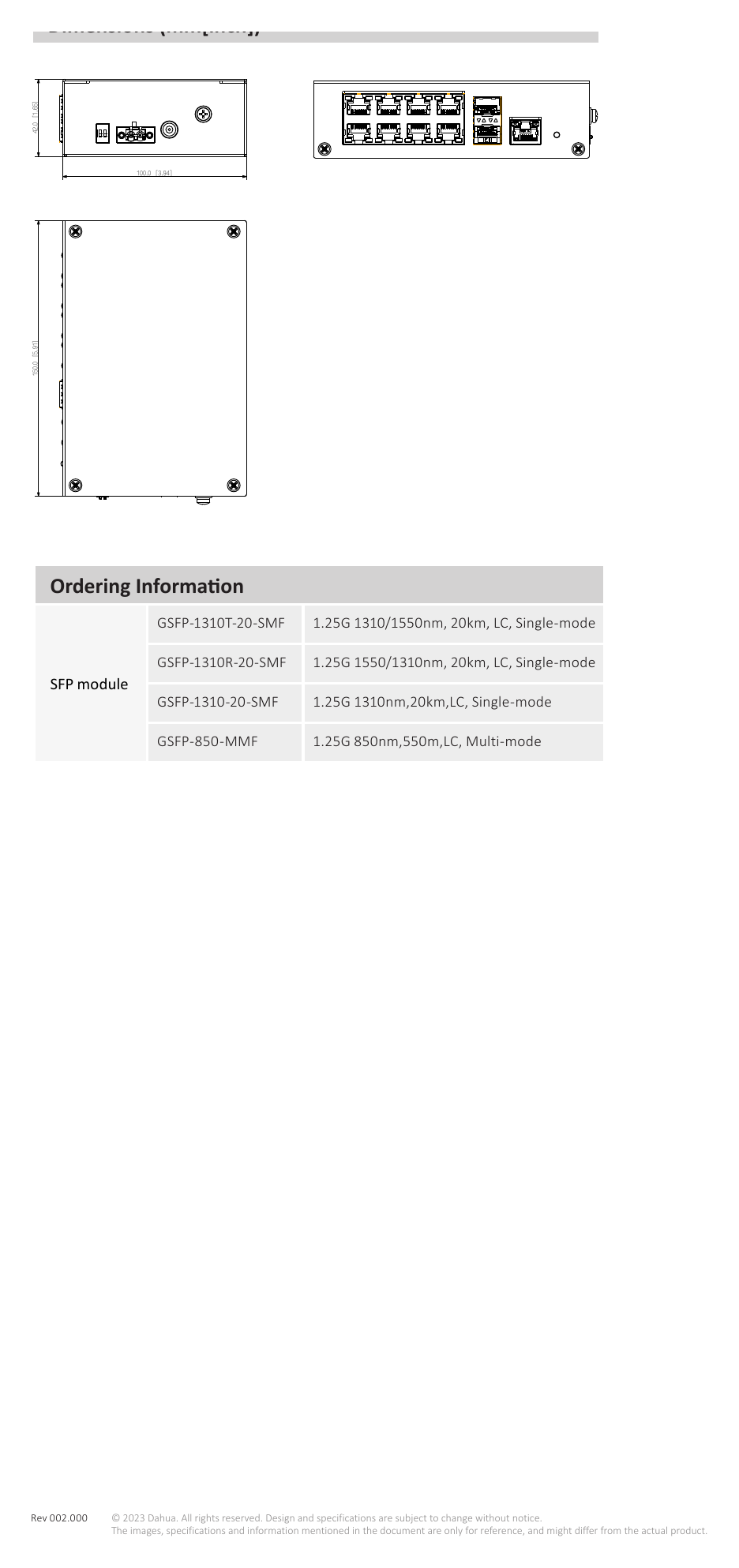

尺寸	150mm × 110mm × 42mm (5.91" × 4.33" × 1.65") www.dahuasecurity.com Dimensions (mm[inch]) 100.0 [3.94] Ordering Information
GSFP-1310T-20-SMF	1.25G 1310/1550nm, 20km, LC, Single-mode
GSFP-1310R-20-SMF	1.25G 1550/1310nm, 20km, LC, Single-mode SFP module
GSFP-1310-20-SMF	1.25G 1310nm,20km,LC, Single-mode
GSFP-850-MMF	1.25G 850nm,550m,LC, Multi-mode
Rev 002.000	© 2023 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com
