| Performance | PoE Standard IEEE802.3af, IEEE802.3at, Hi-PoE |
|---|
| Layer | Layer 2 |
|---|
| PoE Budget | Port 1-2≤60W, Port 3-24≤30W, total≤240W |
|---|
| Managed | No PoE Pin Assignment PoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
|---|
| 交換容量 | 8.8 Gbps Long Distance PoE Yes Transmission |
|---|
| 包轉發率 | 6.5472 Mpps |
|---|
| Packet Buffer Memory | 4 Mbit |
|---|
| VLAN | Port Isolation |
|---|
| MAC Table Size | 8K |
|---|
| QoS | Yes IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, Standards Compliance |
|---|
| IEEE802.3z | System Maintenance PD Alive |
|---|
| Hardware Feature | General |
|---|
| Standard Power Supply | Yes Air discharge: 8kV ESD Contact discharge: 6kV |
|---|
| PoE | Yes Common mode: 4kV Thunderproof Differential mode: 2kV |
|---|
| Ethernet Port | 24 |
|---|
| 尺寸 | 440 mm × 300 mm × 44 mm (17.32" × 11.81" × 1.73") |
|---|
| Optical Port | 2 |
|---|
| Packaging Dimensions | 527 mm × 412 mm × 110 mm (20.75" × 16.22" × 4.33") |
|---|

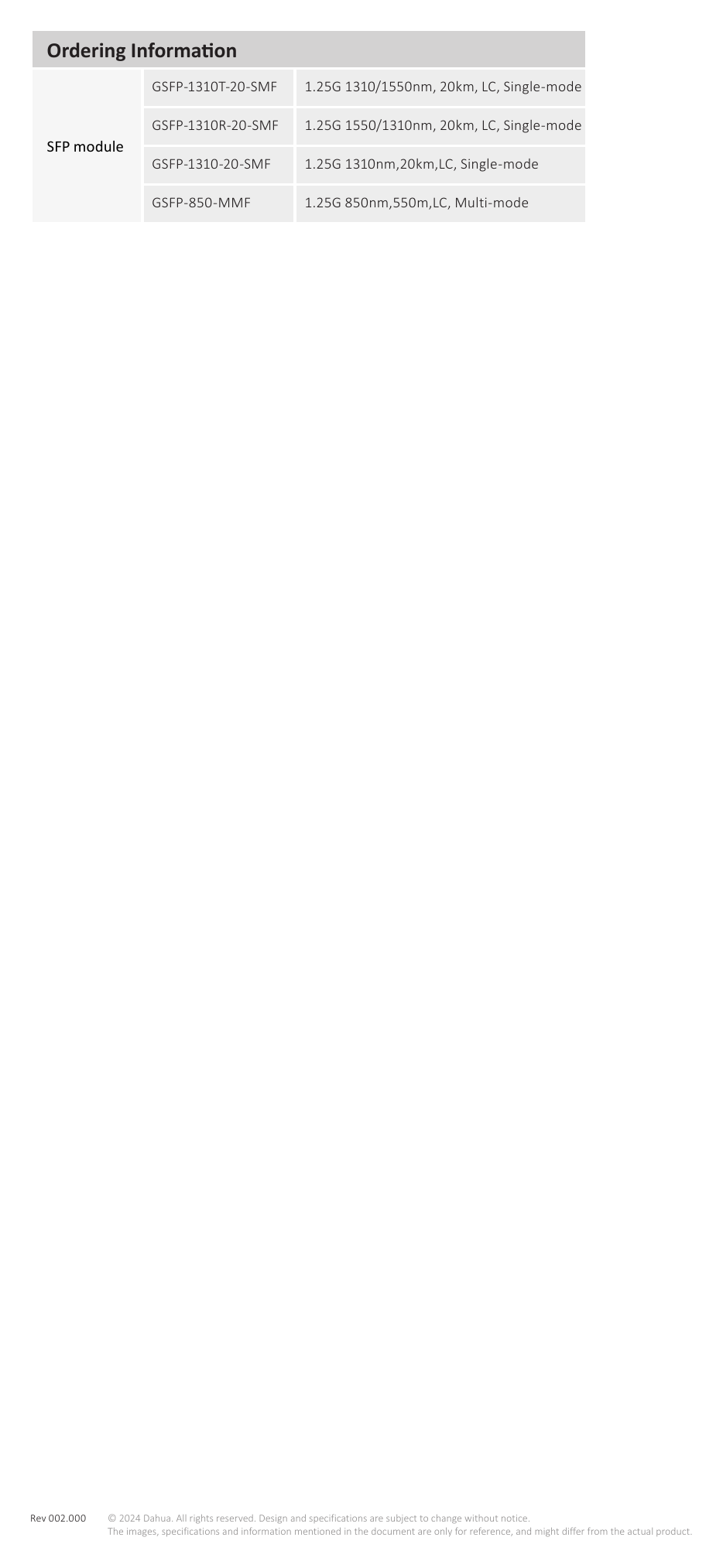

| Ethernet Port Rate | 100 Mbps www.dahuasecurity.com Ordering Information |
|---|
| GSFP-1310T-20-SMF | 1.25G 1310/1550nm, 20km, LC, Single-mode |
|---|
| GSFP-1310R-20-SMF | 1.25G 1550/1310nm, 20km, LC, Single-mode SFP module |
|---|
| GSFP-1310-20-SMF | 1.25G 1310nm,20km,LC, Single-mode |
|---|
| GSFP-850-MMF | 1.25G 850nm,550m,LC, Multi-mode |
|---|
| Rev 002.000 | © 2024 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
