| PoE 標準 | IEEE802.3af, IEEE802.3at, Hi-PoE, IEEE802.3bt |
|---|
| Layer | Layer 2 PoE Budget Port 1–2≤90W, Port 3–24≤30W, total≤360W |
|---|
| Managed | No PoE Pin Assignment PoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
|---|
| 交換容量 | 52 Gbps General Air discharge: 8kV |
|---|
| 包轉發率 | 38.688 Mpps ESD Contact discharge: 6kV |
|---|
| Packet Buffer Memory | 4 Mbit Common mode: 4kV Thunderproof Differential mode: 2kV |
|---|
| MAC Table Size | 8K |
|---|
| 尺寸 | 440 mm × 300 mm × 44 mm (17.32" × 11.81" × 1.73") IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, Standards Compliance |
|---|
| IEEE802.3z | Packaging Dimensions 527 mm × 412 mm × 110 mm (20.75" × 16.22" × 4.33") Hardware Feature |
|---|
| Standard Power Supply | Yes |
|---|
| PoE | Yes |
|---|
| Ethernet Port | 24 |
|---|

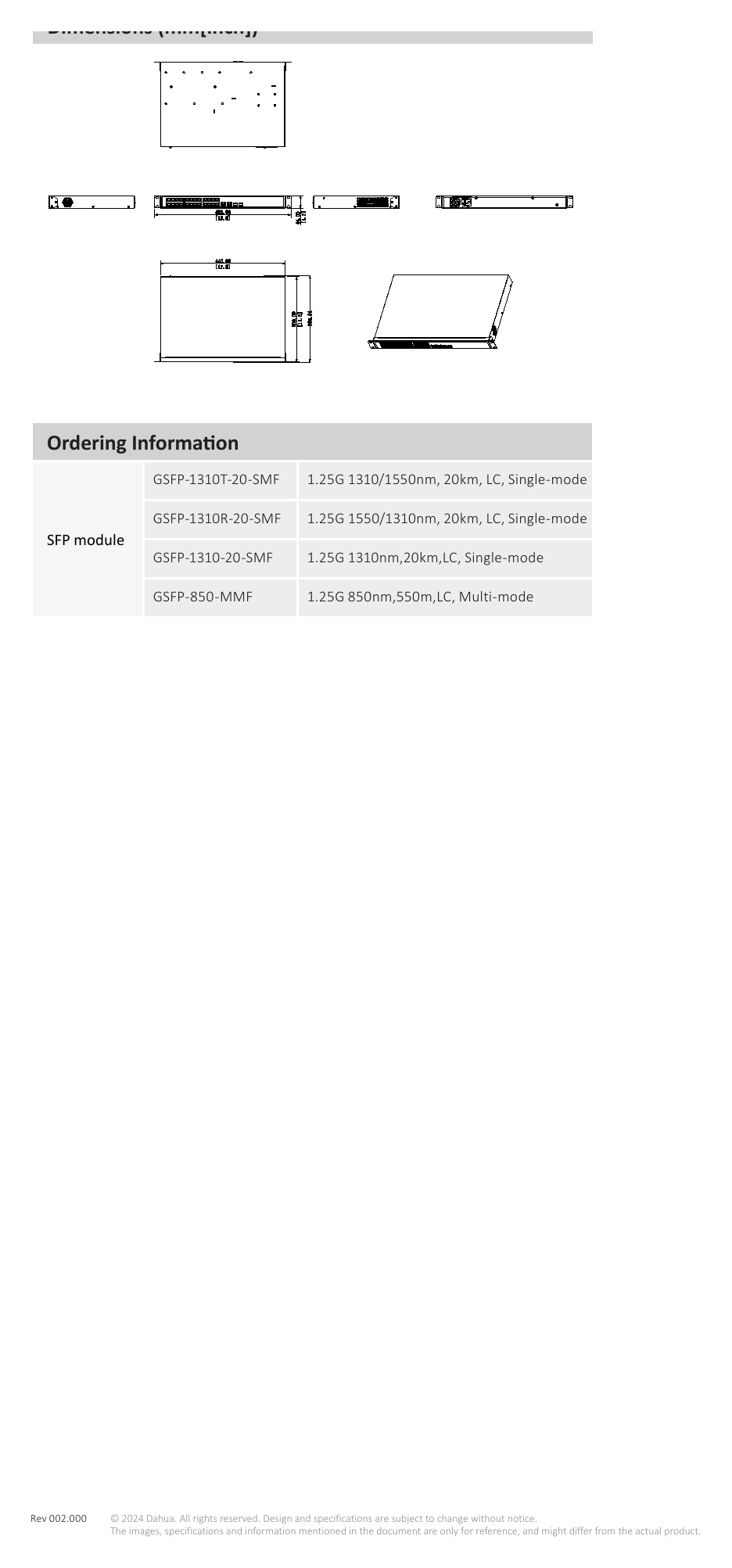

| Optical Port | 2 www.dahuasecurity.com Dimensions (mm[inch]) Ordering Information |
|---|
| GSFP-1310T-20-SMF | 1.25G 1310/1550nm, 20km, LC, Single-mode |
|---|
| GSFP-1310R-20-SMF | 1.25G 1550/1310nm, 20km, LC, Single-mode SFP module |
|---|
| GSFP-1310-20-SMF | 1.25G 1310nm,20km,LC, Single-mode |
|---|
| GSFP-850-MMF | 1.25G 850nm,550m,LC, Multi-mode |
|---|
| Rev 002.000 | © 2024 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com |
|---|
