| Starlight Technology | The camera allows for 6KV lightning rating,which provides effective |
|---|
| environments. | Forum) specifications, ensuring interoperability between network video products regardless of manufacturer. www.dahuasecurity.com |
|---|
| Technical Specification | IVS Tripwire, Intrusion,Abandoned/Missing |
|---|
| Camera | Advanced Intelligent Functions Face Detection |
|---|
| 影像感測器 | 1/2.8” STARVISTM CMOS Video |
|---|
| Effective Pixels | 1920(H) x 1080(V), 2 Megapixels Compression H.265+/H.265/H.264+/H.264 |
|---|
| RAM/ROM | 512M/128M Streaming Capability 3 Streams |
|---|
| Electronic Shutter Speed | 1/1s~1/30,000s 1080P(1920×1080)/720P(1280×720)/ Resolution D1(704×576/704×480)/CIF(352×288/352×240) |
|---|
| Scanning System | Progressive Main stream: 1080P/720P(1 ~ 25/30fps) |
|---|
| Minimum Illumination | Color: 0.005Lux@F1.8; B/W: 0.0005Lux@F1.8 Frame Rate Sub stream1: D1/CIF(1 ~ 25/30fps) |
|---|
| S/N Ratio | More than 50dB Sub stream2: 720P/D1/CIF(1 ~ 25/30fps) |
|---|
| IR Distance | N/A Bit Rate Control CBR/VBR |
|---|
| IR On/Off Control | N/A Bit Rate H.265/H.264: 448K ~ 8192Kbps |
|---|
| IR LEDs | N/A Day/Night Auto(ICR) / Color / B/W |
|---|
| 鏡頭 | Backlight Compensation BLC / HLC / WDR (120dB) |
|---|
| 焦距 | 2.7mm~8.1mm White Balance Auto, ATW, Indoor, Outdoor, Manual |
|---|
| Max. Aperture | F1.8 Gain Control Auto / Manual |
|---|
| Angle of View | H: 105.6° ~ 35.2° Noise Reduction Ultra DNR (2D/3D) |
|---|
| Optical Zoom | 3x Motion Detection Support |
|---|
| Focus Control | Auto/Manual Region of Interest Support Electronic Image Stabilization |
|---|
| Close Focus Distance | 100mm~ 1000mm N/A (EIS) |
|---|
| DORI Distance | Defog Support *Note: The DORI distance is a “general proximity” of distance which makes it easy to |
|---|
| Digital Zoom | 16x pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. Flip 180° |
|---|
| Detect | Observe Recognize Identify Privacy Masking Up to 24 areas 100.4m(329.4) 40.2m(131.9ft) 20.1m(65.9ft) 10m(32.8ft) Audio |
|---|
| PTZ | Compression G.711a/G.711mu/G.726/AAC |
|---|
| Pan/Tilt Range | Pan: 0° ~ 355°; Tilt: 5° ~ 90° Network |
|---|
| Manual Control Speed | Pan: 0.1° ~70° /s; Tilt: 0.1° ~30° /s Ethernet RJ-45 (10XBase-T/100Base-TX) IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, |
|---|
| Preset Speed | Pan: 80° /s; Tilt: 40° /s |
|---|
| Protocol | ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x |
|---|
| 預置位 | 300 |
|---|
| Interoperability | ONVIF Profile S&G, API |
|---|
| PTZ Mode | 8 Tour, Auto Pan |
|---|
| Streaming Method | Unicast / Multicast |
|---|
| Speed Setup | Human-oriented focal Length/ speed adaptation |
|---|
| Max. User Access | 20 users Auto restore to previous PTZ and lens status after Power up Action |
|---|
| power failure | NAS (Network Attached Storage),Local PC for Edge Storage instant recording, Micro SD card 256GB Activate Preset/Tour if there is no command in the Idle Motion |
|---|
| specified period | Web Viewer IE, Chrome, Firefox, Safari |
|---|
| Intelligence | Smart Phone IOS, Android Motion detection, Video tampering, Network Certifications |
|---|
| Event Trigger | disconnection, IP address conflict, Illegal access, |
|---|
| Storage anomaly | CE: EN55032/EN55024/EN50130-4 |
|---|
| Certifications | FCC: Part15 subpartB,ANSI C63.4- 2014 |
|---|
| Auto Tracking | N/A UL: UL60950-1+CAN/CSA C22.2,No.60950-1 www.dahuasecurity.com |
|---|
| 接口 | Accessories |
|---|
| Video Interface | N/A Optional： |
|---|
| RS485 | N/A |
|---|
| Audio I/O | Mic in/Line in, Line out |
|---|
| Alarm I/O | N/A |
|---|
| Electrical | PFA107 PFB305W PFB220C |
|---|
| Mount Adapter | Wall Mount Ceiling Mount |
|---|
| 供電 | DC 12V/1.5A, PoE(802.3af) |
|---|
| 功耗 | 6W Environmental |
|---|
| Operating Conditions | -30°C ~ 60°C (-22°F ~ +140°F) / Less than 95% RH |
|---|
| 防護等級 | IP66 DC12V/2A Power Adapter |
|---|
| Vandal Resistance | IK08 Construction |
|---|
| Wall Mount | Ceiling Mount |
|---|
| PFB305W+PFA107 | PFB220C+PFA107 |
|---|
| Casing | Metal |
|---|

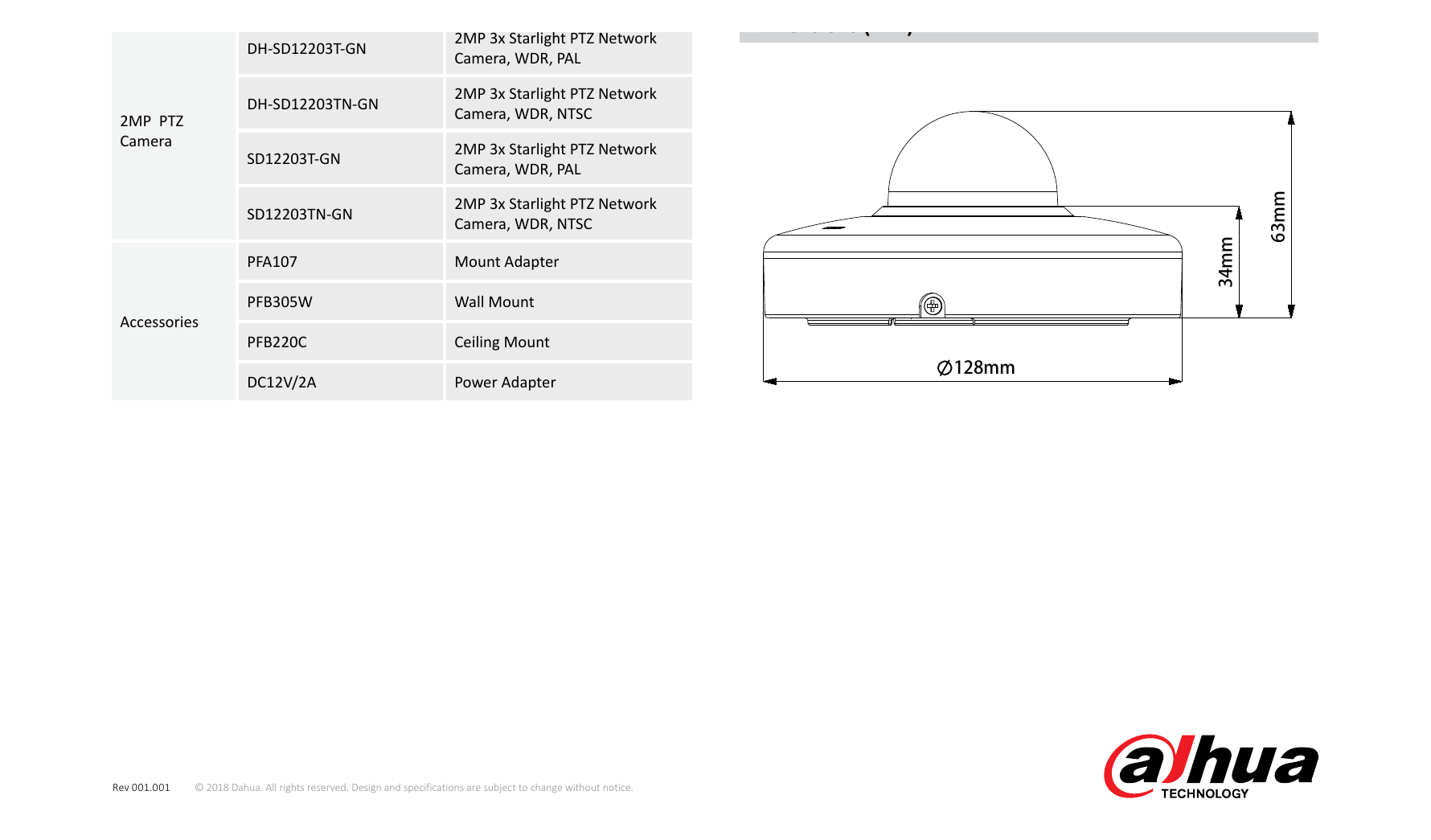

| 尺寸 | Φ128 (mm) x 63 (mm) |
|---|
| 淨重 | 0.485kg(1.07lb) |
|---|
| 毛重 | 0.7kg(1.54lb) Ordering Information |
|---|
| 類型 | Part Number Description Dimensions (mm) 2MP 3x Starlight PTZ Network DH-SD12203T-GN Camera, WDR, PAL 2MP 3x Starlight PTZ Network DH-SD12203TN-GN 2MP PTZ Camera, WDR, NTSC |
|---|
| PFA107 | Mount Adapter |
|---|
| PFB305W | Wall Mount Accessories |
|---|
| PFB220C | Ceiling Mount 128mm |
|---|
| DC12V/2A | Power Adapter |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
