| Starlight Technology | The camera allows for 6KV lightning rating,which provides effective |
|---|
| environments. | Forum) specifications, ensuring interoperability between network video products regardless of manufacturer. www.dahuasecurity.com |
|---|
| Technical Specification | IVS Tripwire, Intrusion,Abandoned/Missing |
|---|
| Camera | Advanced Intelligent Functions Face Detection |
|---|
| 影像感測器 | 1/2.8” STARVIS™ CMOS Video |
|---|
| Effective Pixels | 1920(H) x 1080(V), 2 Megapixels Compression H.265+/H.265/H.264+/H.264 |
|---|
| RAM/ROM | 512M/128M Streaming Capability 3 Streams |
|---|
| Scanning System | Progressive 1080P(1920×1080)/720P(1280×720)/ Resolution D1(704×576/704×480)/CIF(352×288/352×240) |
|---|
| Electronic Shutter Speed | 1/1s~1/30,000s Main stream: 1080P/720P(1 ~ 25/30fps) Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6; |
|---|
| Minimum Illumination | Frame Rate Sub stream1: D1/CIF(1 ~ 25/30fps) 0Lux@F1.6 (IR on) |
|---|
| S/N Ratio | More than 50dB Sub stream2: 720P/D1/CIF(1 ~ 25/30fps) |
|---|
| IR Distance | Distance up to 15m (49.2ft) |
|---|
| 碼率控制 | CBR/VBR |
|---|
| IR On/Off Control | Auto/Manual |
|---|
| Bit Rate | H.265/H.264: 448K ~ 8192Kbps |
|---|
| IR LEDs | 3 |
|---|
| Day/Night | Auto(ICR) / Color / B/W |
|---|
| Backlight Compensation | BLC / HLC / WDR(120dB) |
|---|
| 鏡頭類型 | Fixed |
|---|
| White Balance | Auto, ATW, Indoor, Outdoor, Manual |
|---|
| 焦距 | 3.6mm/2.8mm |
|---|
| Gain Control | Auto / Manual |
|---|
| Max. Aperture | F1.6 |
|---|
| Noise Reduction | Ultra DNR (2D/3D) 3.6mm: H: 80.9°; V: 40.8° Angle of View 2.8mm: H: 102.9°; V: 54.9° Motion Detection Support |
|---|
| Optical Zoom | N/A |
|---|
| Region of Interest | Support |
|---|
| Focus Control | Fixed Electronic Image Stabilization N/A (EIS) DORI Distance |
|---|
| 除霧 | Support *Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on Digital Zoom 16x sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. |
|---|
| Flip | 180° |
|---|
| 鏡頭 | Detect Observe Recognize Identify |
|---|
| Privacy Masking | Up to 24 areas 3.6mm 54.5m(178.8ft) 21.8m(71.5ft) 10.9m(35.8ft) 5.4m(17.7ft) 2.8mm 41.4m(135.8ft) 16.6m(54.5ft) 8.3m(27.2ft) 4.1m(13.5ft) |
|---|
| Compression | G.711a/G.711mu/G.726/AAC |
|---|
| Pan/Tilt Range | Pan: 0° ~ 355°; Tilt: 20° ~ 90° |
|---|
| Ethernet | RJ-45 (10XBase-T/100Base-TX) |
|---|
| Manual Control Speed | Pan: 0.1° ~70° /s; Tilt: 0.1° ~30° /s IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, |
|---|
| Protocol | ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, |
|---|
| Preset Speed | Pan: 80° /s; Tilt: 40° /s DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x |
|---|
| 預置位 | 300 Interoperability ONVIF Profile S&G, API |
|---|
| PTZ Mode | 8 Tour Streaming Method Unicast / Multicast |
|---|
| Speed Setup | Human-oriented focal Length/speed adaptation Max. User Access 20 users Auto restore to previous PTZ and lens status after NAS (Network Attached Storage),Local PC for |
|---|
| Power up Action | Edge Storage |
|---|
| power failure | instant recording, Micro SD card 256GB Activate Preset/Tour if there is no command in the |
|---|
| Idle Motion | Web Viewer IE, Chrome, Firefox, Safari specified period |
|---|
| Intelligence | Smart Phone IOS, Android Motion detection, Video tampering, Network Certifications |
|---|
| Event Trigger | disconnection, IP address conflict, Illegal access, |
|---|
| Storage anomaly | CE: EN55032/EN55024/EN50130-4 |
|---|
| Certifications | FCC: Part15 subpartB,ANSI C63.4- 2014 |
|---|
| Auto Tracking | N/A UL: UL60950-1+CAN/CSA C22.2,No.60950-1 www.dahuasecurity.com |
|---|
| 接口 | Accessories |
|---|
| Video Interface | N/A Optional： |
|---|
| RS485 | N/A |
|---|
| Audio I/O | Mic in/Line in, Line out |
|---|
| Alarm I/O | N/A |
|---|
| Electrical | PFA107 PFB305W PFB220C |
|---|
| Mount Adapter | Wall Mount Ceiling Mount |
|---|
| 供電 | DC 12V/1.5A, PoE(802.3af) |
|---|
| 功耗 | 7.8W, 10.5W (IR on) Environmental |
|---|
| Operating Conditions | -30°C ~ 60°C (-22°F ~ +140°F) / Less than 95% RH |
|---|
| 防護等級 | IP66 DC12V/2A |
|---|
| Vandal Resistance | IK08 Power Adapter |
|---|
| Construction | Wall Mount Ceiling Mount |
|---|
| PFB305W+PFA107 | PFB220C+PFA107 |
|---|
| Casing | Metal |
|---|

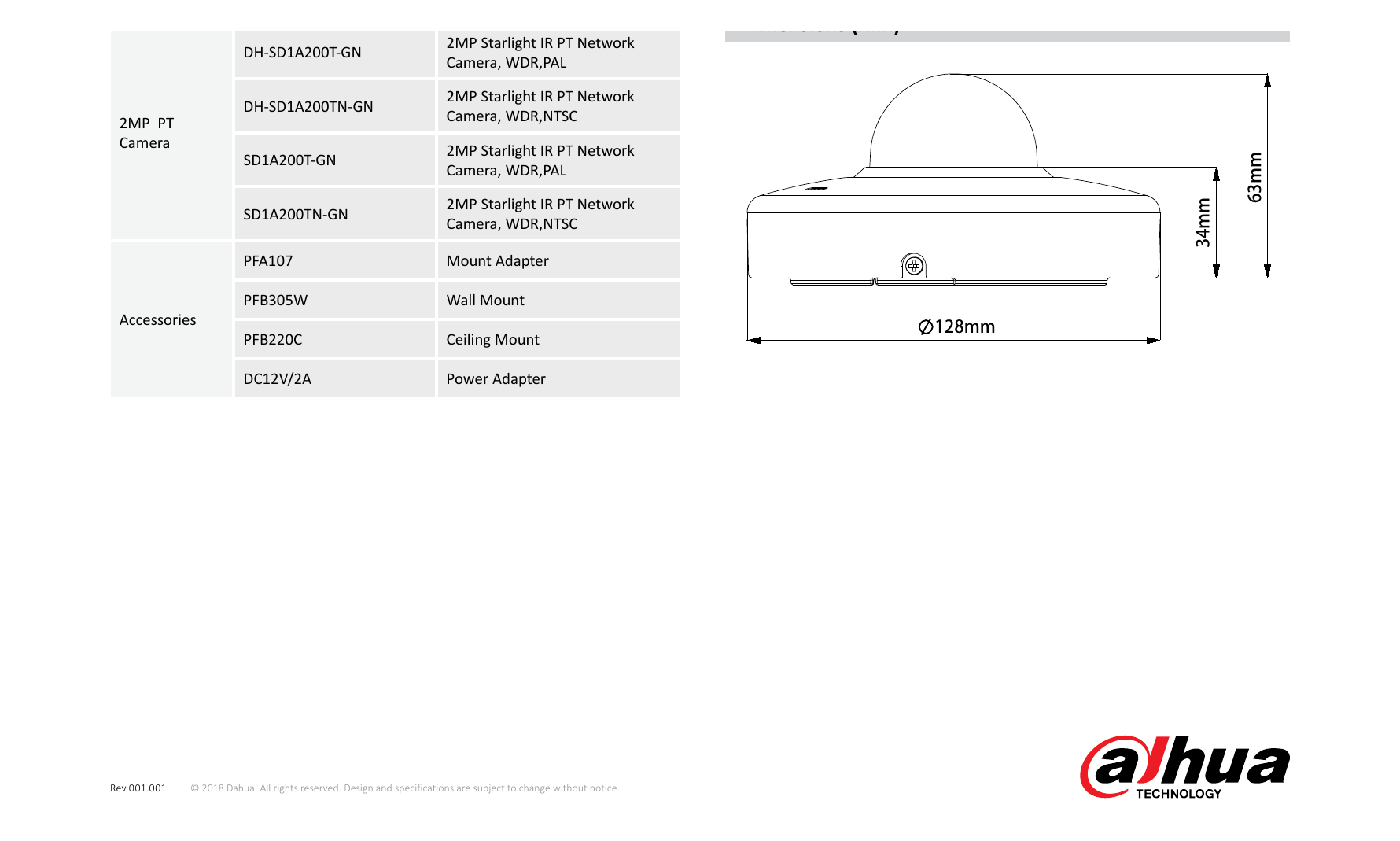

| 尺寸 | Φ128(mm) x 63(mm) |
|---|
| 淨重 | 0.49kg(1.08lb) |
|---|
| 毛重 | 0.73kg(1.6lb) Ordering Information |
|---|
| 類型 | Part Number Description Dimensions (mm) 2MP Starlight IR PT Network DH-SD1A200T-GN Camera, WDR,PAL 2MP Starlight IR PT Network DH-SD1A200TN-GN 2MP PT Camera, WDR,NTSC |
|---|
| PFA107 | Mount Adapter |
|---|
| PFB305W | Wall Mount |
|---|
| Accessories | 128mm |
|---|
| PFB220C | Ceiling Mount |
|---|
| DC12V/2A | Power Adapter |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
