DAHUA SD22204DB-GC-S0 CCTV攝影機安裝・保養

Name: DAHUA SD22204DB-GC-S0 DH-SD22204DB-GC
Brand: dahua
SKU: SD22204DB-GC-S0

產品簡介

dahua SD22204DB-GC-S0 為DH-SD22204DB-GC，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 SD22204DB-GC-S0 香港價格連安裝報價。

Camera：Gain Control Auto/Manual
影像感測器：1/2.8" CMOS
Noise Reduction：2D NR; 3D NR
Pixel：2 MP
除霧：Electronic

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

SD22204DB-GC-S0 dahua DH-SD22204DB-GC 產品圖片

詳細規格

Camera	Gain Control Auto/Manual
影像感測器	1/2.8" CMOS
Noise Reduction	2D NR; 3D NR
Pixel	2 MP
除霧	Electronic
最大解像度	1920 (H) × 1080 (V)
Digital Zoom	16×
ROM	128 MB
Image Rotation	180°
RAM	256 MB
S/N Ratio	≥50 dB
Electronic Shutter Speed	1/3 s–1/30,000 s
Scanning System	Progressive
CVI Product Output Mode	TVI;CVI;CVBS;AHD (CVBS is only used for debugging) 0.005lux@F1.6 (Color, 30 IRE);
最低照度	0.0005lux@F1.6 (B/W, 30 IRE)
鏡頭	CE: EN55032/EN55024/EN50130-4
Certifications	FCC: Part15 subpart B, ANSI C63.4-2014
焦距	2.7 mm–11 mm UL: UL60950-1+CAN/CSA C22.2, No.60950-1
Max. Aperture	F1.6–F3.0 Port H: 99.1°–31.9°
Field of View	V: 53.4°–18.0° Analog Output 1 channel (CVBS/CVI output, BNC) D: 117.7°–36.6°
RS-485	1 (baud rate range: 1200 bps–9600 bps)
Optical Zoom	4×
Focus Control	Auto; semi-auto; manual Power
供電	12VDC,1.5 A ± 10%
Close Focus Distance	1 m (3.28 ft) Basic: 7 W
Detect	Observe Recognize Identify Power Consumption Max.: 9 W (PTZ) DORI Distance 151.7 m 59.9 m 30.3 m 15.2 m Environment (497.70 ft) (196.52 ft) (99.41 ft) (49.87 ft)
工作溫度	–30 °C to +60 °C (–22 °F to +140 °F)
Pan: 0° to 355°;	Operating Humidity ≤95% (RH) Tilt: 0° to +90° (When the vertical field of view is
Pan/Tilt Range	between 0° and 10°, the device case will block part IP66; IK10; TVS 6000V lightning proof; surge Protection
of the image)	protection; voltage transient protection
Pan: 0.1°–100°/s	Structure Manual Control Speed Tilt: 0.1°–60°/s
Product Dimensions	88.9 mm × Φ122.0 mm (3.50" × Φ4.80") Pan: 100°/s; Preset Speed
Tilt: 60°/s	Net Weight 0.6 kg (1.32 lb)
Preset	300
毛重	0.65 kg (1.43 lb)
Tour	8 (up to 32 presets per tour)
斷電記憶	Yes
Idle Motion	Preset; Tour DH-SD PTZ Protocol Pelco-P/D (Auto recognition) 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × Resolution 576/704 × 480)
Video Frame Rate	1080p (25/30 fps); 720p (25/30/50/60 fps)
Day/Night	Yes
BLC	Yes
WDR	DWDR
HLC	Yes www.dahuasecurity.com Ordering Information
類型	Model Description
DH-SD22204DB-GC	2MP 4x Starlight PTZ HDCVI Camera, PAL
DH-SD22204DBN-GC	2MP 4x Starlight PTZ HDCVI Camera, NTSC 2MP HDCVI
SD22204DB-GC	2MP 4x Starlight PTZ HDCVI Camera, PAL
SD22204DBN-GC	2MP 4x Starlight PTZ HDCVI Camera, NTSC
DC12V/1.5A	Power Adapter
PFA106	Mount Adapter
PFB220C	Ceiling Mount Bracket
PFA137	Junction Box
Accessories	PFB305W Wall Mount Bracket (Optional)
PFA150	Pole Mount Bracket
PFB203W	Wall Mount Bracket
PFA152-E	Pole Mount Bracket
PFA120	Junction Box

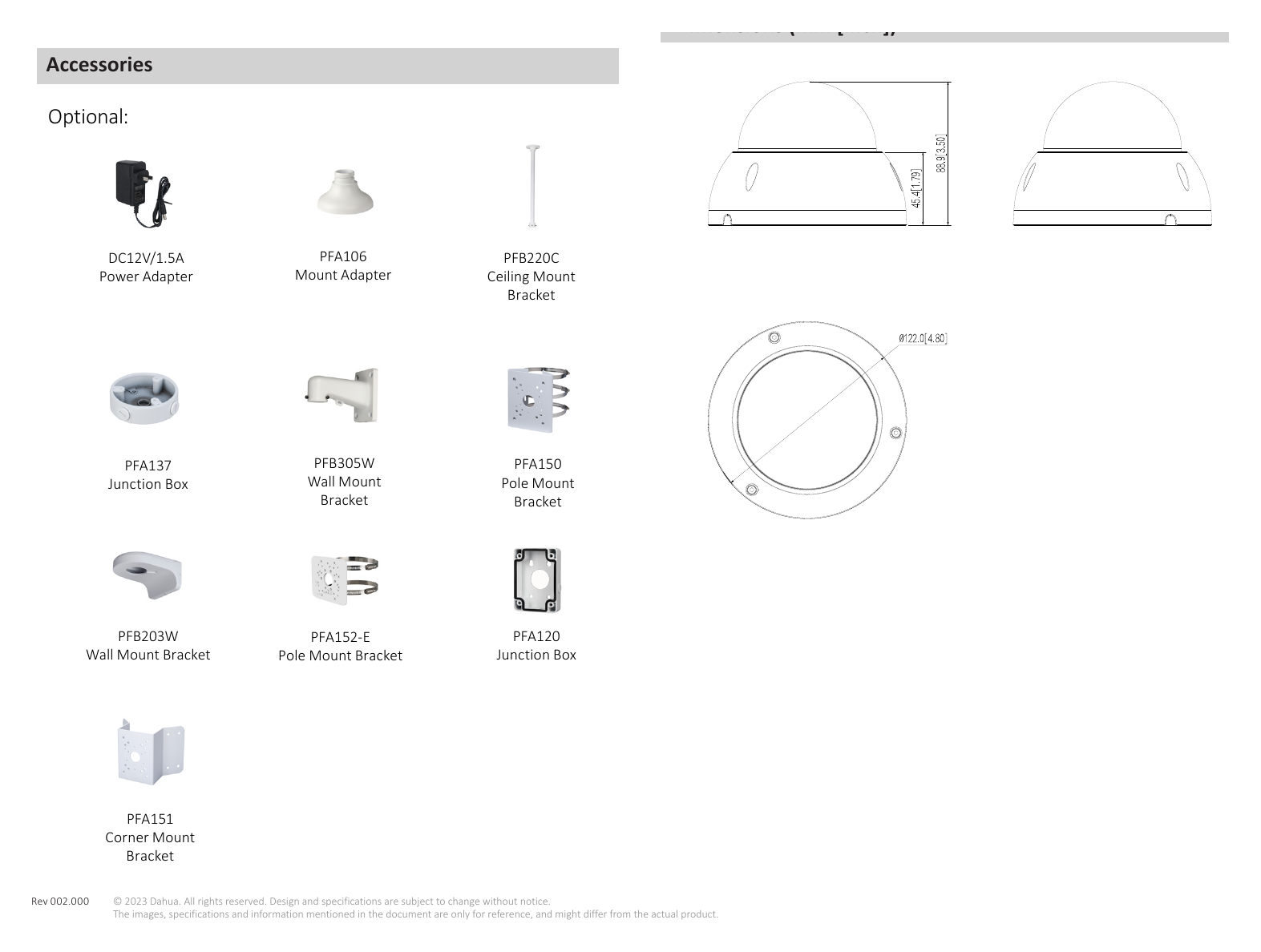

PFA151	Corner Mount Bracket Dimensions (mm [inch]) Accessories Optional:
Power Adapter	Mount Adapter Ceiling Mount Bracket
Junction Box	Wall Mount Pole Mount
Bracket	Bracket
Wall Mount Bracket	Pole Mount Bracket Junction Box PFA151 Corner Mount Bracket
Rev 002.000	© 2023 Dahua. All rights reserved. Design and specifications are subject to change without notice. The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. www.dahuasecurity.com
