| Camera | Advanced Intelligent Functions Face Detection |
|---|
| 影像感測器 | 1/2.7” CMOS Video |
|---|
| Effective Pixels | 1920(H) x 1080(V), 2 Megapixels Compression H.264+/H.264/MJPEG |
|---|
| RAM/ROM | 256M/128M Streaming Capability 3 Streams |
|---|
| Scanning System | Progressive 1080P(1920×1080)/720P(1280×720)/ Resolution D1(704×576/704×480)/CIF(352×288/352×240) |
|---|
| Electronic Shutter Speed | 1/1s~1/30,000s Main stream: 1080P/720P/D1 (1 ~ 25/30fps) |
|---|
| Minimum Illumination | Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6 |
|---|
| Frame Rate | Sub stream1: D1/CIF(1 ~ 25/30fps) |
|---|
| S/N Ratio | More than 50dB Sub stream2: 720P/D1/CIF (1 ~ 25/30fps) |
|---|
| IR Distance | N/A |
|---|
| 碼率控制 | CBR/VBR |
|---|
| IR On/Off Control | N/A H.264+/H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ Bit Rate 10240Kbps |
|---|
| IR LEDs | N/A |
|---|
| Day/Night | Auto(ICR) / Color / B/W |
|---|
| Backlight Compensation | BLC / HLC / WDR (120dB) |
|---|
| 焦距 | 2.7mm~11mm |
|---|
| White Balance | Auto, ATW, Indoor, Outdoor, Manual |
|---|
| Max. Aperture | F1.6 |
|---|
| Gain Control | Auto / Manual |
|---|
| Angle of View | H: 112.5° ~ 30° |
|---|
| Noise Reduction | Ultra DNR (2D/3D) |
|---|
| Optical Zoom | 4x |
|---|
| Motion Detection | Support |
|---|
| Focus Control | Auto/Manual |
|---|
| Region of Interest | Support |
|---|
| Close Focus Distance | 100mm~ 1000mm Electronic Image Stabilization N/A |
|---|
| DORI Distance | (EIS) *Note: The DORI distance is a “general proximity” of distance which makes it easy to Defog Support pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the Digital Zoom 16x criteria for Detect, Observe, Recognize and Identify respectively. |
|---|
| Flip | 180° |
|---|
| Detect | Observe Recognize Identify |
|---|
| Privacy Masking | Up to 24 areas 120m(394ft) 48m(157ft) 24m(79ft) 12m(39ft) |
|---|
| Ethernet | RJ-45 (10XBase-T/100Base-TX) |
|---|
| Pan/Tilt Range | Pan: 0° ~ 355°; Tilt: 0° ~ 90° |
|---|
| WiFi | Support |
|---|
| Manual Control Speed | Pan: 0.1° ~100° /s; Tilt: 0.1° ~60° /s IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, |
|---|
| Preset Speed | Pan: 100° /s; Tilt: 60° /s Protocol ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x |
|---|
| 預置位 | 300 |
|---|
| Interoperability | ONVIF Profile S&G, API |
|---|
| PTZ Mode | 8 Tour, Auto Pan |
|---|
| Streaming Method | Unicast / Multicast |
|---|
| Speed Setup | Human-oriented focal Length/ speed adaptation |
|---|
| Max. User Access | 20 users Auto restore to previous PTZ and lens status after |
|---|
| Power up Action | NAS (Network Attached Storage),Local PC for instant |
|---|
| power failure | Edge Storage recording, Micro SD card 128GB Activate Preset/Tour if there is no command in the |
|---|
| Idle Motion | Web Viewer IE, Chrome, Firefox, Safari specified period |
|---|
| Protocol | DH-SD Management Software Smart PSS, DSS, DMSS |
|---|
| Intelligence | Smart Phone IOS, Android Motion detection, Video tampering, Network Certifications |
|---|
| Event Trigger | disconnection, IP address conflict, Illegal access, |
|---|
| Storage anomaly | CE: EN55032/EN55024/EN50130-4 |
|---|
| Certifications | FCC: Part15 subpartB,ANSI C63.4- 2014 |
|---|
| Auto Tracking | N/A UL: UL60950-1+CAN/CSA C22.2,No.60950-1 www.dahuasecurity.com |
|---|
| 接口 | Accessories |
|---|
| Video Interface | N/A Optional： |
|---|
| RS485 | N/A |
|---|
| Audio I/O | N/A |
|---|
| Alarm I/O | N/A |
|---|
| Electrical | PFA137 DC12V/2A PFB203W |
|---|
| Mount Adapter | Power Adapter Wall Mount |
|---|
| 供電 | DC 12V/1.5A |
|---|
| 功耗 | 10W Environmental |
|---|
| Operating Conditions | -30°C ~ 60°C (-22°F ~ +140°F) / Less than 95% RH PFA152-E |
|---|
| 防護等級 | IP66 Pole Mount |
|---|
| Vandal Resistance | IK10 Wall Mount Pole Mount |
|---|
| PFB203W | PFB203W + PFA152-E Construction |
|---|
| Casing | Metal |
|---|

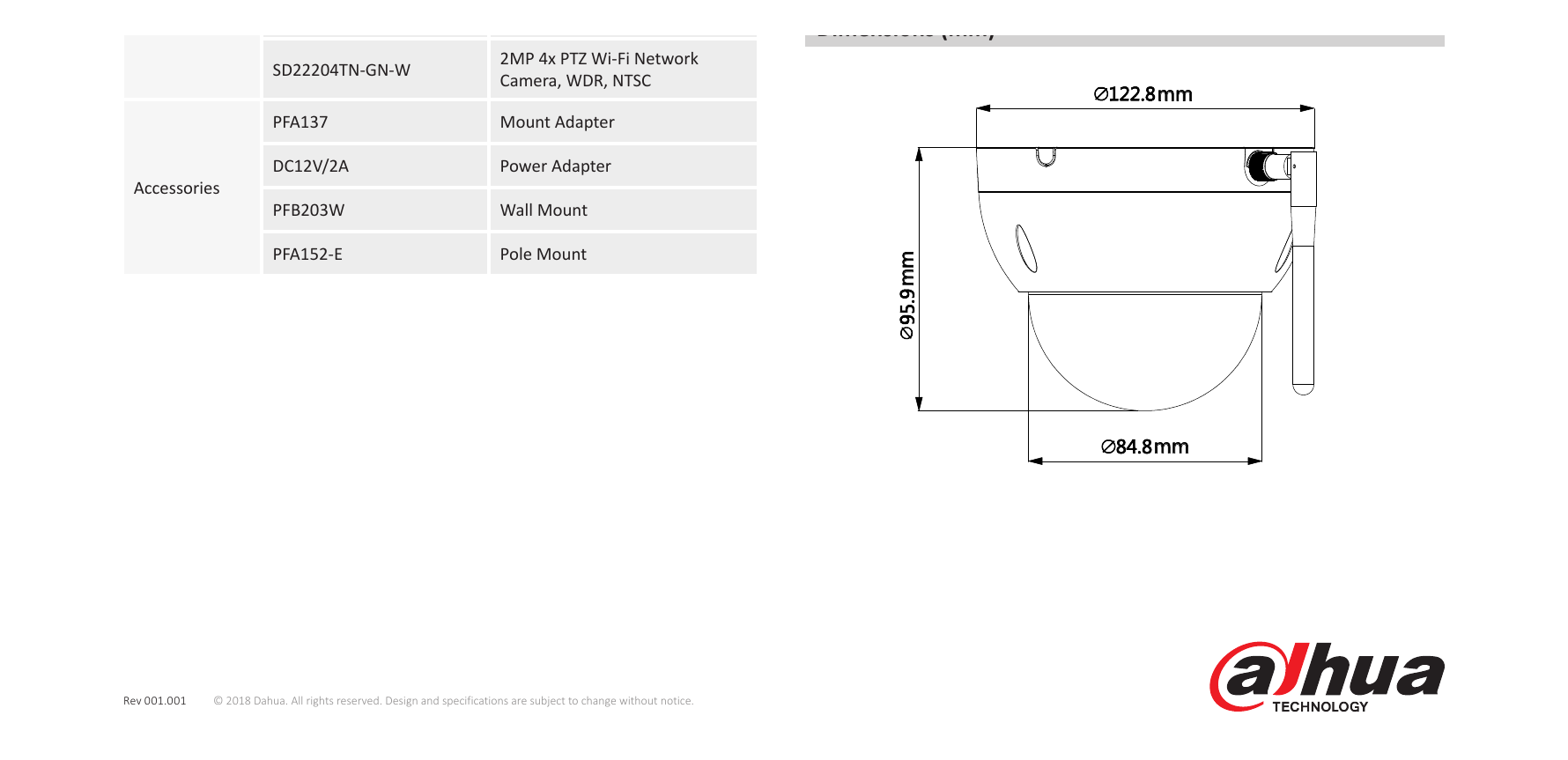

| 尺寸 | Φ122.8 (mm) x 95.9 (mm) |
|---|
| 淨重 | 0.66kg(1.46lb) |
|---|
| 毛重 | 0.71kg(1.57lb) |
|---|
| Ordering Information | Juncon Box Mount PFA137 |
|---|
| 類型 | Part Number Description 2MP 4x PTZ Wi-Fi Network DH-SD22204T-GN-W Camera, WDR, PAL 2MP 4x PTZ Wi-Fi Network DH-SD22204TN-GN-W 2MP PTZ Camera, WDR, NTSC |
|---|
| PFA137 | Mount Adapter |
|---|
| DC12V/2A | Power Adapter Accessories |
|---|
| PFA152-E | Pole Mount |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
