| Camera | Advanced Intelligent Functions Face Detection |
|---|
| 影像感測器 | 1/2.8” STARVIS™ CMOS Video |
|---|
| Effective Pixels | 1920(H) x 1080(V), 2 Megapixels Compression H.265/H.264/MJPEG(Sub Stream) |
|---|
| RAM/ROM | 256M/128M Streaming Capability 3 Streams |
|---|
| Electronic Shutter Speed | 1/1s~1/30,000s 1080P(1920×1080)/720P(1280×720)/ Resolution D1(704×576/704×480)/CIF(352×288/352×240) |
|---|
| Scanning System | Progressive Main stream: 1080P/720P/D1 (1 ~ 25/30fps) |
|---|
| Minimum Illumination | Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6 Frame Rate Sub stream1: D1/CIF(1 ~ 25/30fps) |
|---|
| IR Distance | N/A Sub stream2: 720P/D1/CIF (1 ~ 25/30fps) |
|---|
| IR On/Off Control | N/A |
|---|
| 碼率控制 | CBR/VBR |
|---|
| IR LEDs | N/A H.265/H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ Bit Rate 10240Kbps |
|---|
| Day/Night | Auto(ICR) / Color / B/W |
|---|
| 焦距 | 2.7mm~11mm |
|---|
| Backlight Compensation | BLC / HLC / WDR (120dB) |
|---|
| Max. Aperture | F1.6 |
|---|
| White Balance | Auto,ATW,Indoor,Outdoor,Manual |
|---|
| Angle of View | H: 112.5° ~ 30° |
|---|
| Gain Control | Auto / Manual |
|---|
| Optical Zoom | 4x |
|---|
| Noise Reduction | Ultra DNR (2D/3D) |
|---|
| Focus Control | Auto/Manual |
|---|
| Motion Detection | Support |
|---|
| Close Focus Distance | 100mm~ 1000mm |
|---|
| Region of Interest | Support DORI Distance Electronic Image Stabilization *Note: The DORI distance is a “general proximity” of distance which makes it easy to N/A (EIS) pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the Defog Support criteria for Detect, Observe, Recognize and Identify respectively. |
|---|
| Digital Zoom | 16x |
|---|
| Detect | Observe Recognize Identify |
|---|
| Flip | 180° 124.1m(407ft) 49.7m(163ft) 24.8m(81ft) 12.4m(40ft) |
|---|
| Privacy Masking | Up to 24 areas |
|---|
| Pan/Tilt Range | Pan: 0° ~ 355°; Tilt: 0° ~ 90° |
|---|
| Ethernet | RJ-45 (10XBase-T/100Base-TX) |
|---|
| Manual Control Speed | Pan: 0.1° ~100° /s; Tilt: 0.1° ~60° /s |
|---|
| WiFi | Support |
|---|
| Preset Speed | Pan: 100° /s; Tilt: 60° /s IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, |
|---|
| 預置位 | 300 Protocol ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x |
|---|
| PTZ Mode | 8 Tour(up to 32 preset per tour) |
|---|
| Interoperability | ONVIF Profile S&G, API |
|---|
| Speed Setup | Human-oriented focal Length/ speed adaptation |
|---|
| Streaming Method | Unicast / Multicast Auto restore to previous PTZ and lens status after Power up Action |
|---|
| power failure | Max. User Access 20 users Activate Preset/Tour if there is no command in the NAS (Network Attached Storage),Local PC for |
|---|
| Idle Motion | Edge Storage |
|---|
| specified period | instant recording, Micro SD card 128GB |
|---|
| Protocol | DH-SD Web Viewer IE, Chrome, Firefox, Safari |
|---|
| Intelligence | Management Software Smart PSS, DSS, DMSS Motion detection, Video tampering, Network Smart Phone IOS, Android |
|---|
| Event Trigger | disconnection, IP address conflict, Illegal access, |
|---|
| Storage anomaly | Certifications |
|---|
| Auto Tracking | N/A CE: EN55032/EN55024/EN50130-4 |
|---|
| Certifications | FCC: Part15 subpartB,ANSI C63.4- 2014 UL: UL60950-1+CAN/CSA C22.2,No.60950-1 www.dahuasecurity.com |
|---|
| 接口 | Accessories |
|---|
| Video Interface | N/A Optional： |
|---|
| RS485 | N/A |
|---|
| Audio I/O | N/A |
|---|
| Alarm I/O | N/A |
|---|
| PFA137 | DC12V/2A PFB203W |
|---|
| Electrical | Power Adapter Wall Mount Mount Adapter |
|---|
| 供電 | DC 12V/1.5A |
|---|
| 功耗 | 5.5W Environmental |
|---|
| Operating Conditions | -30°C ~ 60°C (-22°F ~ +140°F) / Less than 95% RH PFA152-E Pole Mount |
|---|
| 防護等級 | IP66 |
|---|
| Vandal Resistance | IK10 Wall Mount Pole Mount |
|---|
| PFB203W | PFB203W + PFA152-E Construction |
|---|
| Casing | Metal |
|---|

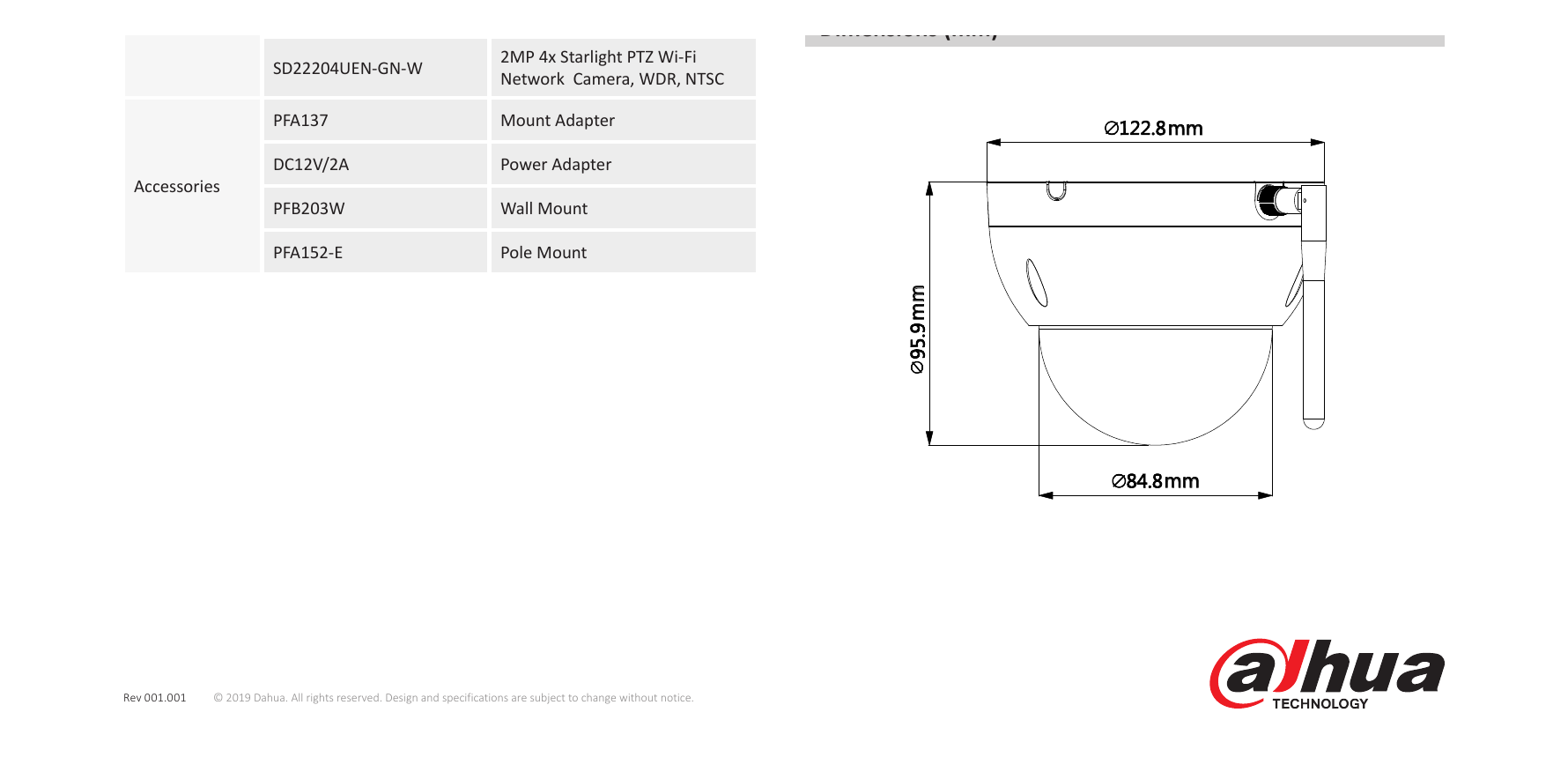

| 尺寸 | Φ122 (mm) x 89 (mm) |
|---|
| 淨重 | 0.52kg(1.23lb) |
|---|
| 毛重 | 0.73kg(1.61lb) |
|---|
| Ordering Information | Juncon Box Mount PFA137 |
|---|
| 類型 | Part Number Description 2MP 4x Starlight PTZ Wi-Fi DH-SD22204UE-GN-W Network Camera, WDR, PAL 2MP 4x Starlight PTZ Wi-Fi DH-SD22204UEN-GN-W 2MP PTZ Network Camera, WDR, NTSC |
|---|
| DC12V/2A | Power Adapter Accessories |
|---|
| PFA152-E | Pole Mount |
|---|
| Rev 001.001 | © 2019 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
