| Camera | Advanced Intelligent Functions Face Detection |
|---|
| 影像感測器 | 1/3” CMOS Video |
|---|
| Effective Pixels | 2592(H) x 1520(V), 4 Megapixels Compression H.265/H.264 |
|---|
| RAM/ROM | 256M/128M Streaming Capability 3 Streams |
|---|
| Electronic Shutter Speed | 1/1s~1/30,000s 4M(2592×1520)/3M(2304×1296)/1080P(1920× |
|---|
| 解像度 | 1080)/720P(1280×720)/D1(704×576/704×480)/ CIF(352×288/352×240) |
|---|
| Scanning System | Progressive Main stream: 4M/3M/1080P/1.3M/720P |
|---|
| Minimum Illumination | Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6 (1~25/30fps) |
|---|
| Frame Rate | Sub stream1: D1/CIF(1 ~ 25/30fps) |
|---|
| S/N Ratio | More than 50dB |
|---|
| IR Distance | N/A Sub stream2: 720P/D1/CIF (1~25/30fps) |
|---|
| IR On/Off Control | N/A Bit Rate Control CBR/VBR |
|---|
| IR LEDs | N/A Bit Rate H.265/H.264: 448K ~ 8192Kbps |
|---|
| 鏡頭 | Day/Night Auto(ICR) / Color / B/W |
|---|
| 焦距 | 2.7mm~11mm Backlight Compensation BLC / HLC / WDR (120dB) |
|---|
| Max. Aperture | F1.6 ~ F2.8 White Balance Auto, ATW, Indoor, Outdoor, Manual |
|---|
| Angle of View | H: 112.5° ~ 30° Gain Control Auto / Manual |
|---|
| Optical Zoom | 4x Noise Reduction Ultra DNR (2D/3D) |
|---|
| Focus Control | Auto/Manual Motion Detetion Support |
|---|
| Close Focus Distance | 100mm~ 1000mm Region of Interest Support Electronic Image Stabilization |
|---|
| DORI Distance | N/A (EIS) *Note: The DORI distance is a “general proximity” of distance which makes it easy to Defog Support pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the Digital Zoom 16x criteria for Detect, Observe, Recognize and Identify respectively. |
|---|
| Flip | 180° |
|---|
| Detect | Observe Recognize Identify |
|---|
| Privacy Masking | Up to 24 areas 180m(591ft) 72m(236ft) 36m(118ft) 18m(59ft) |
|---|
| Ethernet | RJ-45 (10XBase-T/100Base-TX) |
|---|
| Pan/Tilt Range | Pan: 0° ~ 355°; Tilt: 0° ~ 90° |
|---|
| WiFi | Wi-Fi(IEEE802.11a/b/g/n/ac) , 2.4G Wi-Fi |
|---|
| Manual Control Speed | Pan: 0.1° ~100° /s; Tilt: 0.1° ~60° /s IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, |
|---|
| Preset Speed | Pan: 100° /s; Tilt: 60° /s Protocol ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x |
|---|
| 預置位 | 300 |
|---|
| Interoperability | ONVIF Profile S&G, API |
|---|
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan ,Auto Scan |
|---|
| Streaming Method | Unicast / Multicast |
|---|
| Speed Setup | Human-oriented focal Length/ speed adaptation |
|---|
| Max. User Access | 20 users Auto restore to previous PTZ and lens status after Power up Action |
|---|
| power failure | NAS (Network Attached Storage),Local PC for Edge Storage instant recording, Micro SD card 256GB Activate Preset/ Scan/ Tour/ Pattern if there is no Idle Motion |
|---|
| command in the specified period | Web Viewer IE, Chrome, Firefox, Safari |
|---|
| Protocol | DH-SD Management Software Smart PSS, DSS, DMSS |
|---|
| Intelligence | Smart Phone IOS, Android Motion detection, Video tampering, Network Certifications |
|---|
| Event Trigger | disconnection, IP address conflict, Illegal access, |
|---|
| Storage anomaly | CE: EN55032/EN55024/EN50130-4 |
|---|
| Certifications | FCC: Part15 subpartB,ANSI C63.4- 2014 |
|---|
| Auto Tracking | N/A UL: UL60950-1+CAN/CSA C22.2,No.60950-1 www.dahuasecurity.com |
|---|
| 接口 | Accessories |
|---|
| Video Interface | N/A Optional： |
|---|
| RS485 | N/A |
|---|
| Audio I/O | N/A |
|---|
| Alarm I/O | N/A |
|---|
| PFA137 | DC12V/2A PFB203W |
|---|
| Electrical | Power Adapter Wall Mount Mount Adapter |
|---|
| 供電 | DC 12V/1.5A |
|---|
| 功耗 | 10W Environmental |
|---|
| Operating Conditions | -30°C ~ 60°C (-22°F ~ +140°F) / Less than 95% RH |
|---|
| PFA152-E | PFB200C |
|---|
| Pole Mount | Ceiling Mount |
|---|
| 防護等級 | IP66 |
|---|
| Wall Mount | Pole Mount |
|---|
| Vandal Resistance | IK10 |
|---|
| PFB203W | PFB203W + PFA152-E Construction |
|---|
| Casing | Metal |
|---|
| 尺寸 | Φ122 (mm) x 89 (mm) |
|---|
| 淨重 | 0.66kg(1.46lb) |
|---|
| 毛重 | 0.71kg(1.57lb) Juncon Box Mount Ordering Information PFA137 |
|---|
| 類型 | Part Number Description 4MP 4x PTZ Wi-Fi Network DH-SD22404T-GN-W Camera, WDR, PAL 4MP 4x PTZ Wi-Fi Network DH-SD22404TN-GN-W 4MP PTZ Camera, WDR, NTSC |
|---|

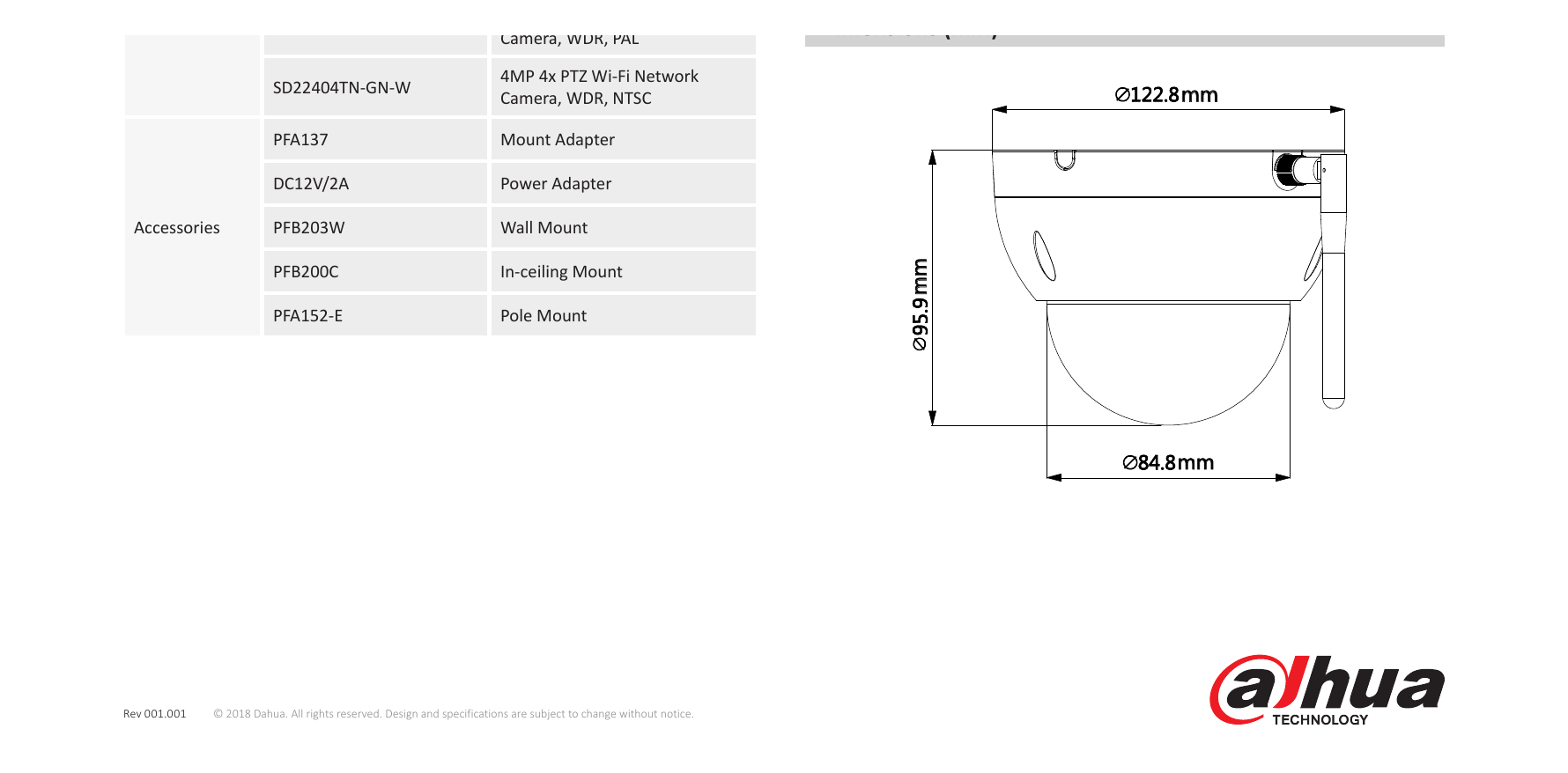

| Camera, WDR, PAL | Dimensions (mm) 4MP 4x PTZ Wi-Fi Network |
|---|
| SD22404TN-GN-W | mm Camera, WDR, NTSC |
|---|
| DC12V/2A | Power Adapter |
|---|
| Accessories | PFB203W Wall Mount |
|---|
| PFB200C | In-ceiling Mount |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
