| Camera | Advanced Intelligent Functions Face Detection |
|---|
| 影像感測器 | 1/3” CMOS Video |
|---|
| Effective Pixels | 2592(H) x 1520(V), 4 Megapixels Compression H.265/H.264 |
|---|
| RAM/ROM | 256M/128M Streaming Capability 3 Streams |
|---|
| Electronic Shutter Speed | 1/1s~1/30,000s 4M(2592×1520)/3M(2304×1296)/1080P(1920× |
|---|
| 解像度 | 1080)/720P(1280×720)/D1(704×576/704×480)/ CIF(352×288/352×240) |
|---|
| Scanning System | Progressive Main stream: 4M/3M/1080P/1.3M/720P |
|---|
| Minimum Illumination | Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6 (1~25/30fps) |
|---|
| Frame Rate | Sub stream1: D1/CIF(1 ~ 25/30fps) |
|---|
| S/N Ratio | More than 50dB Sub stream2: 720P/D1/CIF (1~25/30fps) |
|---|
| IR Distance | N/A |
|---|
| 碼率控制 | CBR/VBR |
|---|
| IR On/Off Control | N/A |
|---|
| Bit Rate | H.265/H.264: 448K ~ 8192Kbps |
|---|
| IR LEDs | N/A |
|---|
| Day/Night | Auto(ICR) / Color / B/W |
|---|
| Backlight Compensation | BLC / HLC / WDR (120dB) |
|---|
| 焦距 | 2.7mm~11mm |
|---|
| White Balance | Auto, ATW, Indoor, Outdoor, Manual |
|---|
| Max. Aperture | F1.6 ~ F2.8 |
|---|
| Gain Control | Auto / Manual |
|---|
| Angle of View | H: 112.5° ~ 30° |
|---|
| Noise Reduction | Ultra DNR (2D/3D) |
|---|
| Optical Zoom | 4x |
|---|
| Motion Detetion | Support |
|---|
| Focus Control | Auto/Manual |
|---|
| Region of Interest | Support |
|---|
| Close Focus Distance | 100mm~ 1000mm Electronic Image Stabilization |
|---|
| DORI Distance | N/A (EIS) *Note: The DORI distance is a “general proximity” of distance which makes it easy to Defog Support pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the Digital Zoom 16x criteria for Detect, Observe, Recognize and Identify respectively. |
|---|
| Flip | 180° |
|---|
| Detect | Observe Recognize Identify |
|---|
| Privacy Masking | Up to 24 areas 180m(591ft) 72m(236ft) 36m(118ft) 18m(59ft) |
|---|
| Ethernet | RJ-45 (10XBase-T/100Base-TX) |
|---|
| Pan/Tilt Range | Pan: 0° ~ 355°; Tilt: 0° ~ 90° |
|---|
| WiFi | N/A |
|---|
| Manual Control Speed | Pan: 0.1° ~100° /s; Tilt: 0.1° ~60° /s IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, |
|---|
| Preset Speed | Pan: 100° /s; Tilt: 60° /s Protocol ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x |
|---|
| 預置位 | 300 |
|---|
| Interoperability | ONVIF Profile S&G, API |
|---|
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan ,Auto Scan |
|---|
| Streaming Method | Unicast / Multicast |
|---|
| Speed Setup | Human-oriented focal Length/ speed adaptation |
|---|
| Max. User Access | 20 users Auto restore to previous PTZ and lens status after Power up Action |
|---|
| power failure | NAS (Network Attached Storage),Local PC for Edge Storage instant recording, Micro SD card 256GB Activate Preset/ Scan/ Tour/ Pattern if there is no Idle Motion |
|---|
| command in the specified period | Web Viewer IE, Chrome, Firefox, Safari |
|---|
| Protocol | DH-SD |
|---|
| Management Software | Smart PSS, DSS, DMSS Intelligence |
|---|
| Smart Phone | IOS, Android Motion detection, Video tampering, Network Certifications |
|---|
| Event Trigger | disconnection, IP address conflict, Illegal access, Storage anomaly CE: EN55032/EN55024/EN50130-4 |
|---|
| Certifications | FCC: Part15 subpartB,ANSI C63.4- 2014 |
|---|
| Auto Tracking | N/A UL: UL60950-1+CAN/CSA C22.2,No.60950-1 www.dahuasecurity.com |
|---|
| 接口 | Accessories |
|---|
| Video Interface | N/A Optional： |
|---|
| RS485 | N/A |
|---|
| Audio I/O | N/A |
|---|
| Alarm I/O | N/A |
|---|
| PFA137 | DC12V/2A PFB203W |
|---|
| Electrical | Power Adapter Wall Mount Mount Adapter |
|---|
| 供電 | DC 12V/1.5A, PoE(802.3af) |
|---|
| 功耗 | 10W Environmental |
|---|
| Operating Conditions | -30°C ~ 60°C (-22°F ~ +140°F) / Less than 95% RH |
|---|
| PFA152-E | PFB200C |
|---|
| Pole Mount | Ceiling Mount |
|---|
| 防護等級 | IP66 |
|---|
| Wall Mount | In-ceiling Mount |
|---|
| Vandal Resistance | IK10 |
|---|
| PFB203W | PFB200C Construction |
|---|
| Casing | Metal |
|---|

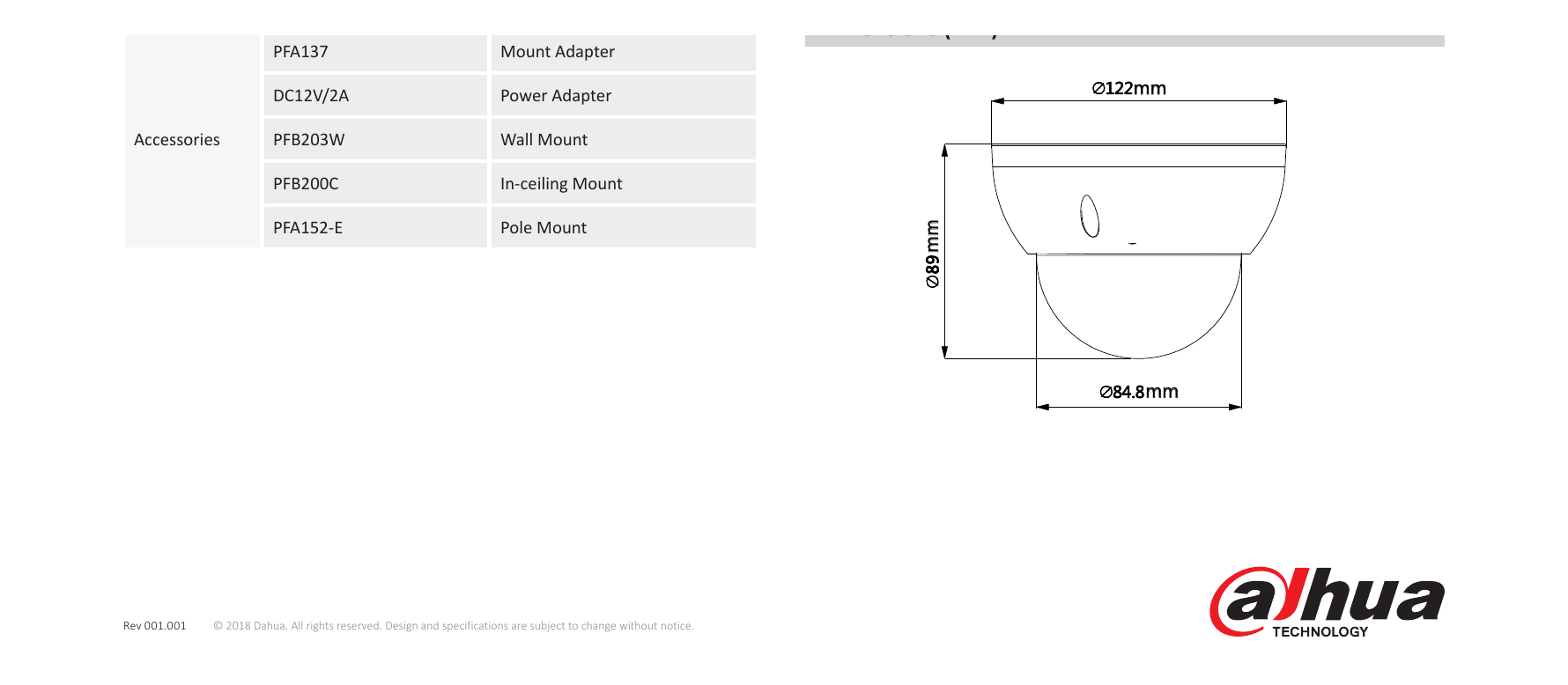

| 尺寸 | Φ122 (mm) x 89 (mm) |
|---|
| 淨重 | 0.66kg(1.46lb) |
|---|
| 毛重 | 0.71kg(1.57lb) |
|---|
| Junc on Box Mount | Pole Mount |
|---|
| Ordering Information | PFA137 PFB203W + PFA152-E |
|---|
| 類型 | Part Number Description 4MP 4x PTZ Network Camera, DH-SD22404T-GN WDR, PAL 4MP 4x PTZ Network Camera, DH-SD22404TN-GN 4MP PTZ WDR, NTSC |
|---|
| DC12V/2A | Power Adapter mm |
|---|
| Accessories | PFB203W Wall Mount |
|---|
| PFB200C | In-ceiling Mount |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
