| Camera | Resolution 1080); 960p(1280x960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
|---|
| 影像感測器 | 1/2.8" CMOS Main stream: 5M (1–20 fps); 4M/1080p/1.3M/720p |
|---|
| Pixel | 5 MP Video Frame Rate (1–25/30 fps) Sub stream 1: D1/CIF (1–25/30 fps) |
|---|
| 最大解像度 | 2560 (H) × 1920 (V) |
|---|
| 碼率控制 | VBR; CBR |
|---|
| ROM | 128 MB H.264: 32 kbps–8192 kbps Video Bit Rate H.265: 32 kbps–8192 kbps |
|---|
| RAM | 128 MB |
|---|
| Day/Night | Auto (ICR); Color; B/W |
|---|
| Electronic Shutter Speed | 1/3 s–1/100,000 s |
|---|
| BLC | Yes |
|---|
| Scanning System | Progressive |
|---|
| WDR | DWDR Color: 0.005 lux@F1.6 |
|---|
| 最低照度 | B/W: 0.0005 lux@F1.6 HLC Yes 0 lux (illuminator on) Auto; indoor; outdoor; tracking; manual; sodium lamp; 30 m (98.42 ft) (IR) White Balance |
|---|
| Illumination Distance | natural; street lamp 30 m (98.42 ft) (white light) |
|---|
| Gain Control | Auto; Manual |
|---|
| Illuminator On/Off Control | Manual; auto; off 1 (IR light) Noise Reduction 2D NR; 3D NR |
|---|
| Illuminator Number | 2 (white light) |
|---|
| Motion Detection | Yes |
|---|
| Image Rotation | 180° |
|---|
| 焦距 | 4.0 mm |
|---|
| S/N Ratio | ≥ 55 dB |
|---|
| Max. Aperture | F1.6 |
|---|
| Field of View | H: 80.4°; V: 58.1°; D: 104.8° G.711a; G.711Mu; G.726; G722.1; G.729; MPEG2- Audio Compression Layer2; G723 |
|---|
| Close Focus Distance | 0.3 m (0.98 ft) |
|---|
| Iris Control | Fixed |
|---|
| Network Port | RJ-45 (10/100 Base-T) |
|---|
| Detect | Observe Recognize Identify |
|---|
| DORI Distance | Wi-Fi Yes 77.4 m 31.0 m 15.5 m 7.74 m (253.94 ft) (101.71 ft) (50.85 ft) (25.39 ft) |
|---|
| Wi-Fi–Wireless Standard | 802.11n; 802.11g; IEEE802.11b |
|---|
| PTZ | Wi-Fi–Wireless Transmission 150 Mbps |
|---|
| Pan: 0° to 345° | Rate Pan/Tilt Range |
|---|
| Tilt: 0° to +80° | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; |
|---|
| Pan: 0.1°–74°/s | Network Protocol DHCP; DNS; DDNS; IPv6; SSL; FTP; ARP; RTCP; RTP; IP |
|---|
| Manual Control Speed | Filter; RTMP; TCP Tilt: 0.1°–36.4°/s |
|---|
| Interoperability | ONVIF Profile S&G&T; CGI |
|---|
| Preset Speed | Pan: 62°/s; Tilt: 36.3°/s |
|---|
| Streaming Method | Unicast; Multicast |
|---|
| Preset | 300 |
|---|
| 用戶管理 | 20 |
|---|
| 斷電記憶 | Yes |
|---|
| Storage | FTP; Micro SD card (512 GB) |
|---|
| Idle Motion | Preset IE 7 and later versions |
|---|
| 智能事件 | Browser Chrome 42 and earlier versions Firefox 52 and earlier versions |
|---|
| IVS | Tripwire; intrusion Safari |
|---|
| Active Deterrence | Management Software Smart PSS; DMSS; player; configtool; NVR; Smart Player |
|---|
| White light warning | Mobile Client iOS; Android; iPhone; iPad; Windows Phone |
|---|
| Light Warning | Flash duration: 5 s–30 s Flash frequency: high, medium, low Sound warning alarm: Customizable |
|---|
| Sound Warning | CE: EN55032/EN55024/EN50130-4 |
|---|
| Alarm duration: 10 s, 20 s, 30 s | Certifications FCC: Part15 subpartB, ANSI C63.4-2014 Port Smart H.265+; H.265; Smart H.264+; H.264; H.264B; |
|---|
| 視頻壓縮 | Audio Input 1 channel (bulit-in MIC) MJPEG (Sub Stream 1) www.dahuasecurity.com |
|---|
| 音訊輸出 | 1 channel (bulit-in Speaker) |
|---|
| Audio I/O | 1/1 |
|---|
| 雙向語音 | Yes |
|---|
| Alarm Linkage | Capture; preset; recording; audio; sending email Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; Alarm Event memory card state detection; memory space detection; power exception detection Power |
|---|

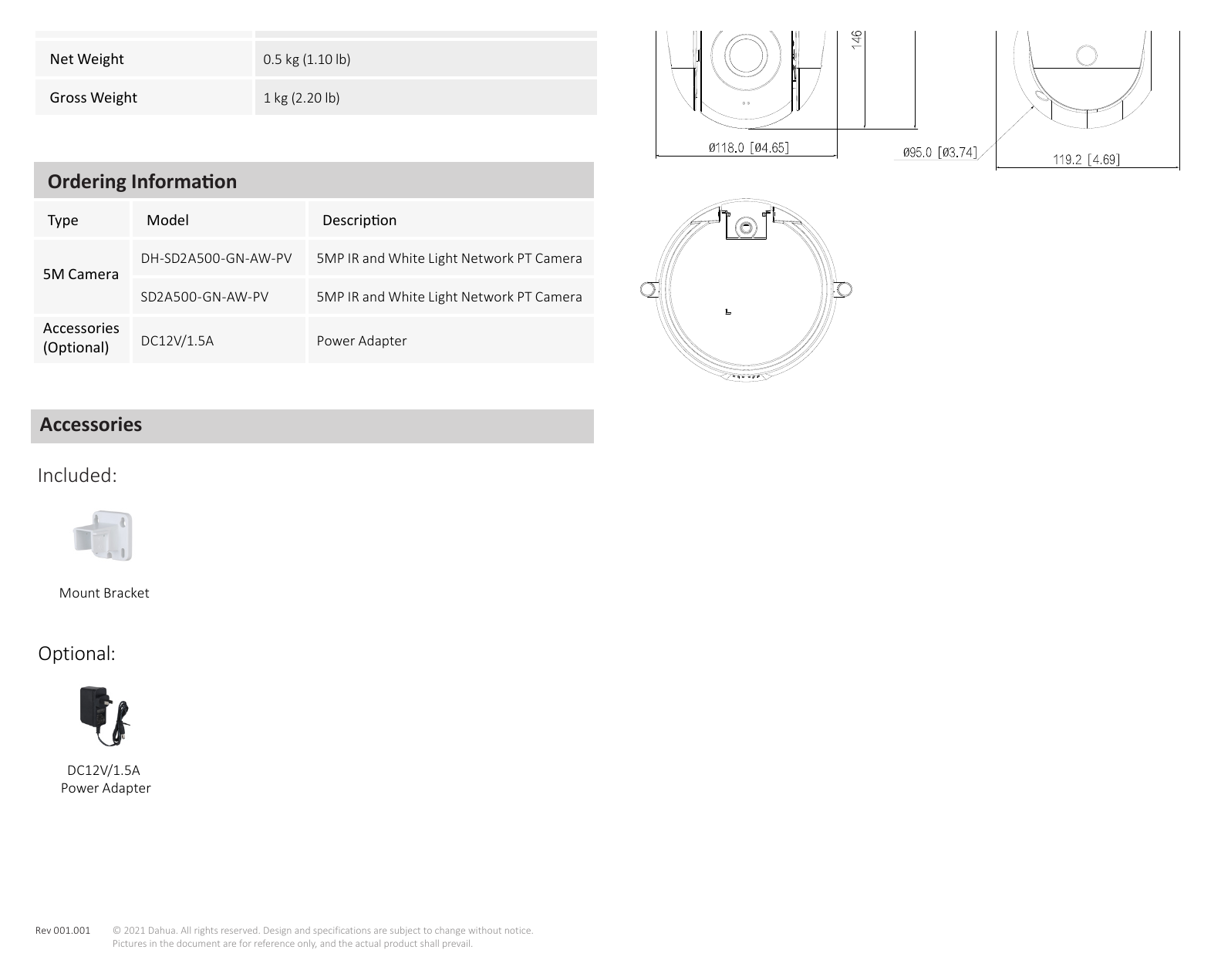

| 供電 | 12 VDC, 1.5 A (± 10%) Dimensions (mm[inch]) Basic: 3.5 W Power Consumption Max.: 11 W (illuminator) |
|---|
| 工作溫度 | –30 °C to +55 °C (–22 °F to +131 °F) |
|---|
| 工作濕度 | ≤ 95% RH IP66; TVS 2000 V lightning proof; surge protection; Protection voltage transient protection Construction |
|---|
| Product Dimensions | 146.5 mm × Φ118.0 mm (5.77" × Φ4.65") |
|---|
| 淨重 | 0.5 kg (1.10 lb) |
|---|
| 毛重 | 1 kg (2.20 lb) Ordering Information |
|---|
| 類型 | Model Description |
|---|
| DH-SD2A500-GN-AW-PV | 5MP IR and White Light Network PT Camera 5M Camera |
|---|
| SD2A500-GN-AW-PV | 5MP IR and White Light Network PT Camera Accessories (Optional) DC12V/1.5A Power Adapter Mount Bracket DC12V/1.5A Power Adapter |
|---|
| Rev 001.001 | © 2021 Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. www.dahuasecurity.com |
|---|
