| Camera | Video |
|---|
| 影像感測器 | 1/2.8” STARVIS™ CMOS Compression H.265+/H.265/H.264+/H.264/MJPEG(Sub Stream) |
|---|
| Effective Pixels | 1920(H) x 1080(V), 2 Megapixels Streaming Capability 3 Streams |
|---|
| RAM/ROM | 1024M/128M 1080P(1920×1080)/720P(1280×720)/ Resolution D1(704×576/704×480)/CIF(352×288/352×240) |
|---|
| Scanning System | Progressive Main stream: 1080P/720P(1 ~ 25/30fps) |
|---|
| Electronic Shutter Speed | 1/1s~1/30,000s |
|---|
| Frame Rate | Sub stream1: D1/CIF(1 ~ 25/30fps) |
|---|
| Minimum Illumination | Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6 Sub stream2: 720P/D1/CIF(1 ~ 25/30fps) |
|---|
| IR Distance | N/A |
|---|
| 碼率控制 | CBR/VBR |
|---|
| IR On/Off Control | N/A |
|---|
| Bit Rate | H.265/H.264: 448K ~ 8192Kbps |
|---|
| IR LEDs | N/A |
|---|
| Day/Night | Auto(ICR) / Color / B/W |
|---|
| Backlight Compensation | BLC / HLC / WDR(120dB) |
|---|
| 焦距 | 5.3mm~64mm |
|---|
| White Balance | Auto, ATW, Indoor, Outdoor, Manual |
|---|
| Max. Aperture | F1.6 ~ F4.4 |
|---|
| Gain Control | Auto / Manual |
|---|
| Angle of View | H: 58.2° ~ 4.8° |
|---|
| Noise Reduction | Ultra DNR (2D/3D) |
|---|
| Optical Zoom | 12x |
|---|
| Motion Detection | Support |
|---|
| Focus Control | Auto/Manual |
|---|
| Region of Interest | Support |
|---|
| Close Focus Distance | 100mm~ 1000mm Electronic Image Stabilization N/A |
|---|
| DORI Distance | (EIS) *Note: The DORI distance is a “general proximity” of distance which makes it easy to Defog Support pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the Digital Zoom 16x criteria for Detect, Observe, Recognize and Identify respectively. |
|---|
| Flip | 180° |
|---|
| Detect | Observe Recognize Identify |
|---|
| Privacy Masking | Up to 24 areas 883m(2897ft) 353m(1158ft) 177m(581ft) 88m(289ft) |
|---|
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -2° ~ 90°,auto flip 180° Compression G.711a/G.711Mu/G.726/AAC |
|---|
| Manual Control Speed | Pan: 0.1° ~300° /s; Tilt: 0.1° ~120° /s Network |
|---|
| Preset Speed | Pan: 300° /s; Tilt: 200° /s Ethernet RJ-45 (10XBase-T/100Base-TX) |
|---|
| 預置位 | 300 IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, |
|---|
| Protocol | ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x |
|---|
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan ,Auto Scan |
|---|
| Interoperability | ONVIF Profile S&G, API |
|---|
| Speed Setup | Human-oriented focal Length/ speed adaptation Auto restore to previous PTZ and lens status after Streaming Method Unicast / Multicast Power up Action power failure |
|---|
| Max. User Access | 20 users Activate Preset/ Scan/ Tour/ Pattern if there is no Idle Motion |
|---|
| command in the specified period | NAS (Network Attached Storage),Local PC for Edge Storage instant recording, Micro SD card 256GB |
|---|
| Web Viewer | IE, Chrome, Firefox, Safari Intelligence Motion detection, Video tampering, Network Management Software Smart PSS, DSS, DMSS |
|---|
| Event Trigger | disconnection, IP address conflict, Illegal access, |
|---|
| Storage anomaly | Smart Phone IOS, Android |
|---|
| Auto Tracking | N/A Certifications |
|---|
| IVS | Tripwire, Intrusion,Abandoned/Missing CE: EN55032/EN55024/EN50130-4 |
|---|
| Certifications | FCC: Part15 subpartB,ANSI C63.4- 2014 UL: UL60950-1+CAN/CSA C22.2,No.60950-1 www.dahuasecurity.com |
|---|
| 接口 | Accessories |
|---|
| Video Interface | N/A Included: |
|---|
| RS485 | N/A |
|---|
| Audio I/O | 1/1 |
|---|
| Alarm I/O | 2/1 |
|---|
| Electrical | PFB300S PFA110 DC24V/2.5A |
|---|
| Wall Mount | Mount Adapter Power Adapter |
|---|
| 供電 | DC 24V/2.5A(±25%), PoE+(802.3at) Optional： |
|---|
| 功耗 | 12W, 22W Environmental |
|---|
| Operating Conditions | -40°C ~ 60°C (-40°F ~ +140°F) / Less than 95% RH |
|---|
| 防護等級 | IP66 PFA140 PFB300C PFA120 |
|---|
| Power Box | Ceiling Mount Junction Box |
|---|
| Vandal Resistance | IK10 Construction |
|---|
| Casing | Metal |
|---|
| 尺寸 | Φ186(mm)×234(mm) |
|---|
| PFA150 | PFA151 PFB303S |
|---|
| 淨重 | 2.3kg(5.07lb) Pole Mount Corner Mount Parapet Mount |
|---|
| 毛重 | 4.3kg(9.48lb) Ceiling Mount Juncon Mount |
|---|
| PFA110 + PFB300C | PFA110 + PFB300S + PFA120 |
|---|

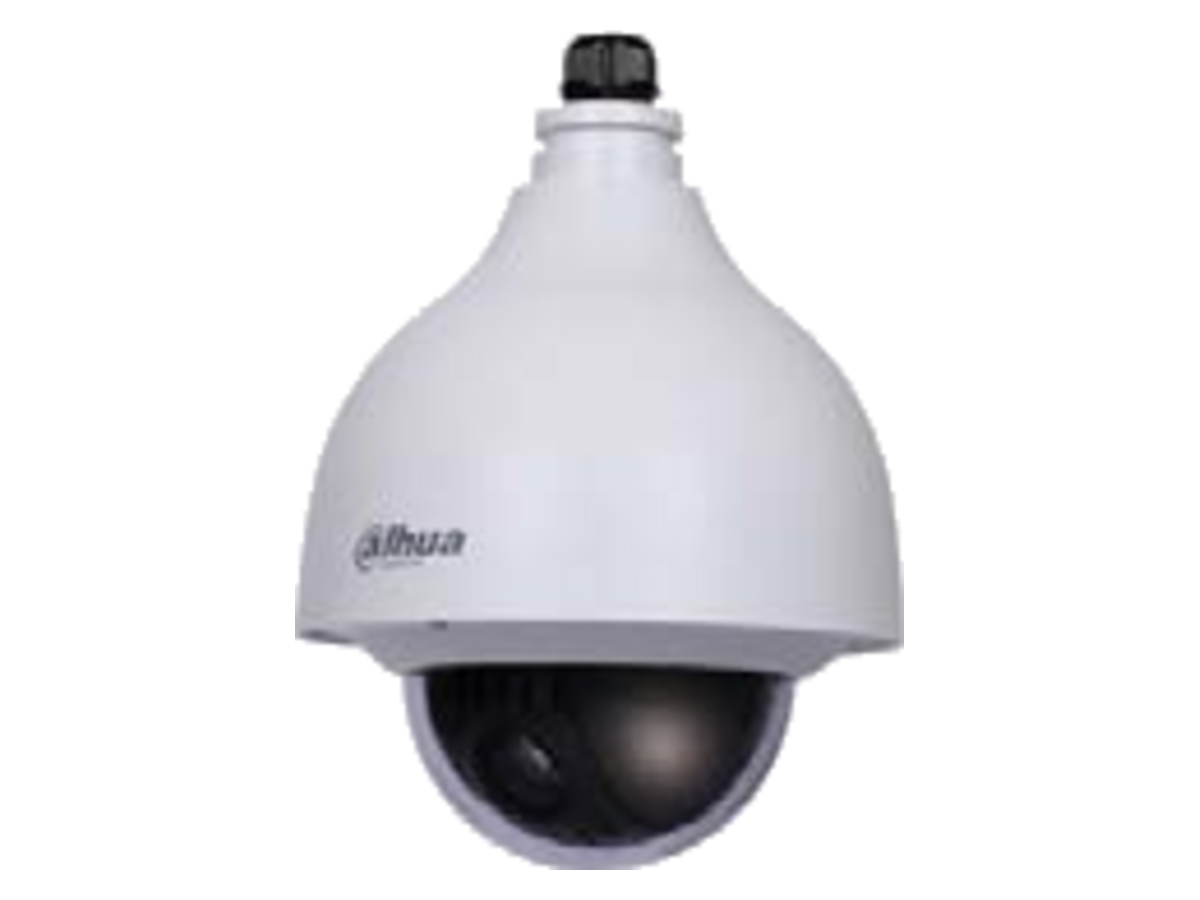

| 類型 | Part Number Description 2MP 12x Starlight PTZ Network DH-SD40212T-HN Camera, WDR, PAL 2MP 12x Starlight PTZ Network DH-SD40212TN-HN |
|---|
| Camera, WDR, PAL | PFA110 + PFB300S + PFA140 PFA110 + PFB300S + PFA150 2MP 12x Starlight PTZ Network SD40212TN-HN Camera, WDR, NTSC |
|---|
| PFB300S | Wall Mount |
|---|
| PFA110 | Mount Adapter |
|---|
| DC24V/2.5A | Power Adapter |
|---|
| PFA140 | Power Box |
|---|
| Corner Mount | Parapet Mount |
|---|
| Accessories | PFB300C Ceiling Mount |
|---|
| PFA110 + PFB300S + PFA151 | PFA110 + PFB303S |
|---|
| PFA120 | Junction Box |
|---|
| PFA151 | Corner Mount |
|---|

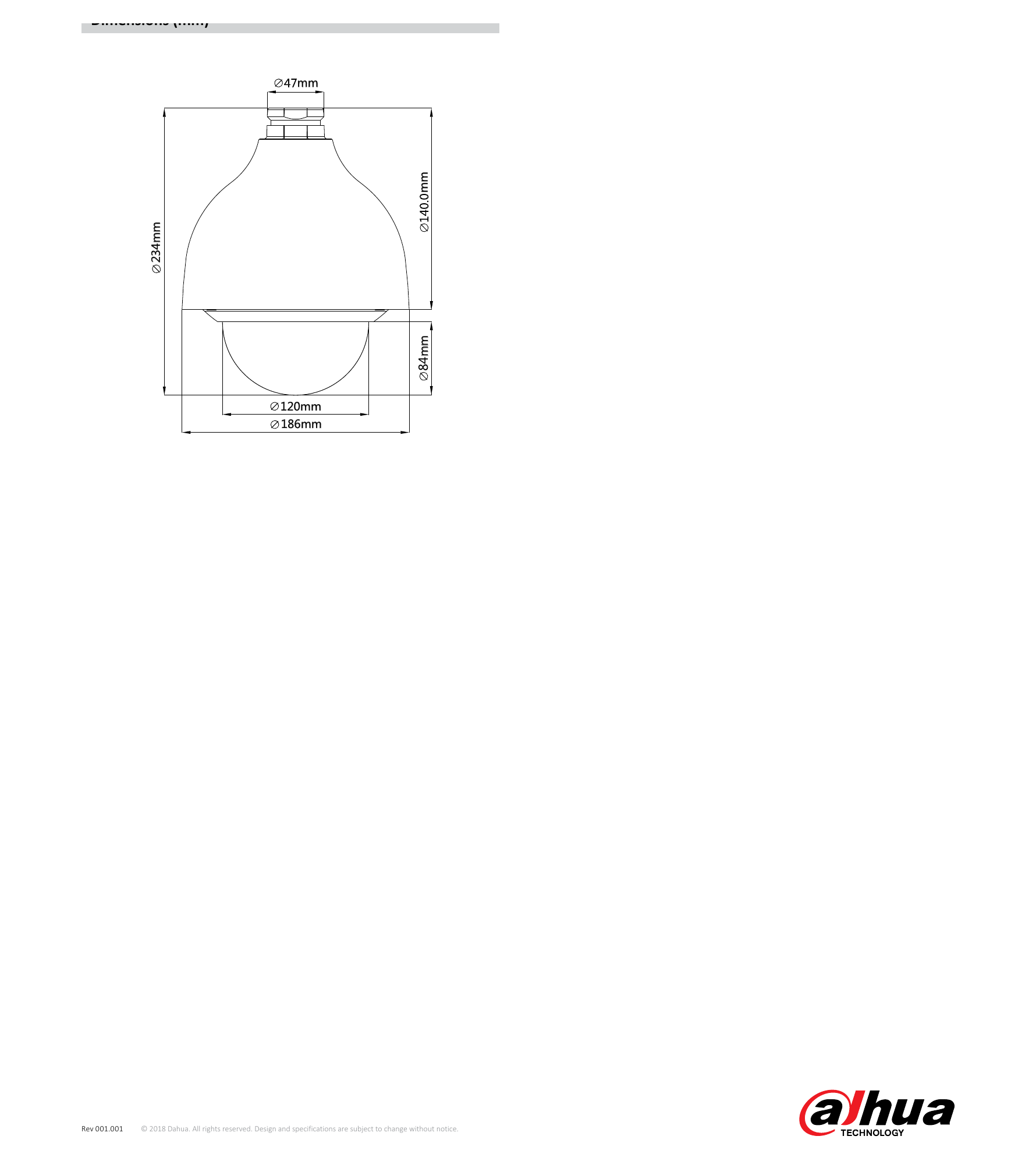

| PFB303S | Parapet Mount www.dahuasecurity.com Dimensions (mm) 234mm 84mm 120mm 186mm |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
