| Camera | Video |
|---|
| 影像感測器 | 1/2.8” STARVIS™ CMOS Compression H.265+/H.265/H.264+/H.264 |
|---|
| Effective Pixels | 1920(H) x 1080(V), 2 Megapixels Streaming Capability 3 Streams |
|---|
| RAM/ROM | 1024M/128M 1080P(1920×1080)/720P(1280×720)/ Resolution D1(704×576/704×480)/CIF(352×288/352×240) |
|---|
| Scanning System | Progressive Main stream: 1080P/720P(1 ~ 25/30fps) |
|---|
| Electronic Shutter Speed | 1/1s~1/30,000s |
|---|
| Frame Rate | Sub stream1: D1/CIF(1 ~ 25/30fps) |
|---|
| Minimum Illumination | Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6 Sub stream2: 720P/D1/CIF(1 ~ 25/30fps) |
|---|
| S/N Ratio | More than 55dB |
|---|
| 碼率控制 | CBR/VBR |
|---|
| IR Distance | N/A |
|---|
| Bit Rate | H.265/H.264: 448K ~ 8192Kbps |
|---|
| IR On/Off Control | N/A |
|---|
| Day/Night | Auto(ICR) / Color / B/W |
|---|
| IR LEDs | N/A |
|---|
| Backlight Compensation | BLC / HLC / WDR(120dB) |
|---|
| White Balance | Auto, ATW, Indoor, Outdoor, Manual |
|---|
| 焦距 | 5.3mm~64mm |
|---|
| Gain Control | Auto / Manual |
|---|
| Max. Aperture | F1.6 ~ F4.4 |
|---|
| Noise Reduction | Ultra DNR (2D/3D) |
|---|
| Angle of View | H: 58.2° ~ 4.8° |
|---|
| Motion Detection | Support |
|---|
| Optical Zoom | 12x |
|---|
| Region of Interest | Support |
|---|
| Focus Control | Auto/Manual Electronic Image Stabilization |
|---|
| Close Focus Distance | 100mm~ 1000mm N/A (EIS) |
|---|
| DORI Distance | Defog Support *Note: The DORI distance is a “general proximity” of distance which makes it easy to Digital Zoom 16x pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the |
|---|
| Flip | 180° criteria for Detect, Observe, Recognize and Identify respectively. |
|---|
| Detect | Observe Recognize Identify Privacy Masking Up to 24 areas 883m(2897ft) 353m(1158ft) 177m(581ft) 88m(289ft) Audio |
|---|
| PTZ | Compression G.711a/G.711Mu/G.726/AAC |
|---|
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -2° ~ 90°,auto flip 180° Network |
|---|
| Manual Control Speed | Pan: 0.1° ~300° /s; Tilt: 0.1° ~120° /s Ethernet RJ-45 (10XBase-T/100Base-TX) |
|---|
| Preset Speed | Pan: 300° /s; Tilt: 200° /s IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, |
|---|
| Protocol | ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x |
|---|
| 預置位 | 300 |
|---|
| Interoperability | ONVIF Profile S&G, API |
|---|
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan ,Auto Scan |
|---|
| Streaming Method | Unicast / Multicast |
|---|
| Speed Setup | Human-oriented focal Length/ speed adaptation |
|---|
| Max. User Access | 20 users Auto restore to previous PTZ and lens status after Power up Action power failure NAS (Network Attached Storage), Local PC for Edge Storage Activate Preset/ Scan/ Tour/ Pattern if there is no instant recording, Micro SD card 256GB Idle Motion command in the specified period |
|---|
| Web Viewer | IE, Chrome, Firefox, Safari |
|---|
| Management Software | Smart PSS, DSS, DMSS Intelligence |
|---|
| Smart Phone | IOS, Android Motion detection, Video tampering, Network |
|---|
| Event Trigger | disconnection, IP address conflict, Illegal access, |
|---|
| Storage anomaly | Certifications |
|---|
| Auto Tracking | N/A CE: EN55032/EN55024/EN50130-4 |
|---|
| Certifications | FCC: Part15 subpartB,ANSI C63.4- 2014 |
|---|
| IVS | Tripwire, Intrusion,Abandoned/Missing UL: UL60950-1+CAN/CSA C22.2,No.60950-1 www.dahuasecurity.com |
|---|
| 接口 | Optional： |
|---|
| Video Interface | N/A |
|---|
| RS485 | N/A |
|---|
| Audio I/O | 1/1 |
|---|
| Alarm I/O | 2/1 PFB302S PFA102 PFB300C |
|---|
| Wall Mount | Mount Adapter Ceiling Mount Electrical |
|---|
| 供電 | AC 24V/1.5A(±10%), PoE+(802.3at) |
|---|
| 功耗 | 12W Environmental |
|---|
| PFA150 | PFA151 |
|---|
| Operating Conditions | -30°C ~ 60°C (-22°F ~ +140°F) / Less than 95% RH Pole Mount Corner Mount |
|---|
| 防護等級 | IP66 Ceiling Mount Wall Mount |
|---|
| PFA102 + PFB300C | PFA102 + PFB302S |
|---|
| Vandal Resistance | IK10 Construction |
|---|
| Casing | Metal |
|---|
| 尺寸 | Φ170(mm)×155(mm) |
|---|
| 淨重 | 1.8kg(3.97lb) |
|---|
| 毛重 | 3.3kg(7.28lb) |
|---|
| Pole Mount | Corner Mount |
|---|
| Ordering Information | PFA102 + PFB302S + PFA150 PFA102 + PFB302S + PFA151 |
|---|
| 類型 | Part Number Description 2MP 12x Starlight PTZ Network DH-SD42212T-HN Camera, WDR, PAL 2MP 12x Starlight PTZ Network DH-SD42212TN-HN 2MP PTZ Camera, WDR, NTSC |
|---|

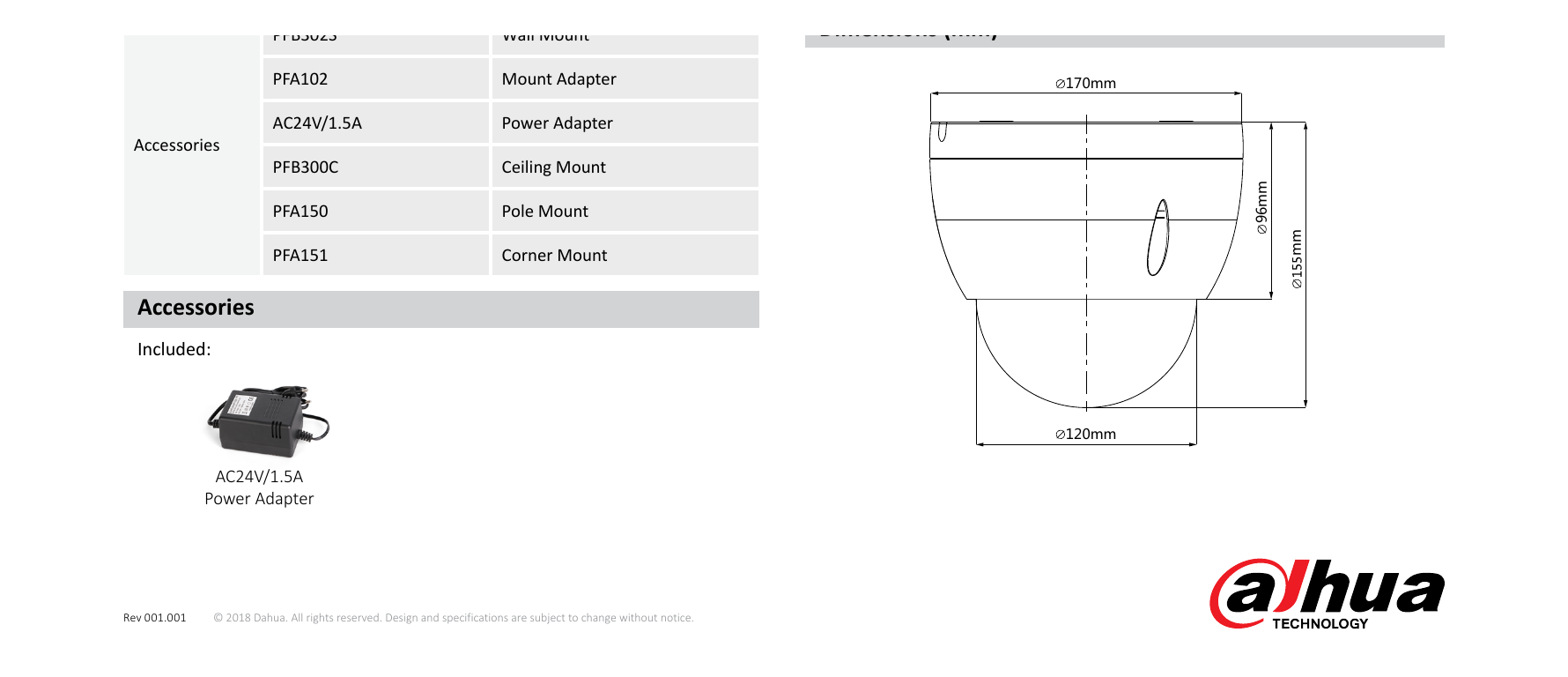

| PFB302S | Wall Mount Dimensions (mm) |
|---|
| PFA102 | Mount Adapter 170mm |
|---|
| AC24V/1.5A | Power Adapter Accessories |
|---|
| PFB300C | Ceiling Mount 96mm |
|---|
| PFA151 | Corner Mount Accessories Included: 120mm AC24V/1.5A Power Adapter |
|---|
| Rev 001.001 | © 2018 Dahua. All rights reserved. Design and specifications are subject to change without notice. www.dahuasecurity.com |
|---|
